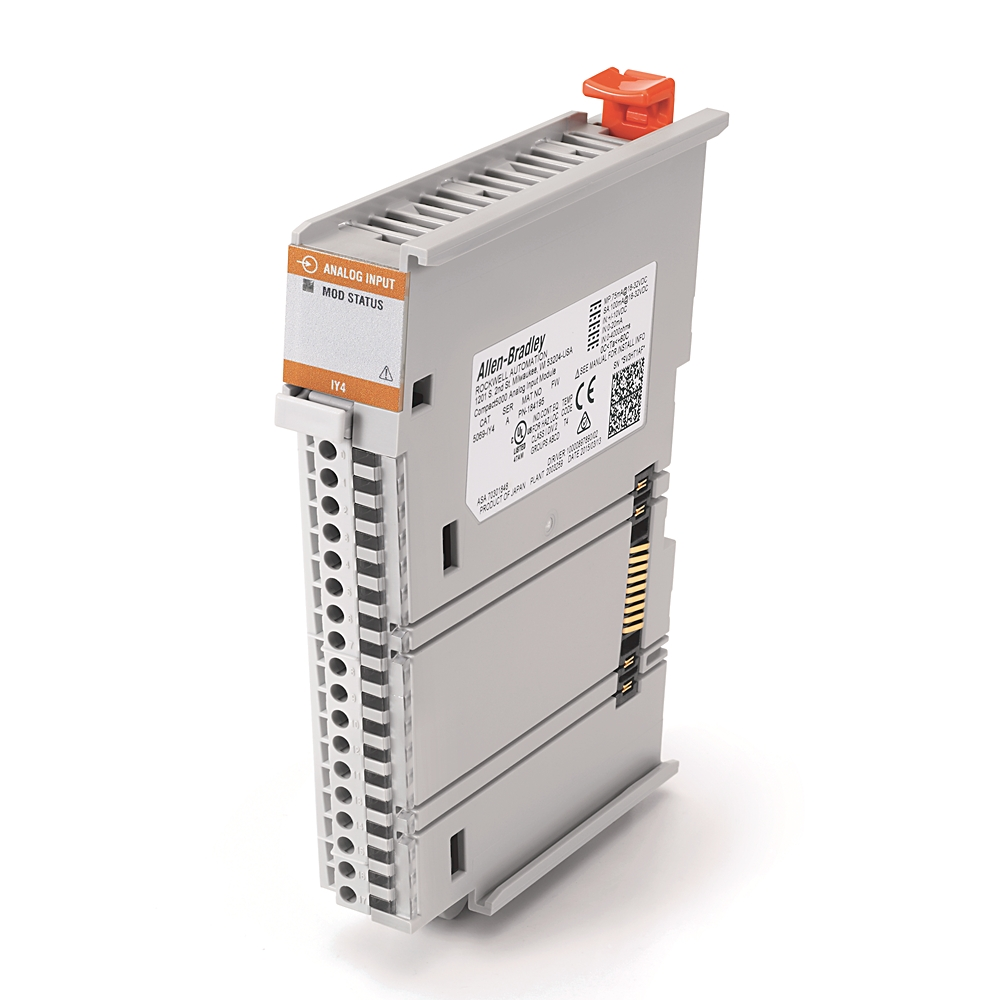

5069-IY4K | Allen Bradley Analog Input Module
- Regular price
- $1,024.00
- Sale price
- $1,024.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 5069-IY4K
Description
The Allen-Bradley 5069-IY4K is a 4-channel analog input module designed for use with the CompactLogix™ 5380 system. It provides high-performance analog input capabilities, supporting 16-bit resolution for precise measurements. The module features a wide input range and is ideal for industrial applications requiring reliable analog data acquisition and control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen Bradley |
| Category |
HMI (Human Machine Interfaces)
|
| Part Number | 5069-IY4K |
| Subcategory |
HMI Modules
|
| Weight | 1.36 kgs |
| Inputs | 4 |
| Voltage Type | DC SA |
| Control Modes | Voltage, Current, RTD, and Thermocouple |
| Conversion Method | Sigma-Delta |
| Mounting | DIN Rail |
| Power Dissipation (Max) | 5.3 Watts at 60 degrees Celsius |
| Backplane Current at 5 Volts | 175 milliamps |
| Backplane Current at 24 Volts | 250 milliamps |
| Removeable Terminal Block(s) | 1756-TBNH, 1756-TBSH |
| Isolation Voltage | 50 Volts Continuous |
Information About 5069-IY4K
The Allen-Bradley 5069-IY4K is a 4-channel analog input module designed for the Compact 5000™ I/O system, compatible with CompactLogix™ 5380, Compact GuardLogix® 5380, and CompactLogix 5480 controllers. This module supports a wide range of input types, including voltage, current, RTD (Resistance Temperature Detector), and thermocouple inputs, and offers both differential and single-ended, non-isolated configurations.
Key Features and Specifications
- Model: 5069-IY4K
- Type: 4-channel analog input module
- Input Types Supported:
- Voltage
- Current
- RTD
- Thermocouple
- Input Configuration:
- Differential
- Single-ended, non-isolated
- Compatibility:
- CompactLogix™ 5380 controllers
- Compact GuardLogix® 5380 controllers
- CompactLogix 5480 controllers
- Power Requirements:
- Requires DC SA power
- Connection via SA power RTB on compatible components
- Mounting: Open-style, within Compact 5000™ I/O chassis
- Certifications:
- CE, CSA, UL, RCM, KC, Marine, NRTL
Benefits
- Versatile Input Support: Accommodates a wide range of sensor types, providing flexibility for various applications.
- Flexible Configuration: Offers both differential and single-ended input options.
- Seamless Integration: Easily integrates with CompactLogix™ controllers for reliable performance.
- Robust Performance: Designed to handle industrial environments, ensuring accurate and dependable analog data acquisition.
Applications
- Industrial Automation: Suitable for applications requiring precise analog measurements from different sensors.
- Control Systems: Ideal for control systems that need to process a variety of input types.
- Energy Management: Useful for energy monitoring and control systems requiring accurate analog inputs.
The 5069-IY4K module enhances the Compact 5000™ I/O system by providing reliable, versatile analog input capabilities for a wide range of industrial applications.
