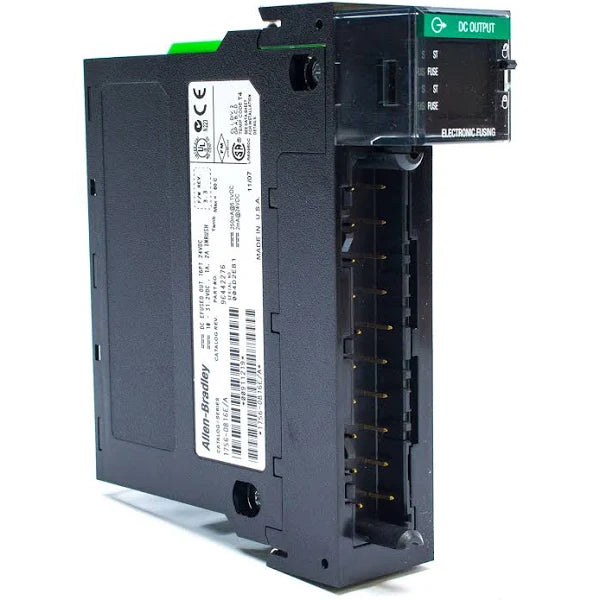

1756-OB16E | Allen-Bradley ControlLogix 10-31V DC 16-Ch Fused Output Module
1756-OB16E | Allen-Bradley ControlLogix 10-31V DC 16-Ch Fused Output Module
1756-OB16E | Allen-Bradley ControlLogix 10-31V DC 16-Ch Fused Output Module
    1756-OB16E | Allen-Bradley ControlLogix 10-31V DC 16-Ch Fused Output Module
1756-OB16E | Allen-Bradley ControlLogix 10-31V DC 16-Ch Fused Output Module

1756-OB16E | Allen-Bradley ControlLogix 10-31V DC 16-Ch Fused Output Module

Part #: 1756-OB16E Manufactured by: Allen-Bradley
$239.00
$239.00
5 in Stock
Condition: New – Open box
Shipping calculated at checkout.
Product Overview
Allen Bradley ControlLogix Electronic Fused DC Output Module with 16-Point Electronically Fused Outputs
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Contact Us!

Talk to a real expert.

phone
+1 (828) 222-3490
email
sales@iqelectro.com
Mon–Sat, 7:00 AM – 12:00 PM (EST)
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 1756-OB16E
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 1756-OB16E

Description / Specifications

Description

The Allen-Bradley 1756-OB16E is a 16-channel DC output module for ControlLogix systems, providing electronically fused 10–31.2 VDC outputs for reliable control of industrial loads. Each output is grouped into two independently fused banks of eight channels to enhance protection and fault isolation.





Technical Specifications

Condition New/Never Used Surplus
Brand Allen-Bradley
Category I/O Modules
Part Number 1756-OB16E
Subcategory Digital Output Modules
Series ControlLogix
Module Type DC Output Module
Number of Outputs 16 electronically fused points
Output Voltage Range 10–31.2 VDC (nominal 24 VDC)
Maximum Output Current (per point) 1 A at 60°C
Maximum Output Current (per module) 8 A at 60°C
Output Delay (OFF→ON) 70 µs nominal / 1 ms max
Output Delay (ON→OFF) 360 µs nominal / 1 ms max
Surge Current 2 A for 10 ms per point
Minimum Load Current 3 mA per point
Backplane Current (5.1 VDC) 250 mA
Backplane Current (24 VDC) 2 mA
Power Dissipation (max) 4.1 W @ 60°C
Thermal Dissipation 13.98 BTU/hr @ 60°C
Isolation Voltage 50 V continuous
Slot Width 1
RTB Options 1756-TBNH, 1756-TBSH
Operating Temperature 0–60°C
Enclosure Open
Manufacturer Rockwell Automation





Information About 1756-OB16E

The 1756-OB16E is part of the ControlLogix digital output family, engineered for applications requiring protected 24V DC sourcing outputs. Its two electronically fused output groups provide improved load management and automatic shutdown in the event of overload conditions. The module offers fast switching response, minimal delay times, and stable current delivery, making it suitable for actuating solenoids, relays, lamps, and similar field devices. Compatible with all ControlLogix chassis and controllers, it supports flexible installation and provides configurable states for program and fault modes to enhance operational safety.

Key Features:

  • 16-Point DC Output Module: Provides sixteen 10–31.2 VDC sourcing outputs for controlling field devices.
  • Electronically Fused Groups: Two independent groups of eight outputs protect against overload and short-circuit events.
  • Fast Switching Performance: Offers 70 µs typical OFF-to-ON and 360 µs ON-to-OFF delay times for responsive actuation.
  • High Output Capacity: Supports 1 A per channel and 8 A maximum per module at 60°C.
  • Surge Handling: Rated for 2 A surge per point for 10 ms, repeatable every two seconds at 0°C.
  • Wide Chassis Compatibility: Works with any ControlLogix chassis for both local and distributed I/O.
  • Diagnostic Flexibility: Supports configurable states in program and fault modes for safety and troubleshooting.
  • Secure Termination Options: Compatible with 1756-TBNH and 1756-TBSH removable terminal blocks.

The 1756-OB16E delivers the reliability and precision required for industrial DC output control within ControlLogix automation systems.

Frequently Asked Questions about 1756-OB16E
Question: What are the key features of the 1756-OB16E module?
Date Update:04/06/2025
Answer:

The Allen-Bradley 1756-OB16E is a 16-point DC output module designed for ControlLogix systems. It features:

  • Output Voltage Range: 10–31.2 V DC
  • Nominal Output Voltage: 24 V DC
  • Output Type: Electronically fused, 16 points divided into two groups of 8
  • Maximum Output Current: 1 A per point at 60°C; 8 A per module at 60°C
  • Power Dissipation: 4.1 W maximum at 60°C
  • Thermal Dissipation: 13.98 BTU/hr at 60°C
  • Backplane Current Draw: 250 mA at 5.1 V DC; 2 mA at 24 V DC
  • Operating Temperature: 0°C to 60°C (32°F to 140°F)
  • Storage Temperature: -40°C to 85°C (-40°F to 185°F)
  • Relative Humidity: 5% to 95% (non-condensing)
  • Isolation Voltage: 250 V continuous between groups of 8 outputs
  • Mounting: Single-slot wide module compatible with any 1756 ControlLogix chassis

This module is ideal for controlling devices such as relay coils, solenoids, pilot lamps, and sirens in industrial automation systems.

Question: What are the wiring requirements for the 1756-OB16E module?
Date Update:04/06/2025
Answer:

The 1756-OB16E module requires a Removable Terminal Block (RTB) or an Interface Module (IFM) to connect all field-side wiring. Compatible RTBs include:

  • 1756-TBNH: Standard RTB
  • 1756-TBSH: Spring clamp RTB

These RTBs are sold separately and are necessary for proper installation and wiring of the module.

Question: How does the 1756-OB16E module handle output delays?
Date Update:04/06/2025
Answer:

The 1756-OB16E module has the following output delay times:

  • OFF to ON: 70 µs nominal / 1 ms maximum
  • ON to OFF: 360 µs nominal / 1 ms maximum

These fast switching times make the module suitable for high-speed control applications.

Question: What certifications does the 1756-OB16E module have?
Date Update:04/06/2025
Answer:

The 1756-OB16E module is certified for:

  • UL (Underwriters Laboratories): Listed as Industrial Control Equipment (File E65584)
  • CSA (Canadian Standards Association): Certified as Process Control Equipment (File LR54689C)
  • CE (Conformité Européenne): Compliant with European Union 2004/108/IEC EMC Directive

These certifications ensure the module meets international safety and electromagnetic compatibility standards.

Question: What are the recommended accessories for the 1756-OB16E module?
Date Update:04/06/2025
Answer:

To ensure proper installation and operation of the 1756-OB16E module, the following accessories are recommended:

  • Removable Terminal Blocks (RTBs): 1756-TBNH or 1756-TBSH
  • Interface Modules (IFMs): For connecting to mechanical relays or other field devices
  • Cables: Compatible cables for connecting the module to field devices

These accessories are essential for establishing reliable connections and ensuring the module functions correctly within your automation system.
