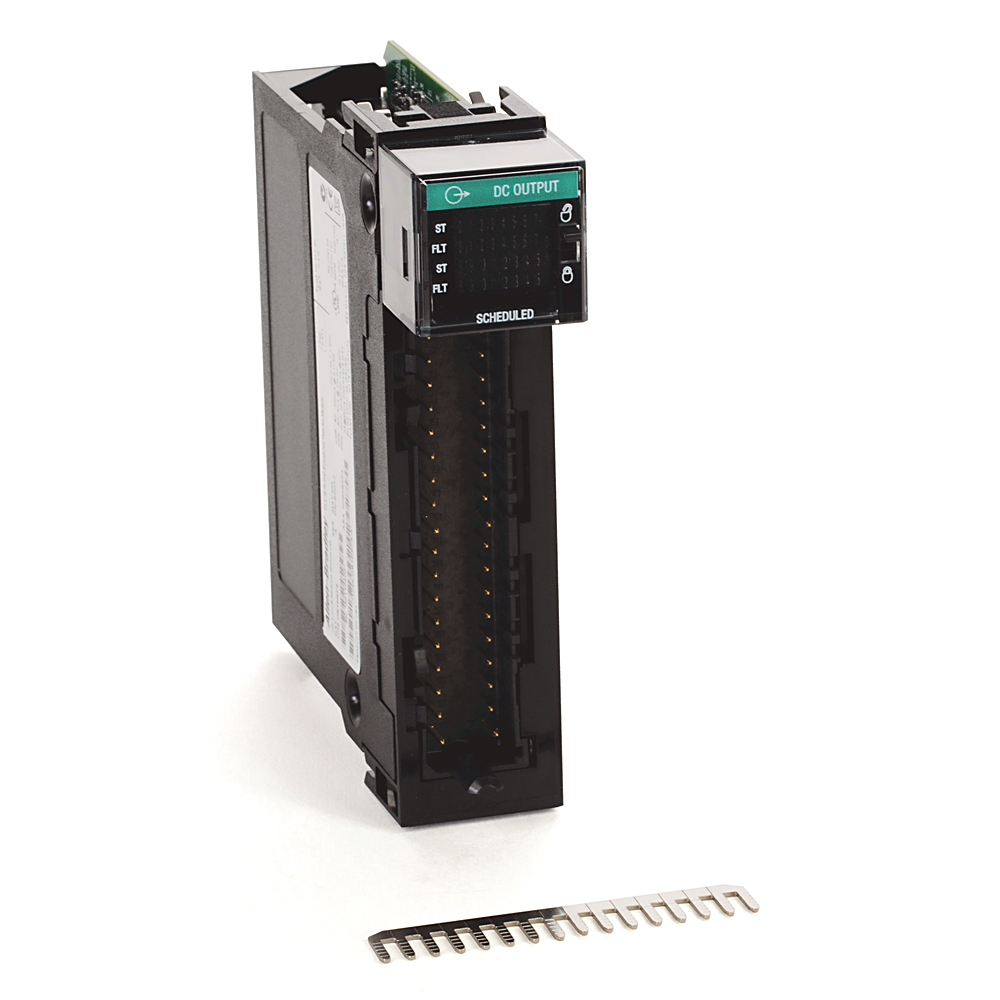

1756-OB16IEFS | Allen Bradley ControlLogix DC Output Module
- Regular price
- $2,392.00
- Sale price
- $2,392.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1756-OB16IEFS
Description
The Allen-Bradley 1756-OB16IEFS is a ControlLogix DC Output Module designed for high-speed, electronically-fused, and individually-isolated operations. With 16 scheduled outputs, it supports advanced time-scheduled control, making it ideal for demanding industrial automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen Bradley |
| Category | PLCs and Accessories |
| Part Number |
1756-OB16IEFS |
| Subcategory | PLC Expansion Modules |
| Series | ControlLogix |
| Module Type | DC Output Module |
| Circuit Type | DC |
| Input Voltage | 10-30 Volts |
| Operating Voltage Range | 10-30 Volts DC |
| Power Dissipation (Max) | 3.6 Watts at 60 Celsius |
| Backplane Current at 5 Volts | 350 milliamps |
| Backplane Current at 24 Volts | 3 milliamps |
| Removeable Terminal Block(s) | 1756-TBCH, 1756-TBS6H |
Information About 1756-OB16IEFS
The 1756-OB16IEFS is an advanced DC output module from the Allen-Bradley ControlLogix series, featuring 16 high-speed outputs. It supports CIP Sync for precise scheduling and timestamps, enabling time-scheduled output control with a minimum interval of 5 µs. As the only module compatible with the Motion Axis Output Cam (MAOC) instruction, it allows real-time output data processing in remote chassis. The module operates within a voltage range of 10-30V DC and supports a maximum output current of 2A per point at 30°C or 1A at 60°C. To ensure proper installation, it requires a removable terminal block (1756-TBCH or 1756-TBS6H).
Key Features:
- Outputs: 16 scheduled, high-speed, individually-isolated, and electronically-fused outputs.
- CIP Sync Compatibility: Supports precise time synchronization and scheduling with timestamps.
- MAOC Instruction Support: The only module capable of executing Motion Axis Output Cam functions in a remote chassis.
- Voltage Range: Operates at 10-30V DC for flexible application compatibility.
- Output Current: Up to 2A per point at 30°C and 1A per point at 60°C.
- High-Speed Control: Enables time-scheduled control with a minimum interval of 5 µs.
The Allen-Bradley 1756-OB16IEFS is an ideal choice for applications requiring high-speed, precise, and reliable DC output control. Its advanced features and robust design make it a valuable addition to industrial automation systems.
