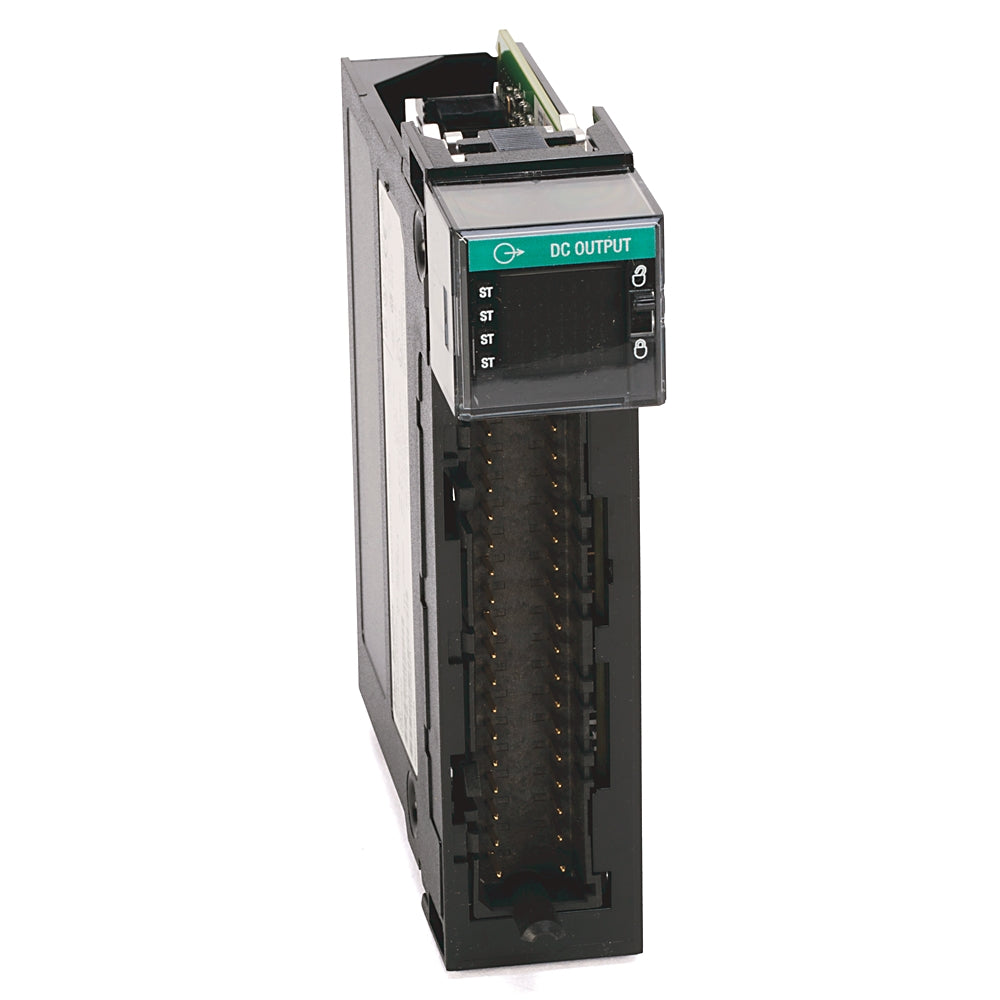

1756-OB32 | Allen-Bradley ControlLogix 10-31VDC Output Module, 32 Points (36 Pin)
- Regular price
- $442.00
- Sale price
- $442.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1756-OB32
Description
The 1756-OB32 is a ControlLogix Discrete output module which operate at a voltage category of 12 / 24VDC. This module has Thirty-Two (32) channels with Two (2) groups of Eight (8) channels each. This module is directly installed to a 1756 local or remote chassis.
Technical Specifications
| Brand | Allen-Bradley |
| Series | ControlLogix |
| Part Number | 1756-OB32 |
| Manufacturer | Rockwell Automation |
| Module Type | DC Output Module |
| Outputs | 32-Point |
| Voltage | 12-24 Volts DC Source |
| Operating Voltage Range | 10-31.2 Volts DC |
| Output Delay Time, OFF to ON | 60 µs nom/1 ms max |
| Output Delay Time, ON to OFF | 200 µs nom/1 ms max |
| Current per point | 0.5 A @ 50 °C (122 °F) linear derating 0.35 A @ 60 °C (140 °F) |
| Current per module | 16 A @ 50 °C (122 °F) linear derating 10 A @ 60 °C (140 °F) |
| Maximum Output Current Rating-Point | 0.5 Amps at 50 Celsius, 0.35 Amps at 60 Celsius |
| Maximum Output Current Rating-Module | 16 Amps at 50 Celsius, 10 Amps at 60 Celsius |
| Power Dissipation (Max) | 4.8 Watts at 60 degrees Celsius |
| Backplane Current at 5 Volts | 300 milliamps |
| Removeable Terminal Block(s) | 1756-TBCH, 1756-TBS6H |
| Isolation Voltage | 50 Volts Continuous |
| Enclosure | None |
Information About 1756-OB32
The 1756-OB32 is an Allen-Bradley High-Density 24VDC discrete output module. This module is used to drive output devices connected to each channel of this module. Output devices may include pilot lamps, relays, contactors, panel annunciators, solenoids, buzzer, siren, horn and other actuating devices.
This output module is ideal for use in systems where a high number of outputs are existing with limited space for installation of larger or expansion ControlLogix chassis. It occupies single slot and supports installation in local or remote chassis. This module is compatible for use with any ControlLogix processor including the more recent ControlLogix versions.
This 1756-OB32 is provided with 32 LED indicators that is used to monitor channel actuations. This front panel indicators are important visual troubleshooting tool as it may be used to confirm the controller’s command to the connected load. Each channel has individual configurable parameters and support output forcing. This module only supports sourcing configuration.
A Removable Terminal Block (RTB) is required for use with this module. Appropriate RTB for this output module are 1756-TBCH and 1756-TBS6H. RTBs are used to provide modular connection to output devices. During module replacement, the entire RTB is removed from the installation slot and transferred to the replacement module. This prevents wiring reworks for faster maintenance and troubleshooting.
Recommended fuse for this module is the 5x20mm 800 mA supplied by the Littelfuse p/n SP001.1003 or the Schurter p/n 216.800. A Removable Terminal Block (RTB) is required for wiring output connections. For this module, the only compatible RTB are the cage clamp 1756-TBCH and the spring clamp 1756-TBS6H. Remember to install and ground the chassis and power supply prior to installing the module with the RTB. The module also has status light indicators that show the module status and the individual I/O status.
The communication formats that work with the 1756-OB32 module are scheduled output data, output data, rack optimization, listen-only rack optimization, and listen-only output data. You can also configure the states in Fault Mode per point and the states in Program Mode per point. You can choose the following options for both: Hold Last State, On, or Off. Note that this is set by default for all.
The 1756-OB32 module has a voltage category of 12/24V DC source and an operating voltage range of 10 to 31.2V DC. Its current draw at 5.1V DC is 300 mA and at 24V, it has a current draw of 2 mA. It also has a total backplane power of 1.58W, a maximum off-state leakage current per point of 0.5 mA per point, and a maximum on-state voltage drop of 200 mV DC at 0.5 A. Its maximum surge current per point is 1 A for 10 ms per point that is repeatable every 2 s at 60 Degrees Celsius and its minimum load current is 3 mA per point. The maximum current per point at 50 Degrees Celsius is 0.5A and 0.35A at 60 Degrees Celsius, while the maximum current per module is 16 A at 50 Degrees Celsius and 10 A at 60 Degrees Celsius. This module also has a continuous isolation voltage of 250V.
The output delay time of the 1756-OB32 module from off to on is a nominal 60 ?s and 1 ms max, while from on to off, it is 200 ?s nominal and 1 ms max. It has an operating temperature range of 0 to 60 Degrees Celsius and and a non-operating temperature range of -40 to 85 Degrees Celsius.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
