Part #: 1756-OF8I Manufactured by: Allen-Bradley
Regular price
$907.00
Sale price
$907.00
Regular price
5 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Allen-Bradley 1756-OF8I ControlLogix analog output module provides eight isolated outputs for current and voltage sign...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 1756-OF8I
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 1756-OF8I

Description / Specifications

Description

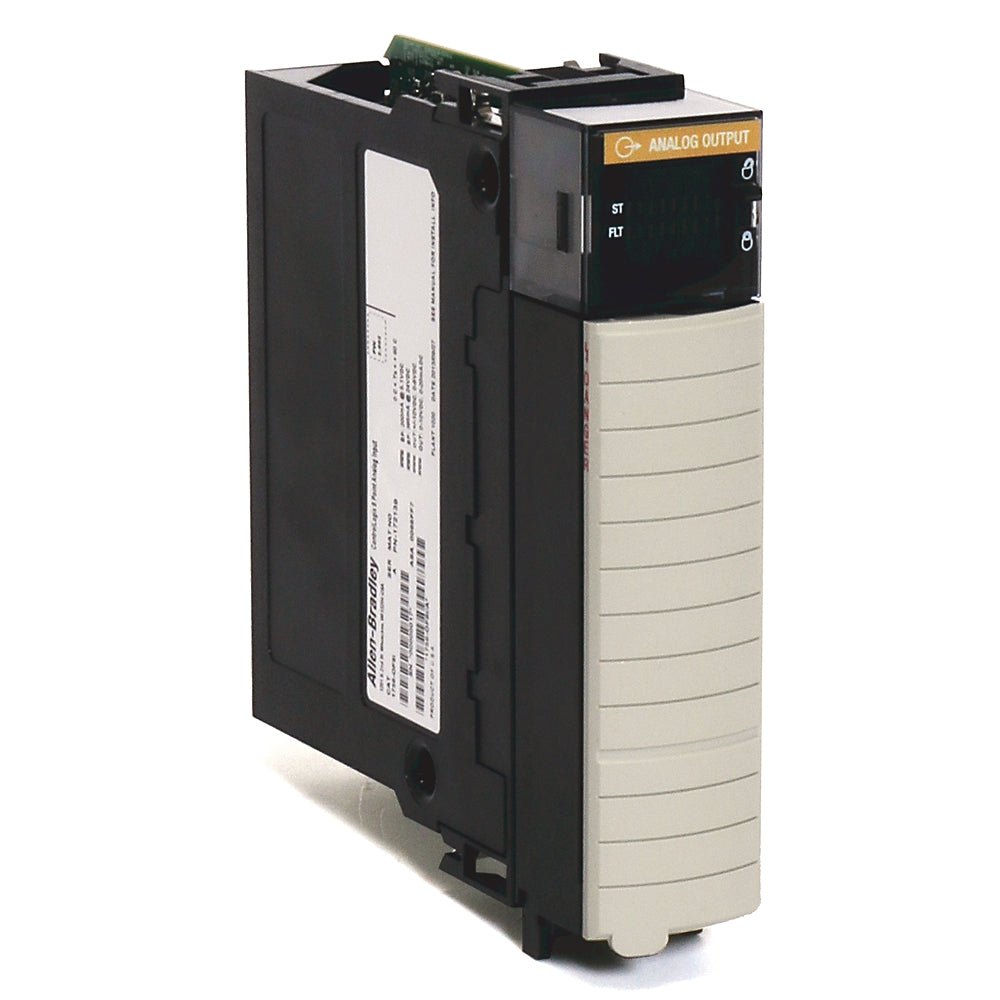

The Allen-Bradley 1756-OF8I is an isolated analog output module from the ControlLogix series. It provides eight individually isolated channels capable of delivering both voltage and current output signals for driving modulating actuators and industrial devices.





Technical Specifications

Brand Allen-Bradley
Series ControlLogix
Part Number 1756-OF8I
Manufacturer Rockwell Automation
Outputs 8 Current
Module Type Isoloated Analog Output Module
Current Draw (24 Volts DC) 400 milliamps
No. of Outputs Eight (8) Current / Voltage
Power Dissipation 6.5 Watts
Output Current Range 0-20 mA; 4-20 mA
Output Range 0-20 or 4-20 milliamps
Output Voltage Range 10…10V; 0…10V; 0…5V
Resolution 15 bits
Data Format IEEE 32-bit floating point
Removeable Terminal Block(s) 1756-TBNH, 1756-TBSH
Conversion Method R-Ladder DAC, monotonicity with no missing codes
Isolation Voltage 50 Volts Continuous
Removable Terminal Block(s) 1756-TBCH, 1756-TBS6H
Open circuit detection Current only
Short circuit detection Voltage only
Overvoltage protection ±30V DC (voltage/current)
Enclosure None





Information About 1756-OF8I

The 1756-OF8I belongs to the Allen-Bradley ControlLogix family of I/O modules and is designed for high-performance analog output applications. It supports configurable output ranges of -10 to 10V, 0 to 10V, 0 to 5V, and 0–20 mA or 4–20 mA, all with 15- to 16-bit resolution using IEEE 32-bit floating-point data format. Each channel is fully isolated, providing improved signal integrity and reduced interference across outputs. The module features R-Ladder DAC conversion with monotonic performance, ensuring accurate and stable signal generation without missing codes. It includes built-in open-circuit detection for current outputs, short-circuit detection for voltage outputs, and overvoltage protection up to ±30V DC. With removable terminal blocks (1756-TBNH, 1756-TBSH, 1756-TBCH, 1756-TBS6H), it allows flexible wiring options for system integration. The 1756-OF8I is designed for direct installation into any 1756 ControlLogix chassis, supporting demanding industrial automation environments with reliability and precision.

Key Features:

  • Channel Capacity: Provides eight (8) isolated analog output channels configurable for voltage or current signals.
  • Output Ranges: Supports voltage outputs of -10 to 10V, 0 to 10V, 0 to 5V, and current outputs of 0–20 mA or 4–20 mA.
  • Resolution and Format: Delivers 15–16-bit resolution with IEEE 32-bit floating-point data format for high accuracy.
  • Conversion Method: Uses R-Ladder DAC with monotonic conversion and no missing codes for precise signal control.
  • Protection Functions: Includes open-circuit detection (current), short-circuit detection (voltage), and ±30V DC overvoltage protection.
  • Electrical Ratings: Backplane current draw of 200 mA at 5.1V DC and 275–400 mA at 24V DC with a maximum power dissipation of 6.5W.
  • Isolation: Provides 50V continuous isolation voltage, tested up to 1500V AC/2300V AC for 60 seconds for channel-to-channel and backplane safety.
  • Environmental Reliability: Operates in 0–60 °C with 5–95% non-condensing humidity, shock tested to 30G, ensuring rugged industrial performance.

The 1756-OF8I delivers the reliability and precision required for complex process control and motion applications in industrial automation systems.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

Frequently Asked Questions about 1756-OF8I
Question: What is the 1756-OF8I?
Date Update:02/06/2025
Answer:

The 1756-OF8I is an 8-channel, isolated analog output module for the ControlLogix family of programmable automation controllers (PACs). It provides high-resolution analog signals to control devices like valves, actuators, and other field instruments.

Question: What does “isolated” mean in the 1756-OF8I?
Date Update:02/06/2025
Answer:

Each of the 8 output channels on the 1756-OF8I is electrically isolated from the others. This reduces the risk of electrical interference and ground loops, providing cleaner analog signals and better system reliability.

Question: How is the 1756-OF8I wired?
Date Update:02/06/2025
Answer:
  • Voltage outputs: Connect the positive (+) and negative (-) terminals of the output channel to the device receiving the voltage signal.
  • Current outputs: Connect in a loop configuration, with the output channel’s positive terminal to the device and the device’s return to the output channel’s negative terminal.

Each output channel has individual terminals, and the module’s terminal base assembly (like 1756-TBCH or 1756-TBS6H) is used to connect wiring.

For exact wiring diagrams and connection details, refer to the user manual.

Question: Where can I find the manual for the 1756-OF8I?
Date Update:02/06/2025
Answer:

You can find the detailed user manual and installation instructions on Rockwell Automation’s Literature Library.

Question: What is the resolution and accuracy of the 1756-OF8I?
Date Update:02/06/2025
Answer:

The module offers 15-bit resolution for precise analog output signals. Accuracy and repeatability meet industrial requirements for process control and automation.

IQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The Allen-Bradley 1756-OF8I is an isolated analog output module from the ControlLogix series. It provides eight individually isolated channels capable of delivering both voltage and current output signals for driving modulating actuators and industrial devices.





Technical Specifications

Brand Allen-Bradley
Series ControlLogix
Part Number 1756-OF8I
Manufacturer Rockwell Automation
Outputs 8 Current
Module Type Isoloated Analog Output Module
Current Draw (24 Volts DC) 400 milliamps
No. of Outputs Eight (8) Current / Voltage
Power Dissipation 6.5 Watts
Output Current Range 0-20 mA; 4-20 mA
Output Range 0-20 or 4-20 milliamps
Output Voltage Range 10…10V; 0…10V; 0…5V
Resolution 15 bits
Data Format IEEE 32-bit floating point
Removeable Terminal Block(s) 1756-TBNH, 1756-TBSH
Conversion Method R-Ladder DAC, monotonicity with no missing codes
Isolation Voltage 50 Volts Continuous
Removable Terminal Block(s) 1756-TBCH, 1756-TBS6H
Open circuit detection Current only
Short circuit detection Voltage only
Overvoltage protection ±30V DC (voltage/current)
Enclosure None





Information About 1756-OF8I

The 1756-OF8I belongs to the Allen-Bradley ControlLogix family of I/O modules and is designed for high-performance analog output applications. It supports configurable output ranges of -10 to 10V, 0 to 10V, 0 to 5V, and 0–20 mA or 4–20 mA, all with 15- to 16-bit resolution using IEEE 32-bit floating-point data format. Each channel is fully isolated, providing improved signal integrity and reduced interference across outputs. The module features R-Ladder DAC conversion with monotonic performance, ensuring accurate and stable signal generation without missing codes. It includes built-in open-circuit detection for current outputs, short-circuit detection for voltage outputs, and overvoltage protection up to ±30V DC. With removable terminal blocks (1756-TBNH, 1756-TBSH, 1756-TBCH, 1756-TBS6H), it allows flexible wiring options for system integration. The 1756-OF8I is designed for direct installation into any 1756 ControlLogix chassis, supporting demanding industrial automation environments with reliability and precision.

Key Features:

  • Channel Capacity: Provides eight (8) isolated analog output channels configurable for voltage or current signals.
  • Output Ranges: Supports voltage outputs of -10 to 10V, 0 to 10V, 0 to 5V, and current outputs of 0–20 mA or 4–20 mA.
  • Resolution and Format: Delivers 15–16-bit resolution with IEEE 32-bit floating-point data format for high accuracy.
  • Conversion Method: Uses R-Ladder DAC with monotonic conversion and no missing codes for precise signal control.
  • Protection Functions: Includes open-circuit detection (current), short-circuit detection (voltage), and ±30V DC overvoltage protection.
  • Electrical Ratings: Backplane current draw of 200 mA at 5.1V DC and 275–400 mA at 24V DC with a maximum power dissipation of 6.5W.
  • Isolation: Provides 50V continuous isolation voltage, tested up to 1500V AC/2300V AC for 60 seconds for channel-to-channel and backplane safety.
  • Environmental Reliability: Operates in 0–60 °C with 5–95% non-condensing humidity, shock tested to 30G, ensuring rugged industrial performance.

The 1756-OF8I delivers the reliability and precision required for complex process control and motion applications in industrial automation systems.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
