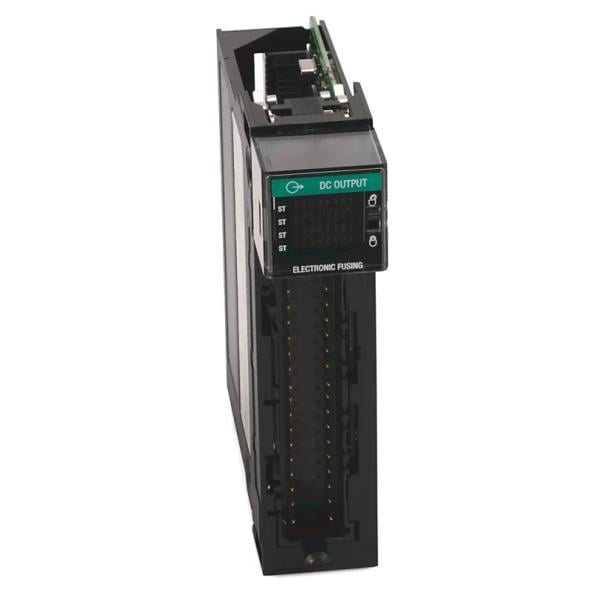

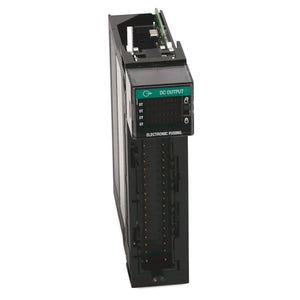

1756-OV32E | Allen-Bradley Controllogix 32-Point D/O Module
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1756-OV32E
Description
The Allen-Bradley 1756-OV32E is a 32-point electronically fused sinking digital output module designed for use within the ControlLogix platform. With high-density output capability and built-in electronic protection, it delivers safe and efficient DC output control for industrial automation systems, ensuring long-term durability and reliable performance.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category | PLCs and Accessories |
| Part Number | 1756-OV32E |
| Subcatecory |
PLC Expansion Modules
|
| Series | ControlLogix |
| Module Type | Electronically Fused Sinking Output Module |
| Outputs | 32-Point Electronically Fused |
| Voltage | 12-24 Volts DC |
| Operating Voltage Range | 10-30 Volts DC |
| Maximum Output Current Rating-Point | 0.5 Amps at 50 Celsius, 0.35 Amps at 60 Celsius |
| Maximum Output Current Rating-Module | 16 Amps at 50 Celsius, 10 Amps at 60 Celsius |
| Power Dissipation (Max) | 5.88 Watts at 60 Celsius |
| Backplane Current at 5 Volts | 390 milliamps |
Information About 1756-OV32E
The 1756-OV32E module supports 12–24V DC sinking outputs, operating effectively within a 10–30V DC range. Each of its 32 output points is electronically fused, providing individual short-circuit protection to reduce system downtime and simplify troubleshooting. The module can handle a maximum output current of 0.5 A per point at 50°C (or 0.35 A at 60°C), and a total module output current of up to 16 A at 50°C (10 A at 60°C), making it suitable for controlling a wide variety of discrete loads such as solenoids, relays, and indicators.
Key Features:
-
32 Electronically Fused Sinking Outputs: Provides dense output capacity with built-in protection.
-
12–24V DC Operation (10–30V Range): Flexible voltage support for a wide range of DC-powered devices.
-
Per-Point and Module-Level Current Ratings: Handles 0.5 A per point and up to 16 A per module at 50°C.
-
Backplane Power Efficient: Draws only 390 mA at 5V, optimizing chassis-level power usage.
-
Built for Harsh Conditions: Operates reliably at elevated temperatures up to 60°C.
The 1756-OV32E is ideal for high-channel-count applications in manufacturing, material handling, and process automation where reliable, protected DC output control is required.
