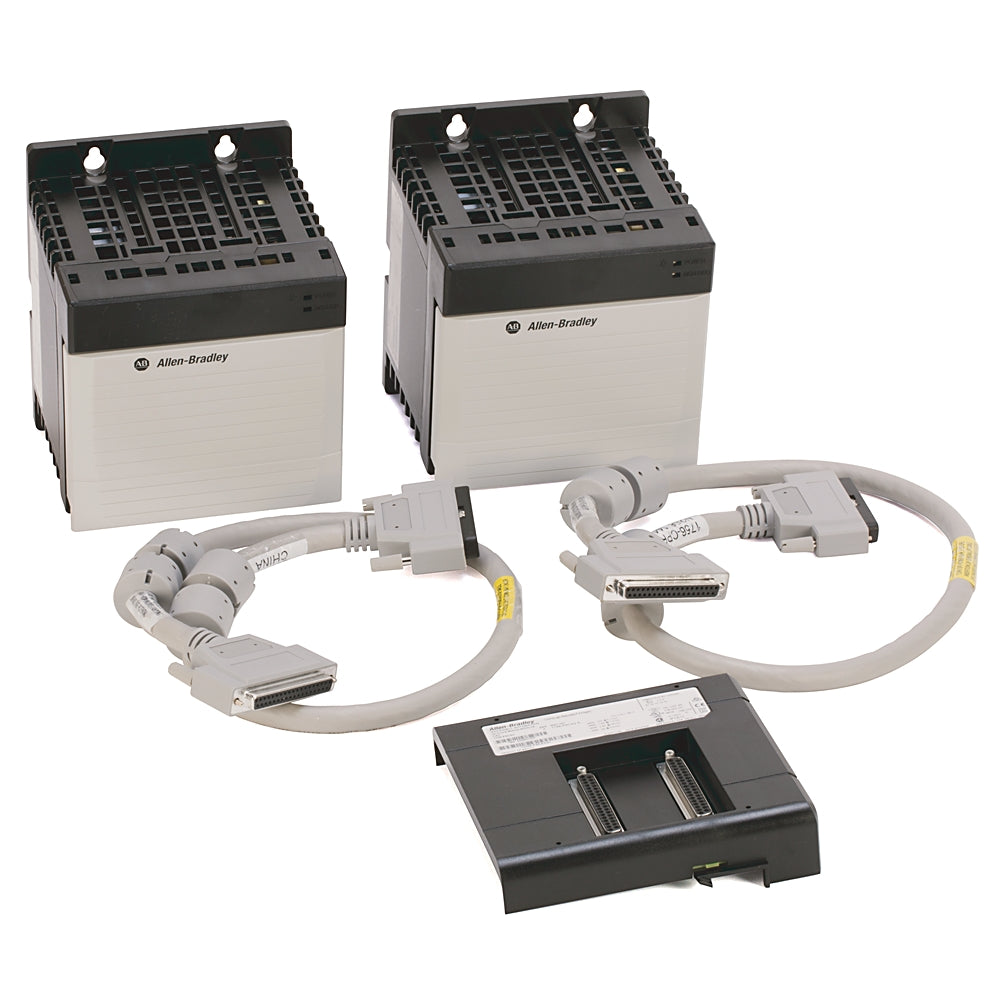

1756-PAR2 | Allen-Bradley 85-265 VAC Redundant Power Supply Assembly
- Regular price
- $3,015.00
- Sale price
- $3,015.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 1756-PAR2
Description
The Allen-Bradley 1756-PAR2 is a ControlLogix redundant power supply kit designed to provide continuous backplane power in high-availability automation systems. The assembly consists of two 1756-PA75R power supplies, two 1756-CPR2 redundant power cables, and one 1756-PSCA2 chassis adapter. This bundled configuration ensures coordinated operation of dual power modules for maximum system uptime.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen-Bradley |
| Category | Power Supplies |
| Part Number | 1756-PAR2 |
| Subcategory | Redundant Power Supply Assembly |
| Series | ControlLogix |
| Assembly Components | Two 1756-PA75R power supplies; Two 1756-CPR2 cables; One 1756-PSCA2 chassis adapter |
| Nominal Input Voltage | 120/240 VAC |
| Input Voltage Range | 85–264 VAC |
| Output Power | 75 W (0…60 °C) |
| Current Capacity | 1.5 A @ 1.2 VDC; 4 A @ 3.3 VDC; 13 A @ 5.1 VDC; 2.8 A @ 24 VDC |
| Max Inrush Current | 20 A |
| Isolation Voltage | 250 V continuous; type-tested 3250 VDC for 60 s |
| Hold-Up Time | 2 cycles @ 50/60 Hz |
| Annunciator Power Rating | 240 VAC/240 VDC, 50 mA resistive |
| Chassis Compatibility | 1756-A4, A7, A10, A13, A17 |
| Input Frequency | 50/60 Hz |
| Cable Length (1756-CPR2) | 0.91 m (3 ft) |
| Enclosure Style | Open-type |
| Manufacturer | Rockwell Automation |
Information About 1756-PAR2
The 1756-PAR2 belongs to the ControlLogix power family and provides a complete hardware set for implementing redundant power in Series B ControlLogix chassis. Its two 1756-PA75R power supplies operate in parallel through the 1756-PSCA2 chassis adapter, enabling seamless failover if one supply becomes unavailable. The included 1756-CPR2 cables synchronize and interconnect the redundant supplies to maintain consistent output and status information. Typical usage involves mission-critical environments—such as process control, safety systems, and continuous manufacturing—where uninterrupted controller power is essential.
Key Features:
- Complete redundancy bundle: Includes dual power supplies, redundant cables, and chassis adapter.
- Wide AC input range: Operates from 85–264 VAC with nominal ratings of 120/240 VAC.
- 75 W output capability: Provides stable power for ControlLogix backplanes up to 60 °C.
- Multiple output voltages: Supports 1.2 VDC, 3.3 VDC, 5.1 VDC, and 24 VDC rails.
- High insulation rating: 250 V continuous isolation, type-tested to 3250 VDC for 60 s.
- Fast hold-up time: 2 cycles at 50 or 60 Hz to bridge brief power dips.
- Chassis compatibility: Supports 1756-A4, A7, A10, A13, and A17 enclosures.
- Annunciator support: Rated for 240 VAC/240 VDC, 50 mA for external status indication.
The 1756-PAR2 delivers the reliability and precision required for redundant power architectures in critical ControlLogix applications.
