1756-PB75R | Allen-Bradley ControlLogix Rack Mount Redundant Power Supply
- Regular price
- $929.00
- Sale price
- $929.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

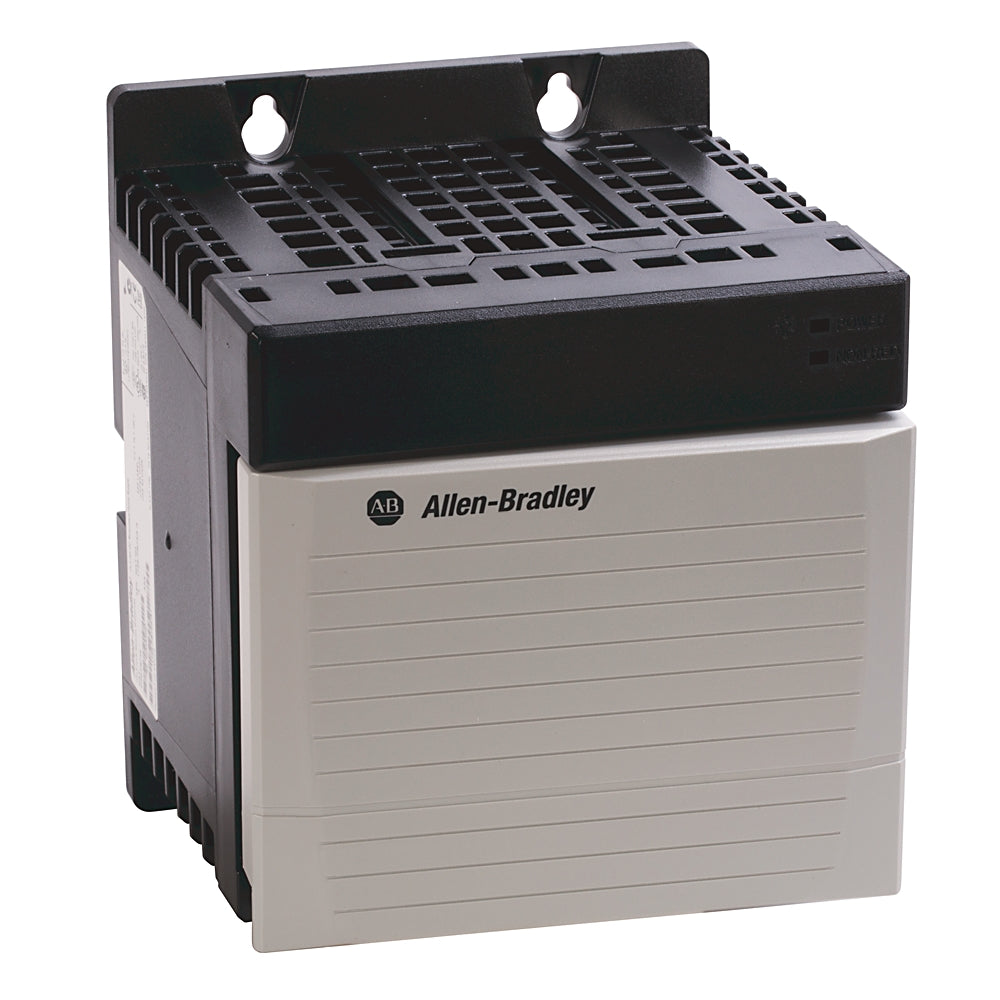

Product Description P/N: 1756-PB75R
Description
The Allen-Bradley 1756-PB75R is a ControlLogix redundant power supply module designed to deliver reliable DC power to ControlLogix chassis. It provides 75W of output power with built-in redundancy capability to ensure continuous operation in critical control applications.
Technical Specifications
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Part Number | 1756-PB75R |
| Compatible chassis | 1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17 |
| Current capacity @ 24 V | 2.8A |
| Current capacity @ 5.1 V | 13A |
| Current capacity @ 3.3 V | 4A |
| Current capacity @ 1.2 V | 1.5A |
| Output power | 75 W @ 0…60 °C (32…140 °F) |
| Inrush Current, max. | 30 A |
| Nominal supply Voltage | 24VDC |
| Input supply voltage range | 18-32VDC |
| Module Type | Redundant Power Supply |
| Dimensions | 17.5 x 14.5 x 13.7 cm (6.9 x 5.7 x 5.4 in.) |
| Series | ControlLogix |
| Input Voltage | 24 Volts DC |
| Voltage Range | 19-32 Volts DC |
| Input Power | 110 Watts |
| Power Output | 75 Watts at 60 Celsius |
| Chassis | Series B |
| Location | Panel Mounted |
| Operating Temperature | 32-140 Fahrenheit (0-60 Celsius) |
| Enclosure | None |
Information About 1756-PB75R
The 1756-PB75R is part of the Allen-Bradley ControlLogix 1756 series, developed to support modular and high-performance automation systems. This power supply accepts 24V DC nominal input and delivers up to 75W of backplane power for system modules. As a redundant-rated unit, it can be paired with another 1756-PB75R to provide fault-tolerant power supply operation, minimizing downtime in critical applications. The module installs directly into the left-most slot of a ControlLogix chassis and includes status indicators for input, output, and fault conditions. Compact and rugged, the 1756-PB75R is engineered to provide stable, reliable power for demanding automation environments.
Key Features:
- Design: Redundant-rated power supply module for ControlLogix chassis.
- Input Voltage: Operates from 24V DC nominal supply.
- Output Power: Provides 75W of backplane power.
- Redundancy: Can be paired with another 1756-PB75R for fault-tolerant operation.
- Diagnostics: Built-in LED indicators for input, output, and fault status.
- Compatibility: Supports all Allen-Bradley 1756 ControlLogix chassis.
- Installation: Mounts in the left-most slot of the chassis for direct power delivery.
- Application Range: Ideal for process automation, safety systems, and high-availability industrial control.
The 1756-PB75R delivers the stable and redundant power required for mission-critical ControlLogix automation systems.
