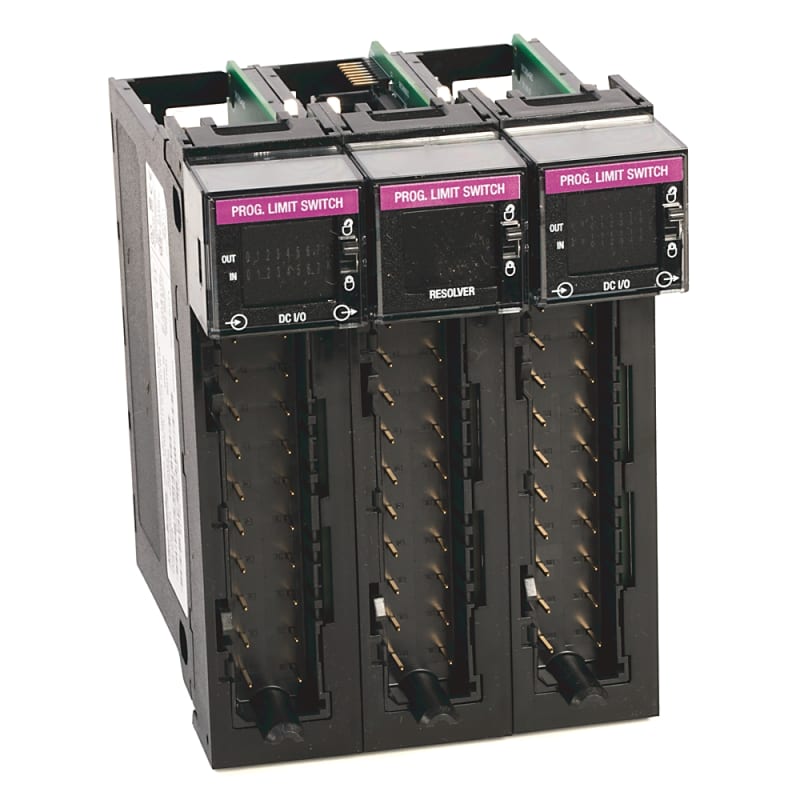

1756-PLS | Allen Bradley Programmable Limit Switch Module
- Regular price
- $1,482.00
- Sale price
- $1,482.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1756-PLS
Description
The Allen-Bradley 1756-PLS is a Programmable Limit Switch Module for ControlLogix systems, offering high-speed position sensing and precise control for motion applications in industrial automation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen Bradley |
| Category | PLCs and Accessories |
| Part Number | 1756-PLS |
| Subcategory |
PLC Expansion Modules
|
| Weight | 0.89 kgs |
| Inputs | 16 |
| Outputs | 16 |
| Operation Modes | 3 Contiguous Slots in Chassis |
| Backplane Current (5Volts) | 1000 milliamps |
| Backplane Current (24 Volts) | 125 milliamps |
| Power Dissipation (Max) | 25.7 Watts at 30 Celsius, 21.3 Watts at 60 Celsius |
| Removeable Terminal Blocks | 3 RTBs, 1756-TBSH or 1756-TBNH |
| Operating Temperature | 32-140 Fahrenheit (0-60 Celsius) |
| Dimensions | 5.51 x 4.41 x 5.71 inches |
Information About 1756-PLS
The Allen-Bradley 1756-PLS is a Programmable Limit Switch (PLS) Module designed for ControlLogix systems, providing high-speed position sensing and precise output control for motion and process applications.
Key Features:
- Model: 1756-PLS
- Type: Programmable Limit Switch Module
- Manufacturer: Allen-Bradley
- Compatibility: Designed for ControlLogix chassis and systems
- Position Sensing: High-speed position tracking with microsecond accuracy
- Control Outputs: Configurable outputs for precise control based on position
- Channels: Supports multiple channels for versatile applications
- Communication: Seamless integration with ControlLogix controllers via the backplane
- Diagnostics: Built-in diagnostics for monitoring performance and troubleshooting
- Programming: Configurable using RSLogix 5000 or Studio 5000 software
- LED Indicators: Status LEDs for easy module health and activity monitoring
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Certifications: Meets global industrial standards, including CE and UL
Applications:
- Motion Control: Provides precise position-based output switching for machinery and robotics
- Packaging: Synchronizes limit switching with conveyor or assembly line movement
- Material Handling: Tracks position and controls outputs for sorting, stacking, or transporting systems
- Custom Automation: Ideal for applications requiring fast and accurate limit switching
The Allen-Bradley 1756-PLS is a robust and versatile solution for high-speed, position-based control in industrial automation, enhancing the performance and efficiency of motion and process systems.
