Part #: 1756-PSCA2 Manufactured by: Allen-Bradley
Regular price
$419.00
Sale price
$419.00
Regular price
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview

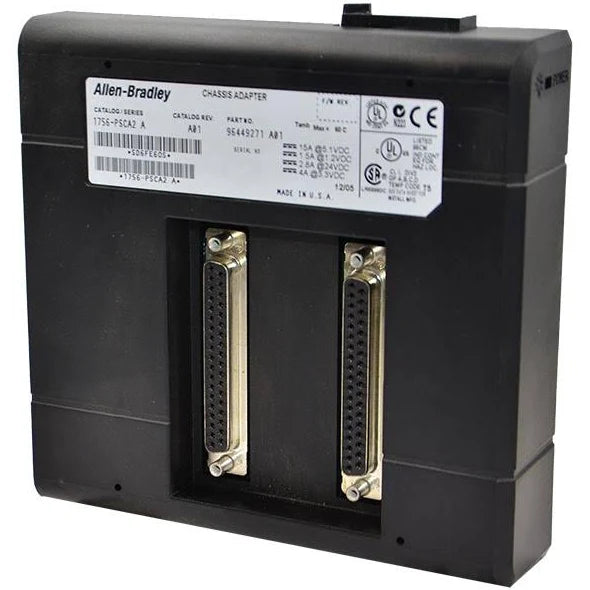

Allen-Bradley 1756-PSCA2 ControlLogix Redundant Power Supply Chassis Adapter Module, for use with Standard Series B Chassis
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 1756-PSCA2
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 1756-PSCA2

Description / Specifications

Description

Allen Bradley ControlLogix Chassis Adapter Module for Redundant Power Supply which is mounted left of chassis



Technical Specifications



Brand Allen-Bradley
Series ControlLogix
Part Number 1756-PSCA2
Manufacturer Rockwell Automation
Module Type Chassis Adapter Module for Redundant Power Supply
Removeable Terminal Blocks 3 RTBs, 1756-TBSH or 1756-TBNH
Mounting Chassis - Left
Operating Temperature 32-140 Fahrenheit (0-60 Celsius)
Backplane Current (24 Volts) 125 milliamps
Power Dissipation (Max) 25.7 Watts at 30 Celsius, 21.3 Watts at 60 Celsius
Enclosure None





Information About 1756-PSCA2

The Allen-Bradley 1756-PSCA2 is a chassis adapter module used to funnel power from one or two redundant power supplies into the single power connector on the chassis backplane. It is an essential component in building ControlLogix Redundant Power Supply Systems. Only one of these is required to create a system, and it is compatible with Bulletin 1756-PA75R and 1756-PB75R power supplies.

The 1756-PSCA2 Redundant Power Supply Chassis Adapter is an open-type passive device. And it has a current capacity of 1.5 A at 1.2V DC, 4 A at 3.3V DC, 15 A at 5.1V DC, and 2.8 A at 24V DC.

The 1756-PSCA2 Chassis is designed to be mounted horizontally. Connect it to the power supply using a 1756-CPR2 cable on the left side. This cable has a bend radius of 5 inches (12.7 cm) – which is also the minimum clearance to route and connect parts.

The 1756-PSCA2 comes with an Ex nA IIC T4 Gc protection type according to the EN 60079-15, and IECEx UL 14.0008X Hazardous Location Certificate. Ground the device according to the grounding requirements of the application. Some applications may require an additional protective earth-ground terminal stud to link the chassis to the ground bus. To minimize resistance, wire lengths should be kept as short as possible.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
