Part #: 1756-TBE Manufactured by: Allen-Bradley
Regular price
$44.00
Sale price
$44.00
Regular price
16 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
Allen-Bradley 1756-TBE Extended Depth Removable Terminal Block (RTB) Housing; Provides a flexible interconnection between ...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 1756-TBE
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
1756-TBE | Allen-Bradley Extended Depth Terminal Block Housing
    1756-TBE | Allen-Bradley Extended Depth Terminal Block Housing
1756-TBE | Allen-Bradley Extended Depth Terminal Block Housing

Product Description P/N: 1756-TBE

Description / Specifications

Description

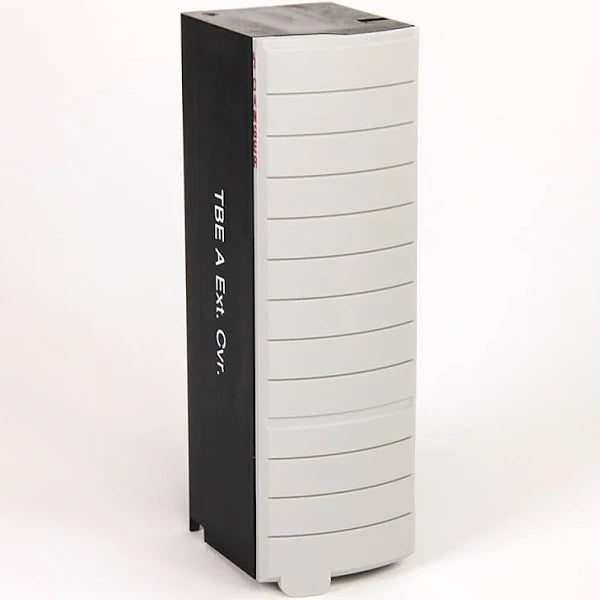

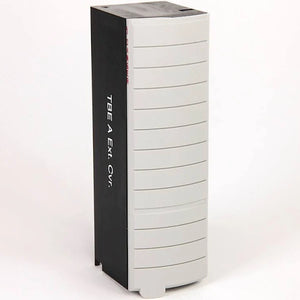

The 1756-TBE device is an Allen-Bradley/Rockwell Automation terminal housing. It is protective housing that is available from the Allen-Bradley ControlLogix accessories catalog. The 1756-TBE terminal housing is manufactured to house RTBs or removable terminal blocks and to protect them from dust, debris, and moisture. It is compatible with any ControlLogix RTB that uses heavy-gauge wire. The 1756-TBE terminal housing is available as a housing with extended depth for providing additional wiring routing space, especially for heavy-gauge wires.
