1756-TBSH | Allen-Bradley ControlLogix 20 Pin Spring-Clamp Block
1756-TBSH | Allen-Bradley ControlLogix 20 Pin Spring-Clamp Block
Part #: 1756-TBSH Manufactured by: Allen-Bradley

1756-TBSH | Allen-Bradley ControlLogix 20 Pin Spring-Clamp Block

Regular price
$149.00
Sale price
$149.00
Regular price
Never Used Surplus
116 in Stock
Shipping calculated at checkout.
Product Overview

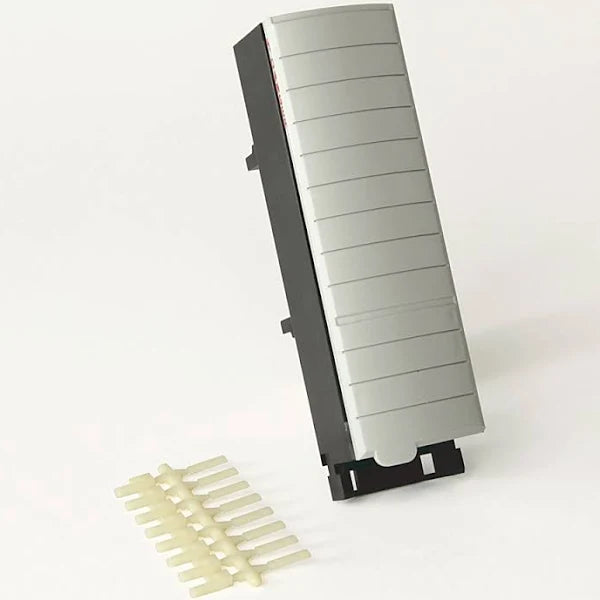

Allen-Bradley 1756-TBSH ControlLogix 20 Pin Spring-Clamp Removable Terminal Block with Standard Housing
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: 1756-TBSH
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
1756-TBSH | Allen-Bradley ControlLogix 20 Pin Spring-Clamp Block
    1756-TBSH | Allen-Bradley ControlLogix 20 Pin Spring-Clamp Block
1756-TBSH | Allen-Bradley ControlLogix 20 Pin Spring-Clamp Block
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: 1756-TBSH

Description / Specifications

Description

The Allen-Bradley 1756-TBSH module is a removable terminal block for modules from the ControlLogix product line. It should only have 1 conductor wired to any of its terminals at a time in a system. The 1756-TBSH removable terminal block is a spring clamp type of removable terminal block rather than a cage clamp or NEMA clamp type of removable terminal block. This removable terminal block is flexible enough to support 20 different positions within a system. The 1756-TBSH removable terminal block has a standard depth wire capacity, which means that it can be used with standard wires but it is not recommended for use with heavy-gauge wires.



Technical Specifications



Brand Allen-Bradley
Series ControlLogix
Part Number 1756-TBSH
Manufacturer Rockwell Automation
Module Type Terminal Block
Clamp Type Spring-Clamp
Pins 20-Pin Connection
Backplane Current (5Volts) 1,200 milliamps
Backplane Current (24 Volts) 2.5 milliamps
Power Dissipation (Max) 6.19 Watts
Wire Size 20 AWG
Dimensions 5.51 x 4.41 x 5.71 inches
Operating Temperature 32-140 Fahrenheit (0-60 Celsius)
Enclosure None





Information About 1756-TBSH

The Allen-Bradley 1756-TBSH provides a flexible linkage between 1756 I/O modules and plant wiring. It is an I/O module accessory that needs to be ordered separately from the module. This 20-pin spring-clamp RTB ships with a standard housing. It is part of the Bulletin 1756 Removable Terminal Block series that are plugged into the front of ControlLogix I/O modules. It is compatible with selected 1756 Series of AC Digital Inputs, AC Digital Outputs, Analog Inputs, Analog RTDs and Thermocouples, Analog Outputs, and Specialty I/O Modules.

The 1756-TBSH Removable Terminal Block comes with a standard housing and this combination allows a wire capacity of up to 336 sq. mm. It is ideal for 0.33-2.1 mm2 (22-14 AWG) solid or stranded copper wires rated at 90 °C (194 °F) or greater with a maximum insulation of 1.2 mm (3/64 inches). The standard-depth housing measures 147.91mm (5.823 inches) from the module’s front to the back of the chassis. Wiring multiple conductors on any single terminal is not advised.

The 1756-TBSH is designed to support RIUP –Removal and Insertion Under Power. However, extreme caution should be used when working with live electricity which can be dangerous to the installer as well as to the system. Possible dangers include injuries, loss of process control, and unintended machine motion. Removing power before installation is recommended.
