1760-L12AWA-NC | Allen-Bradley | Pico Controller

Description

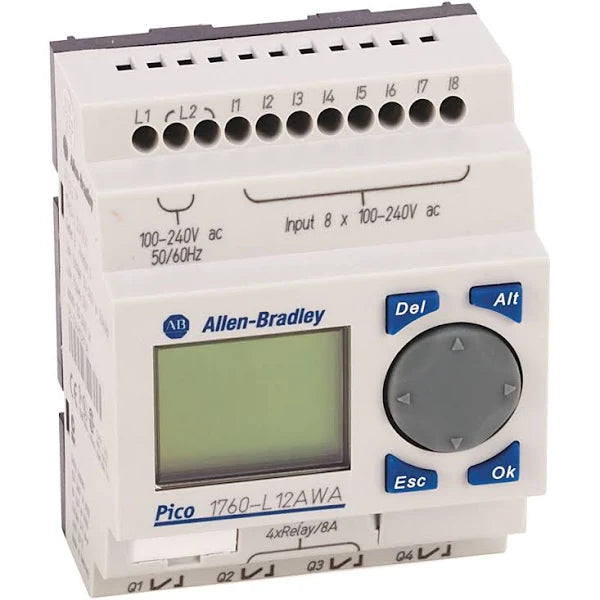

The Allen-Bradley 1760-L12AWA-NC Pico Controller, part of the Bulletin 1760 series by Allen-Bradley/Rockwell Automation, is a controller module featuring 8 digital inputs and 4 relay-type outputs. Utilizing ladder diagrams, users program this module, which connects to a personal computer via a PC to Pico interface cable. Configuration enables users to monitor input/output statuses, simulate programs, and test programs with the controller. The module boasts a power/run indicator LED, a memory module socket, and a write-on surface.

Operating on 120 to 240 Volts AC, the 1760-L12AWA-NC has a frequency rating of 50 to 60 Hertz and is expandable with additional modules to augment I/O capacity. Advanced diagnostic functions aid in system troubleshooting. Error messages, such as I2c errors, EEPROM errors, clock errors, and LCD errors, are displayed on the Pico screen.

Technical Specifications

Specifications

Information About 1760-L12AWA-NC

The Allen-Bradley 1760-L12AWA-NC Pico Controller, part of the Bulletin 1760 series by Allen-Bradley/Rockwell Automation, features 8 digital inputs and 4 relay-type outputs. Programming this module is facilitated through ladder diagrams. Users can connect it to a personal computer via a PC to Pico interface cable for configuration, enabling monitoring, program simulation, and testing of programs.

Equipped with a power/run indicator LED, a memory module socket, and a write-on surface, the 1760-L12AWA-NC operates on a line power of 120 to 240 Volts AC with a rated frequency of 50 to 60 Hertz. It supports expansion modules to augment I/O capacity and incorporates advanced diagnostic functions for system troubleshooting.

Error messages, such as I2c errors, EEPROM errors, clock errors, and LCD errors, are displayed on the Pico screen. Simulations of Pico inputs and outputs can be conducted using a DC simulator, which includes input and output simulation boards alongside a wall-mounted power supply.

While lacking a built-in display or keypad, the controller can interface with external devices possessing these components. The real-time clock offers up to 32 separate on and off time settings.

Mounting options include DIN rail or distribution board installation in either vertical or horizontal orientations, with expansion units connected before installation for optimal functionality. The controller's wiring protection ratings are a minimum of 1 Amp.
