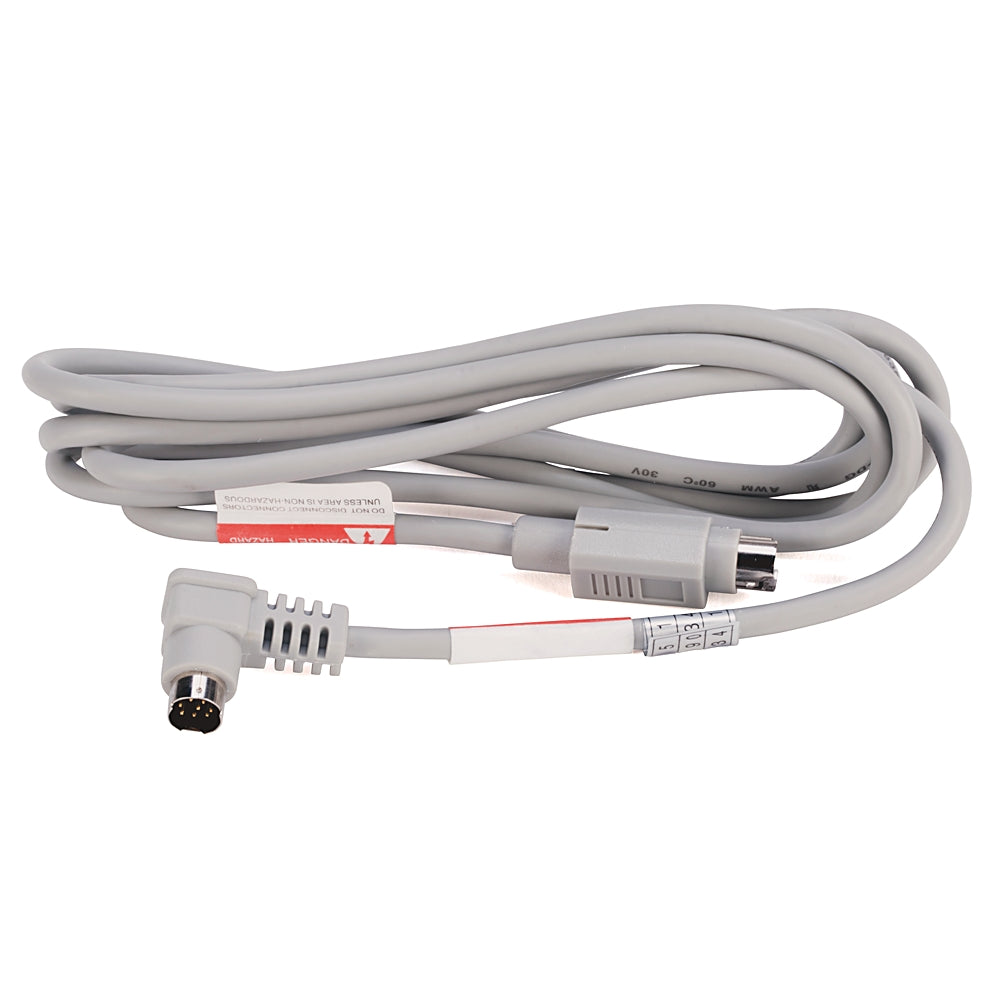

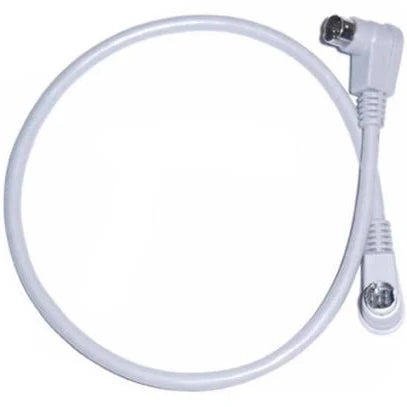

1761-CBL-HM02 | Allen-Bradley Cable RS-232 8-Pin Mini DIN to 8-Pin Mini DIN 6.5 ft
- Regular price
- $29.00
- Sale price
- $29.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1761-CBL-HM02
Description
The Allen-Bradley 1761-CBL-HM02 is an RS-232 communication cable designed for MicroLogix 1000 controllers. It features 8-pin mini DIN to 8-pin mini DIN connectors and is primarily used for connecting handheld programmers.
Technical Specifications
| Brand | Allen-Bradley |
| Type | RS-232 Operating/Programming Cable |
| Part Number | 1761-CBL-HM02 |
| Connection Type | 8-Pin Mini DIN To 8-Pin Mini DIN |
| Split Crucible | S |
| Standard | KC |
| TC Connection | mini DIN to mini DIN |
| Series | MicroLogix 1000 |
| Length | 2 |
Information About 1761-CBL-HM02
The 1761-CBL-HM02 is part of the Allen-Bradley MicroLogix 1000 family accessories, providing a reliable means of communication for programming and monitoring applications. This cable is built with right-angle 8-pin mini DIN connectors on both ends, ensuring a secure and efficient connection in compact spaces. With a length of 2 meters, it provides adequate reach while maintaining signal integrity. The cable follows KC standards and is optimized for handheld programmer use with MicroLogix controllers. Its robust construction makes it suitable for repeated use in industrial environments where reliable programming connectivity is essential.
Key Features:
- Cable Design: RS-232 operating/programming cable built specifically for MicroLogix 1000 controllers to ensure stable communication.
- Connector Type: Equipped with 8-pin mini DIN to 8-pin mini DIN right-angle connectors, providing firm and reliable attachment even in tight spaces.
- Length Specification: 2-meter cable length offers flexibility in installation while keeping wiring neat and manageable.
- Application Use: Intended for handheld programmer connectivity, allowing engineers and technicians to configure and troubleshoot MicroLogix 1000 controllers directly.
- Signal Integrity: Ensures consistent data transfer with minimal signal loss or interference, supporting reliable controller programming.
- Build Quality: Durable construction designed for industrial environments, capable of withstanding repeated connection cycles.
- Compatibility: Fully compatible with MicroLogix 1000 PLCs, providing seamless integration without the need for adapters.
- Compliance: Manufactured to KC standard for safe and standardized use in automation applications.
The 1761-CBL-HM02 delivers the reliability and ease of use required for programming and maintaining MicroLogix 1000 controllers.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
