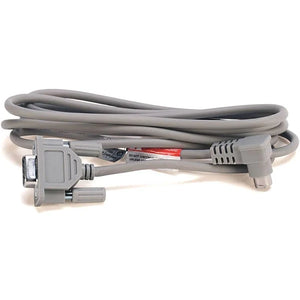

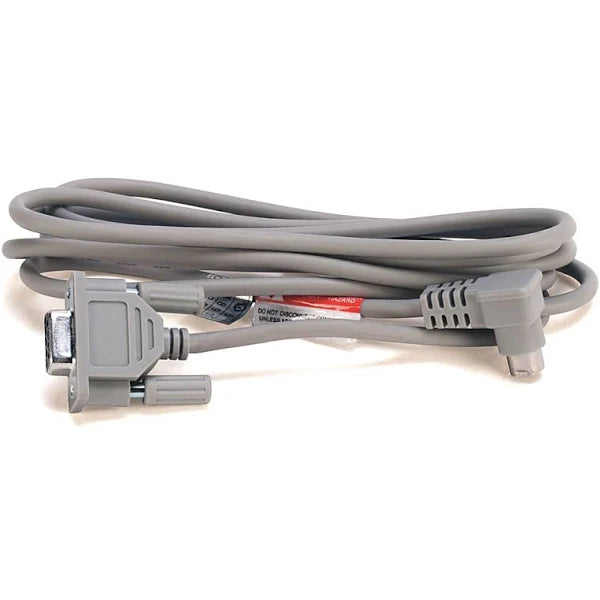

1761-CBL-PM02 | Allen-Bradley MicroLogix 2-Meter RS-232 Communication Cable
- Regular price
- $189.00
- Sale price
- $189.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 1761-CBL-PM02
Description
The Allen-Bradley 1761-CBL-PM02 is a 2-meter communication cable designed for interfacing MicroLogix controllers and related devices with RS-232 and DH-485 network components. The 1761-CBL-PM02 supports DF1 master-slave communication, hardware handshaking (Series B), and DH-485 connections when paired with AIC+ interface converters. Rated for Class I, Division 2 use in Series C or later versions, it provides reliable, industrial-grade connectivity for programming and network communication.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen-Bradley |
| Category | Communication Cable |
| Part Number | 1761-CBL-PM02 |
| Subcategory | Communication Cable |
| Series | MicroLogix 1000 |
| Product Type | RS-232 Communication Cable |
| Cable Length | 2 meters (approx. 6.5 ft) |
| Supported Networks | DH-485, DF1 Master-Slave |
| Hardware Handshaking | Supported on Series B |
| Hazardous Rating | Class I, Division 2 (Series C or later) |
| Compatible Devices | MicroLogix 1000/1200/1500, AIC+ converters, PanelView (via adapter), PCs |
| Connection Type | 8-pin mini-DIN to RS-232 DB9 (DTE) |
| AIC+ Converter Support | Yes |
| External Power | Required (via connected devices) |
| Enclosure Type | Open-style cable |
| Typical Use Cases | Programming, HMI interfacing, DF1 communication, DH-485 networks |
| Shipping Dimensions | 8 × 8 × 5 in |
Information About 1761-CBL-PM02
The 1761-CBL-PM02 belongs to the MicroLogix 1000 accessory family and is used to create communication links between PLCs, operator terminals, PCs, and interface converters. Its 8-pin mini-DIN to DB9-style configuration allows it to connect MicroLogix 1000/1200/1500 processors to AIC+ converters, PanelView terminals (via null modem adapter), or computer serial ports for programming. The cable also supports applications involving DF1 full/half-duplex modes and DH-485 networks, enabling flexible deployment in small and mid-size automation systems. Designed for hazardous locations in Series C and later revisions, the cable provides durable insulation and secure mechanical connections for industrial environments.
Key Features
- 2-Meter Communication Cable: Provides RS-232 connection between MicroLogix controllers and peripheral devices.
- Supports DF1 & DH-485 Networks: Compatible with DF1 master-slave setups and DH-485 networks via AIC+ converters.
- Industrial Hazardous Location Rating: Series C and later versions approved for Class I, Division 2 environments.
- Hardware Handshaking (Series B): Enables enhanced communication reliability for supported devices.
- Versatile Connection Options: Interfaces with MicroLogix PLCs, PanelView HMIs, PCs, and communication converters.
- AIC+ Converter Compatible: Designed for use with 1761-NET-AIC and similar RS-232/DH-485 interface modules.
- Plug-and-Play Design: No configuration required; installs quickly as a physical communication link.
- Durable Construction: Manufactured for industrial use with robust insulation and connector retention.
The 1761-CBL-PM02 delivers the reliability and precision required for dependable MicroLogix serial and DH-485 communication in industrial automation systems.
