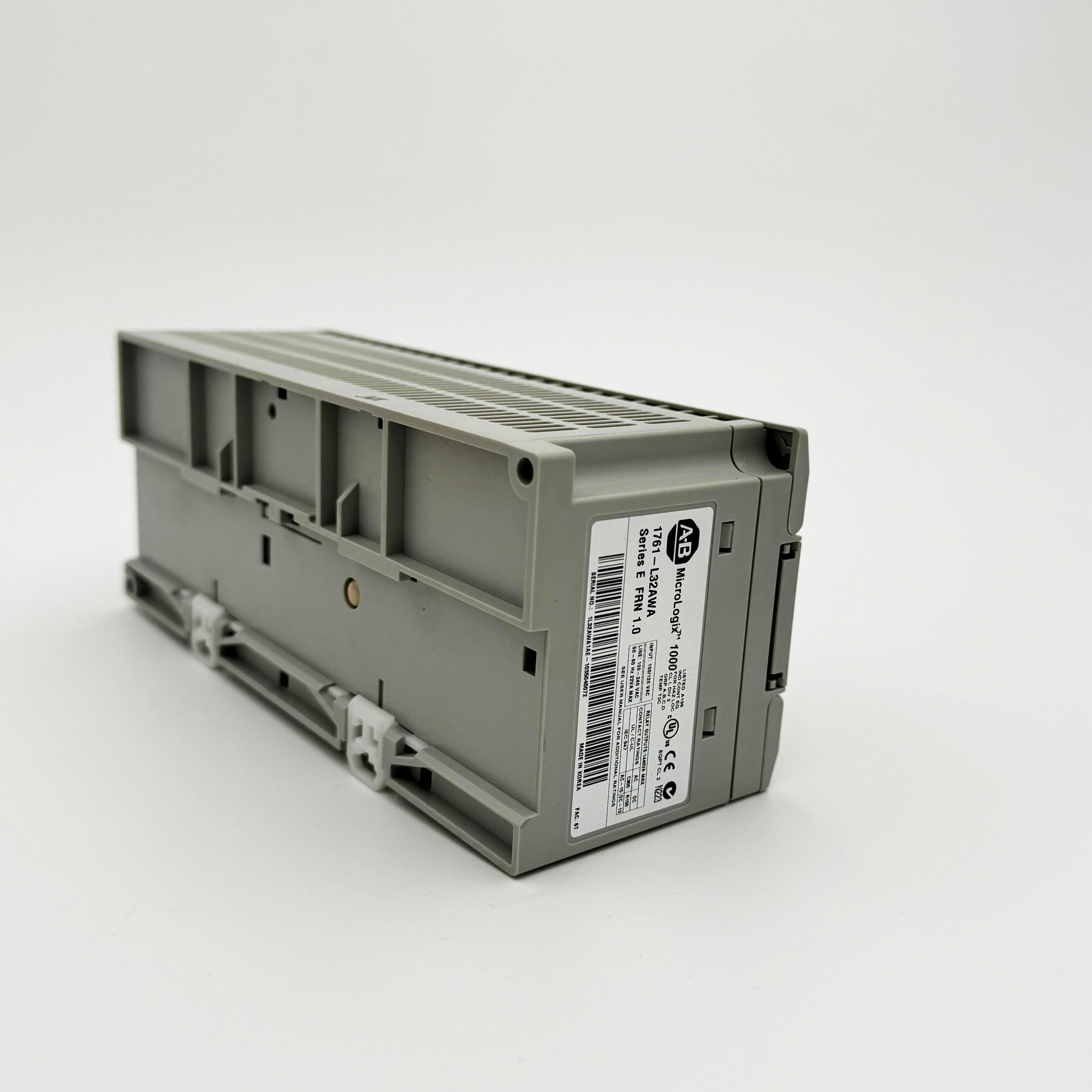

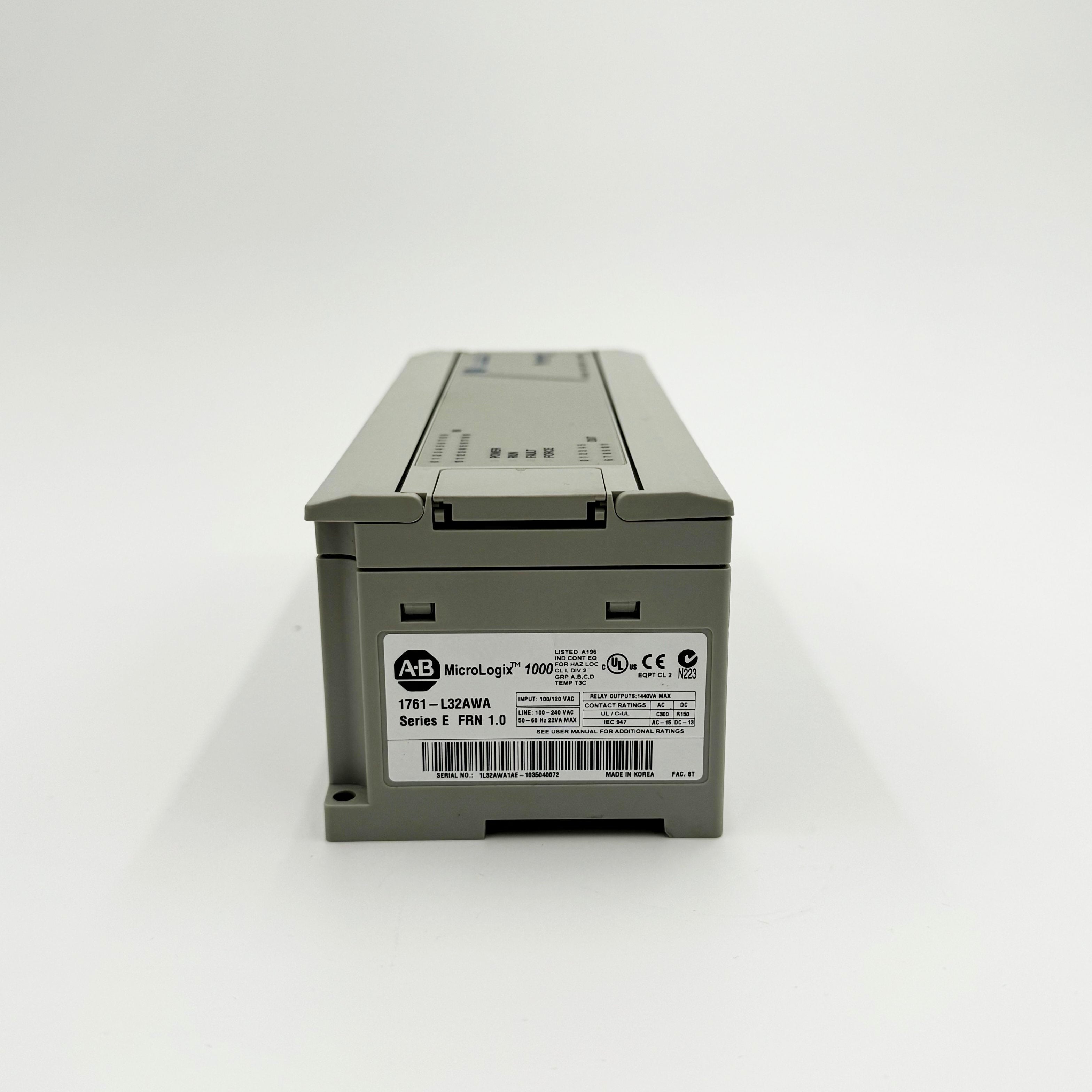

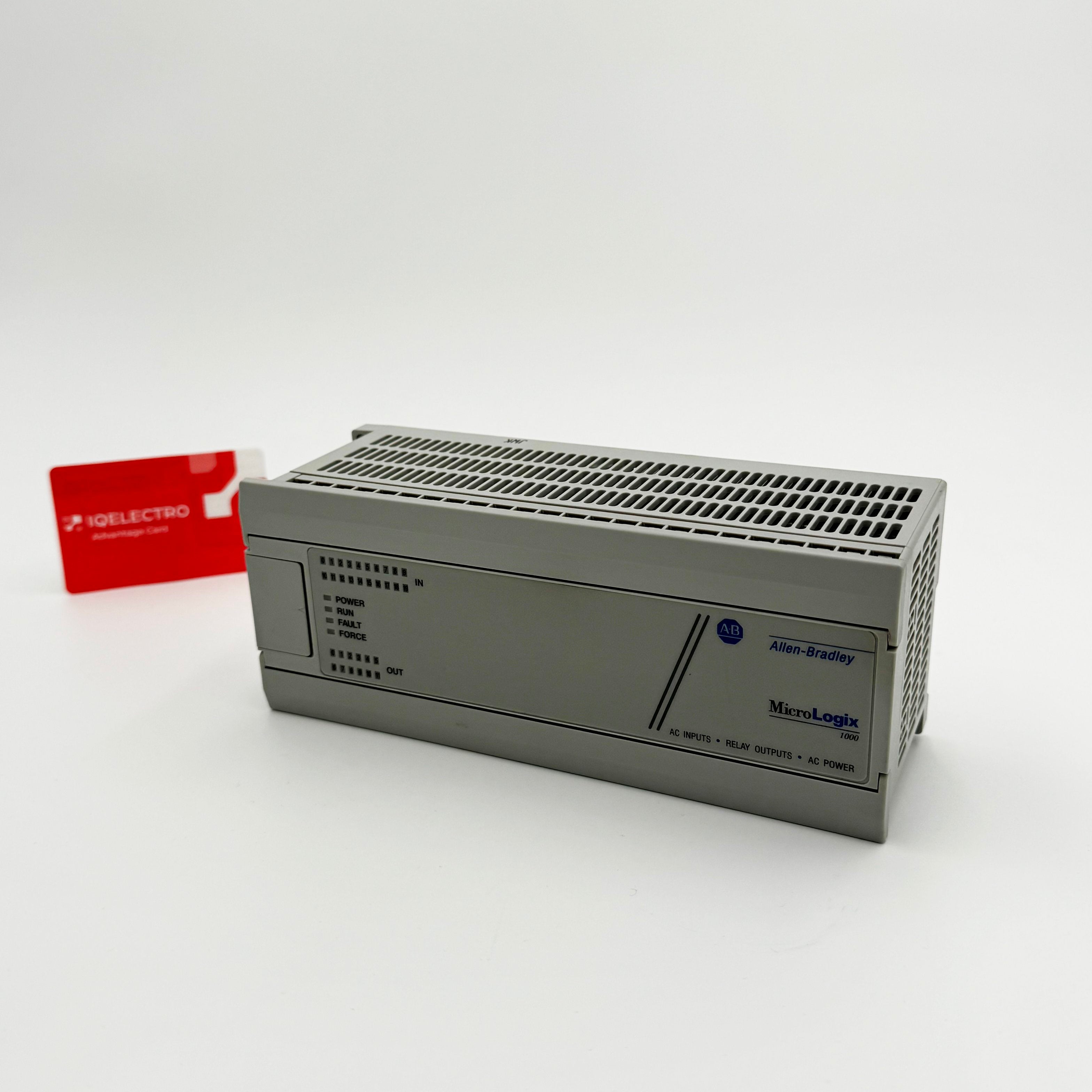

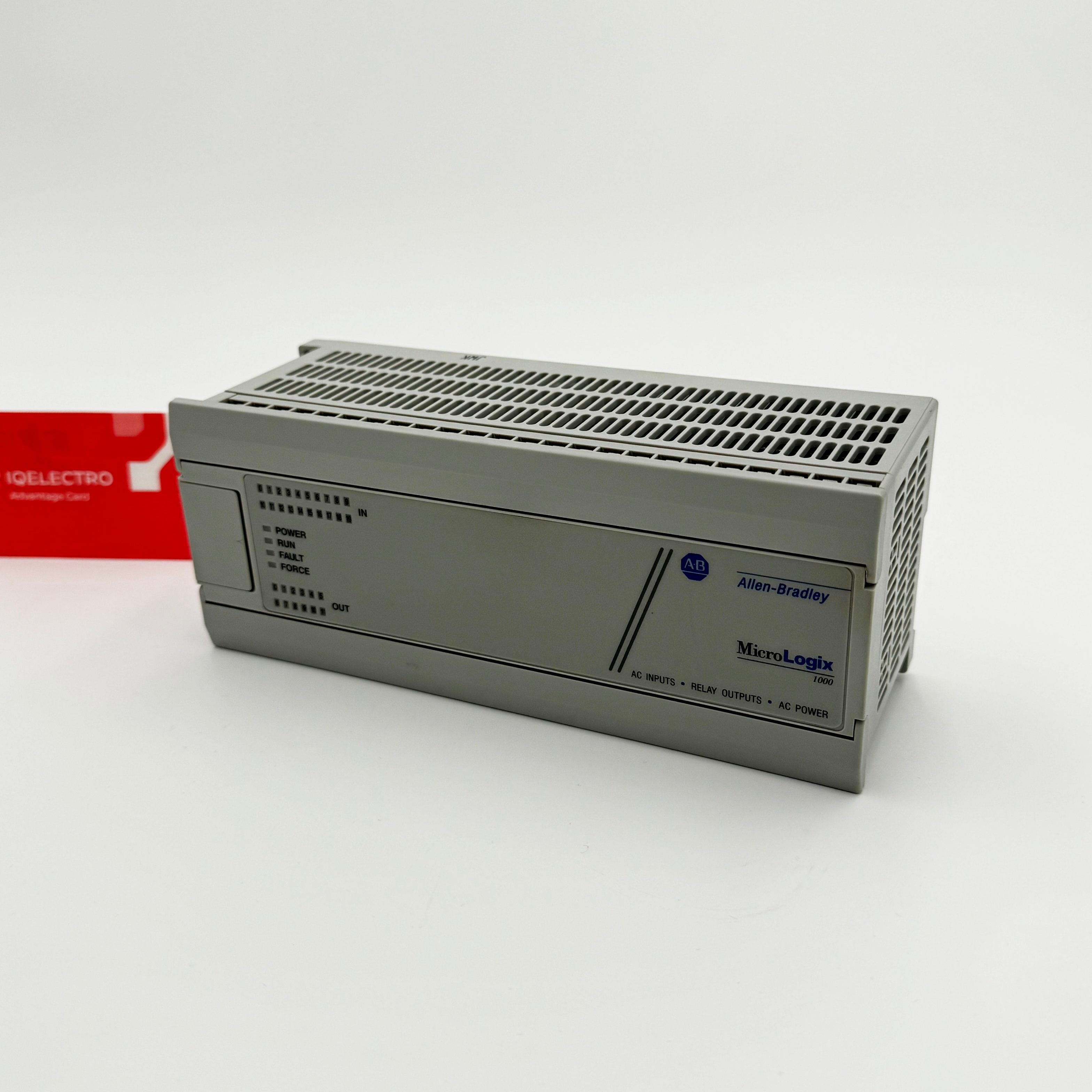

1761-L32AWA | Allen-Bradley MicroLogix 1000 120/240VAC, 20-In-120VAC/12-Relays
1761-L32AWA | Allen-Bradley MicroLogix 1000 120/240VAC, 20-In-120VAC/12-Relays

1761-L32AWA | Allen-Bradley MicroLogix 1000 120/240VAC, 20-In-120VAC/12-Relays

Part #: 1761-L32AWA Manufactured by: Allen-Bradley
Regular price
$912.00
Sale price
$912.00
Regular price
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
This Allen Bradley MicroLogix 1000 series Programmable Controller is a 32 point controller with AC inputs, Relay outputs, ...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 1761-L32AWA
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
1761-L32AWA | Allen-Bradley MicroLogix 1000 120/240VAC, 20-In-120VAC/12-Relays
    1761-L32AWA | Allen-Bradley MicroLogix 1000 120/240VAC, 20-In-120VAC/12-Relays
1761-L32AWA | Allen-Bradley MicroLogix 1000 120/240VAC, 20-In-120VAC/12-Relays

Product Description P/N: 1761-L32AWA

Description / Specifications

Description

The 1761-L32AWA is a MicroLogix Controller under the Bulletin 1761 product family. This compact controller features 1K memory, integrated RS232 communication port, Twenty (20) discrete inputs and Twelve (12) relay outputs.



Technical Specifications



Brand Allen-Bradley
Manufacturer Rockwell Automation
Part Number 1761-L32AWA
Controller MicroLogix 1000
Input Type 120 Volts AC
Memory 1 K EEPROM composed of approximately 737 instruction words and 437 data words.
Communication port RS232
Safety Feature Master Control Relay
Digital Outputs 12 Contact Outputs
Product Type Programmable Logic Controller (PLC)
I/O Count 32 points
No. of Inputs Twenty (20); sinking
Maximum Inrush Current 30A for 8 milliseconds
Output Type Twelve (12); Relay
Power Cycles Minimum 50,000
Output Voltage Range 24-125VDC; 0-240 VAC
Terminal Torque 0.9 N-m Max.
Power Supply 120/240 Volts AC
Operating Frequency 47-63 Hz
Input Power 19 VA @ 120VAC; 25 VA @ 240VAC
Measurements 7.87 x 2.87 x 3.15 inches
Operating Shock 10 G
Non-Operating Shock 20 G





Information About 1761-L32AWA

Allen-Bradley 1761-L32AWA is a MicroLogix 1000 programmable controller. The controller has 1K user memory, integrated Twenty (20) 120 Volts AC input channels and Twelve (12) relay output channels. The 1761-L32AWA can be operated with a power source that supplies either 120 VAC or 240 VAC. For safety purposes, the 1761-L32AWA should be installed and operated in non-hazardous locations or in Class 1 Division 2 groups A, B, C, and D. The controller may explode if the connectors are connected or disconnected while the circuit is still live or when the 1761-L32AWA is not installed in an enclosure. The 1761-L32AWA measures 7.87 inches in length, 2.87 inches in depth, and 3.15 inches in height. The controller may be mounted horizontally or vertically. When mounting, a minimum space of 2 inches should be left on the top, bottom, and on the sides to allow for the free flow of air. It comes in a compact size and has several communication options that include an RS-232 port to connects to a peer-to-peer network through the DH-485 network. It also has a Device Net Interface (DNI) for fast response, low cost, and reliable connections. The device allows for simple programming.

Additionally, the 1761-L32AWA can be mounted vertically with the same mounting clearance as when it is mounted horizontally. However, for vertical mounting, the nameplate should face downwards. The 1761-L32AWA operates optimally with a minimum surrounding temperature of 0 degrees Celsius and a maximum temperature of +40 degrees Celsius. When the controller is mounted on a panel, it has an operating shock rating of 9 g peak acceleration for 11 milliseconds 3 times on every axis. When it is mounted on a DIN rail, the 1761-L32AWA has an operating shock of 7 g peak acceleration for 11 milliseconds 3 times in each direction. The 1761-L32AWA accommodates solid wires with sizes ranging from 14 AWG to 22 AWG. When the wires are stranded, the 1761-L32AWA accommodates sizes ranging from 16 AWG to 22 AWG. The 1761-L32AWA controller has an execution time of only 1.56 ms. This controller has AC, DC, or analog input options for the current and voltage as well as the relay, TRIAC, MOSFET, and analog outputs as its output options. The 1761-L32AWA controller has a large instruction set for applications including simple bits, timers, sequencers, a high-speed counter, and shift registers.

The 1761-L32AWA is an Allen-Bradley hardware that belongs to the MicroLogix 1000 controller product family. This product family are compact Programmable Logic Controllers (PLC) that features integrated power supply, communication port and I/O channels. It is ideal for use in industrial automation requirements. It may be used to automate machines and processes in the factory floor or process areas.

This controller has integrated memory size of 1K EEPROM memory which is capable of accommodating up to 737 instructions and 437 data words. This controller also has Twenty (20) discrete inputs operating at 120VAC and Twelve (12) Discrete Outputs capable of 24-125VDC and 120 / 240VAC contact ratings. This controller is capable of implementing discrete control including basic logic operations, time based, counter based and other bit logic operations.

To download the developed user program to the controller, communication cables such as 1761-CBL-PM02 Series C, 1761-CBL-HM02 Series C, 1761-CBL-AM00 Series C, and 1761-CBL-AP00 Series C are connected. This communication cable connects to the controller’s 8-Pin Mini DIN port and 9-Pin Sub-D COM port of the programming workstation. This same sable may be used to connect to Human Machine Interfaces (HMI) and Supervisory Control and Data Acquisition (SCADA). Serial or point-to-point connection uses the DF1 protocol but may also be used with DH485 protocol through the 1761-NET-AIC.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The 1761-L32AWA is a MicroLogix Controller under the Bulletin 1761 product family. This compact controller features 1K memory, integrated RS232 communication port, Twenty (20) discrete inputs and Twelve (12) relay outputs.



Technical Specifications



Brand Allen-Bradley
Manufacturer Rockwell Automation
Part Number 1761-L32AWA
Controller MicroLogix 1000
Input Type 120 Volts AC
Memory 1 K EEPROM composed of approximately 737 instruction words and 437 data words.
Communication port RS232
Safety Feature Master Control Relay
Digital Outputs 12 Contact Outputs
Product Type Programmable Logic Controller (PLC)
I/O Count 32 points
No. of Inputs Twenty (20); sinking
Maximum Inrush Current 30A for 8 milliseconds
Output Type Twelve (12); Relay
Power Cycles Minimum 50,000
Output Voltage Range 24-125VDC; 0-240 VAC
Terminal Torque 0.9 N-m Max.
Power Supply 120/240 Volts AC
Operating Frequency 47-63 Hz
Input Power 19 VA @ 120VAC; 25 VA @ 240VAC
Measurements 7.87 x 2.87 x 3.15 inches
Operating Shock 10 G
Non-Operating Shock 20 G





Information About 1761-L32AWA

Allen-Bradley 1761-L32AWA is a MicroLogix 1000 programmable controller. The controller has 1K user memory, integrated Twenty (20) 120 Volts AC input channels and Twelve (12) relay output channels. The 1761-L32AWA can be operated with a power source that supplies either 120 VAC or 240 VAC. For safety purposes, the 1761-L32AWA should be installed and operated in non-hazardous locations or in Class 1 Division 2 groups A, B, C, and D. The controller may explode if the connectors are connected or disconnected while the circuit is still live or when the 1761-L32AWA is not installed in an enclosure. The 1761-L32AWA measures 7.87 inches in length, 2.87 inches in depth, and 3.15 inches in height. The controller may be mounted horizontally or vertically. When mounting, a minimum space of 2 inches should be left on the top, bottom, and on the sides to allow for the free flow of air. It comes in a compact size and has several communication options that include an RS-232 port to connects to a peer-to-peer network through the DH-485 network. It also has a Device Net Interface (DNI) for fast response, low cost, and reliable connections. The device allows for simple programming.

Additionally, the 1761-L32AWA can be mounted vertically with the same mounting clearance as when it is mounted horizontally. However, for vertical mounting, the nameplate should face downwards. The 1761-L32AWA operates optimally with a minimum surrounding temperature of 0 degrees Celsius and a maximum temperature of +40 degrees Celsius. When the controller is mounted on a panel, it has an operating shock rating of 9 g peak acceleration for 11 milliseconds 3 times on every axis. When it is mounted on a DIN rail, the 1761-L32AWA has an operating shock of 7 g peak acceleration for 11 milliseconds 3 times in each direction. The 1761-L32AWA accommodates solid wires with sizes ranging from 14 AWG to 22 AWG. When the wires are stranded, the 1761-L32AWA accommodates sizes ranging from 16 AWG to 22 AWG. The 1761-L32AWA controller has an execution time of only 1.56 ms. This controller has AC, DC, or analog input options for the current and voltage as well as the relay, TRIAC, MOSFET, and analog outputs as its output options. The 1761-L32AWA controller has a large instruction set for applications including simple bits, timers, sequencers, a high-speed counter, and shift registers.

The 1761-L32AWA is an Allen-Bradley hardware that belongs to the MicroLogix 1000 controller product family. This product family are compact Programmable Logic Controllers (PLC) that features integrated power supply, communication port and I/O channels. It is ideal for use in industrial automation requirements. It may be used to automate machines and processes in the factory floor or process areas.

This controller has integrated memory size of 1K EEPROM memory which is capable of accommodating up to 737 instructions and 437 data words. This controller also has Twenty (20) discrete inputs operating at 120VAC and Twelve (12) Discrete Outputs capable of 24-125VDC and 120 / 240VAC contact ratings. This controller is capable of implementing discrete control including basic logic operations, time based, counter based and other bit logic operations.

To download the developed user program to the controller, communication cables such as 1761-CBL-PM02 Series C, 1761-CBL-HM02 Series C, 1761-CBL-AM00 Series C, and 1761-CBL-AP00 Series C are connected. This communication cable connects to the controller’s 8-Pin Mini DIN port and 9-Pin Sub-D COM port of the programming workstation. This same sable may be used to connect to Human Machine Interfaces (HMI) and Supervisory Control and Data Acquisition (SCADA). Serial or point-to-point connection uses the DF1 protocol but may also be used with DH485 protocol through the 1761-NET-AIC.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
