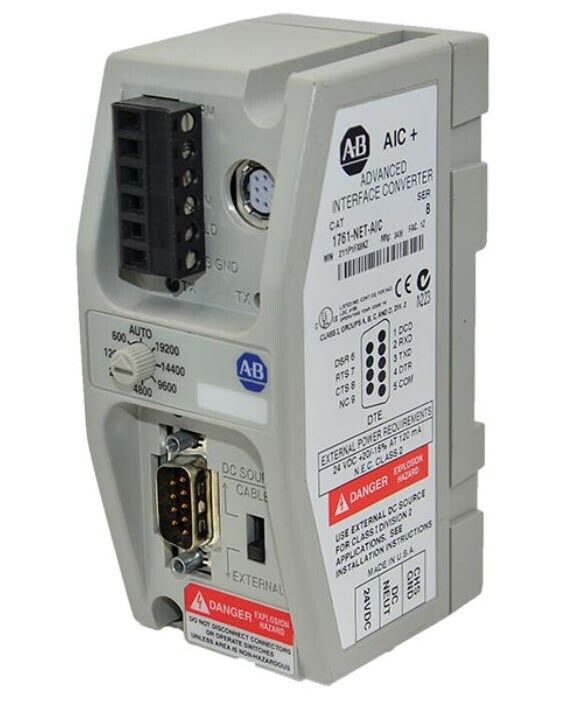

1761-NET-AIC | Allen-Bradley AIC+ Advanced Interface Converter RS-232 to RS-485
1761-NET-AIC | Allen-Bradley AIC+ Advanced Interface Converter RS-232 to RS-485
Part #: 1761-NET-AIC Manufactured by: Allen-Bradley

1761-NET-AIC | Allen-Bradley AIC+ Advanced Interface Converter RS-232 to RS-485

Regular price
$157.00
Sale price
$157.00
Regular price
Never Used Surplus
52 in Stock
Product Overview
Allen-Bradley 1761-NET-AIC AIC+ Advanced Interface Converter, Operation Modes: Point-to-point isolator, RS-232 to RS-485 i...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: 1761-NET-AIC
IQElectro International provides a 2-year warranty on every product we offer. Our complimentary 2-year warranty ensures that every IQElectro purchase is a trustworthy and reliable investment in the future of your company.
IQElectro is NOT an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
1761-NET-AIC | Allen-Bradley AIC+ Advanced Interface Converter RS-232 to RS-485
    1761-NET-AIC | Allen-Bradley AIC+ Advanced Interface Converter RS-232 to RS-485
1761-NET-AIC | Allen-Bradley AIC+ Advanced Interface Converter RS-232 to RS-485
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3-Day Free Shipping
"IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: 1761-NET-AIC

Description / Specifications

Description

The 1761-NET-AIC is a communication component from Allen-Bradley. This component is an Advanced Interface Converter (AIC) which is an electronic converter used with SLC and MicroLogix Programmable Logic Controller (PLC) products. This device enables connection of any DF1 enabled processor or device to DH485 communication network. This device has an input supply voltage requirement of 24VDC or though the connected communication cable. It comes with an RS-485 communication port and an RS-232 8 Pin mini-din communication port, as well as an RS-232 DB-9 connection. This AIC+ module also comes with a DC power source selection switch and a communication rate selector switch.



Technical Specifications



Brand Allen-Bradley
Series MicroLogix 1000
Part Number 1761-NET-AIC
Manufacturer Rockwell Automation
Operating Ambient Temperature 0...60 °C (32...140 °F)
Mounting DIN Rail or Panel
Baud Rate 600, 1200, 2400, 4800, 9600, 14400, 19200. AUTO
Device Compatibility SLC 500, 5/01, 5/02, and 5/03 processors (channel 1); SLC 5/03, 5/04, and 5/05 processors (channel 0); MicroLogix controllers; Logix controllers; 1756-DH485 ControlLogix module; Operator interface devices; Personal computer serial ports (or any 9-pin DTE serial port); Modems
Operation Modes Point-to-point isolator; RS-232 to RS-485 isolator; RS-232 to half-duplex user mode ASCII isolator;
Number of ports 3; 2 (RS232); 1 DH485
Product Family Advanced Interface Converter
Storage Temperature -40...85 °C (-40...175 °F)
Power Dissipation, Max 4.7 W
Power Supply 20.4...28.8V dc
Internal Isolation 500V dc
Product Type Advanced Interface Controller
Isolation Type RS-232 to Half-Duplex User Mode ASCII Isolator
Safety Feature Master Control Relay
Operating Temperature 0 to 60 Degrees Celsius
Nodes 32 per Multidrop Network (Maximum)
Communication DH-485





Information About 1761-NET-AIC

The 1761-NET-AIC is an Allen Bradley MicroLogix 1000 advanced interface controller. This module is classified under the MicroLogix 1000 series. It enables of DF1 enabled devices to communicate with DH485 network. It is compatible with MicroLogix 1000, 1200, and 1500 controllers and SLC controllers as well. The 1761-NET-AIC is powered by an external 24VDC power supply that is connected to the external power terminal.

The converter’s communication rate filter matches the network communication rate through the communication-rate selector switch. The 1761-NET-AIC is also compatible with SLC processors such as SLC 5/01, 5/02, and 5/03 processors. The 1761-NET-AIC can be used as a point-to-point isolator or an RS-232 to an RS-485 isolator. The 1761-NET-AIC can be mounted either vertically or horizontally. Communication to the module is supported through the use of the hardware handshaking or through automated transmission signals. The 1761-NET-AIC comes without a node address pre-associated with the network port, which allows the node address to be configured in the device that is connected through the port. The user should note that this module features a number of operational characteristics.

The 1761-NET-AIC is a DIN rail mountable or panel mounted component and powered in Two (2) such as supplying an external 24VDC supply voltage or via the communication cable connected to the device being bridged.

The 1761-NET-AIC Advanced Interface converter has Two (2) RS232 communication ports with physical interfaces of 9-pin SUB-D connector type and 8-pin mini-DIN circular connector type. This AIC also has a DH485 Phoenix plug connector to enable connection to the DH485 network. The communicate data rate of this AIC is configured via the provided selector switch mounted on the front panel of this AIC.

To power-up the AIC using the communication cable, it must be used with a MicroLogix or SLC Programmable Logic Controllers (PLC). Additionally, connection shall be established through the 8-Pin mini din interface as this terminal carries 24VDC power to the AIC. Furthermore, when intending to power the unit over the communication cable, the power source switch position must be in the “cable” option. In other situations, the AIC must be powered by an external 24VDC supply with switch assigned to “external” position.

The AIC converter primarily functions as point-to point isolator, RS232 to RS485 isolator and RS232 to half-duplex user mode ASCII isolator. It is designed to operate with a variety of SLC 500 processors such as 5/01, 5/02, and 5/03, 5/04, and 5/05 processors. It also supports MicroLogix and Logix controllers through the 1756-DH485 ControlLogix module. It may also be used with Operator interface devices, Personal computer serial ports or any 9-pin DTE serial port and Modems.
