1762-IA8 | Allen-Bradley MicroLogix 8-Point 120V AC Input Module
- Regular price
- $205.00
- Sale price
- $205.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1762-IA8
Description

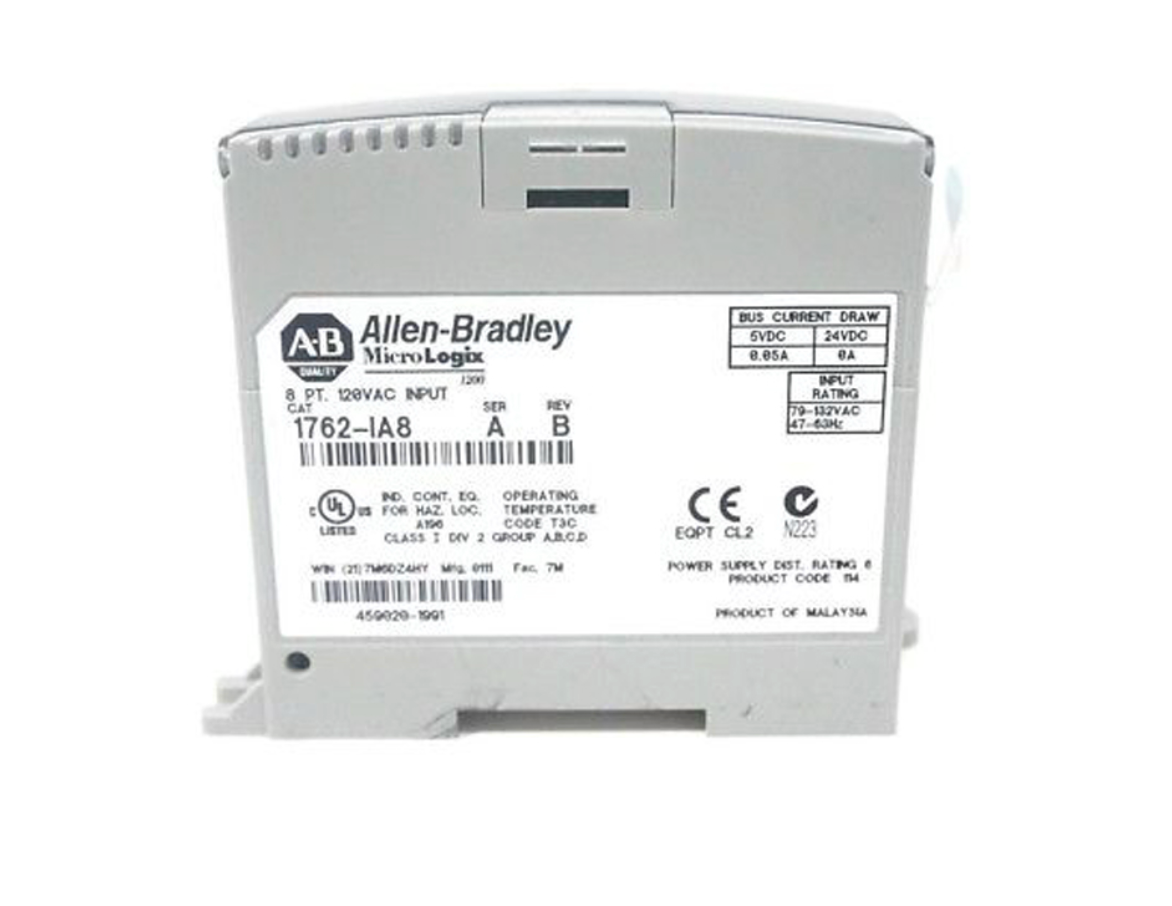

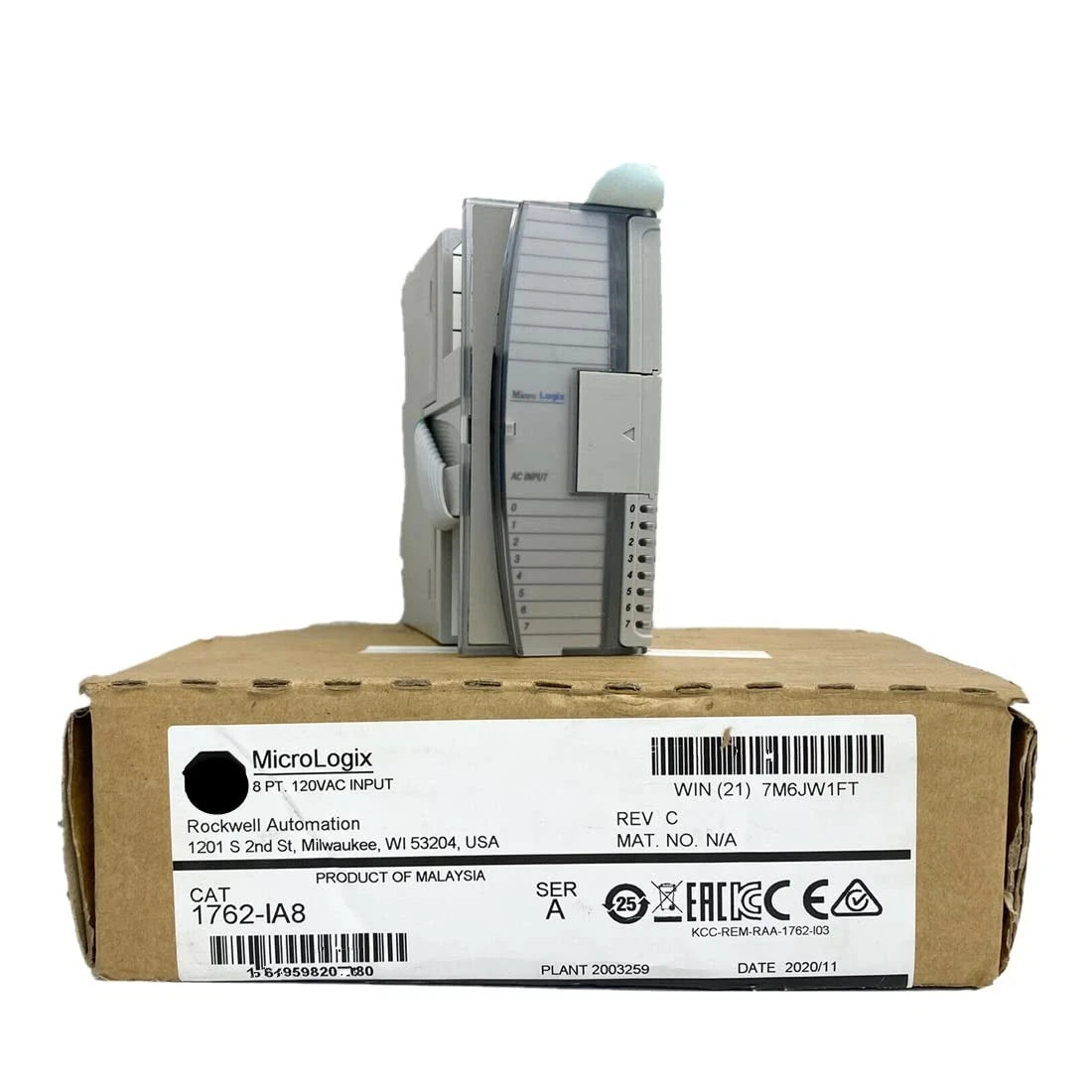

The Allen-Bradley 1762-IA8 is an 8-point 120 VAC digital input module for MicroLogix systems designed for compact control panels. It supports reliable AC signal detection across a 79–132 VAC operating range.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen-Bradley |
| Category | I/O Modules |
| Part Number | 1762-IA8 |
| Subcategory | Digital Input Modules |
| Number of Channels | 8 |
| Input Voltage Range | 79–132 VAC |
| Input Current | 16 mA |
| Frequency | 47–63 Hz |
| Response Time | 20 ms |
| Enclosure Rating | IP20 |
| Mounting Type | DIN Rail / Panel |
| Terminal Type | Screw |
| Temperature Rating | 32–131 °F |
| Standards | CE, C-Tick, KCC, c-UL-us Class I Div 2 |
| Application | AC Digital Input / Safety Function |
| Depth | 87 mm |
| Height | 90 mm |
| Width | 40 mm |
| Weight | 0.5 lb |
Information About 1762-IA8
The 1762-IA8 is part of the Allen-Bradley MicroLogix expansion I/O family, providing eight discrete 120 VAC input channels for small and mid-size control applications, including safety-related monitoring functions. It supports an operating range of 79–132 VAC at 47–63 Hz, allowing it to interface with standard AC field devices such as switches and sensors. The module features screw-type terminals, an IP20 enclosure rating, and mounts on either DIN rail or panel surfaces for flexible installation in compact cabinets. With certifications including CE, C-Tick, KCC, and c-UL-us Class I Div 2, along with a 32–131 °F temperature rating, it ensures reliable operation in industrial automation environments.
Key Features:
- Eight 120 VAC Input Channels: Provides AC signal monitoring for MicroLogix controllers in compact control systems.
- Wide 79–132 VAC Input Range: Ensures compatibility with standard industrial AC control devices and field wiring.
- Screw Terminal Connections: Supports secure, maintenance-friendly wiring for stable electrical performance.
- IP20 Open-Style Construction: Intended for installation within protected control cabinets and enclosures.
- DIN Rail or Panel Mounting: Offers flexible installation options to fit varying control panel layouts.
- 20 ms Input Response Time: Ensures consistent signal recognition for general-purpose and safety-related inputs.
- Industrial-Grade Certifications: Complies with CE, C-Tick, KCC, and c-UL-us Class I Div 2 hazardous location standards.
- Temperature Range 32–131 °F: Maintains stable operation in typical industrial control cabinet environments.
The 1762-IA8 delivers the reliability and precision required for dependable AC input monitoring in MicroLogix-based industrial automation systems.
