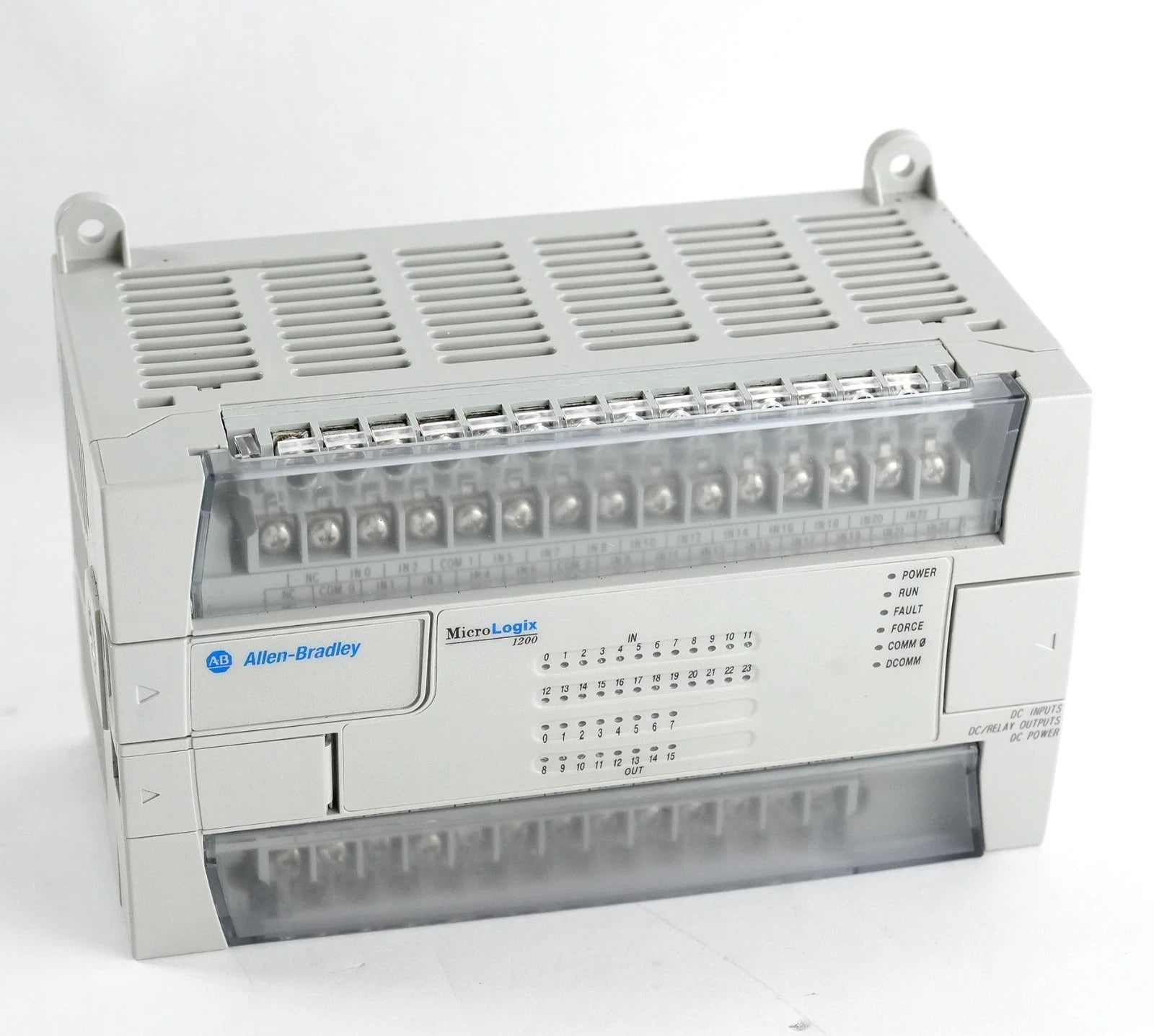

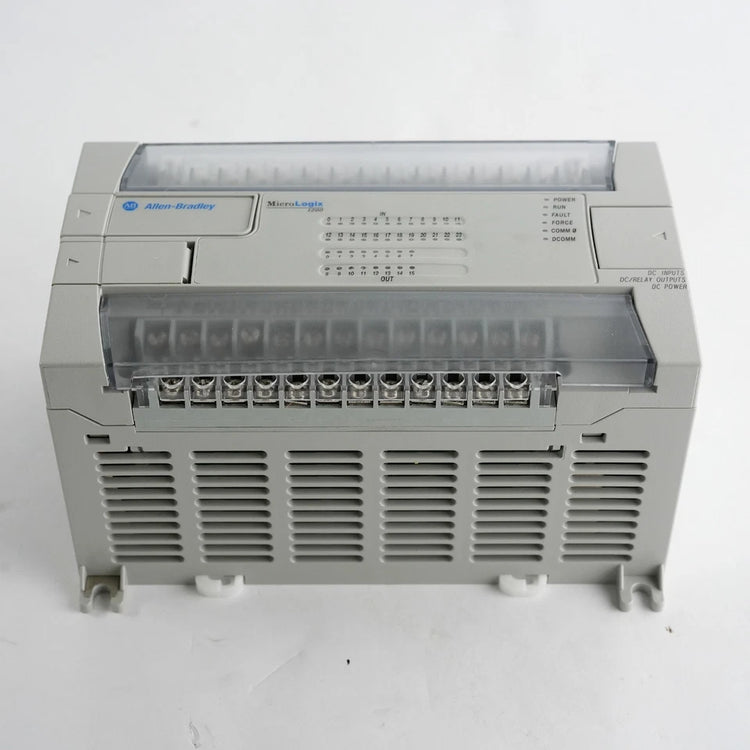

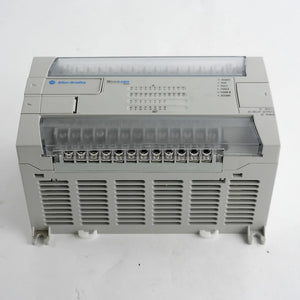

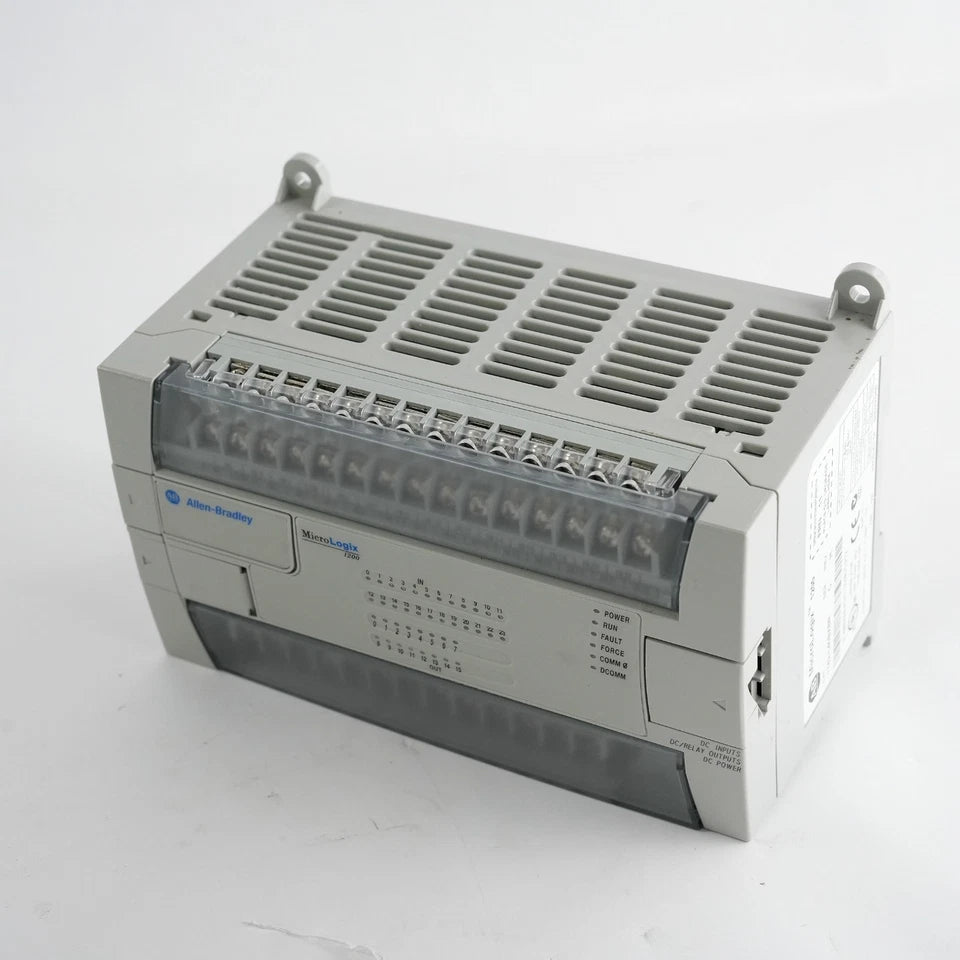

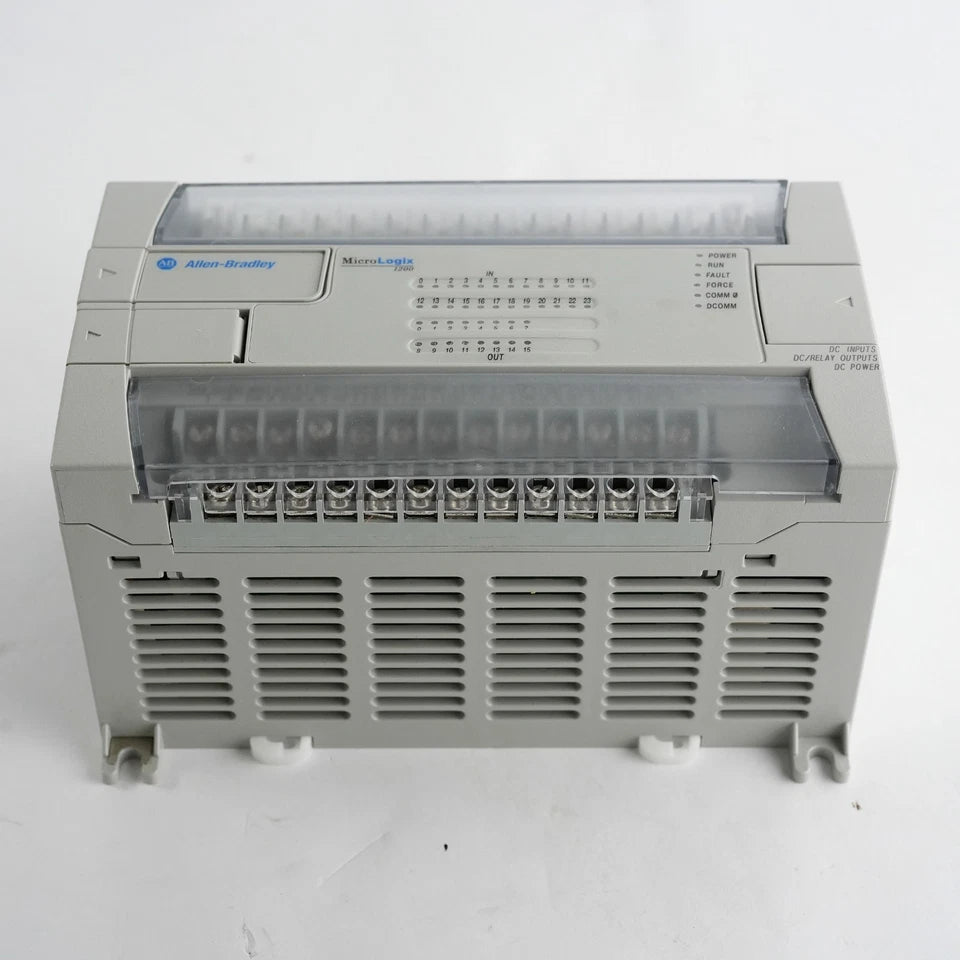

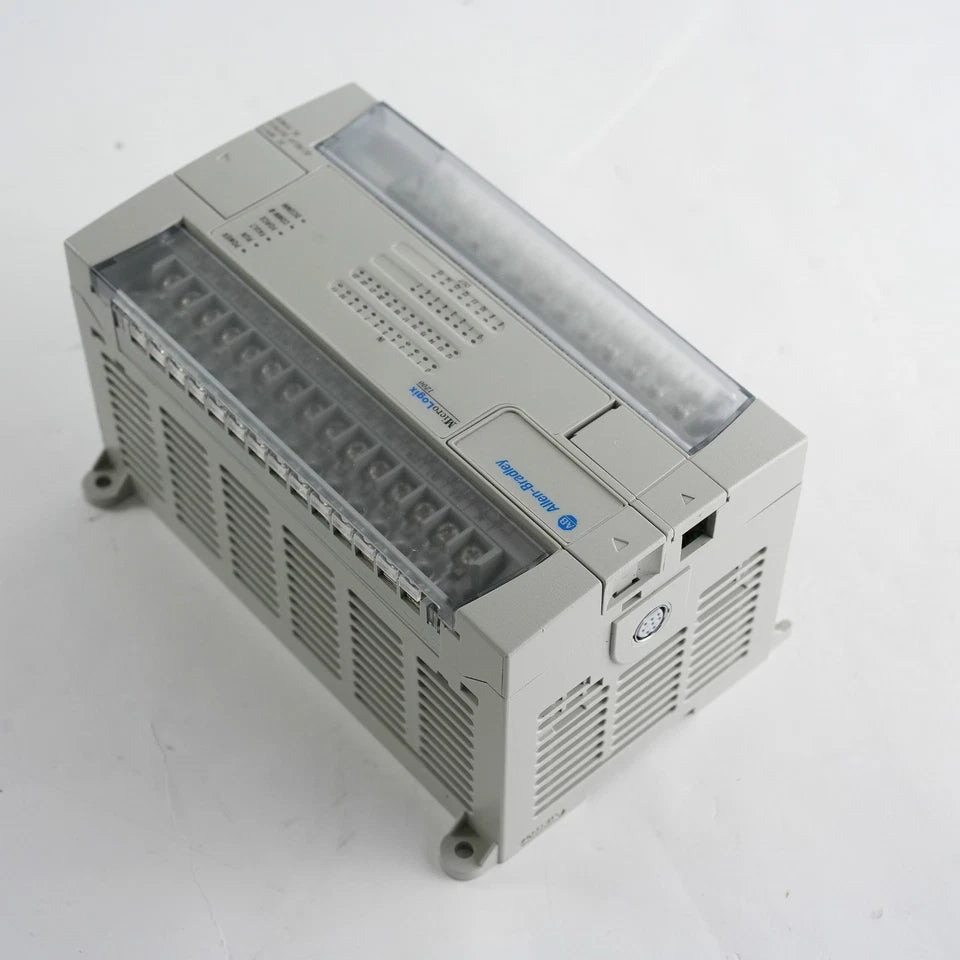

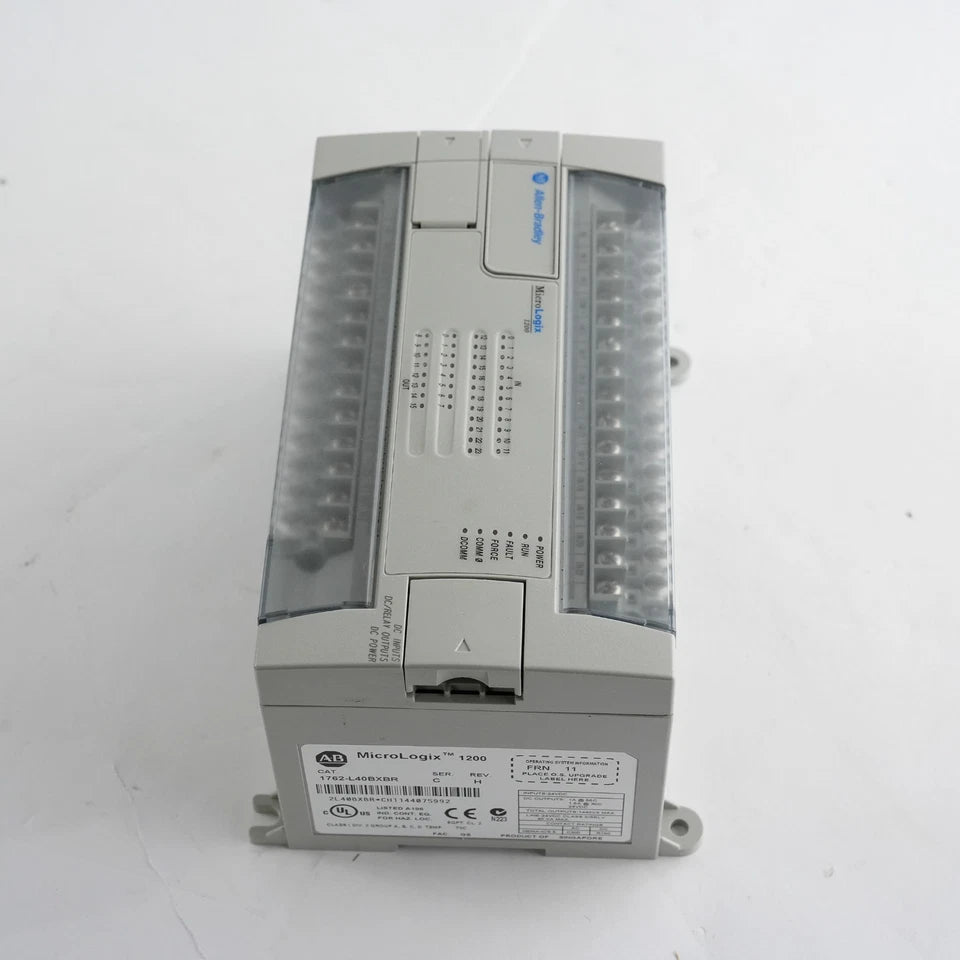

1762-L40BXBR | Allen-Bradley MicroLogix 1200 PLC with Mixed I/O and Serial Communication
- Regular price
- $927.00
- Sale price
- $927.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1762-L40BXBR
Description
The Allen-Bradley 1762-L40BXBR is a MicroLogix 1200 programmable logic controller designed to provide mixed digital I/O capability for compact automation systems. It supports both relay and FET outputs along with high-speed inputs for fast-response control tasks. Powered by a 24 VDC supply, the controller is suitable for small to mid-scale applications requiring reliable, versatile machine control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen-Bradley |
| Category | Programmable Controllers |
| Part Number | 1762-L40BXBR |
| Subcategory | MicroLogix 1200 PLCs |
| Series | MicroLogix 1200 |
| Power Supply | 24 VDC |
| Inputs | 20 × 24 VDC inputs; 4 × fast 24 VDC inputs |
| Outputs | 8 × relay, 7 × 24 VDC FET, 1 × high-speed 24 VDC FET |
| Communication Port | 8-pin Mini-DIN serial port |
| Supported Protocols | DF1, DH-485, ASCII, Modbus |
| Relay Contact Rating | 24–125 VDC and 120–240 VAC |
| Power Consumption | 40 W |
| Heat Dissipation | 27.9 W |
| Electrical Isolation | 75 VDC group-to-backplane; tested to 1200 VAC |
| Operating Temperature | 0 to 55 °C (32 to 131 °F) |
| Vibration Rating | 5 G, 10–500 Hz |
| Shock Rating | 30 G |
| Dimensions | 90 × 160 × 87 mm |
| Expansion Capacity | Up to 6 expansion modules |
| Mechanical Relay Life | 20,000,000 cycles |
| Weight | 1–1.1 kg |
Information About 1762-L40BXBR
The 1762-L40BXBR is part of the Allen-Bradley MicroLogix 1200 series, built to deliver modular expandability and broad protocol compatibility in industrial automation systems. It supports up to six expansion modules, allowing users to scale I/O capacity as system requirements grow. The controller integrates a Mini-DIN serial port that supports DF1, DH-485, ASCII, and Modbus communication, enabling easy connection to HMIs, SCADA systems, and external devices. Its durable construction, wide operating temperature range, and long mechanical relay life make it well suited for demanding installations.
Key Features:
- Mixed I/O Architecture: Provides 20 standard DC inputs, 4 fast DC inputs, 8 relay outputs, 7 DC FET outputs, and 1 high-speed FET output for flexible control.
- Expandable Design: Supports up to six 1762 expansion modules to increase system capacity.
- Versatile Communications: Includes an 8-pin Mini-DIN serial port for DF1, DH-485, ASCII, and Modbus protocols.
- High Relay Durability: Rated for 20 million mechanical cycles with AC and DC switching capability.
- Robust Electrical Ratings: Handles 24–125 VDC and 120–240 VAC relay loads with defined current and isolation specifications.
- Industrial Environmental Tolerance: Operates from 0 to 55 °C and withstands 30 G shock and 5 G vibration.
- Integrated Trim Pots: Two onboard potentiometers enable local adjustments to internal registers for testing or simulation.
- Compact Mounting Options: Supports panel or DIN-rail installation for flexible deployment in control cabinets.
The 1762-L40BXBR delivers the reliability and precision required for stable machine sequencing and discrete automation control.
