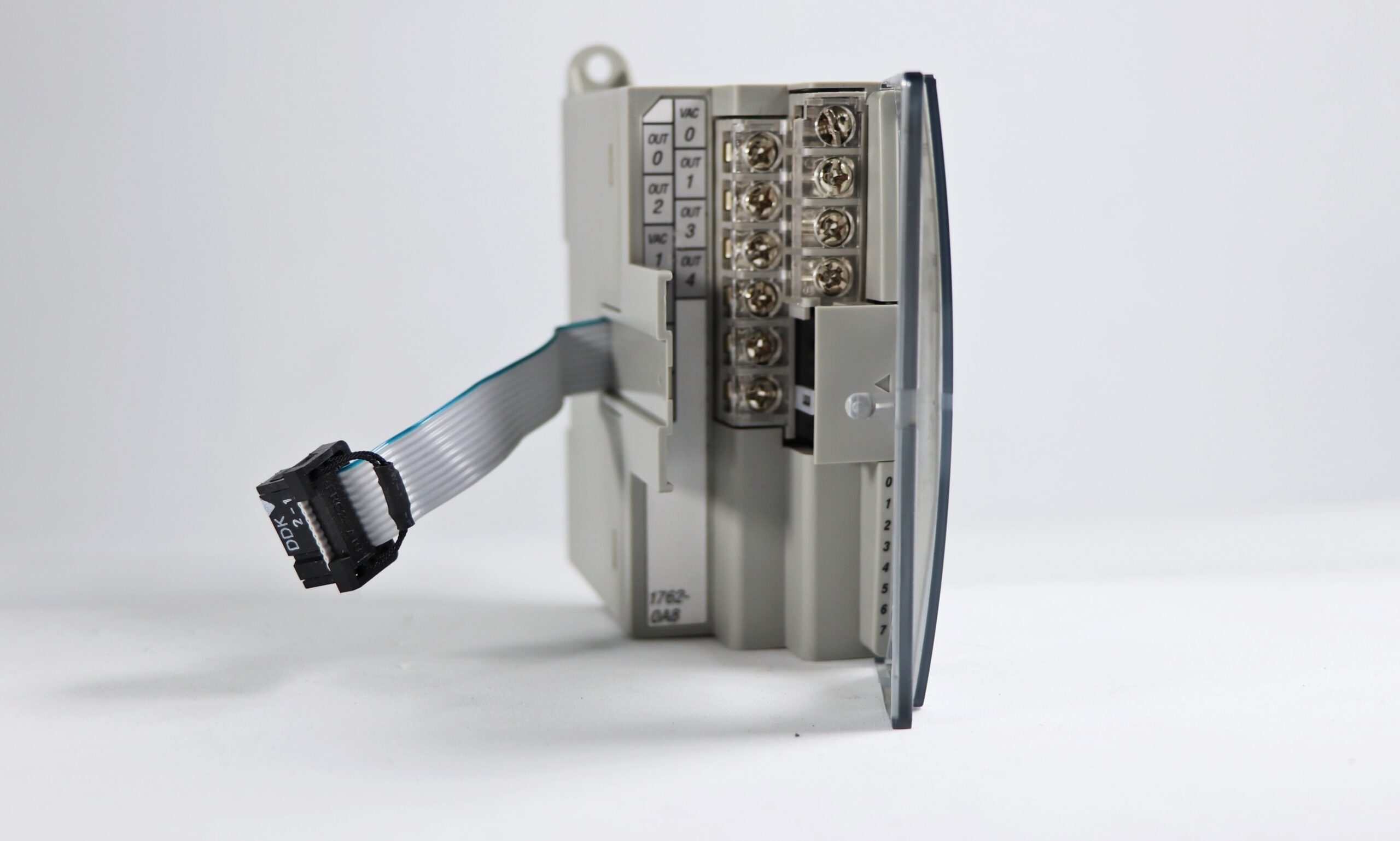

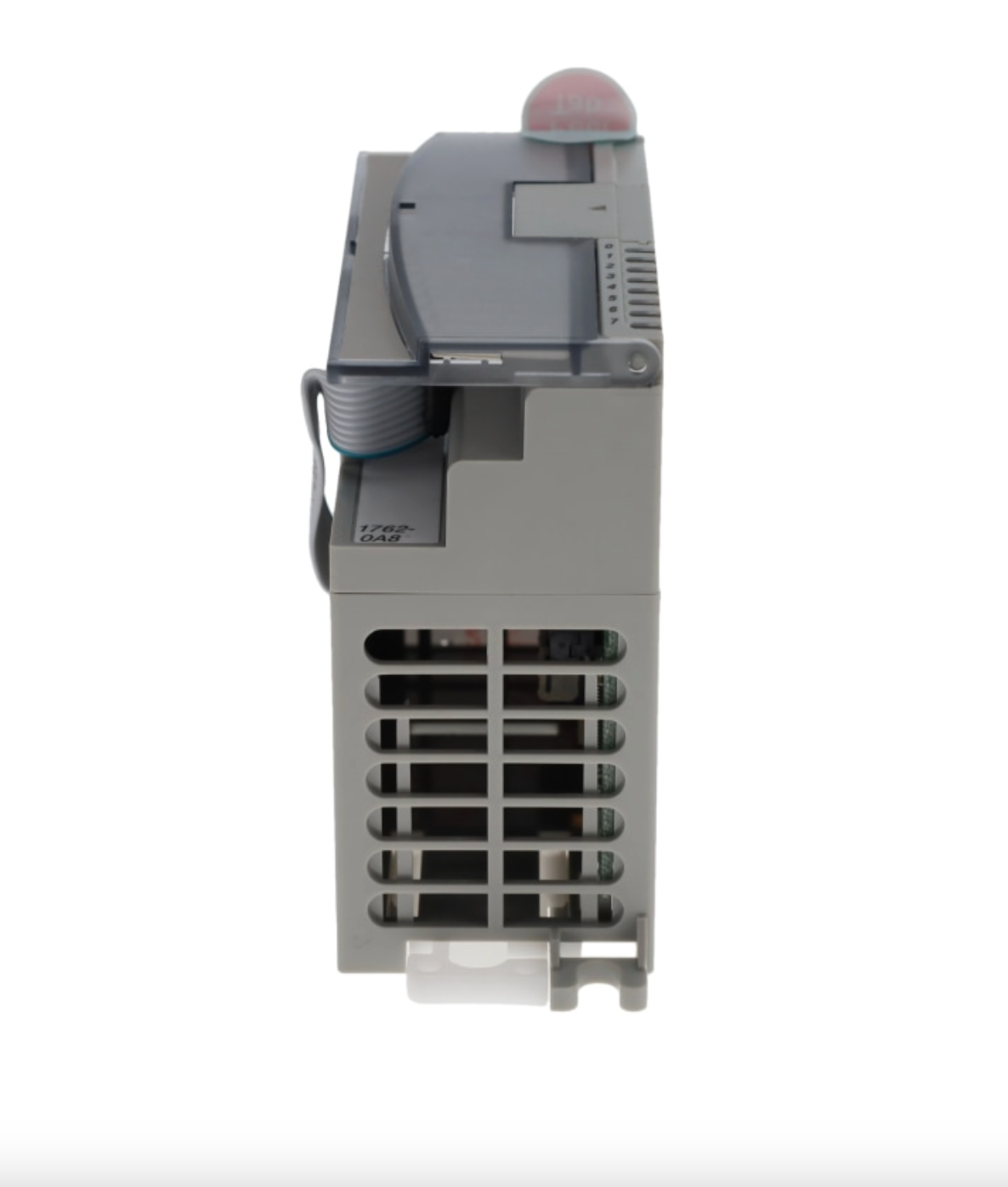

1762-OA8 | Allen-Bradley MicroLogix 8-Point Digital Solid State Output Module, 120/240V AC
- Regular price
- $212.00
- Sale price
- $212.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1762-OA8
Description
The Allen-Bradley 1762-OA8 is a solid-state output module. This 8-point output module has an operating voltage of around 85 to 265 Volts AC. The 1762-OA8 uses an input power of 100 to 240 Volts AC.

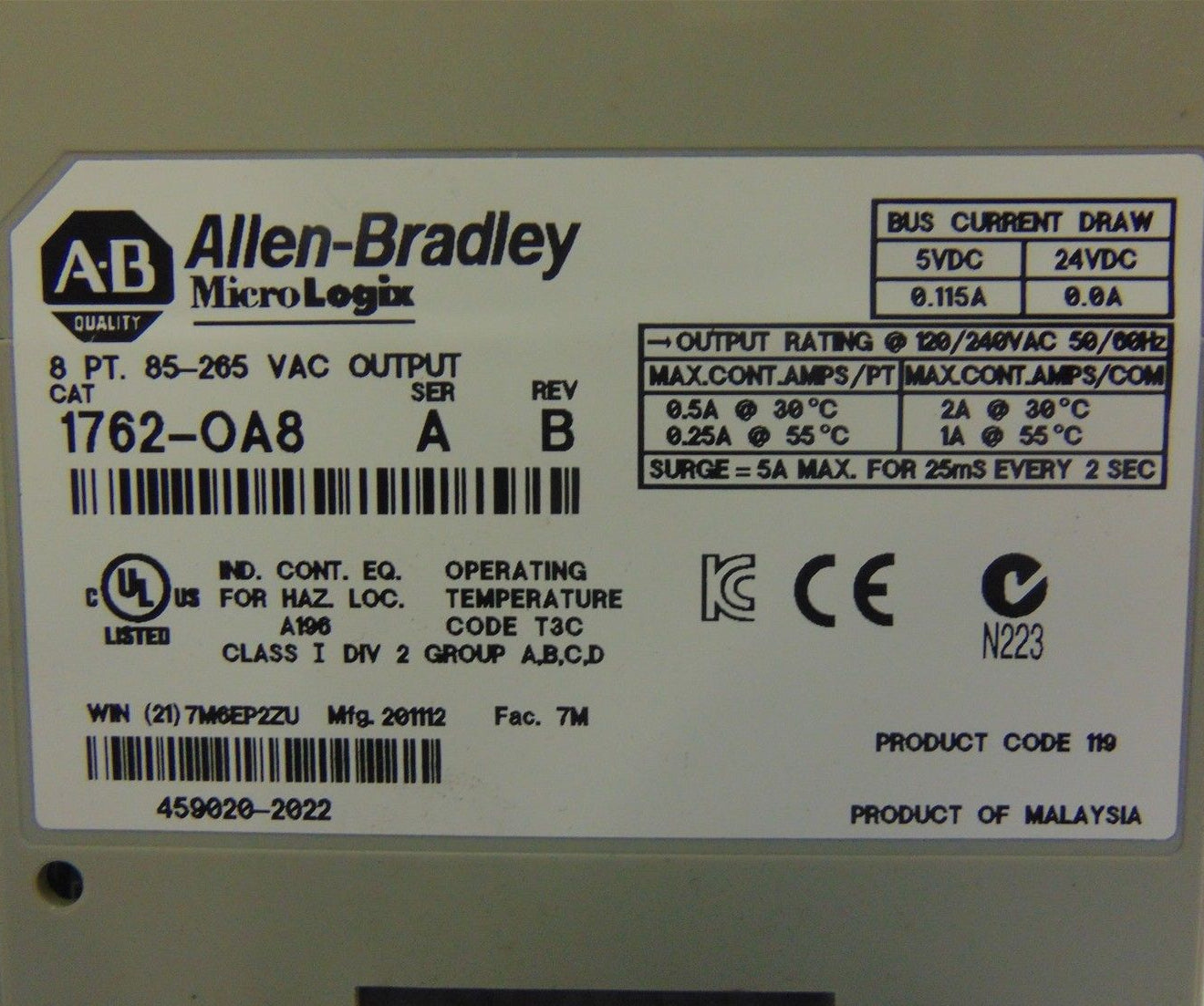

Technical Specifications
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Part Number | 1762-OA8 |
| Function | Solid-State Output Module |
| Input Power | 100 to 240 Volts AC |
| Outputs | (8) AC Triac |
| Dimensions (HxWxD) | 3.54 x 1.59 x 3.43 inches |
| Heat Dissipation | 2.9 Watts |
| Operating Voltage | 85 to 265 Volts AC |
| Operating Frequency | 47 to 63 Hertz |
| Commons | 2 |
Information About 1762-OA8
The Allen-Bradley 1762-OA8 is a solid-state output module. Its non-operating temperature varies from -40 to 185 degrees Fahrenheit while its operating temperature varies from 32 to 131 degrees Fahrenheit. This module also complies with the NEMA ICS 2-230, EN50081-2 Class A, IEC1000-4-2, and the IEC1000-4-3 standards. The 1762-OA8 operates on 85 to 256 Volts AC at 47 to 63 Hertz. This module has 8 outputs. Its maximum bus current is 115 mA at 5 Volts DC and its maximum heat dissipation is 2.9 W. The maximum voltage drop of the 1762-OA8 is 1.5 Volts at 0.5 Amps while the minimum on-state current of this module is 10 mA.
The 1762-0A8 must be well-grounded on a proper mounting surface, like a metal panel. Refer to Allen-Bradley’s wiring and grounding guidelines for more information. Ensure that the module is free of all metal fragments before operation because these fragments could cause damage when the power is applied. Make sure to keep the finger-safe cover in place when wiring the terminal block. Once removed, the cover cannot be put back on the module because the wires’ position will prevent it. The 1762-0A8 is compatible with MicroLogix 1100, MicroLogix 1200, and MicroLogix 1400 systems.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
