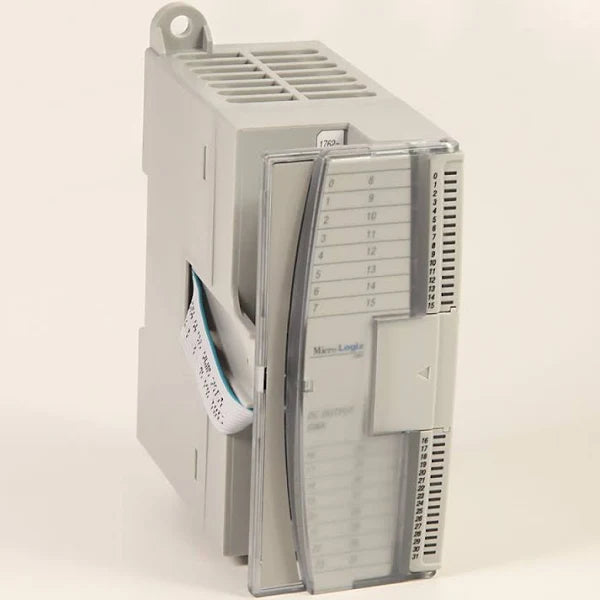

1762-OB32T | Allen-Bradley | Digital Output
- Regular price
- $214.00
- Sale price
- $214.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1762-OB32T
Description
The Allen-Bradley 1762-OB32T MicroLogix Digital Output Module is a compact digital output module designed for MicroLogix systems. It features 32 output points, organized into 16 points per group, each operating at 24V DC. With a maximum current rating of 0.5A per point, it provides reliable source output capability for digital control applications.
Technical Specifications
|
Manufacturer |
Rockwell Automation |
|
Module Type |
Solid State output module |
|
Minimum On-state current |
1 mA |
|
Surge current |
2.0 A (Repeatable every 2 s @ 60 °C (140 °F) for 10 ms |
|
Output current rating per module |
4.0 A @ 60 °C (140 °F) |
|
Output current rating per group |
2.0 A @ 60 °C (140 °F) |
|
Output current rating per channel |
0.5 A @ 60 °C (140 °F) |
|
Output voltage range |
10.2-26.4 VDC |
|
Nominal Output voltage |
24VDC |
|
Channels per group |
Sixteen (16) channels |
|
No. of groups |
Two (2) Output groups |
|
No. of Outputs |
Thirty-Two (32) ouputs |
|
Brand |
Allen-Bradley |
|
Series |
MicroLogix |
|
Part Number/Catalog No. |
1762-OB32T |
|
Product Type |
Source Output Module |
|
Input Power |
24V DC |
|
Operating Voltage Range |
10.2-26.4V DC |
|
Heat Dissipation |
3.4 Watts |
|
Wire Size |
22, 24, and 26 AWG |
|
UPC |
10612598849922 |
Information About 1762-OB32T
The Allen-Bradley 1762-OB32T MicroLogix Digital Output Module is a component designed for MicroLogix systems, providing digital output functionality. It offers 32 output points, arranged in groups of 16 points each. These outputs operate at a voltage of 24V DC and have a current rating of 0.5A per output. The module serves as a source output, suitable for controlling external devices or processes in industrial automation applications.
With its 32-point capacity, the 1762-OB32T module offers versatility and flexibility in digital control systems, allowing users to connect a wide range of devices or components for precise control and monitoring. The grouping of points into sets of 16 facilitates organization and simplifies wiring in complex control setups.
Operating at a voltage of 24V DC, the module ensures compatibility with standard industrial power systems, making it suitable for integration into various automation environments. The 0.5A current rating per output point provides sufficient power for driving typical industrial loads, allowing for reliable operation in diverse applications.
The Allen-Bradley 1762-OB32T module is engineered to meet the demands of industrial environments, offering durability and reliability in harsh operating conditions. Its design adheres to industry standards, ensuring compatibility and interoperability with other components and systems commonly used in industrial automation.
By providing digital output capabilities, the module enables precise control over connected devices or processes, enhancing operational efficiency and productivity in industrial settings. Its integration into MicroLogix systems expands the capabilities of these control platforms, allowing for the implementation of sophisticated automation solutions.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
