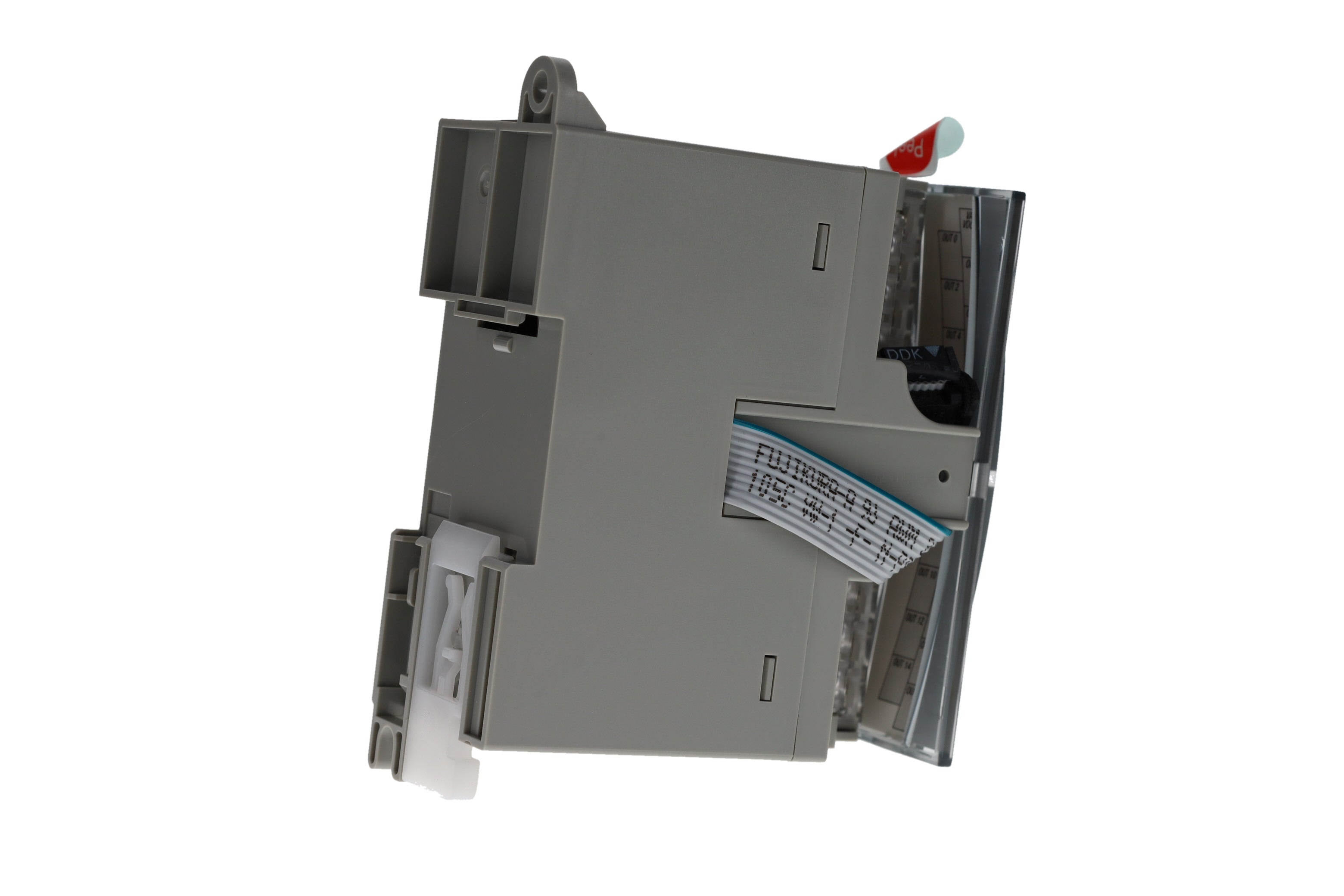

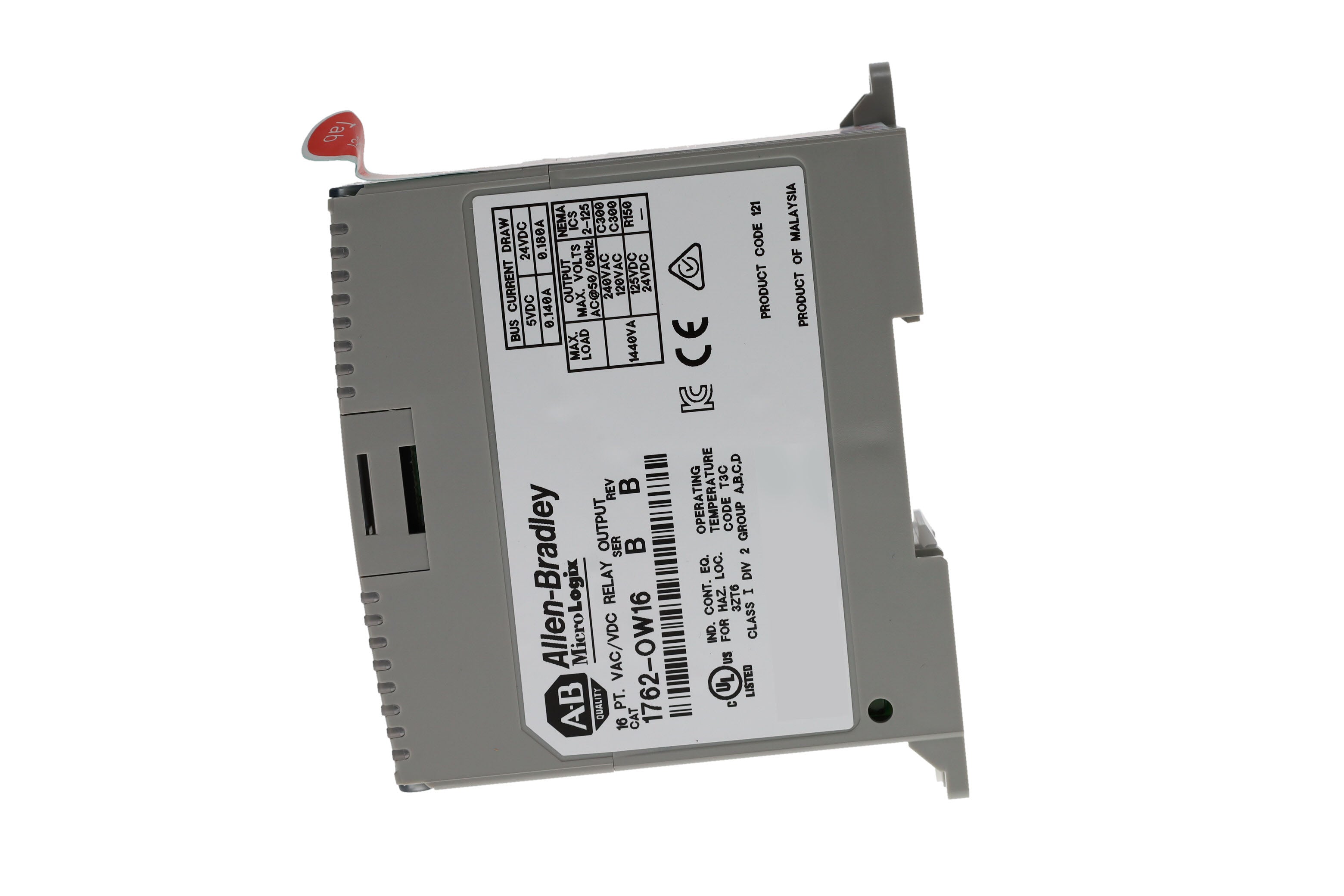

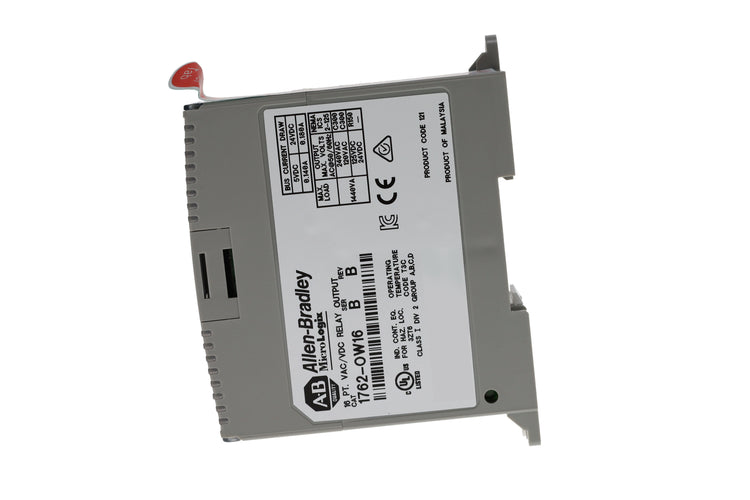

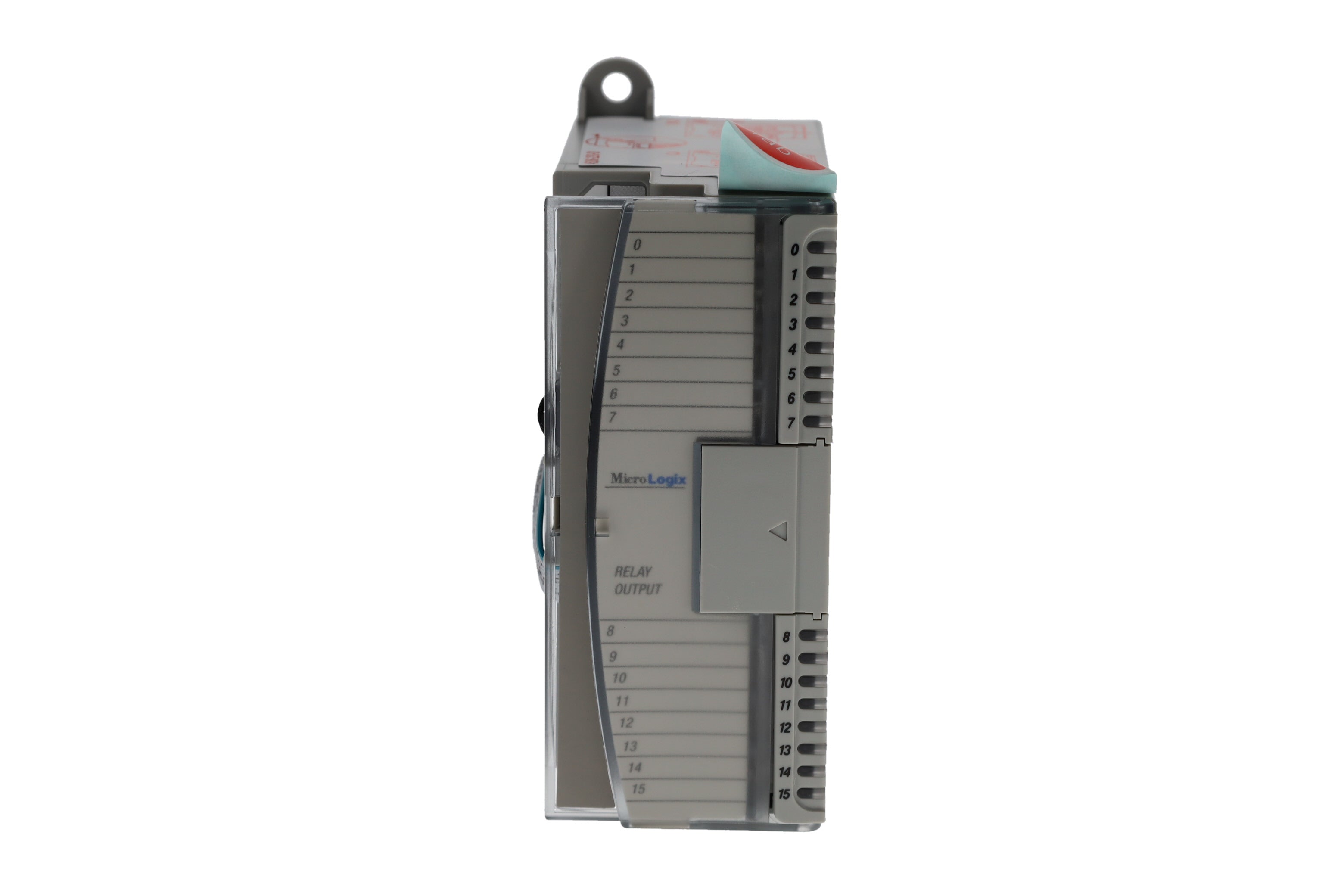

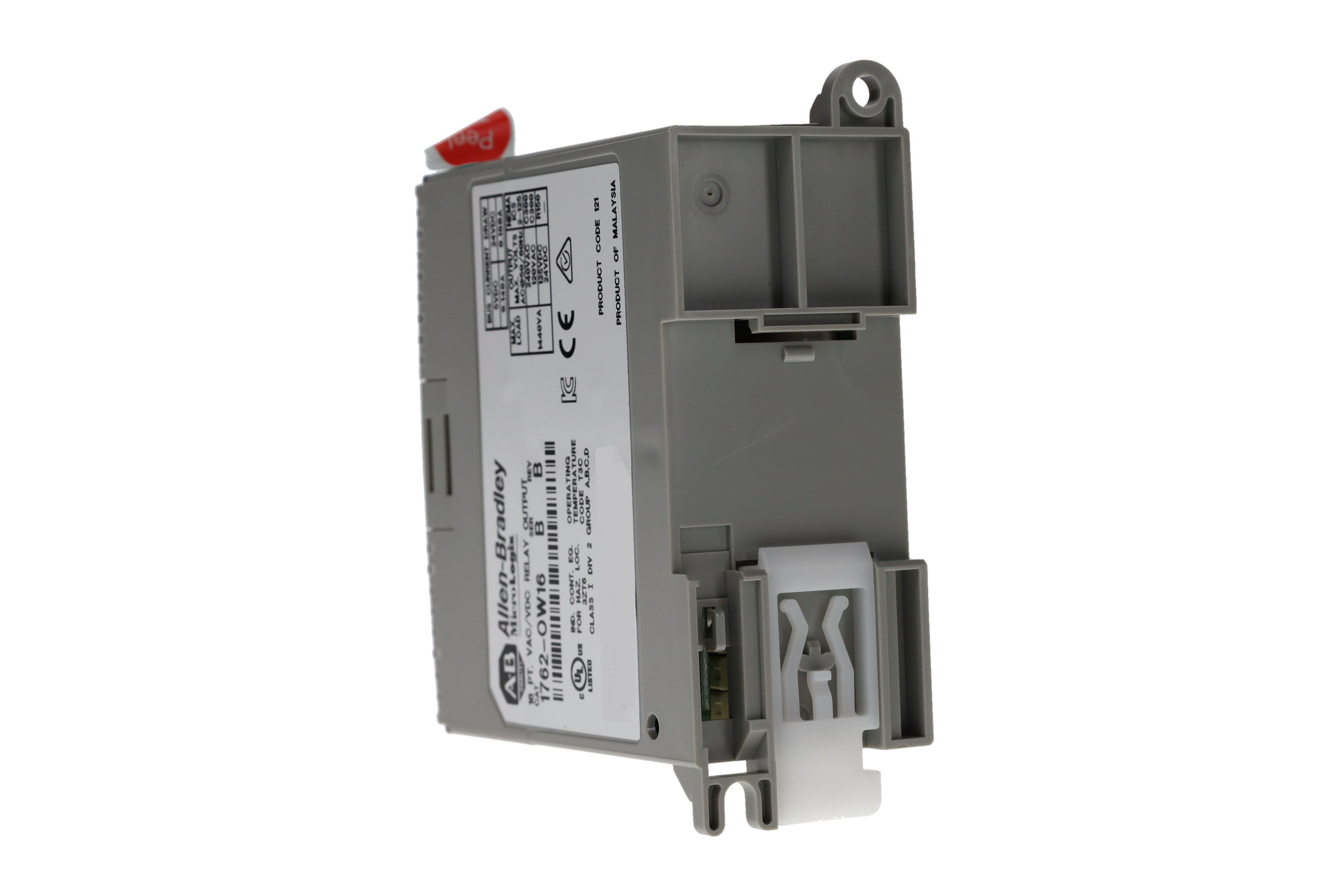

Part #: 1762-OW16 Manufactured by: Allen-Bradley
Regular price
$282.00
Sale price
$282.00
Regular price
38 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Allen-Bradley 1762-OW16 is a relay output module. This module has a heat dissipation of 6.1 Watts. The 1762-OW16 has 1...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 1762-OW16
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 1762-OW16

Description / Specifications

Description

The 1762-OW16 is MicroLogix expansion module. This module has Sixteen (16) Relay output channels. This module is designed for an operating voltage range of 5 - 265VAC and 5 - 125V DC. module is compatible for use with MicroLogix 1100 / 1200 and 1400 controllers. This content was written and compiled by D-O Supply and should not be copied.



Technical Specifications



Condition New / Never Used Surplus
Brand Allen-Bradley
Series MicroLogix
Part Number 1762-OW16
Manufacturer Rockwell Automation
Module Type Relay Output Module
Compatible Controllers MicroLogix 1100 / 1200 / 1400
Mounting Type DIN Rail
Isolated Groups 2
Outputs (16) AC/DC Relay
Relay Contact Voltage Ratings 24-125 VDC;120-240VAC
Operating Voltage Range 5-265V AC; 5-125V DC
Voltage Category AC/DC Normally Open Relay
Mounting Type DIN Rail; Panel Mounting
No. of Groups 2
Channels Per group 8
Signal Delay 10 ms
Max. Current per point 2.5 A
Heat Dissipation 6.1 Watts





Information About 1762-OW16

The 1762-OW16 is a MicroLogix Relay output expansion module. This module is used to enhanced the output capability of MicroLogix 1100, 1200 and 1400 Programmable Logic Controller (PLC). It is compatible for use in energizing and de-energizing electrical loads.

This module features Sixteen (16) relay contact outputs that may be operated with 24-125VDC and 120-240 VAC voltage ranges. Each output channels exhibits a signal delay time of 10 ms for both ON to OFF and OFF to ON transitions. Each point of the module is rated for 2.5 A continuous current, Continuous Current per common of 8A and Continuous Current per module of 16A. The 1762-OW16 has Two (2) output groups, each group composed of Eight (8) channels each. Group 0 are made of Outputs 0-7 while Group 1 is made of Outputs 8-15.

Surge suppressors are recommended for installation across the inductive load. This surge suppressors may provide protection to the high-inrush current of inductive loads thus, may contribute in extending the operational lifespan of the module.

When used with a MixroLogix 1100 controller, up to Four (4) instances of this module may be installed. If used with MicroLogix 1200, up to Six (6) modules is supported while Seven (7) modules are permitted when used with MicroLogix 1500.

The module’s physical dimension measures 90 x 40.4 x 87 mm (3.54 x 1.59 x 3.43 in.) Height including mounting tabs is 110 mm (4.33 in.). Installation depends on the base controller. As standard for MicroLogix 1100 / 1200 and 1400 controllers, this module supports DIN rail of direct panel mounting.

The Allen-Bradley 1762-OW16 module is a relay output module that can operate on both DC power and AC power. It has a designed operating voltage range of 5 to 265 Volts AC and 5 to 125 Volts DC. The 1762-OW16 has 16 outputs, its maximum heat dissipation is 6.1 Watts, and it has an enclosure type rating of IP20. The weight of this module is around 0.63 pounds. The module’s maximum bus current draws are 140 mA at 5 Volts DC voltage and 180 mA at 24 Volts DC voltage. The minimum on-state current of the 1762-OW16 is 10 mA. The maximum continuous current per point is 2.5A and the maximum continuous current per point common is 8A while the maximum continuous current per module is 16A. The maximum controlled load of the 1762-OW16 is 1440 VA.

The 1762-OW16 module has 4 relay contact ratings. The relay output is rated for24 Volts DC, 125 Volts DC, 120 Volts AC, and 240 Volts AC. For 240 to 120 Volts AC, the maximum continuous current per point is 2.5 Amps. For 125 Volts and 24 Volts DC, and the maximum continuous current per point is 2 Amps and 1 Amp. Connecting surge suppressor devices across the external inductive load will extend the life of the relay contacts. For additional details, refer to Allen-Bradley’s wiring guidelines. Keep in mind that electrostatic discharge can damage the 1762-OW16’s semiconductor.


Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
