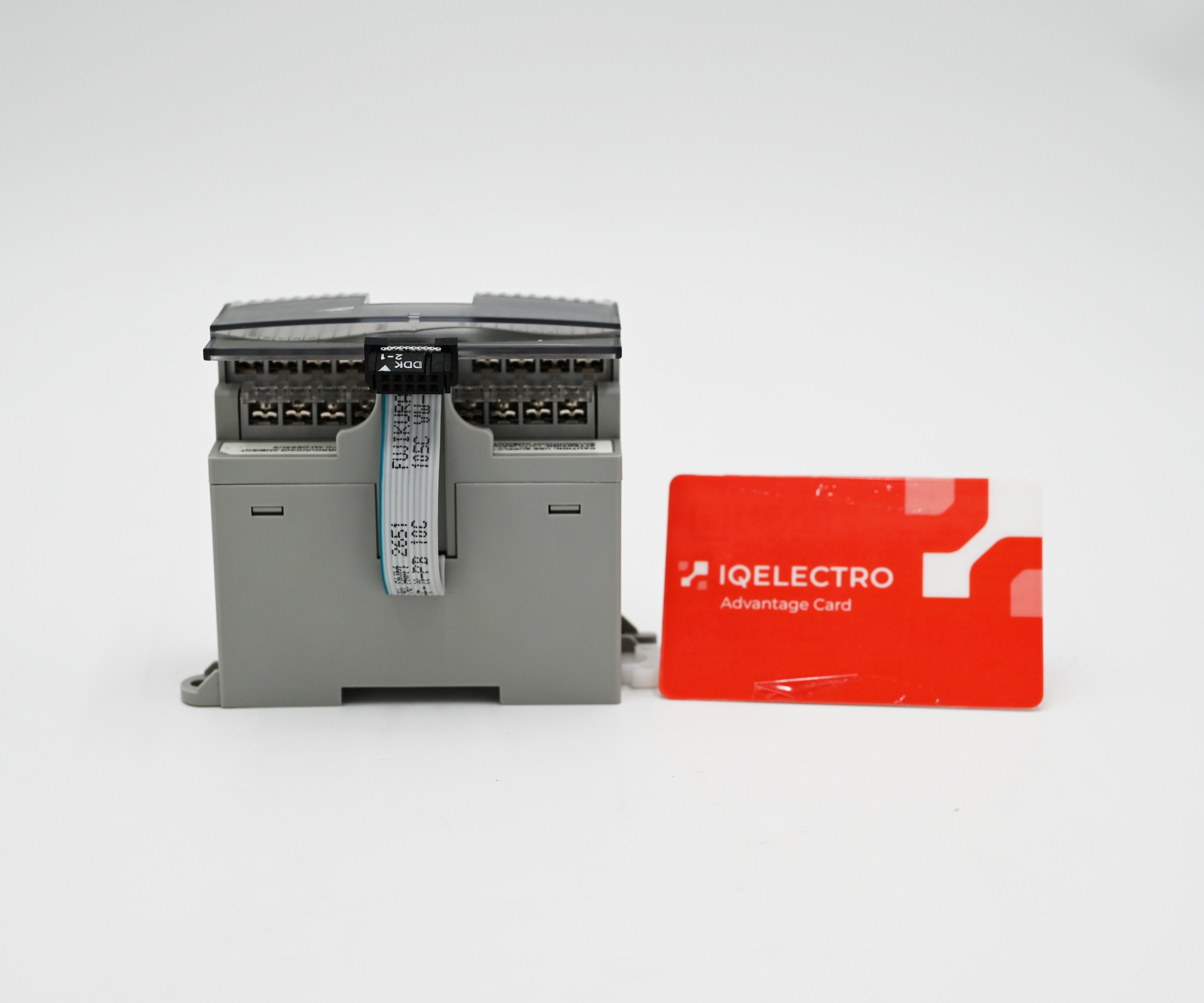

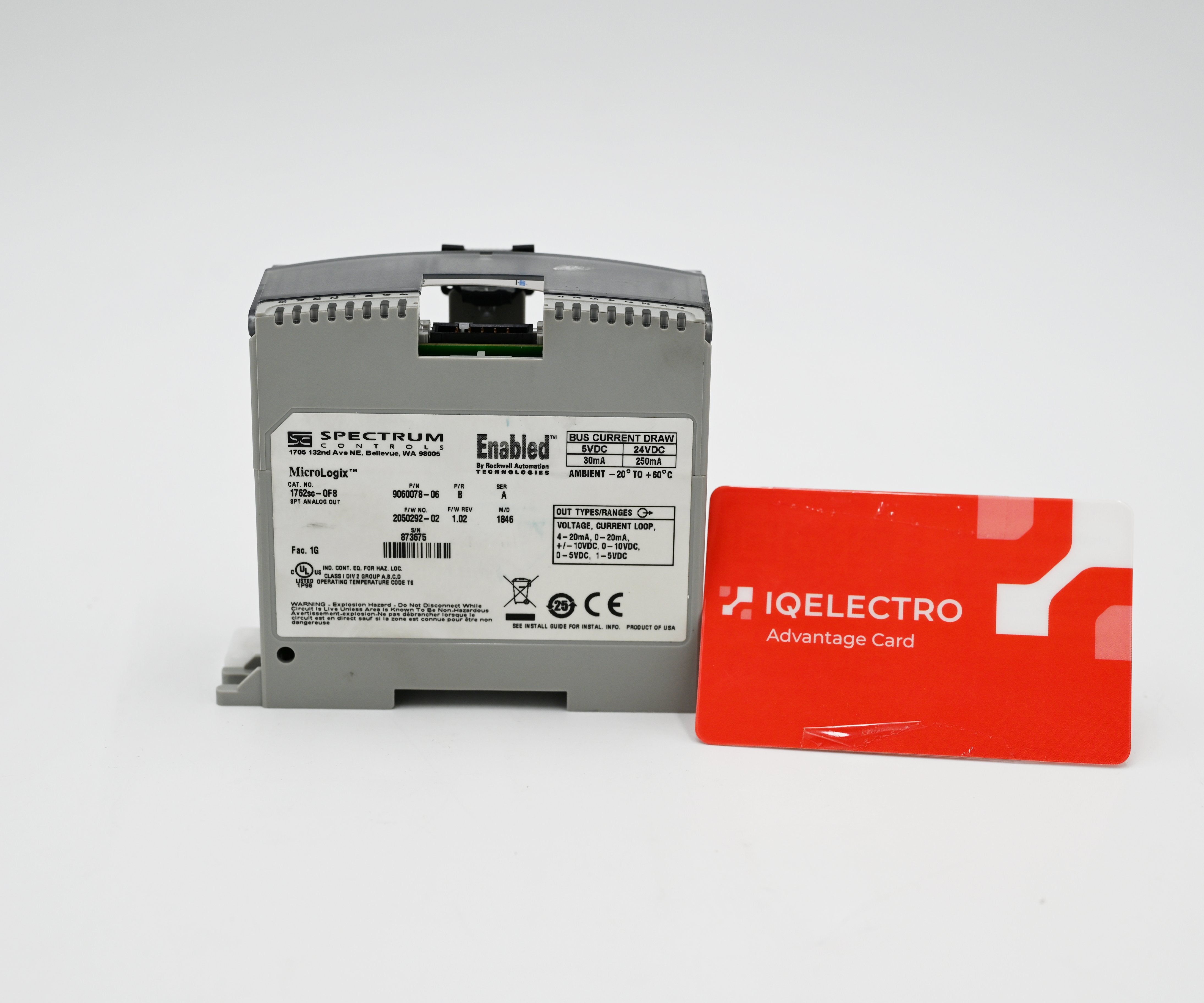

1762SC-OF8 | Allen-Bradley MicroLogix 8-Ch Analog Current/Voltage Output
- Regular price
- $662.00
- Sale price
- $662.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 1762SC-OF8
Description
The Allen-Bradley 1762SC-OF8, manufactured by Spectrum Controls, is an 8-channel analog output module designed for MicroLogix 1100, 1200, and 1400 controllers. It supports both voltage and current output ranges with 16-bit resolution for precise analog control. The module expands system capability by providing twice the output density of standard 1762 analog output modules.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen-Bradley |
| Category | PLCs/Machine Control |
| Part Number | 1762SC-OF8 |
| Subcategory | Analog Output Modules |
| Manufacturer | Spectrum Controls |
| Product Type | Analog Output Module |
| Compatible Series | 1762 MicroLogix |
| Compatible Controllers | MicroLogix 1100 / 1200 / 1400 |
| Number of Channels | 8 Voltage/Current Outputs |
| Voltage Output Ranges | 0–5 V, 1–5 V, 0–10 V, ±10 V |
| Current Output Ranges | 0–20 mA, 4–20 mA |
| Resolution | 16-bit |
| Output Accuracy | ±20 mV at 25°C; ±50 µA at 25°C |
| Settling Time | <1 ms to 63% full scale |
| Data Formats | PID, Engineering Units, Raw Count, Percent of Range |
| Overvoltage Protection | +24 VDC for 1 minute |
| Backplane Current Required | 30 mA at 5 V; 250 mA at 18.7 V; 195 mA at 24 V |
| Thermal Dissipation | 4.9 W max |
| Operating Temperature | Up to 60°C |
| Relative Humidity | 5–95% non-condensing |
| Altitude | 2000 m max |
| Dimensions (H × W × D) | 90 × 40 × 87 mm |
| Certifications | UL/cUL Class I Div 2 Groups A–D, CE |
Information About 1762SC-OF8
The 1762SC-OF8 belongs to the 1762 MicroLogix expansion family and provides eight differential analog output channels for high-density signal generation. Each channel can be configured for voltage or current output, offering a flexible range of supported signals for industrial control and modulation tasks. The module features selectable data formats—including PID, engineering units, raw count, and percent of range—allowing seamless integration into process applications. Typical uses include controlling actuators, valves, converters, and other devices requiring stable analog output in environments where space efficiency and precision are critical.
Key Features:
- Eight analog outputs: Voltage or current output per channel for high-density control.
- Wide output ranges: Supports 0–5 V, 1–5 V, 0–10 V, ±10 V, 0–20 mA, and 4–20 mA.
- High resolution: 16-bit output resolution for accurate analog signal generation.
- Configurable data formats: PID, engineering units, raw counts, and percent-of-range.
- Fast response: <1 ms settling time to 63% of full scale.
- Overvoltage protection: +24 VDC for one minute to protect module circuitry.
- MicroLogix compatibility: Works with all 1762 expansion buses and ML1100/1200/1400 PLCs.
- Industrial installation: Requires proper enclosure spacing and ventilation for EMI reduction.
The 1762SC-OF8 delivers the reliability and precision required for high-density analog output control in MicroLogix-based automation systems.
