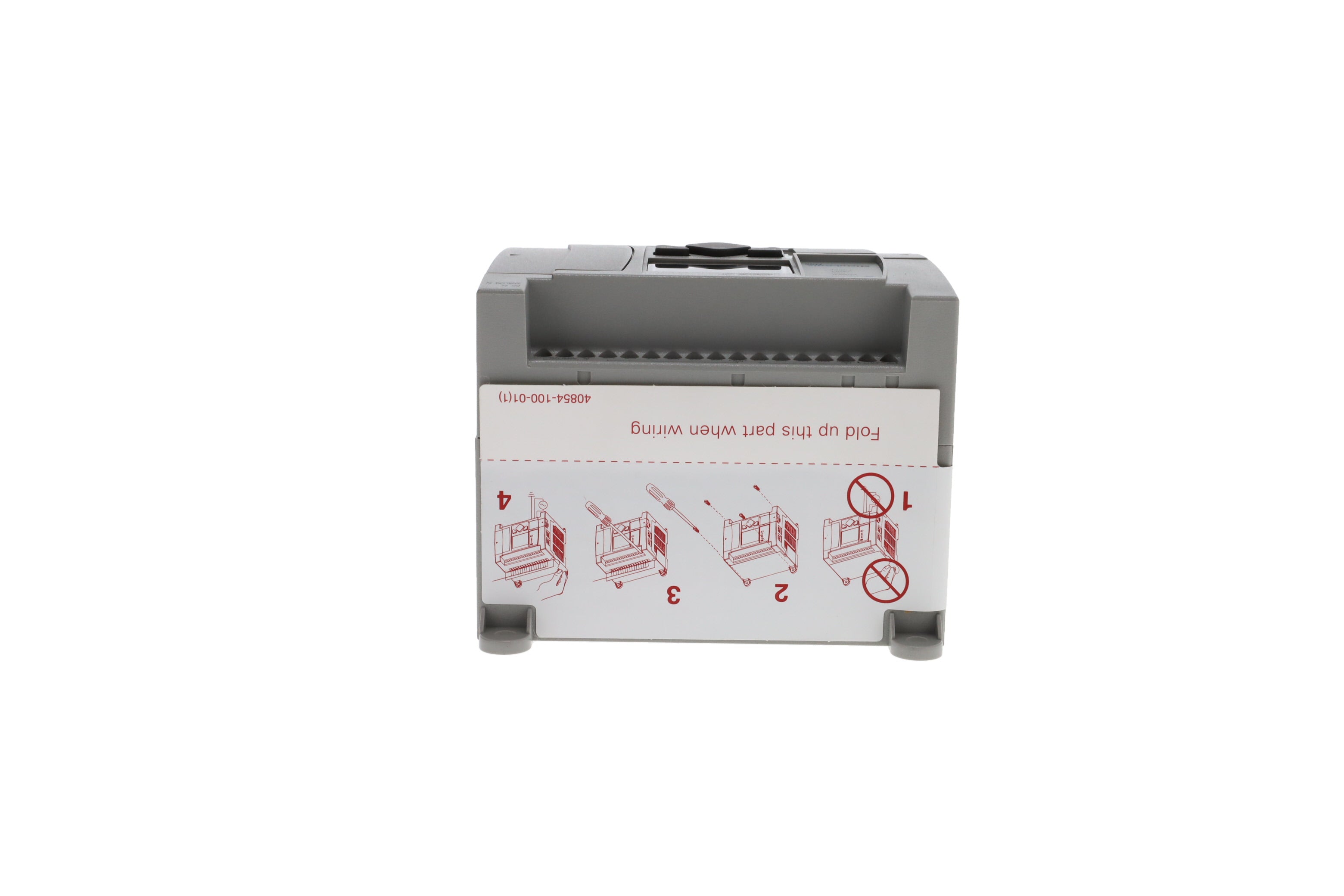

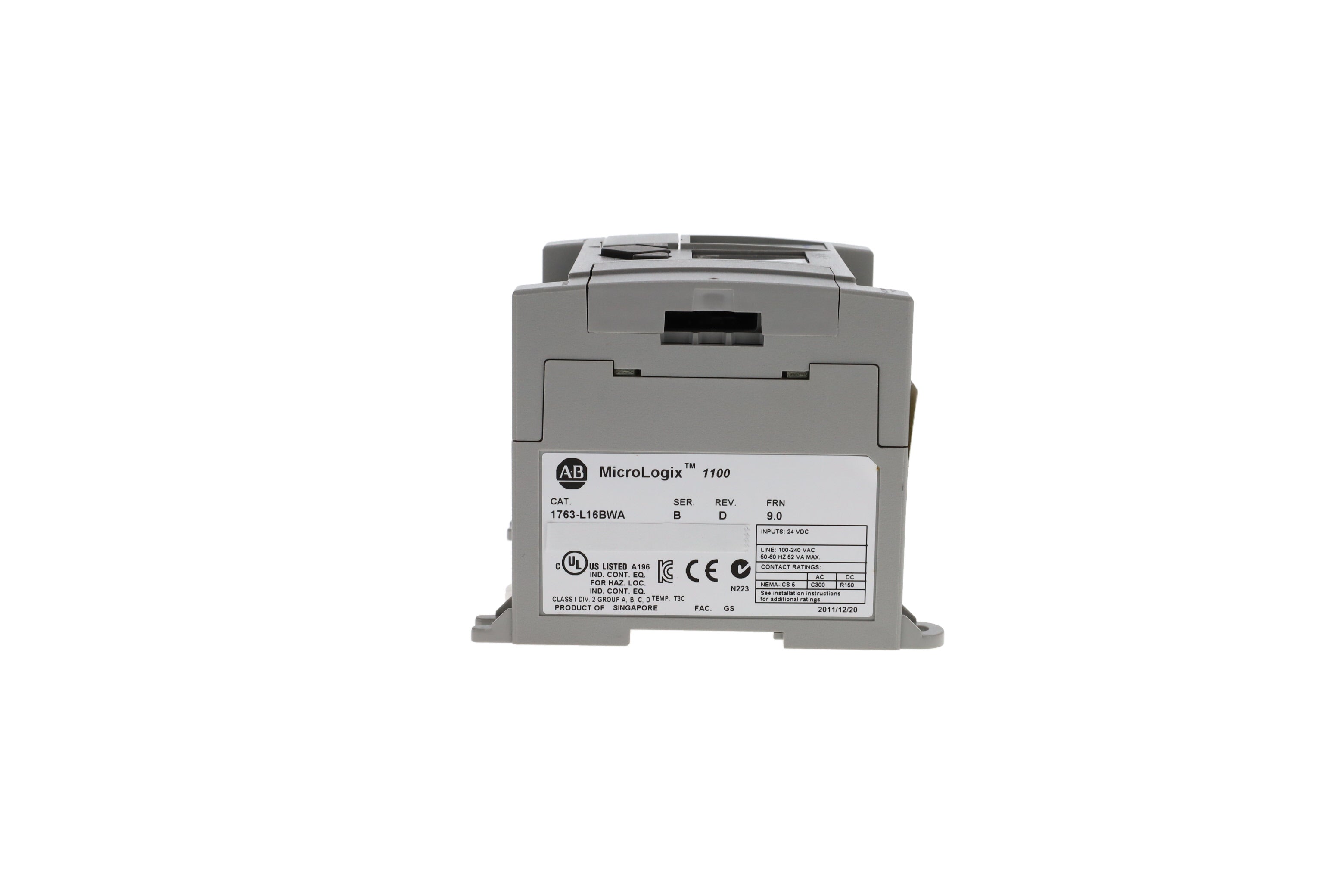

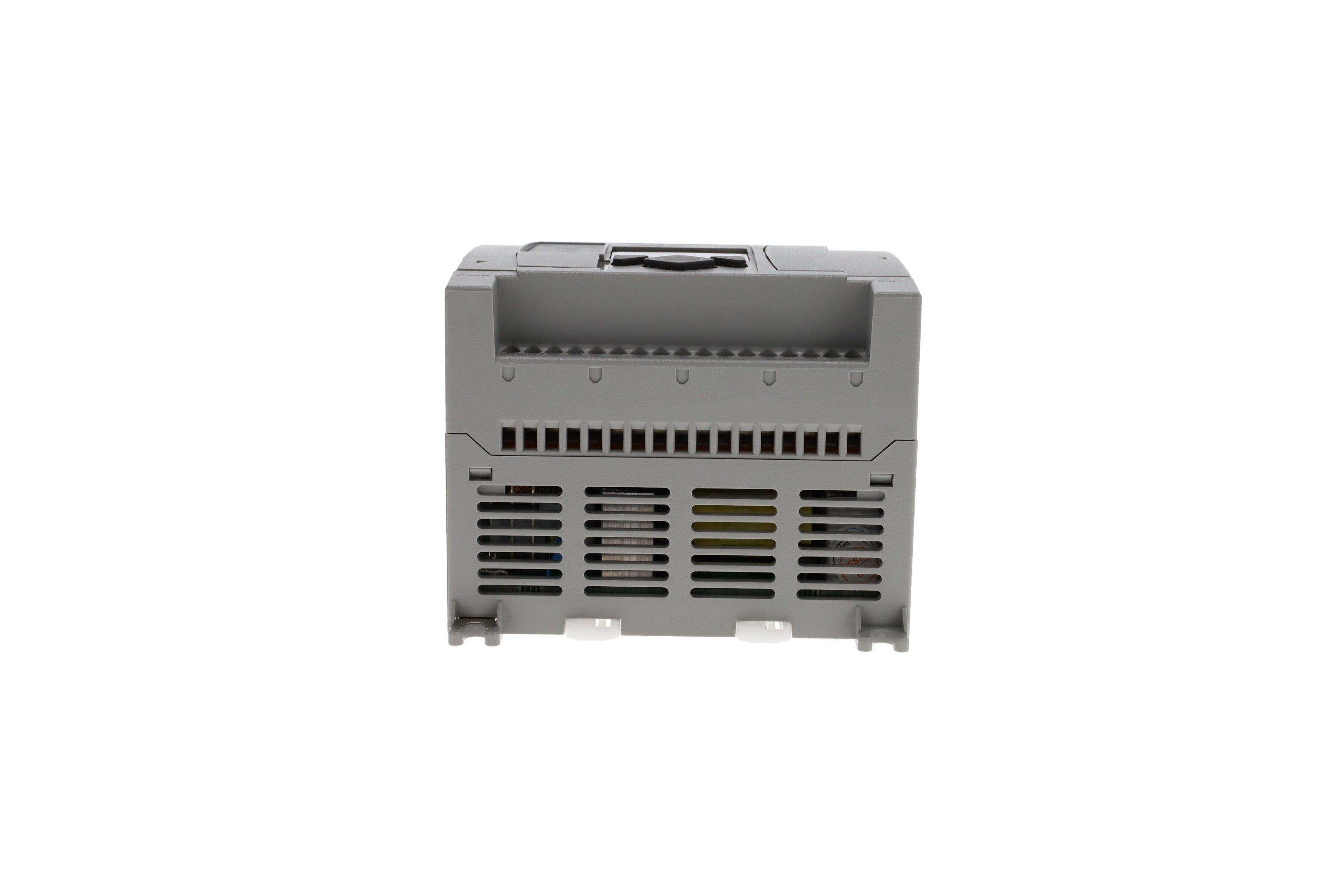

Product Description P/N: 1763-L16BWA

Description / Specifications

Description

The Allen-Bradley/Rockwell Automation 1763-L16BWA controller is part of the MicroLogix 1100 series and it comes with inputs and outputs. All 10 of the digital inputs on the controller are rated for 24 Volts DC voltage and 4 of the inputs are high-speed digital inputs. The 1763-L16BWA controller also has 2 analog inputs rated at 0 to 10 Volts DC and 6 digital relay outputs that are all individually isolated. The input power rating of this controller is 120/240 Volts AC. The 1763-L16BWA controller can be grounded for protection against EMI or electromagnetic interference.



Technical Specifications



Brand Allen-Bradley
Series MicroLogix 1100
Part Number 1763-L16BWA
Manufacturer Rockwell Automation
Product Type Programmable Controller
Input Power 120 to 240 Volts AC
Point Count 16 Points
Digital Inputs 24V dc sink/source (standard and high-speed)
Analog Inputs (2) Voltage Input
Analog Voltage Range 0-10VDC
Operating Frequency 47 to 63 Herz
Analog Data Type 10-bit unsigned integer
Input Resolution 10-bit
Analog Resolution 10-bit
Memory Non-Volatile Battery Backed RAM
Digital Outputs (6) Relay
Display Type LCD
Communication Port 1 RS-232 / 485; 1 Ethernet
Dimensions 3.5 x 4.33 x 3.43 inches





Information About 1763-L16BWA

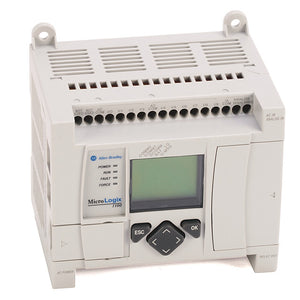

The 1763-L16BWA MicroLogix 1100 Programmable Controller by Allen-Bradley is an industrial programmable controller with a total of Eighteen (18) I/O points. It consists of Ten (10) 24VDC sinking or sourcing digital inputs, Two (2) Analog Inputs and Six (6) relay outputs. This controller requires an input power supply of 100-240VAC.

The input channel has an OFF-state voltage range between 0 and 5 Volts DC with a 1.5 mA maximum OFF state leakage current and a Nominal impedance of 3.1 k?. The Analog inputs s compatible for 0 to 10 VDC, with an input resolution of 10 bits. The 1763-L16BWA’s analog input also has +/-0.5% full-scale non-linearity, +/-0.5% accuracy, 210 k? voltage impedance and a 10.5 Volt DC input voltage protection.

The 1763-L16BWA’s outputs are Six (6) isolated relay outputs with a 3A current per group and a maximum OFF/ON and ON/OFF response time of 10 millimeters. The relay output has a relay contact with a rating of 1.2 MAKE current capacity, 1.0A continuous current, and 28VA make power output. Overall, the 1763-L16BWA has an inrush current of 25A for 8 milliseconds at 120 Volts AC and 40A for 4 milliseconds at 240 Volts AC with 52 VA overall power consumption. The module’s ambient operational temperature ranges between -20 and 65 degrees Celsius (-4 and 149 degrees Fahrenheit) at 5 to 95% non-condensing relative humidity. It is built to withstand an operational shock of 30G and a vibration of 15G at 50 Hertz. It measures 3.5 x 4.09 x 3.43 inches and weighs approximately 2 pounds.

The Allen-Bradley 1763-L16BWA is a Programmable Logic Controller (PLC) that belongs to the MicroLogix 1100 product family. MicroLogix 1100 controllers are compact controllers ideal for use in small scale applications. It has an integrated Twelve (12) 24VDC discrete inputs Four (4) of which are High-Speed inputs, supporting sinking and wiring configuration. It is also provided with Two (2) 0-10VDC analog inputs with resolution of 10-bit and input coding of 10-bit signed integer. The outputs are made of Six (6) individually isolated relay outputs channels.

The Bradley 1763-L16BWA supports expansion modules to enhance the integrated features of the controller. This controller supports up to Four (4) expansion modules.

When wiring the analog channels of this module, recommended cable is Belden #8761. This cable is supplied with a drain wire and foil shield that must be connected to the grounding system. The analog channels support 2-wire, 3-wire and 4-Wire transmitters. This controller does not provide loop power for the analog voltage input.

The Relay output channels are designed for load Current of 10A with mechanical life of 10,000,000 cycles. It has a turn OFF and Turn ON time of 10 msec. It may be operated with a voltage range of 125VDC, 120-240VAC.

It is also used to configure expansion modules and setup operational and communication parameters.

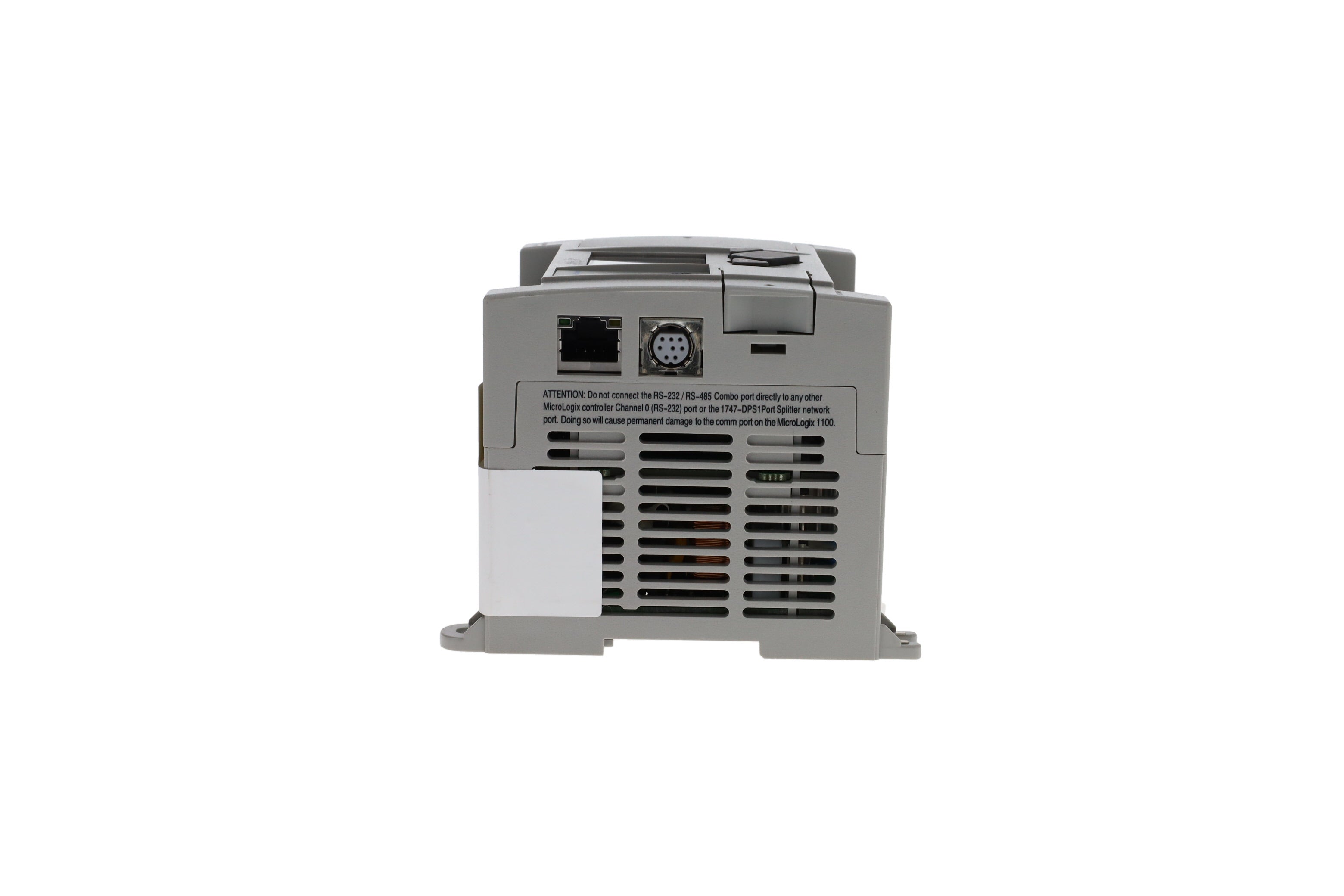

Communication ports are RS232 / RS485 and Ethernet I/P ports. These communication ports may also be used to connect to Human Machine Interface (HMI) and Supervisory Control and Data Acquisition (SCADA).



Manufacturer information

Allen‑Bradley components, integrated control and information solutions are built for demanding industrial applications. We integrate control and information across the enterprise to make you as productive as possible.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description

The Allen-Bradley/Rockwell Automation 1763-L16BWA controller is part of the MicroLogix 1100 series and it comes with inputs and outputs. All 10 of the digital inputs on the controller are rated for 24 Volts DC voltage and 4 of the inputs are high-speed digital inputs. The 1763-L16BWA controller also has 2 analog inputs rated at 0 to 10 Volts DC and 6 digital relay outputs that are all individually isolated. The input power rating of this controller is 120/240 Volts AC. The 1763-L16BWA controller can be grounded for protection against EMI or electromagnetic interference.



Technical Specifications



Brand Allen-Bradley
Series MicroLogix 1100
Part Number 1763-L16BWA
Manufacturer Rockwell Automation
Product Type Programmable Controller
Input Power 120 to 240 Volts AC
Point Count 16 Points
Digital Inputs 24V dc sink/source (standard and high-speed)
Analog Inputs (2) Voltage Input
Analog Voltage Range 0-10VDC
Operating Frequency 47 to 63 Herz
Analog Data Type 10-bit unsigned integer
Input Resolution 10-bit
Analog Resolution 10-bit
Memory Non-Volatile Battery Backed RAM
Digital Outputs (6) Relay
Display Type LCD
Communication Port 1 RS-232 / 485; 1 Ethernet
Dimensions 3.5 x 4.33 x 3.43 inches





Information About 1763-L16BWA

The 1763-L16BWA MicroLogix 1100 Programmable Controller by Allen-Bradley is an industrial programmable controller with a total of Eighteen (18) I/O points. It consists of Ten (10) 24VDC sinking or sourcing digital inputs, Two (2) Analog Inputs and Six (6) relay outputs. This controller requires an input power supply of 100-240VAC.

The input channel has an OFF-state voltage range between 0 and 5 Volts DC with a 1.5 mA maximum OFF state leakage current and a Nominal impedance of 3.1 k?. The Analog inputs s compatible for 0 to 10 VDC, with an input resolution of 10 bits. The 1763-L16BWA’s analog input also has +/-0.5% full-scale non-linearity, +/-0.5% accuracy, 210 k? voltage impedance and a 10.5 Volt DC input voltage protection.

The 1763-L16BWA’s outputs are Six (6) isolated relay outputs with a 3A current per group and a maximum OFF/ON and ON/OFF response time of 10 millimeters. The relay output has a relay contact with a rating of 1.2 MAKE current capacity, 1.0A continuous current, and 28VA make power output. Overall, the 1763-L16BWA has an inrush current of 25A for 8 milliseconds at 120 Volts AC and 40A for 4 milliseconds at 240 Volts AC with 52 VA overall power consumption. The module’s ambient operational temperature ranges between -20 and 65 degrees Celsius (-4 and 149 degrees Fahrenheit) at 5 to 95% non-condensing relative humidity. It is built to withstand an operational shock of 30G and a vibration of 15G at 50 Hertz. It measures 3.5 x 4.09 x 3.43 inches and weighs approximately 2 pounds.

The Allen-Bradley 1763-L16BWA is a Programmable Logic Controller (PLC) that belongs to the MicroLogix 1100 product family. MicroLogix 1100 controllers are compact controllers ideal for use in small scale applications. It has an integrated Twelve (12) 24VDC discrete inputs Four (4) of which are High-Speed inputs, supporting sinking and wiring configuration. It is also provided with Two (2) 0-10VDC analog inputs with resolution of 10-bit and input coding of 10-bit signed integer. The outputs are made of Six (6) individually isolated relay outputs channels.

The Bradley 1763-L16BWA supports expansion modules to enhance the integrated features of the controller. This controller supports up to Four (4) expansion modules.

When wiring the analog channels of this module, recommended cable is Belden #8761. This cable is supplied with a drain wire and foil shield that must be connected to the grounding system. The analog channels support 2-wire, 3-wire and 4-Wire transmitters. This controller does not provide loop power for the analog voltage input.

The Relay output channels are designed for load Current of 10A with mechanical life of 10,000,000 cycles. It has a turn OFF and Turn ON time of 10 msec. It may be operated with a voltage range of 125VDC, 120-240VAC.

It is also used to configure expansion modules and setup operational and communication parameters.

Communication ports are RS232 / RS485 and Ethernet I/P ports. These communication ports may also be used to connect to Human Machine Interface (HMI) and Supervisory Control and Data Acquisition (SCADA).



Manufacturer information

Allen‑Bradley components, integrated control and information solutions are built for demanding industrial applications. We integrate control and information across the enterprise to make you as productive as possible.
