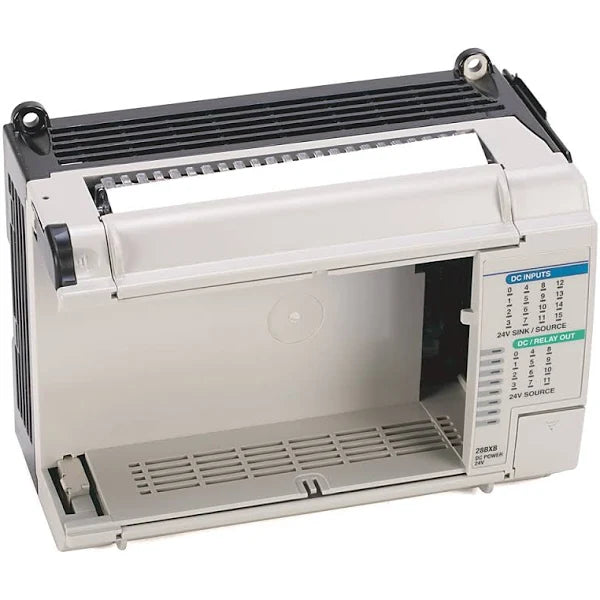

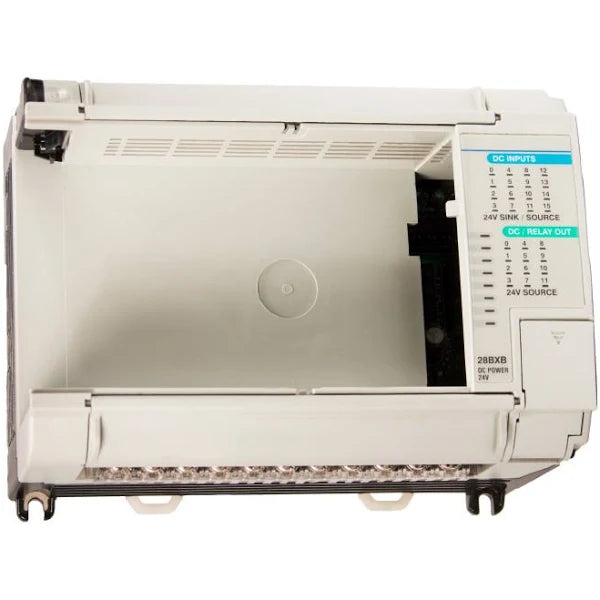

1764-28BXB | Allen-Bradley MicroLogix 1500 Base 24VDC 16 24VDC Inputs, 6 Relay
1764-28BXB | Allen-Bradley MicroLogix 1500 Base 24VDC 16 24VDC Inputs, 6 Relay
1764-28BXB | Allen-Bradley MicroLogix 1500 Base 24VDC 16 24VDC Inputs, 6 Relay
1764-28BXB | Allen-Bradley MicroLogix 1500 Base 24VDC 16 24VDC Inputs, 6 Relay
1764-28BXB | Allen-Bradley MicroLogix 1500 Base 24VDC 16 24VDC Inputs, 6 Relay
1764-28BXB | Allen-Bradley MicroLogix 1500 Base 24VDC 16 24VDC Inputs, 6 Relay
    1764-28BXB | Allen-Bradley MicroLogix 1500 Base 24VDC 16 24VDC Inputs, 6 Relay
    1764-28BXB | Allen-Bradley MicroLogix 1500 Base 24VDC 16 24VDC Inputs, 6 Relay
1764-28BXB | Allen-Bradley MicroLogix 1500 Base 24VDC 16 24VDC Inputs, 6 Relay
1764-28BXB | Allen-Bradley MicroLogix 1500 Base 24VDC 16 24VDC Inputs, 6 Relay

1764-28BXB | Allen-Bradley MicroLogix 1500 Base 24VDC 16 24VDC Inputs, 6 Relay

Part #: 1764-28BXB Manufactured by: Allen-Bradley
Regular price
$754.00
Sale price
$754.00
Regular price
8 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
This Allen-Bradley MicroLogix 1500 Base Module is powered via 24 Volts DC and has 512 Max IO Expansion. It has 28 channels...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 1764-28BXB
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 1764-28BXB

Description / Specifications

Description

The 1764-28BXB is a MicroLogix 1500 base unit that belongs to the Bulletin 1764 product family. It has a line power voltage requirement of 20.4 to 30VDC, integrated Eight (8) Standard 24VDC sink/source discrete inputs, Eight (8) High-Speed inputs and Six (6) Relay Outputs, Four (4) Standard 24VDC outputs and Two (2) Fast 24VDc outputs. It has integrated RS232 communication ports for device communication.



Technical Specifications



Brand Allen-Bradley
Series MicroLogix 1500
Part Number 1764-28BXB
Manufacturer Rockwell Automation
Function Base Controller
Module Type Base Unit
I/O Count 16 inputs/12 outputs
No. of Inputs 16
Max Expanded I/O Count 512
Input channel Voltage 24V dc, sink/source
Input Voltage 24 Volts DC
High Speed Input Frequency Eight (8) 20 kHz input
Output Source Relay Port and DC FET
No. of Outputs Six (6) Relay; Four (4) Standard 24VDC Transistor; Two (2) Fast 24VDC
Relay Output channel Voltage 24-125VDC; 120-240VAC
Input Circuit Type 24 Volt DC Sink/Source
Output Circuit Type 6 Relay, 6 FET Transistor
Transistor Output channel Voltage 20.4VDC - 26.4VDC
Line Power 20.4-30.0 Volts DC
Power Supply Voltage 20.4 to 30VDC
Power Supply Usage 30 Watts
Power Supply Inrush Current 24V dc = 4A for 150 ms
Dimensions 5.43 x 6.62 x 3.43 inches
Maximum Load Current 400 mA
Compatible Processors 1764-LSP and 1764-LRP
Mounting Horizontal





Information About 1764-28BXB

The Allen-Bradley 1764-28BXB base is a part of the Allen-Bradley Bulletin 1764 product category. This part number is a MicroLogix 1500 base unit series that features embedded I/O and accommodates a processor. It is an essential component in the system assembly of Allen-Bradley MicroLogix 1500 programmable controllers. In addition to the embedded inputs and outputs, the 1764-28BXB base unit houses the power supply and the communication port. It also serves as an interface to the expansion I/O as required by a system application. The 1764-28BXB 24 Volt DC Base Unit has 30 Watts of power consumption, 16 Watts of maximum load power, and 400 mA of maximum load current. It comes with Six (6) relay outputs and Two (2) isolated relays per unit. It has Eight (8) standard and Eight (8) fast 24 Volts DC inputs. The 1764-28BXB’s high-speed 20 kHz I/O is composed of Eight (8) inputs and Two (2) outputs. Additionally, it has Four (4) standard FET outputs and Two (2) fast FET outputs. The FET transistor is only available on this base unit.

The Allen-Bradley 1764-28BXB Base is a required piece of hardware that allows an assembled Allen-Bradley MicroLogix 1500 controller system to support the maximum number of I/O expansions. It has a width of 168 millimeters (6.62 inches) and a depth of 87 millimeters (3.43 inches). Its height is 138 millimeters (5.43 inches) when the DIN rail latch is open, and its height is 118 millimeters (4.65 inches) when it is closed. The 1764-28BXB is designed to be mounted horizontally on the compact expansion I/O. This unit is compatible with the Allen-Bradley 1764-LRP and 1764-LSP processors. The Allen-Bradley MicroLogix 1500 fault codes can be found in the product manual.

The Allen-Bradley 1764-28BXB is a MicroLogix 1500 base unit. This base unit is integrated with the most advanced features having Eight (8) Standard 24VDC sink/source discrete inputs, Eight (8) High-Speed inputs and Six (6) Relay Outputs, Four (4) Standard 24VDC outputs and Two (2) Fast 24VDc outputs. This integrated I/Os, especially High-Speed or Fast inputs are important channels which allows the base unit, along with the controller attached, to be used with counter and totalizing applications.

This base unit will not function without a 1764-LSP and 1764-LRP, which are MicroLogix processors. These processors are attached to the base units to provide the intelligence that will be used in logic execution. For local programming and access of data within the controller, a 1764-DAT or Data Access Tool may be attached along the base unit.

The base unit also supports installation of other modules such as Real-Time clock and Memory module. It may also be installed with Compact I/O modules for expansion of the integrated features.

The base unit also features an integrated serial communication port which has a default configuration of 19.2K Baud Rate, No Parity, Node Address Set to 1, No handshaking, CRC Error Detection, Auto-detect embedded responses, Duplicate Packet (Message) Detect enabled, ACK Timeout of 50 counts, NAK retries set to 3 Retries, ENQ set to 3 Retries and Stop Bits set to 1. This communication port may be used to communicate directly to a programming workstation or a 1761-NET-AIC to allow communication over a network.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The 1764-28BXB is a MicroLogix 1500 base unit that belongs to the Bulletin 1764 product family. It has a line power voltage requirement of 20.4 to 30VDC, integrated Eight (8) Standard 24VDC sink/source discrete inputs, Eight (8) High-Speed inputs and Six (6) Relay Outputs, Four (4) Standard 24VDC outputs and Two (2) Fast 24VDc outputs. It has integrated RS232 communication ports for device communication.



Technical Specifications



Brand Allen-Bradley
Series MicroLogix 1500
Part Number 1764-28BXB
Manufacturer Rockwell Automation
Function Base Controller
Module Type Base Unit
I/O Count 16 inputs/12 outputs
No. of Inputs 16
Max Expanded I/O Count 512
Input channel Voltage 24V dc, sink/source
Input Voltage 24 Volts DC
High Speed Input Frequency Eight (8) 20 kHz input
Output Source Relay Port and DC FET
No. of Outputs Six (6) Relay; Four (4) Standard 24VDC Transistor; Two (2) Fast 24VDC
Relay Output channel Voltage 24-125VDC; 120-240VAC
Input Circuit Type 24 Volt DC Sink/Source
Output Circuit Type 6 Relay, 6 FET Transistor
Transistor Output channel Voltage 20.4VDC - 26.4VDC
Line Power 20.4-30.0 Volts DC
Power Supply Voltage 20.4 to 30VDC
Power Supply Usage 30 Watts
Power Supply Inrush Current 24V dc = 4A for 150 ms
Dimensions 5.43 x 6.62 x 3.43 inches
Maximum Load Current 400 mA
Compatible Processors 1764-LSP and 1764-LRP
Mounting Horizontal





Information About 1764-28BXB

The Allen-Bradley 1764-28BXB base is a part of the Allen-Bradley Bulletin 1764 product category. This part number is a MicroLogix 1500 base unit series that features embedded I/O and accommodates a processor. It is an essential component in the system assembly of Allen-Bradley MicroLogix 1500 programmable controllers. In addition to the embedded inputs and outputs, the 1764-28BXB base unit houses the power supply and the communication port. It also serves as an interface to the expansion I/O as required by a system application. The 1764-28BXB 24 Volt DC Base Unit has 30 Watts of power consumption, 16 Watts of maximum load power, and 400 mA of maximum load current. It comes with Six (6) relay outputs and Two (2) isolated relays per unit. It has Eight (8) standard and Eight (8) fast 24 Volts DC inputs. The 1764-28BXB’s high-speed 20 kHz I/O is composed of Eight (8) inputs and Two (2) outputs. Additionally, it has Four (4) standard FET outputs and Two (2) fast FET outputs. The FET transistor is only available on this base unit.

The Allen-Bradley 1764-28BXB Base is a required piece of hardware that allows an assembled Allen-Bradley MicroLogix 1500 controller system to support the maximum number of I/O expansions. It has a width of 168 millimeters (6.62 inches) and a depth of 87 millimeters (3.43 inches). Its height is 138 millimeters (5.43 inches) when the DIN rail latch is open, and its height is 118 millimeters (4.65 inches) when it is closed. The 1764-28BXB is designed to be mounted horizontally on the compact expansion I/O. This unit is compatible with the Allen-Bradley 1764-LRP and 1764-LSP processors. The Allen-Bradley MicroLogix 1500 fault codes can be found in the product manual.

The Allen-Bradley 1764-28BXB is a MicroLogix 1500 base unit. This base unit is integrated with the most advanced features having Eight (8) Standard 24VDC sink/source discrete inputs, Eight (8) High-Speed inputs and Six (6) Relay Outputs, Four (4) Standard 24VDC outputs and Two (2) Fast 24VDc outputs. This integrated I/Os, especially High-Speed or Fast inputs are important channels which allows the base unit, along with the controller attached, to be used with counter and totalizing applications.

This base unit will not function without a 1764-LSP and 1764-LRP, which are MicroLogix processors. These processors are attached to the base units to provide the intelligence that will be used in logic execution. For local programming and access of data within the controller, a 1764-DAT or Data Access Tool may be attached along the base unit.

The base unit also supports installation of other modules such as Real-Time clock and Memory module. It may also be installed with Compact I/O modules for expansion of the integrated features.

The base unit also features an integrated serial communication port which has a default configuration of 19.2K Baud Rate, No Parity, Node Address Set to 1, No handshaking, CRC Error Detection, Auto-detect embedded responses, Duplicate Packet (Message) Detect enabled, ACK Timeout of 50 counts, NAK retries set to 3 Retries, ENQ set to 3 Retries and Stop Bits set to 1. This communication port may be used to communicate directly to a programming workstation or a 1761-NET-AIC to allow communication over a network.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
