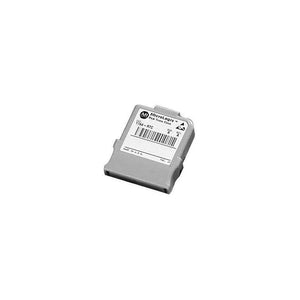

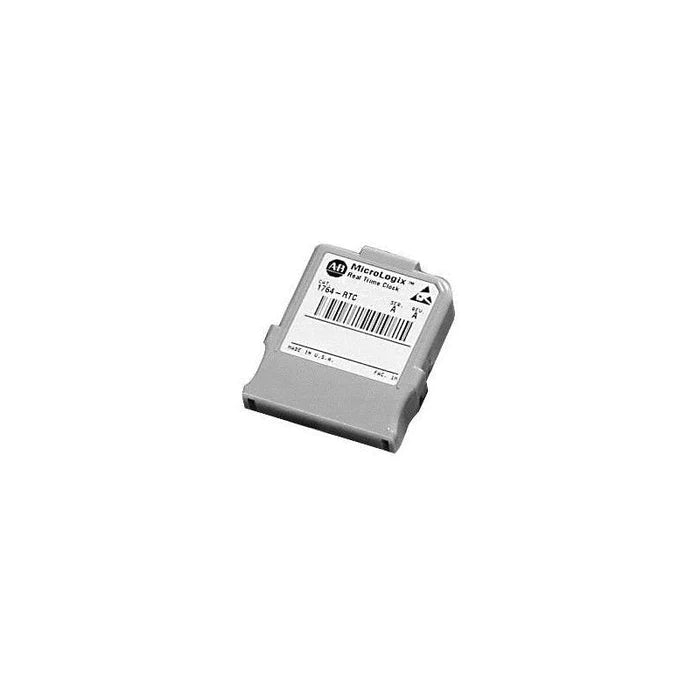

1764-RTC | Allen-Bradley MicroLogix 1500 Real-Time Clock Module (RTC Module)
1764-RTC | Allen-Bradley MicroLogix 1500 Real-Time Clock Module (RTC Module)
1764-RTC | Allen-Bradley MicroLogix 1500 Real-Time Clock Module (RTC Module)
    1764-RTC | Allen-Bradley MicroLogix 1500 Real-Time Clock Module (RTC Module)
1764-RTC | Allen-Bradley MicroLogix 1500 Real-Time Clock Module (RTC Module)

1764-RTC | Allen-Bradley MicroLogix 1500 Real-Time Clock Module (RTC Module)

Part #: 1764-RTC Manufactured by: Allen-Bradley
Regular price
$899.00
Sale price
$899.00
Regular price
8 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
Allen-Bradley MicroLogix 1500 RTC Module with Real-Time Clock and IP20 enclosure
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 1764-RTC
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 1764-RTC

Description / Specifications

Description

The Allen-Bradley 1764-RTC is MicroLogix 1500 Real-Time clock module. This is an accessory module that provides accurate time and date reference used for scheduling operations and application. This module come with a non-replaceable battery with operating temperature of 0°C to +40°C (+32°F to +104°F) and minimum operation of 5 years.



Technical Specifications



Brand Allen-Bradley
Series MicroLogix 1500
Part Number 1764-RTC
Manufacturer Rockwell Automation
Removal and Insertion under power Supported
Battery low status file (RTC:0/BL)
RTC Battery replacement Non-replaceable
RTC Battery Built-in
RTC Battery storage expectancy 5 years minimum @ -40°C to +25°C (-40°F to +77°F); 3 years minimum @ +26°C to +60°C (+79°F to +140°F)
Product Type Real-Time Clock (RTC) module
RTC Accuracy +34 to -70 seconds/month at 0°C or +32°F); +36 to -68 seconds/month at +25°C or +77°F); +29 to -75 seconds/month at +40°C or +104°F) and -133 to -237 seconds/month at +55°C or +131°F.U104
RTC Battery operating expectancy 5 years @ 0°C to +40°C (+32°F to +104°F)
Function RTC Module
Enclosure Type IP20
Output Source Relay Port and DC FET





Information About 1764-RTC

The Allen-Bradley 1764-RTC is a Real-Time Clock (RTC) module that is used with MicroLogix 1500 controllers. This module is typically used to implement scheduled plant operation and processes, popular with Heating, Ventilation and Air Conditioning (HVAC) systems, Building Management systems (BMS) and some other applications. This accessory module is installed by removing the MicroLogix 1500 front panel cover. It provides accurate time and clock reference which can be accessed by the program through built-in instructions.

The 1764-RTC features clock accuracy that varies depending on the operating temperature. It has an accuracy of +34 to -70 seconds/month at 0°C or +32°F); +36 to -68 seconds/month at +25°C or +77°F); +29 to -75 seconds/month at +40°C or +104°F) and -133 to -237 seconds/month at +55°C or +131°F. When data to be written to the RTC module is verified valid by the system, the data is written immediately however, an invalid data cannot be written to the module. This prevents system and programming error from occurring to the controller.

Additionally, the 17640RTC comes with a non-replaceable battery. This battery is expected to operate at a minimum of 5 years when the host controller is operated at 0°C to +40°C or +32°F to +104°F). When stored, the RTC battery life expectancy is 5 years, minimum at -40°C to +25°C (-40°F to +77°F) and 3 years minimum at +26°C to +60°C (+79°F to +140°F). If the RTC battery is low but the controller remains powered, the RTC module operation is normal. If controller power is removed along a low-battery RTC, the RTC data may be lost upon completion of power cycle. The RTC can be disabled to lengthen the device’ operation.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The Allen-Bradley 1764-RTC is MicroLogix 1500 Real-Time clock module. This is an accessory module that provides accurate time and date reference used for scheduling operations and application. This module come with a non-replaceable battery with operating temperature of 0°C to +40°C (+32°F to +104°F) and minimum operation of 5 years.



Technical Specifications



Brand Allen-Bradley
Series MicroLogix 1500
Part Number 1764-RTC
Manufacturer Rockwell Automation
Removal and Insertion under power Supported
Battery low status file (RTC:0/BL)
RTC Battery replacement Non-replaceable
RTC Battery Built-in
RTC Battery storage expectancy 5 years minimum @ -40°C to +25°C (-40°F to +77°F); 3 years minimum @ +26°C to +60°C (+79°F to +140°F)
Product Type Real-Time Clock (RTC) module
RTC Accuracy +34 to -70 seconds/month at 0°C or +32°F); +36 to -68 seconds/month at +25°C or +77°F); +29 to -75 seconds/month at +40°C or +104°F) and -133 to -237 seconds/month at +55°C or +131°F.U104
RTC Battery operating expectancy 5 years @ 0°C to +40°C (+32°F to +104°F)
Function RTC Module
Enclosure Type IP20
Output Source Relay Port and DC FET





Information About 1764-RTC

The Allen-Bradley 1764-RTC is a Real-Time Clock (RTC) module that is used with MicroLogix 1500 controllers. This module is typically used to implement scheduled plant operation and processes, popular with Heating, Ventilation and Air Conditioning (HVAC) systems, Building Management systems (BMS) and some other applications. This accessory module is installed by removing the MicroLogix 1500 front panel cover. It provides accurate time and clock reference which can be accessed by the program through built-in instructions.

The 1764-RTC features clock accuracy that varies depending on the operating temperature. It has an accuracy of +34 to -70 seconds/month at 0°C or +32°F); +36 to -68 seconds/month at +25°C or +77°F); +29 to -75 seconds/month at +40°C or +104°F) and -133 to -237 seconds/month at +55°C or +131°F. When data to be written to the RTC module is verified valid by the system, the data is written immediately however, an invalid data cannot be written to the module. This prevents system and programming error from occurring to the controller.

Additionally, the 17640RTC comes with a non-replaceable battery. This battery is expected to operate at a minimum of 5 years when the host controller is operated at 0°C to +40°C or +32°F to +104°F). When stored, the RTC battery life expectancy is 5 years, minimum at -40°C to +25°C (-40°F to +77°F) and 3 years minimum at +26°C to +60°C (+79°F to +140°F). If the RTC battery is low but the controller remains powered, the RTC module operation is normal. If controller power is removed along a low-battery RTC, the RTC data may be lost upon completion of power cycle. The RTC can be disabled to lengthen the device’ operation.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
