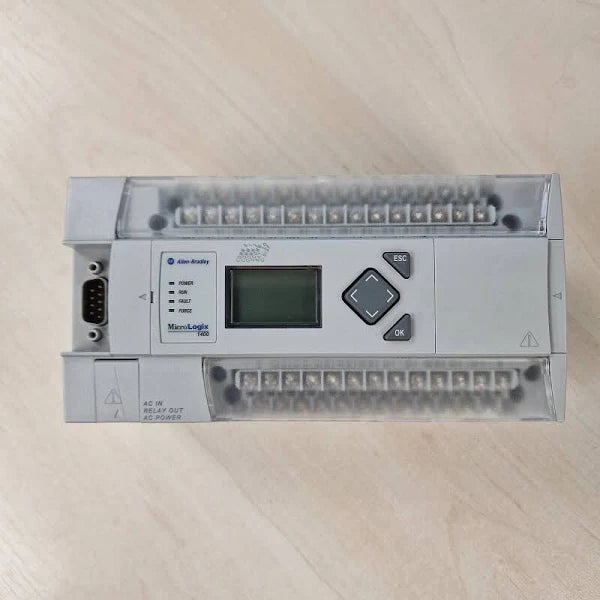

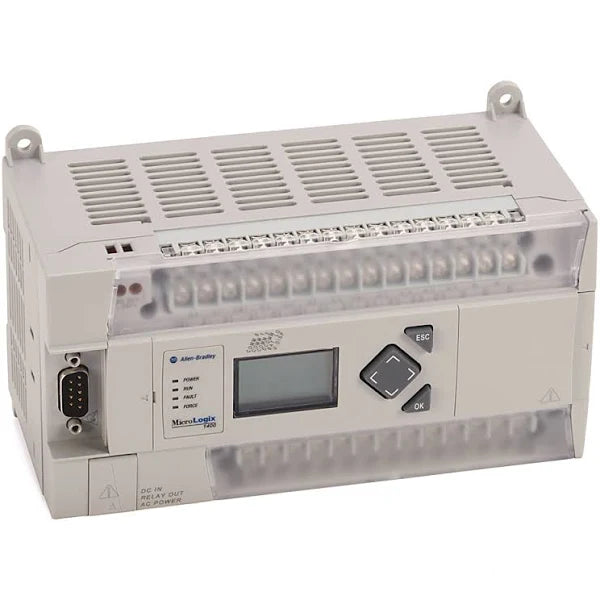

1766-L32AWA | Allen-Bradley MicroLogix 1400 32 Point Controller
1766-L32AWA | Allen-Bradley MicroLogix 1400 32 Point Controller
Part #: 1766-L32AWA Manufactured by: Allen-Bradley

1766-L32AWA | Allen-Bradley MicroLogix 1400 32 Point Controller

Regular price
$602.00
Sale price
$602.00
Regular price
Never Used Surplus
52 in Stock
Product Overview
Allen-Bradley MicroLogix 1400 with (20) Digital 120V AC, (2) Analog Inputs and (12) Relay Outputs
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: 1766-L32AWA
IQElectro International provides a 2-year warranty on every product we offer. Our complimentary 2-year warranty ensures that every IQElectro purchase is a trustworthy and reliable investment in the future of your company.
IQElectro is NOT an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
1766-L32AWA | Allen-Bradley MicroLogix 1400 32 Point Controller
    1766-L32AWA | Allen-Bradley MicroLogix 1400 32 Point Controller
1766-L32AWA | Allen-Bradley MicroLogix 1400 32 Point Controller
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3-Day Free Shipping
"IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: 1766-L32AWA

Description / Specifications

Description

The 1766-L32AWA is a MicroLogix 1400 Controller under the Bulletin 1766 product family. This compact controller features integrated Three (3) communication ports such as a combo RS232 / RS485 port, isolated RS232 port and an Ethernet communication port. It has embedded Input and Output channels which consists of Twenty (20) digital 120V AC inputs, and Twelve (12) Relay outputs.



Technical Specifications



Brand Allen-Bradley
Series MicroLogix 1400
Part Number 1766-L32AWA
Manufacturer Rockwell Automation
Module Type Controller
Product Type MicroLogix 1400 Controller
Inputs (20) Digital 120V AC, (2) Analog
Outputs (12) Relay
Number of I/O 32 points
Operating Power 110 to 240 VAC
Channel Count (20) IP, (12) OP
Analog Input Signal Range None
Memory 20 KB
Communication Ethernet, RS-232, RS-485
Operating Frequency 47-63 Hz
Power Consumption 100 VA
Display LCD screen, built in
Power supply inrush current 120V AC: 25 A for 8 ms 240V AC: 40A for 4 ms
Communication port 1 RS232 / RS485; 1 Ethernet; 1 RS232
Supported Protocols Serial: DF1, ASCII, MODBUS RTU, DNP3, DH485 Ethernet: Ethernet I/P, DNP3, MODBUS TCP/IP
Dimensions 90 x 180 x 87 mm (3.5 x 7.087 x 3.43 in)
Mounting Panel Mounting / DIN Rail





Information About 1766-L32AWA

The Allen-Bradley 1766-L32AWA is a part of the MicroLogix 1400 Programmable Logic Controller series. The 1766-L32AWA controller requires 120-240V AC input power and has battery-backed RAM. It supports 32 digital I/O points with Twenty (20) digital 120V AC inputs and 12 Relay outputs. It can be expanded by connecting with up to seven 1762 expansion I/O modules.

The 1766-L32AWA measures 3.5 x 7.08 x 3.43 in. and weighs 2 lbs. For communication, it has an isolated RS-232/485 port, an Ethernet port, and a non-isolated RS-232 port. It also has an embedded real-time clock to provide a reference for applications that need time-based control. For installation, it has Panel or DIN-Rail mounting options with its open enclosure. It is suitable for use in a clean, dry industrial environment with circuits not exceeding Over Voltage Category II. The 1766-L32AWA controller has various superior features over its predecessors. The Ethernet port comes with a DNP3 protocol support and with a web server and an email capability. It has 2 Serial ports that support the DH485/DF1/Modbus RTU/DNP3/ASCII protocol. It has up to 6 embedded 100-kHz high-speed counters (only on controllers with DC inputs). It also has 20 KB memory for user programs and data.

The 1766-L32AWA is an Allen-Bradley hardware that belongs to the MicroLogix 1400 controller product family. This product family are compact Programmable Logic Controllers (PLC) designed for use in small application. This controller has expansion provision wherein up to Seven (7) 1762 Expansion modules may be added from the base hardware. It features an integrated 120/240VAC power supply, Three (3) communication port such as One (1) isolated RS232/RS485 combo port, One (1) non-isolated RS232 and One (1) Ethernet I/P port. It also has Twenty (20) 120VAC inputs and Twelve (12) Relay outputs.  and I/O channels.

Channel 0 port, which is 8-pin mini DIN RS-232C/RS-485 connector and Channel 2 RS232 communication port supports DF1, DH485, MODBUS RTU, DNP3 and ASCII protocols. Channel 1 is an RJ45 compatible port support Ethernet I/P, DNP3 and MODBUS Ethernet protocol. These protocol sets provide a wide range of options and application in connecting this controller to Machine level Human Machine Interface (HMI), Supervisory level Supervisory Control and Data Acquisition (SCADA) systems, Enterprise level databases. This variety of communication port allows easy and seamless vertical and horizontal integration.

When installing this compact controller, supported and recommended orientation is Horizontal. It may be directly mounted to a properly grounded mounting plate within an enclosure or with the use of a DIN rail. This controller come with a debris strip to protect the electronic circuitry from dust, dirt and conductive metal dust. Remove this debris strip when panel installation works are completed.


Manufacturer information

Allen‑Bradley components, integrated control and information solutions are built for demanding industrial applications. We integrate control and information across the enterprise to make you as productive as possible.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms and Conditions
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description

The 1766-L32AWA is a MicroLogix 1400 Controller under the Bulletin 1766 product family. This compact controller features integrated Three (3) communication ports such as a combo RS232 / RS485 port, isolated RS232 port and an Ethernet communication port. It has embedded Input and Output channels which consists of Twenty (20) digital 120V AC inputs, and Twelve (12) Relay outputs.



Technical Specifications



Brand Allen-Bradley
Series MicroLogix 1400
Part Number 1766-L32AWA
Manufacturer Rockwell Automation
Module Type Controller
Product Type MicroLogix 1400 Controller
Inputs (20) Digital 120V AC, (2) Analog
Outputs (12) Relay
Number of I/O 32 points
Operating Power 110 to 240 VAC
Channel Count (20) IP, (12) OP
Analog Input Signal Range None
Memory 20 KB
Communication Ethernet, RS-232, RS-485
Operating Frequency 47-63 Hz
Power Consumption 100 VA
Display LCD screen, built in
Power supply inrush current 120V AC: 25 A for 8 ms 240V AC: 40A for 4 ms
Communication port 1 RS232 / RS485; 1 Ethernet; 1 RS232
Supported Protocols Serial: DF1, ASCII, MODBUS RTU, DNP3, DH485 Ethernet: Ethernet I/P, DNP3, MODBUS TCP/IP
Dimensions 90 x 180 x 87 mm (3.5 x 7.087 x 3.43 in)
Mounting Panel Mounting / DIN Rail





Information About 1766-L32AWA

The Allen-Bradley 1766-L32AWA is a part of the MicroLogix 1400 Programmable Logic Controller series. The 1766-L32AWA controller requires 120-240V AC input power and has battery-backed RAM. It supports 32 digital I/O points with Twenty (20) digital 120V AC inputs and 12 Relay outputs. It can be expanded by connecting with up to seven 1762 expansion I/O modules.

The 1766-L32AWA measures 3.5 x 7.08 x 3.43 in. and weighs 2 lbs. For communication, it has an isolated RS-232/485 port, an Ethernet port, and a non-isolated RS-232 port. It also has an embedded real-time clock to provide a reference for applications that need time-based control. For installation, it has Panel or DIN-Rail mounting options with its open enclosure. It is suitable for use in a clean, dry industrial environment with circuits not exceeding Over Voltage Category II. The 1766-L32AWA controller has various superior features over its predecessors. The Ethernet port comes with a DNP3 protocol support and with a web server and an email capability. It has 2 Serial ports that support the DH485/DF1/Modbus RTU/DNP3/ASCII protocol. It has up to 6 embedded 100-kHz high-speed counters (only on controllers with DC inputs). It also has 20 KB memory for user programs and data.

The 1766-L32AWA is an Allen-Bradley hardware that belongs to the MicroLogix 1400 controller product family. This product family are compact Programmable Logic Controllers (PLC) designed for use in small application. This controller has expansion provision wherein up to Seven (7) 1762 Expansion modules may be added from the base hardware. It features an integrated 120/240VAC power supply, Three (3) communication port such as One (1) isolated RS232/RS485 combo port, One (1) non-isolated RS232 and One (1) Ethernet I/P port. It also has Twenty (20) 120VAC inputs and Twelve (12) Relay outputs.  and I/O channels.

Channel 0 port, which is 8-pin mini DIN RS-232C/RS-485 connector and Channel 2 RS232 communication port supports DF1, DH485, MODBUS RTU, DNP3 and ASCII protocols. Channel 1 is an RJ45 compatible port support Ethernet I/P, DNP3 and MODBUS Ethernet protocol. These protocol sets provide a wide range of options and application in connecting this controller to Machine level Human Machine Interface (HMI), Supervisory level Supervisory Control and Data Acquisition (SCADA) systems, Enterprise level databases. This variety of communication port allows easy and seamless vertical and horizontal integration.

When installing this compact controller, supported and recommended orientation is Horizontal. It may be directly mounted to a properly grounded mounting plate within an enclosure or with the use of a DIN rail. This controller come with a debris strip to protect the electronic circuitry from dust, dirt and conductive metal dust. Remove this debris strip when panel installation works are completed.


Manufacturer information

Allen‑Bradley components, integrated control and information solutions are built for demanding industrial applications. We integrate control and information across the enterprise to make you as productive as possible.
