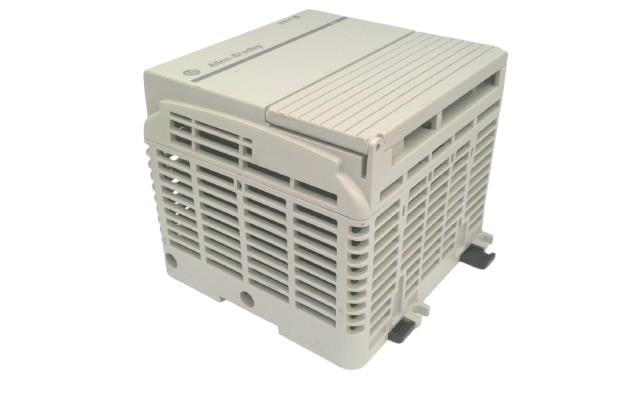

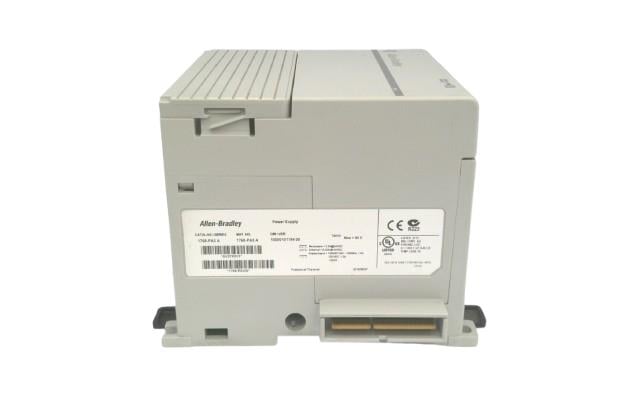

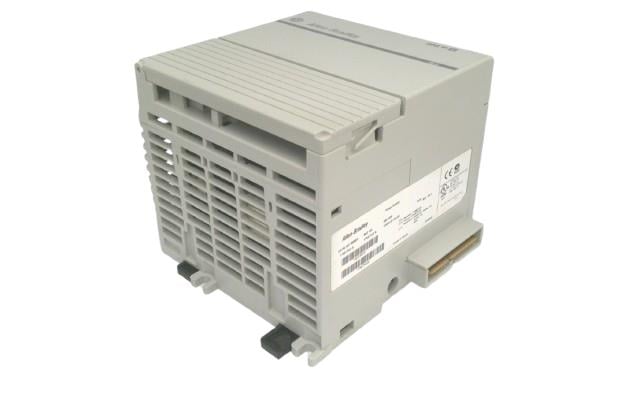

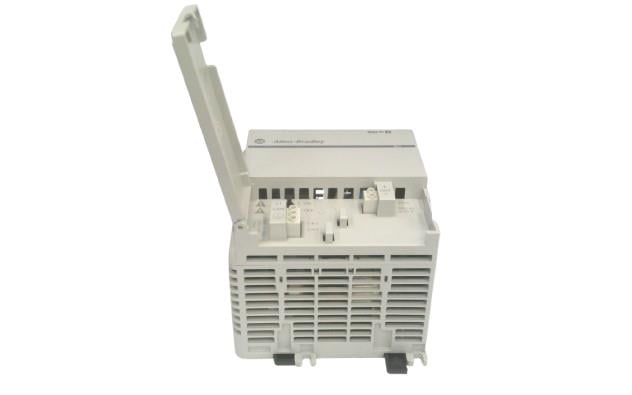

1768-PA3 | Allen-Bradley CompactLogix AC/DC Power Supply Module, 85–265VAC / 108–132VDC Input
- Regular price
- $795.00
- Sale price
- $795.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1768-PA3
Description
The Allen-Bradley 1768-PA3 is an AC/DC power supply module designed for CompactLogix automation systems. It supports a wide input range of 85–265VAC or 108–132VDC, providing flexibility for varied installation environments. The unit delivers regulated backplane power to connected modules and includes integrated overcurrent protection to ensure stable and reliable system operation.
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | Allen-Bradley |
| Category | PLCs/Machine Control |
| Part Number | 1768-PA3 |
| Subcategory | Power Supply Module |
| Input Power | 85–265V AC; 108–132V DC |
| Input Frequency | 47–63 Hz (AC only) |
| Input Power, Max | 120 VA / 120 W |
| Power Consumption | 33.6 W |
| Power Dissipation | 7.5 W (module), 30 W max |
| Backplane Current | 1.4 A at 24V DC |
| Efficiency | 75% typical |
| Inrush Current (Nominal) | 25A @ 85–132VAC; 50A @ 195–265VAC |
| Inrush Current (Max) | 50A @ 85–132VAC; 80A @ 195–265VAC |
| Isolation Voltage | 30V continuous |
| Internal Overcurrent Protection | Non-replaceable fuse |
| Recommended External OCP | 4–6A @ 28.5–36.7 A²s |
| Enclosure | Open-style |
| Shipping Dimensions | 8 × 8 × 5 in |
Information About 1768-PA3
The 1768-PA3 is part of the CompactLogix family and serves as the primary power source for 1768-system modules. Built with an AC/DC input design, the module accommodates both global AC mains and DC industrial power systems, simplifying integration across diverse applications. Its rugged architecture includes a factory-installed non-replaceable fuse for internal overcurrent protection, enhancing safety and reducing maintenance requirements. Designed to deliver 1.4 A at 24V of backplane current, the module reliably powers CPUs, communication adapters, and expansion modules within CompactLogix control architectures. With an open-style enclosure, it is intended for installation inside an approved industrial control panel and meets typical efficiency and inrush performance demands expected in automation environments.
Key Features:
- Wide AC/DC Input Range: Accepts 85–265VAC or 108–132VDC for flexible installation.
- Backplane Power Delivery: Supplies 1.4 A at 24V to CompactLogix modules.
- Integrated Overcurrent Protection: Includes a built-in, non-replaceable fuse for added safety.
- High Inrush Capacity: Supports 25–50A nominal inrush depending on voltage range.
- Compact, Panel-Mount Design: Open-style housing for use inside industrial enclosures.
- High Efficiency: Operates at approximately 75% typical efficiency.
- Robust Industrial Performance: Designed for reliable operation under varied industrial conditions.
- AC Power or DC Power Options: Ideal for mixed-voltage installations and retrofit environments.
The 1768-PA3 delivers the reliability and precision required for dependable power distribution in CompactLogix automation systems.
