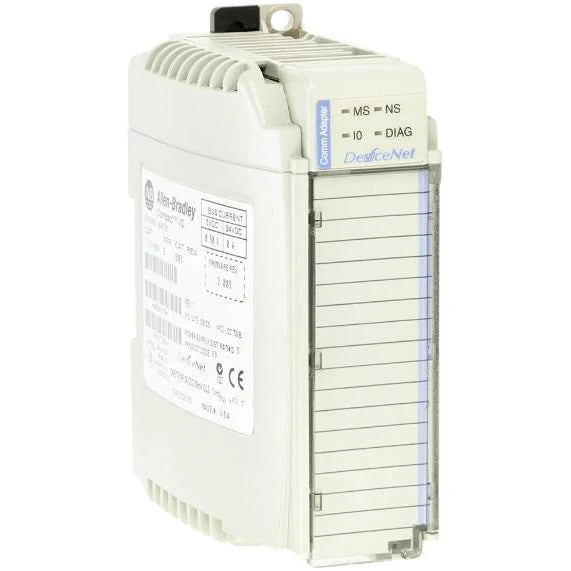

1769-ADN | Allen-Bradley Compact I/O DeviceNet Adapter Module
1769-ADN | Allen-Bradley Compact I/O DeviceNet Adapter Module
Part #: 1769-ADN Manufactured by: Allen-Bradley

1769-ADN | Allen-Bradley Compact I/O DeviceNet Adapter Module

Regular price
$599.00
Sale price
$599.00
Regular price
Never Used Surplus
172 in Stock
Shipping calculated at checkout.
Product Overview
Allen-Bradley 1769-ADN Compact I/O DeviceNet Adapter Module, supports a total of 180 words of input data and 180 words of ...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: 1769-ADN
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
1769-ADN | Allen-Bradley Compact I/O DeviceNet Adapter Module
    1769-ADN | Allen-Bradley Compact I/O DeviceNet Adapter Module
1769-ADN | Allen-Bradley Compact I/O DeviceNet Adapter Module
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: 1769-ADN

Description / Specifications

Description

The Allen-Bradley 1769-ADN is a DeviceNet communication module compatible for 1769 CompactLogix or MicroLogix 1500 system. It allows connection to DeviceNet network through the integrated DeviceNet communication port with communication rates of 125k bit/s, 250k bit/s, and 500k bit/s. This module supports DIN rail or panel mounting.



Technical Specifications



Brand Allen-Bradley
Series A and B
Part Number 1769-ADN
Manufacturer Rockwell Automation
Product Description 1769 CompactLogix DeviceNet Scanner
Product Line CompactLogix
Module Type DeviceNet Adapter Module
Communication Port One (1) DeviceNet
Data Transfer speed 125k bit/s 250k bit/s 500k bit/s
Shipping Dimensions 8x8x5 inches
Indicators Module Status: red/grn Network status - red/grn I/O status- red/grn Diagnostic status- red/grn
Isolation Voltage 30 Volts Continuous
Mounting DIN Rail; Panel
Enclosure Open
Power Supply Distance Rating Series A: 4; Series B: 5
Agency Certification UL; CE; DeviceNet Foundation
Operating Temperature 32°F to 140°F (0°C to 60°C)
Power Consumption 33.6 Watts
Backplane Current Series A: 450mA at 5V dc (2.25W) Series B: 500mA at 5V dc (2. 5W)
Power Dissipation 7.5 Watts
Storage Temperature -40°F to +185°F (-40°C to +85°C)
Humidity 5% to 95% non-condensing
Dimensions 118mm (height) x 87mm (depth) x 50mm (width) height including mounting tabs is 138mm 4.65in (height) x 3.43in (depth) x 1.97in (width) height including mounting tabs is 5.43in





Information About 1769-ADN

The Allen-Bradley 1769-ADN is a CompactLogix I/O DeviceNet Adapter module. It is an open, low-level network module that connects simple industrial devices such as actuators and sensors with high-level devices such as computers and PLC controllers. It uses the well-known Common Industrial Protocol (CIP) that provides various capabilities such as control, data collection, and configuration for industrial devices. It connects low-level devices directly to plant floor controllers instead of interfacing them through I/O modules. Data is sent as needed through this module. The 1769-ADN adapter module has a maximum DeviceNet communication rate of 125 Kbps for 500 meters, 250 Kbps for 250 meters and 500 Kbps for 100 meters. It has a maximum of 30 I/O nodes. It draws a current of 450 mA (Series A) and 500 mA (Series B) at 5 Volts DC. It has a dimension of 4.65 x 1.97 x 3.43 inches. and weighs 0.6 pounds.

This module has a current draw of 90 mA at 24 Volts DC and voltage of 11 to 25 Volts DC. It has a 30 Volt isolation voltage and a 4.7 Watt Power dissipation. For installation, it uses a DIN rail or panel mounting method with an open enclosure and it requires one slot in a CompactLogix chassis. The adapter should not be more than 4 modules (Series A) or 5 modules (Series B) away from the power supply. The 1769-ADN adapter module has more diagnostic features providing better fault detection and improved data collection. For wiring, the 802.3 compliant twisted pair cable with 2 millimeters squared (14 AWG) category standard must be used. It has a reduced start-up time and less wiring than a normal hard-wired system.

The Allen-Bradley 1769-ADN is a DeviceNet adapter that is compatible for use with 1769 CompactLogix or MircoLogix 1500 automation platforms. This module permits a controller or any compatible device to communicate and exchange data with field instruments and computer-based control system through the DeviceNet protocol.

This module supports transmission speed of 125k bit/s, 250k bit/s, and 500k bit/s using Allen-Bradley DeviceNet cable. This utilizes Common Industrial Protocol (CIP) as the main communication backbone and partners to partner to an existing DeviceNet scanner module in the network. This adapter responds to the request of the Scanner such as 1769-SDN to provide the requested data.

This communication module may be used to interface and send messages to controllers belonging to the 1769 platform. It is also capable of responding to DeviceNet scanners of other Programmable Logic Controller (PLC) product family such as PLC5, SLC500 and ControLogix. This is achieved with the utilization of the supported messaging functions.

This adapter may be installed beside any 1769 Compact I/O module. However, the Power Supply Distance rating must be met which is 4. This means that the module cannot be installed more than Frou (4) modules away from the power supply. When used with a MircoLogix 1500, the modules is installed beside the base unit or to an adjacent module.

Typical problems arise when the 1769-AND is not properly installed especially to a 1769 CompactLogix assembly. When installing the 1769-ADN adapter to a CompactLogix system, the bus connectors must be securely locked to establish an electrical connection. If resistance is felt when securing the module, disengage the module and inspect if the PIN connectors are properly aligned before proceeding again with the connection.



Manufacturer information

Allen‑Bradley components, integrated control and information solutions are built for demanding industrial applications. We integrate control and information across the enterprise to make you as productive as possible.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
