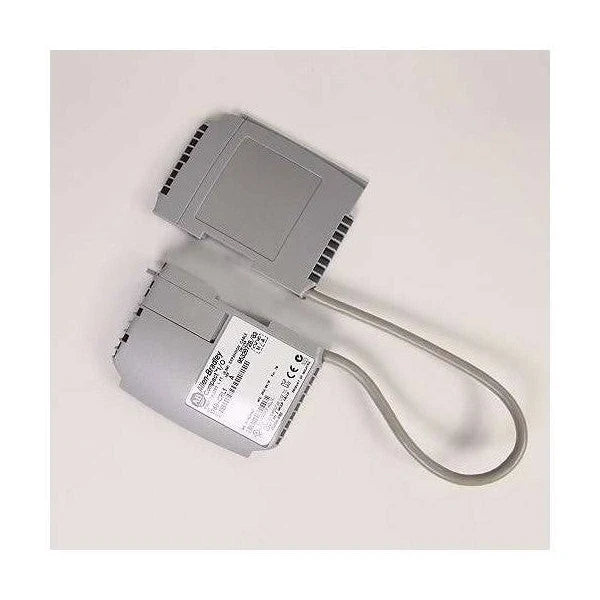

1769-CRL1 | Allen-Bradley CompactLogix/MicroLogix 1500 1 ft Right-to-Left Bus Expansion Cable
- Regular price
- $119.00
- Sale price
- $119.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1769-CRL1
Description
The Allen-Bradley 1769-CRL1 is a 1 ft (305 mm) right-to-left bus expansion cable designed for use with CompactLogix and MicroLogix 1500 systems. It ensures proper backplane communication between I/O modules while providing reliable mechanical and electrical connectivity.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen-Bradley |
| Category | Cables |
| Part Number | 1769-CRL1 |
| Subcategory | Bus Expansion Cable |
| Cable Length | 1 ft (305 mm) |
| Type | Right-to-Left Expansion Cable |
| Compatibility | CompactLogix, MicroLogix 1500 |
| Function | I/O Bus Expansion |
| Includes | Termination Caps |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Temperature Rating | 140°F |
| Certifications | C-TICK, cUL, GOST, KC, Marine, UL |
Information About 1769-CRL1
The Allen-Bradley 1769-CRL1 bus expansion cable provides a reliable method for extending the I/O backplane between CompactLogix or MicroLogix 1500 modules. Designed for right-to-left orientation, it ensures correct communication alignment and module addressing within the control system. Its 1-foot length is ideal for installations requiring tight spacing or connection between adjacent enclosures. The cable includes termination caps to maintain signal integrity and protect the bus from electrical noise. Built to industrial standards, the 1769-CRL1 supports stable backplane communication in applications operating between 0°C and 60°C, making it suitable for most control cabinet environments.
Key Features:
- Right-to-Left Expansion Orientation: Designed specifically to extend the backplane from right to left, ensuring correct module addressing and maintaining proper signal flow across CompactLogix and MicroLogix 1500 I/O assemblies.
- Durable 1 ft (305 mm) Industrial Cable: The short, reinforced cable length minimizes electrical noise exposure and provides a clean, organized layout in densely populated control cabinets.
- Integrated Termination Caps: Supplied with protective termination caps that safeguard the communication bus, preventing signal reflections and ensuring stable data transmission between modules.
- High-Temperature Operation: Rated for temperatures up to 140°F (60°C), allowing reliable performance in warm industrial environments and enclosed panels with limited ventilation.
- Electrical Noise Immunity: Engineered to withstand typical industrial electromagnetic interference, preserving backplane integrity in applications with motors, drives, and switching devices.
- Multi-Series Compatibility: Fully compatible with both CompactLogix and MicroLogix 1500 platforms, allowing flexible system expansion across various PLC architectures.
The 1769-CRL1 delivers the reliability and precision required for robust backplane extension and stable module communication in industrial automation systems.
