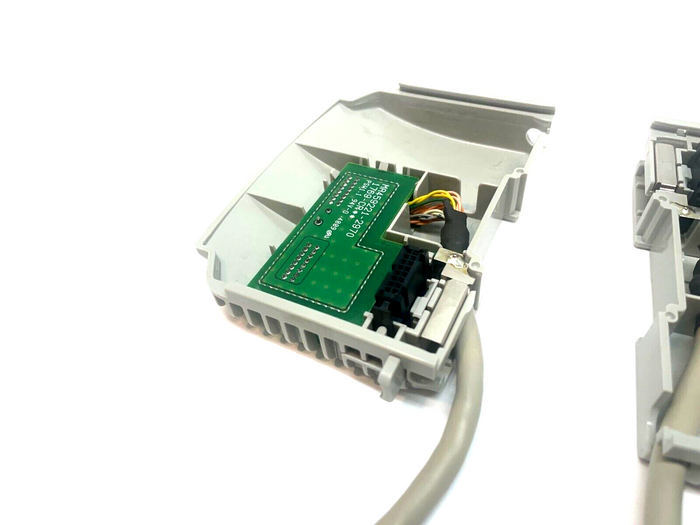

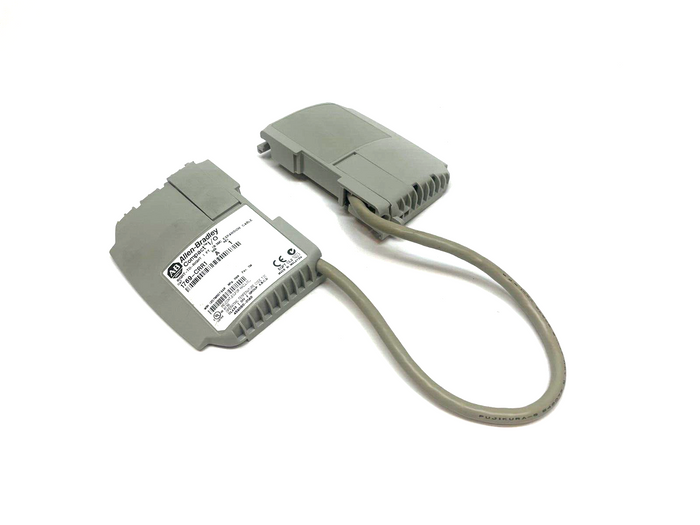

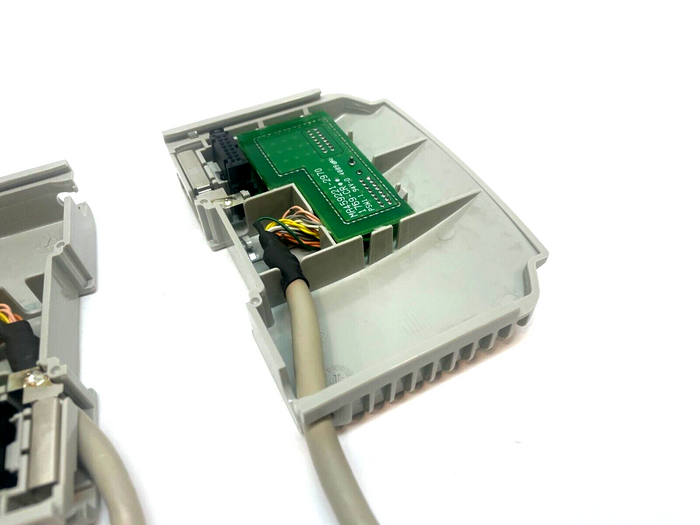

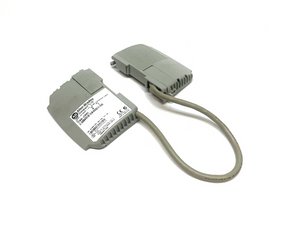

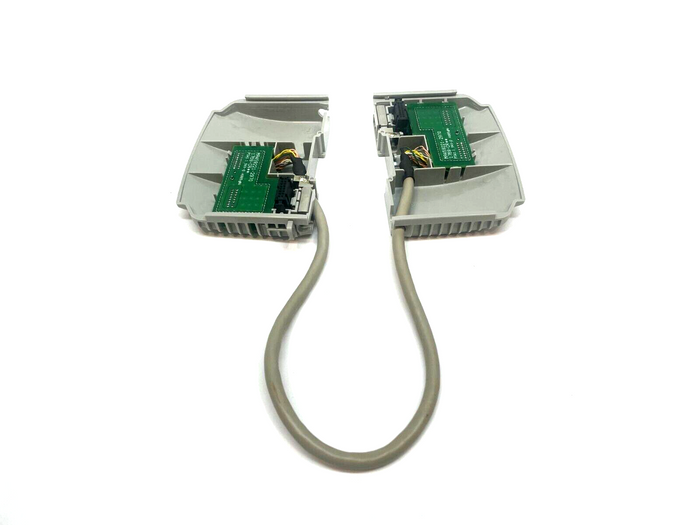

1769-CRR1 | Allen Bradley Expansion Cable
- Regular price
- $196.00
- Sale price
- $196.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1769-CRR1
Description
The Allen-Bradley 1769-CRR1 Expansion Cable is designed to connect CompactLogix controllers to expansion I/O modules. It enables the transfer of data and power between the controller and additional modules, expanding system capabilities for larger automation setups.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen Bradley |
| Category |
PLCs/Machine Control
|
| Part Number | 1769-CRR1 |
| Subcategory |
PLC Module/Rack
|
| Weight | 0.30 kgs |
| Connection | Right to Right |
| Cable Length | 1 ft |
| Operating Temperature | 32°F to 140°F |
| Embedded Discrete Input | Sixteen (16) 24 VDC |
| Isolation Voltage | 30 Volts Continuous |
| Backplane Current | 1.4 Amps at 24 Volts |
| Power Consumption | 33.6 Watts |
| Power Dissipation | 7.5 Watts |
Information About 1769-CRR1
The Allen-Bradley 1769-CRR1 Expansion Cable is used to connect CompactLogix controllers to expansion I/O modules. This cable facilitates communication and power transfer between the controller and additional I/O modules, enabling system expansion and flexibility in automation setups.
Key Features and Specifications:
- Model: 1769-CRR1
- Type: Expansion Cable for CompactLogix controllers
- Purpose: Provides the physical connection between a CompactLogix controller and expansion I/O modules in the 1769 series
- Cable Length: Typically around 1 meter (39.37 inches), but varies depending on system requirements
- Connectivity:
- Connects the CompactLogix controller to up to 7 expansion I/O modules
- Ensures data transfer and power between the controller and expansion modules
- Signal Type: Supports high-speed data communication for reliable I/O operations
- Power Supply: Transfers power from the controller to the expansion modules for continuous operation
- Environmental Rating: Designed for industrial environments with durability and reliability
Applications:
- Control Systems: Used in systems where additional I/O modules are required to increase the number of inputs/outputs for larger automation tasks
- Automation Expansion: Ideal for expanding the capabilities of CompactLogix-based systems without needing multiple controllers
- Industrial Automation: Suitable for a variety of industrial automation environments where space-saving and flexible control are required
The 1769-CRR1 Expansion Cable is essential for extending the functionality of CompactLogix controllers, allowing for system growth and adaptation to changing automation needs.
