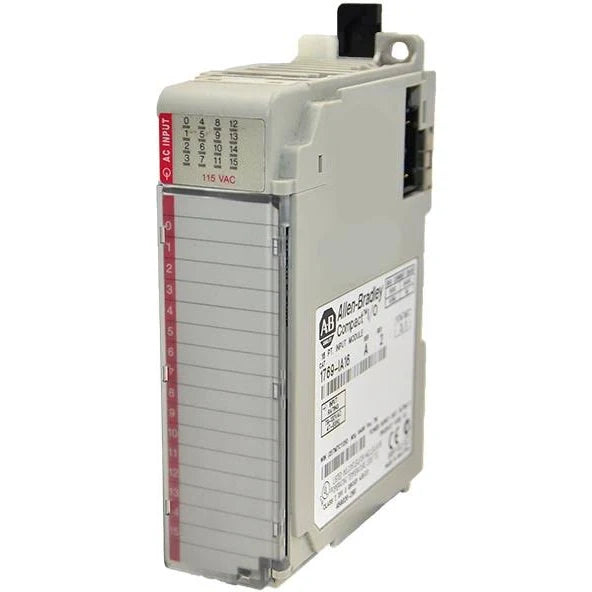

1769-IA16 | Allen-Bradley CompactLogix 120VAC Digital Input Module 16 Point, Ser A
1769-IA16 | Allen-Bradley CompactLogix 120VAC Digital Input Module 16 Point, Ser A
Part #: 1769-IA16 Manufactured by: Allen-Bradley

1769-IA16 | Allen-Bradley CompactLogix 120VAC Digital Input Module 16 Point, Ser A

Regular price
$219.00
Sale price
$219.00
Regular price
Never Used Surplus
1 in Stock
Product Overview
The Allen-Bradley 1769-IA16 is a CompactLogix Digital Input Module with 16 input points, compatible with 120VAC systems. A...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: 1769-IA16
IQElectro International provides a 2-year warranty on every product we offer. Our complimentary 2-year warranty ensures that every IQElectro purchase is a trustworthy and reliable investment in the future of your company.
IQElectro is NOT an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
1769-IA16 | Allen-Bradley CompactLogix 120VAC Digital Input Module 16 Point, Ser A
    1769-IA16 | Allen-Bradley CompactLogix 120VAC Digital Input Module 16 Point, Ser A
1769-IA16 | Allen-Bradley CompactLogix 120VAC Digital Input Module 16 Point, Ser A
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3-Day Free Shipping
"IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: 1769-IA16

Description / Specifications

Description

The Allen-Bradley 1769-IA16 is a Compact I/O module with Sixteen (16) AC input channels operating at voltage range of 79-132 VAC. This module is compatible for use with a 1769 CompactLogix chassis or MicroLogix 1500.



Technical Specifications



Manufacturer Rockwell Automation
Brand Allen-Bradley
Product Type Discrete Input Module
Part Number/Catalog No. 1769-IA16
Product Line CompactLogix
Compatible Controllers MicroLogix 1500; 1769 CompactLogix
Module Type 16 Channel Input Module
Input Type Analog Input
Input Voltage 100/120 VAC
Operating Voltage 79 to 132V AC
Input Frequency 47 - 63 Hz
Communication Cable 16 Point
No. of Inputs 16
Input delay, On 20 ms
Shipping Dimensions 8x8x5 inches
Series A and B
Enclosure Type Open
Dimension 18 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.) Height with mounting tabs 138 mm (5.43 in.)
Current Draw 5.1Vdc: 115 mA
Backplane Current 1.4 Amps at 24 Volts
Heat Dissipation 3.3 W
Power Consumption 33.6 Watts
Off state voltage, max 20 VAC
Power Dissipation 7.5 Watts
On state voltage, min 79 VAC
Voltage Category 100 to 102 Volts AC
Slot width 1
Wire size (22…14 AWG) solid or (22…16 AWG)
Wire type Cu-90 °C (194 °F)





Information About 1769-IA16

The Allen-Bradley 1769-IA16 is a CompactLogix module, each channel operating at 120 Volt AC. It has Sixteen (16) points functioning as digital input module. The channels present in this module form a single group and have internally-connected commons. The 1769-IA16 has a voltage category of 100 to 120 Volts AC and an operating voltage range of 79 to 132 Volts AC, with a line frequency of 47 to 63 Hertz. When in an off-state, this module has a maximum current of 2.5 mA and a maximum voltage of 20 Volts AC. During an on-state, the module’s minimum voltage is 79 Volts AC, the minimum current is 5 mA at 74 Volts AC, and the maximum current is 12 mA at 120 Volts AC. The maximum input impedance of the 1769-IA16 module is 12 kOhms at 50 Hertz and 10 kOhms at 60 Hertz, while its maximum inrush current is 250 mA. This module also has a maximum heat dissipation of 3.3 Watts, thermal dissipation of 2.7 BTU/hour, and a current draw of 115 mA at 5.1 Volts. The input delays of this module are 20 ms for both the On and the Off states.

The 1769-IA16 is an AC Digital I/O module requires a removable terminal block. This terminal block provide connections to I/O sensors and actuators. It is equipped with finger-safe covers. The I/O wiring for 1769-IA16 can be configured from beneath the module out to the I/O terminals. The removable terminal blocks ease this wiring process. The power supply distance rating of the 1769-IA16 module is 8 modules and the compatible power supply modules are the 1769-PA2, the 1769-PB2, the 1769-PA4, and the 1769-PB4. It comes with an open-style enclosure type rating and it is mounted using a panel mount or DIN rail mount. The approximate dimensions are 4.65 x 1.38 x 3.43 inches the module’s weight is 0.61 pounds or 280 grams. Note that the height of this module increases to 5.43 inches when used with mounting tabs. The 1769-IA16 is also an electronically-protected module.

The Allen-Bradley 1769-IA16 is a 1769 Compact I/O module that is used with 1769 CompactLogic controllers and MicroLogix 1500 controllers. This discrete input interface module features a single group with internally connected commons, composed of Sixteen (16) 100-120 VAC input channels. This module is primarily used to interface with field devices that operate in binary or ON/OFF mode such as switches, auxiliary contacts, sensors and other devices that generate or may pass through an AC signal.

The 1769-IA16 is compatible for with MicroLogix 1500 and CompactLogix controllers systems.

When configured in CompactLogix system, the power supply distance rating of the module must be observed. For the 1769-IA16, the power supply distance rating is Eight (8). If more than 8 modules are required, the module positioned outside the power supply distance rating must be installed after an additional system power supply or to a CompactLogix I/O bank. In a MicroLogix 1500 controller, the module is installed after the base module or to any adjacent module.

Compatible power supply for the 1769-IA16 includes 1769-PA2, 1769-PB2, 1769-PA4 and 1769-PB4. The module’s on state voltage is 79V AC.




Manufacturer information

Allen‑Bradley components, integrated control and information solutions are built for demanding industrial applications. We integrate control and information across the enterprise to make you as productive as possible.



Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms and Conditions
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description

The Allen-Bradley 1769-IA16 is a Compact I/O module with Sixteen (16) AC input channels operating at voltage range of 79-132 VAC. This module is compatible for use with a 1769 CompactLogix chassis or MicroLogix 1500.



Technical Specifications



Manufacturer Rockwell Automation
Brand Allen-Bradley
Product Type Discrete Input Module
Part Number/Catalog No. 1769-IA16
Product Line CompactLogix
Compatible Controllers MicroLogix 1500; 1769 CompactLogix
Module Type 16 Channel Input Module
Input Type Analog Input
Input Voltage 100/120 VAC
Operating Voltage 79 to 132V AC
Input Frequency 47 - 63 Hz
Communication Cable 16 Point
No. of Inputs 16
Input delay, On 20 ms
Shipping Dimensions 8x8x5 inches
Series A and B
Enclosure Type Open
Dimension 18 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.) Height with mounting tabs 138 mm (5.43 in.)
Current Draw 5.1Vdc: 115 mA
Backplane Current 1.4 Amps at 24 Volts
Heat Dissipation 3.3 W
Power Consumption 33.6 Watts
Off state voltage, max 20 VAC
Power Dissipation 7.5 Watts
On state voltage, min 79 VAC
Voltage Category 100 to 102 Volts AC
Slot width 1
Wire size (22…14 AWG) solid or (22…16 AWG)
Wire type Cu-90 °C (194 °F)





Information About 1769-IA16

The Allen-Bradley 1769-IA16 is a CompactLogix module, each channel operating at 120 Volt AC. It has Sixteen (16) points functioning as digital input module. The channels present in this module form a single group and have internally-connected commons. The 1769-IA16 has a voltage category of 100 to 120 Volts AC and an operating voltage range of 79 to 132 Volts AC, with a line frequency of 47 to 63 Hertz. When in an off-state, this module has a maximum current of 2.5 mA and a maximum voltage of 20 Volts AC. During an on-state, the module’s minimum voltage is 79 Volts AC, the minimum current is 5 mA at 74 Volts AC, and the maximum current is 12 mA at 120 Volts AC. The maximum input impedance of the 1769-IA16 module is 12 kOhms at 50 Hertz and 10 kOhms at 60 Hertz, while its maximum inrush current is 250 mA. This module also has a maximum heat dissipation of 3.3 Watts, thermal dissipation of 2.7 BTU/hour, and a current draw of 115 mA at 5.1 Volts. The input delays of this module are 20 ms for both the On and the Off states.

The 1769-IA16 is an AC Digital I/O module requires a removable terminal block. This terminal block provide connections to I/O sensors and actuators. It is equipped with finger-safe covers. The I/O wiring for 1769-IA16 can be configured from beneath the module out to the I/O terminals. The removable terminal blocks ease this wiring process. The power supply distance rating of the 1769-IA16 module is 8 modules and the compatible power supply modules are the 1769-PA2, the 1769-PB2, the 1769-PA4, and the 1769-PB4. It comes with an open-style enclosure type rating and it is mounted using a panel mount or DIN rail mount. The approximate dimensions are 4.65 x 1.38 x 3.43 inches the module’s weight is 0.61 pounds or 280 grams. Note that the height of this module increases to 5.43 inches when used with mounting tabs. The 1769-IA16 is also an electronically-protected module.

The Allen-Bradley 1769-IA16 is a 1769 Compact I/O module that is used with 1769 CompactLogic controllers and MicroLogix 1500 controllers. This discrete input interface module features a single group with internally connected commons, composed of Sixteen (16) 100-120 VAC input channels. This module is primarily used to interface with field devices that operate in binary or ON/OFF mode such as switches, auxiliary contacts, sensors and other devices that generate or may pass through an AC signal.

The 1769-IA16 is compatible for with MicroLogix 1500 and CompactLogix controllers systems.

When configured in CompactLogix system, the power supply distance rating of the module must be observed. For the 1769-IA16, the power supply distance rating is Eight (8). If more than 8 modules are required, the module positioned outside the power supply distance rating must be installed after an additional system power supply or to a CompactLogix I/O bank. In a MicroLogix 1500 controller, the module is installed after the base module or to any adjacent module.

Compatible power supply for the 1769-IA16 includes 1769-PA2, 1769-PB2, 1769-PA4 and 1769-PB4. The module’s on state voltage is 79V AC.




Manufacturer information

Allen‑Bradley components, integrated control and information solutions are built for demanding industrial applications. We integrate control and information across the enterprise to make you as productive as possible.
