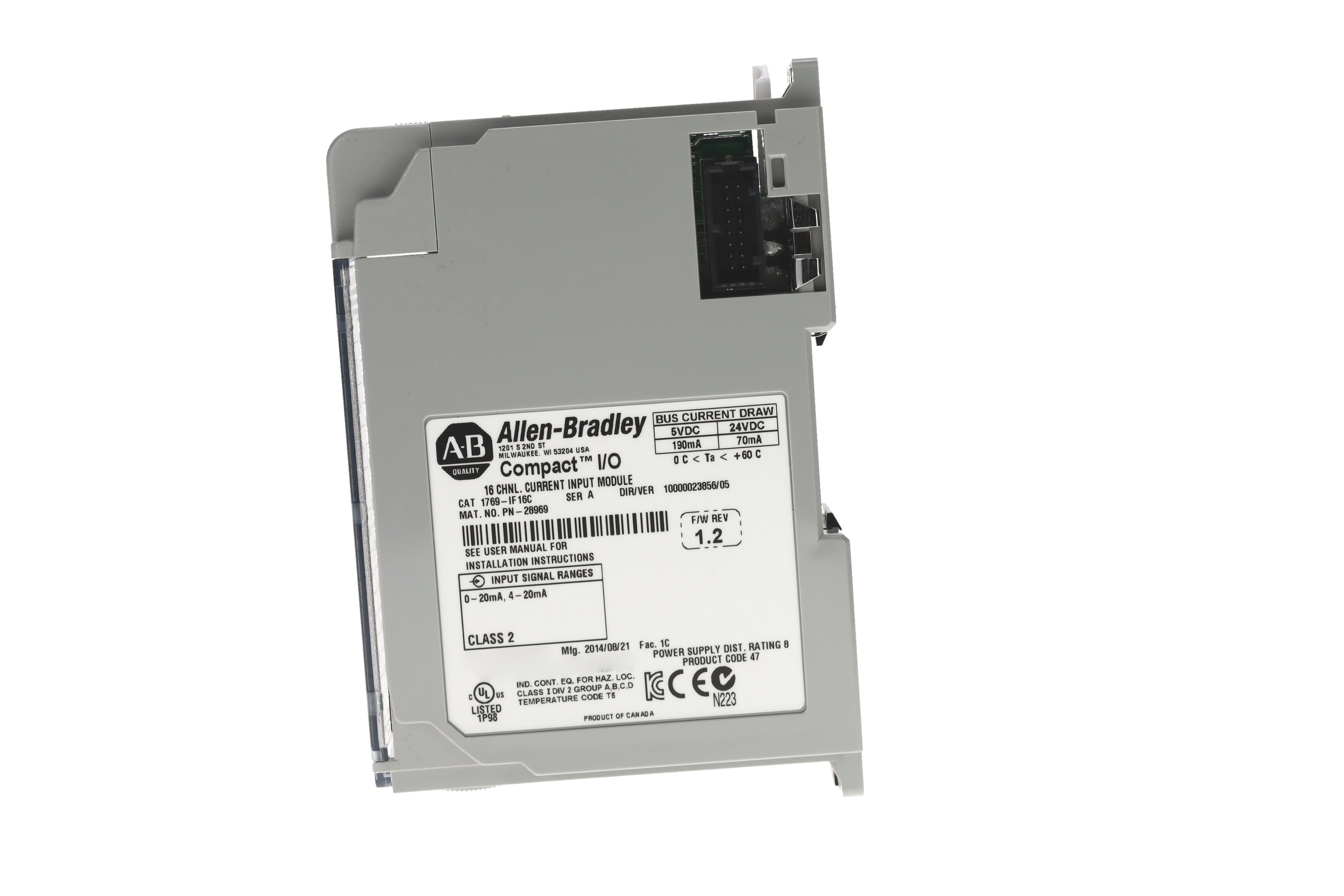

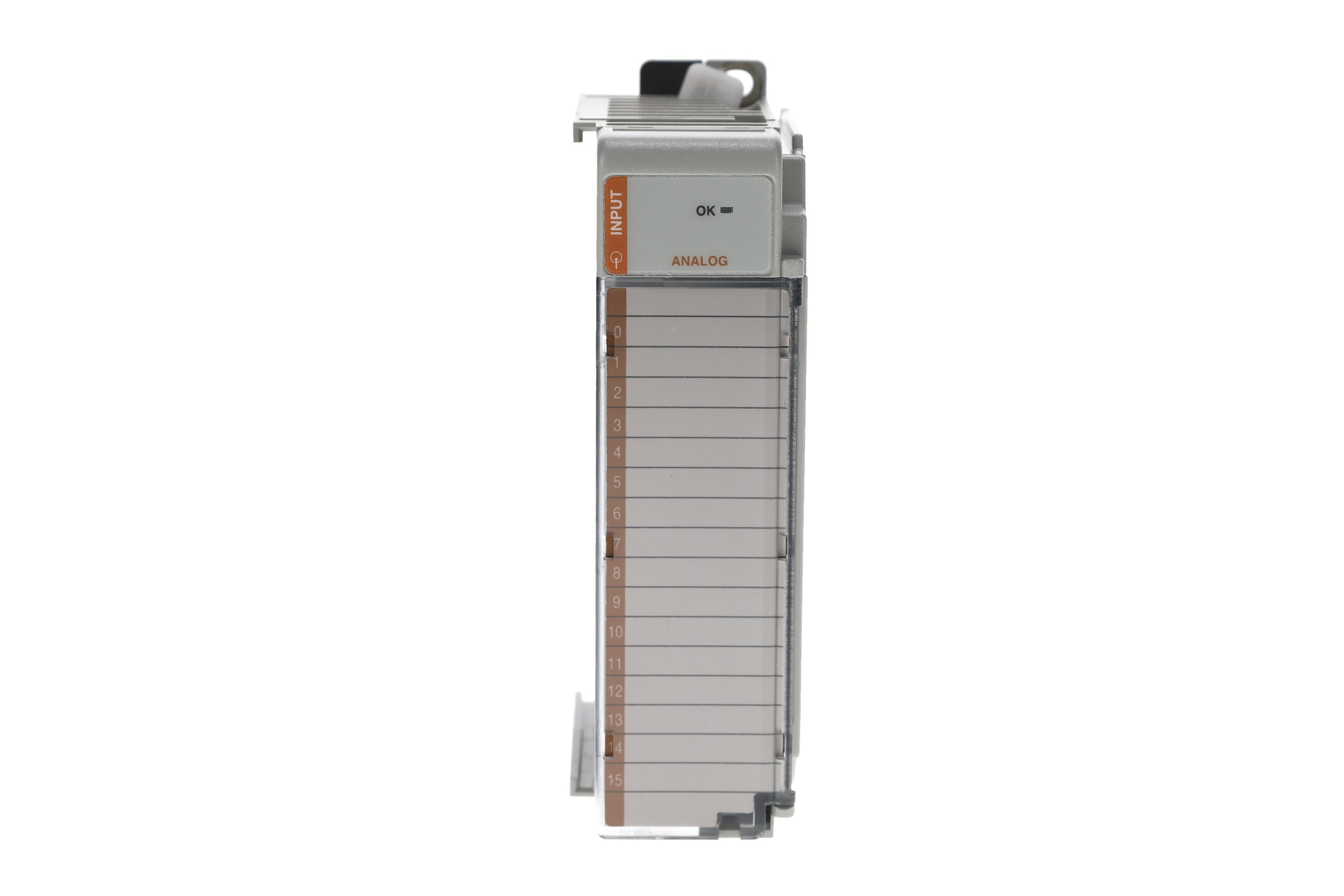

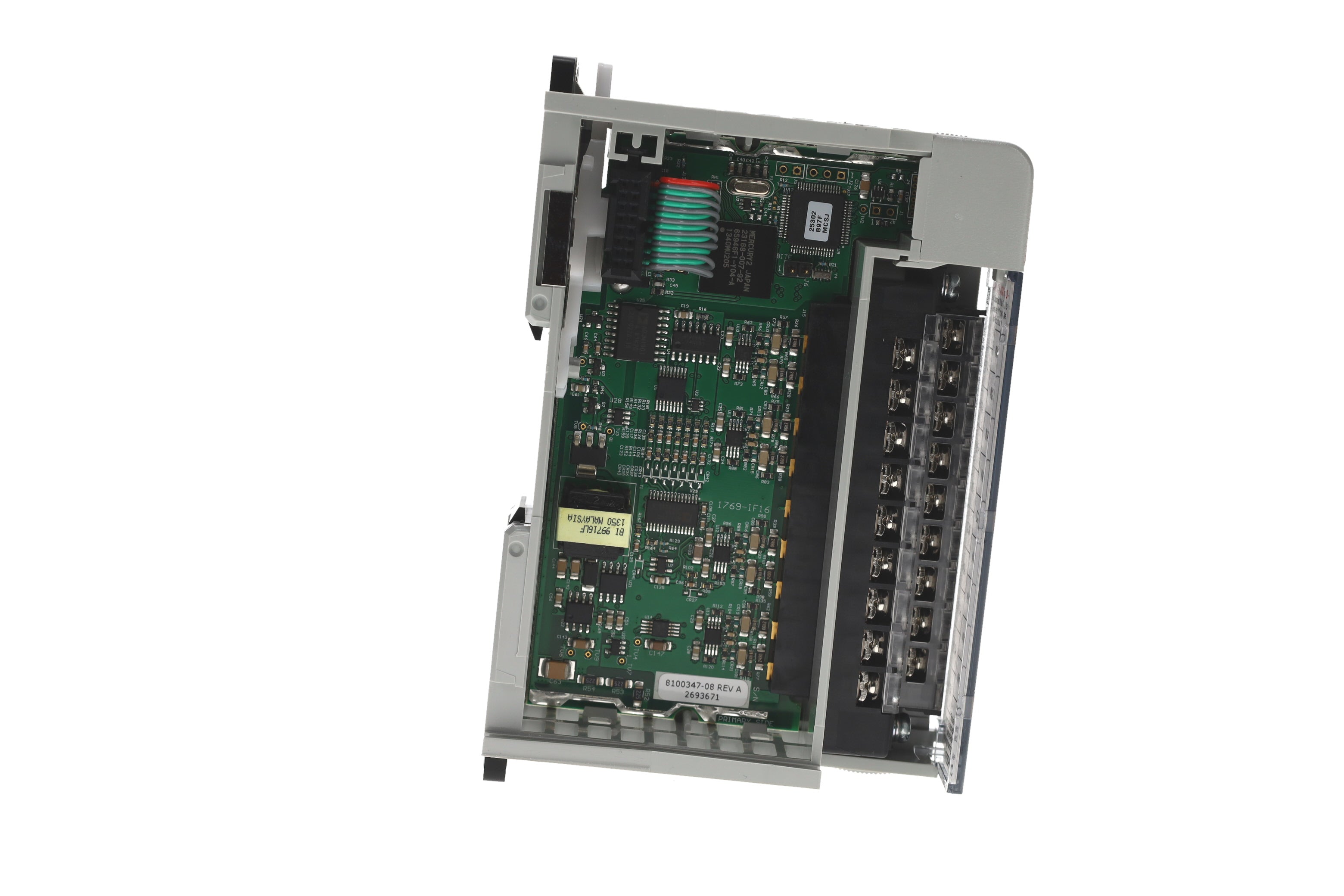

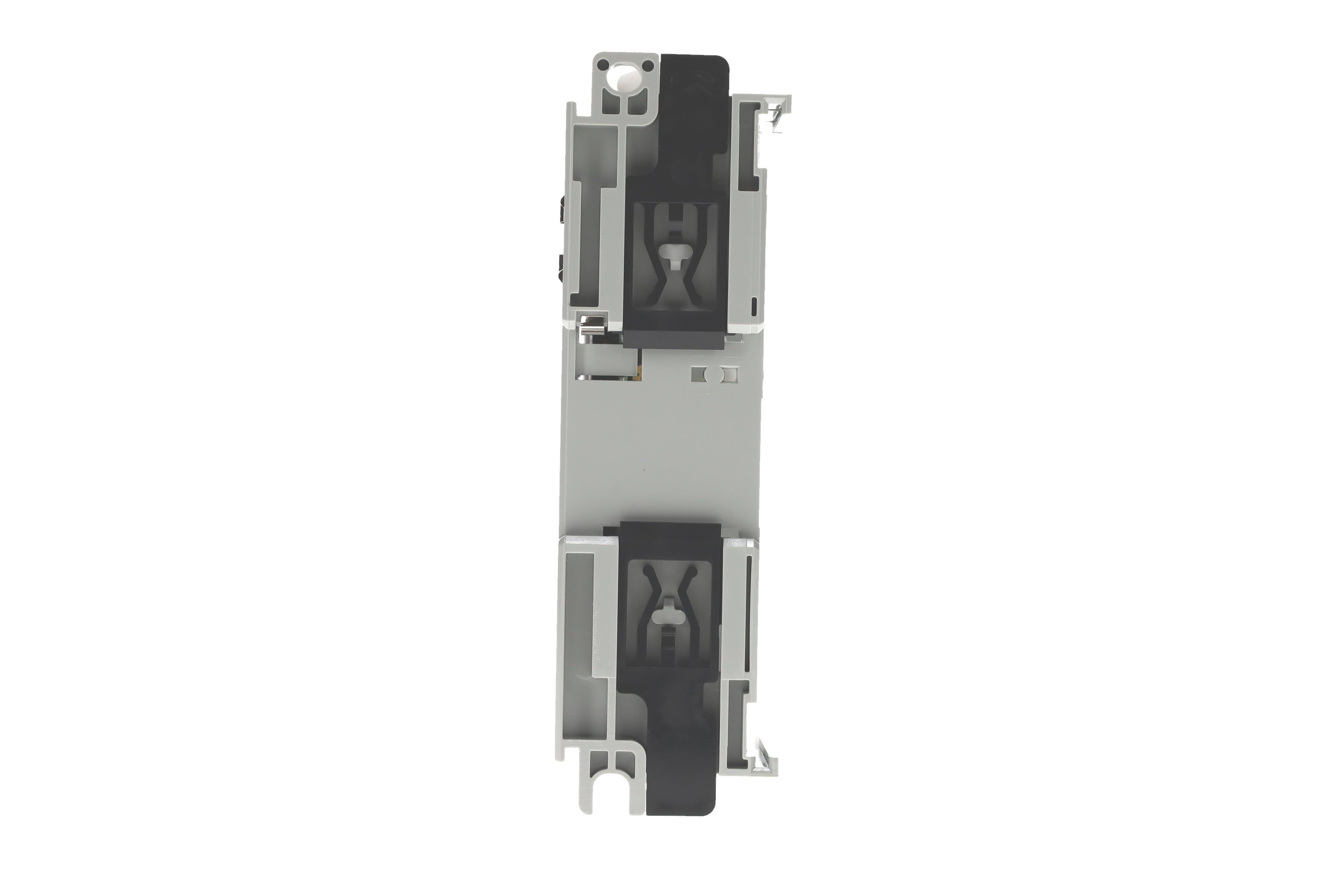

Part #: 1769-IF16C Manufactured by: Allen-Bradley
Regular price
$695.00
Sale price
$695.00
Regular price
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
Allen Bradley CompactLogix 16 Channel Compact High- density Analog Current Input I-O Module
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 1769-IF16C
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 1769-IF16C

Description / Specifications

Description

The Allen-Bradley 1769-IF16C is a Compact I/O high-density analog input module with Sixteen (16) single-ended input channels. This module is designed to accept 0-20 mA and 4-20 mA input signals with resolution of 16 bits (unipolar) and 15 bits plus sign (bipolar). This module is compatible for use with a 1769 CompactLogix chassis or MicroLogix 1500 controller.



Technical Specifications



Condition New / Never Used Surplus
Brand Allen-Bradley
Series A and B
Part Number 1769-IF16C
Product Type Analog Input Module
Current signal full range 0-21 mA; 3.2 - 21 mA
Current signal normal ranges 0-20mA; 4-20 mA
Input current range 0-21 mA
Power Supply Distance rating 8
Compatible Controllers MicroLogix 1500; CompactLogix
Resolution 16 bits (unipolar) 15 bits plus sign (bipolar)
Channel Diagnostics Over- or under-range by bit reporting, process alarms
Slot width 1
No. of Inputs 16 Single Ended Inputs
Manufacturer Rockwell Automation
Dimension 118 mm (height) x 87 mm (depth) x 35 mm (width) [52.5 mm (width) for 1769-IF8] Height including mounting tabs is 138 mm 4.65 in (height) x 3.43 in (depth) x 1.38 in (width) [2.07 in (width) for 1769-IF8] Height including mounting tabs is 5.43 in
Product Line CompactLogix
Module Type 16 Point Analog Current Input Module
Input Type Analog Input
Communication Cable 16 Point
Shipping Dimensions 8 x 8 x 5 inches
Enclosure Type Open
Backplane Current 1.4 Amps at 24 Volts
Power Consumption 33.6 Watts
Power Dissipation 7.5 Watts
Isolation Voltage 30 Volts DC





Information About 1769-IF16C

The Allen-Bradley 1769-IF16C is a Compact I/O module that is compatible for use with MicroLogix 1500 Programmable Logic Controller (PLC) and CompactLogix Programmable Automation Controllers (PAC). The 1769-IF16C features Sixteen (16) single-ended input channels that are designed to interface field instruments that provides 0-20 mA or 4-20 mA analog Current signal towards the module’s input channels.

The 1769-IF16C can be used for interfacing of field instruments such as Transmitters, controllers; Accept feedback signals of Variable Frequency Drives (VFD), modulating valves, panel meters, data loggers and similar devices. It may also be used to received conditioned output signals of signal isolators or splitters.

The 1769-IF16C has an internal Signa-Delta Analog-to-Digital (ADC) converter. This converter translates the received analog signal into digital data with resolution of 16 bits when configured as unipolar and 15 bits when configured as bipolar. This module accepts full-scale analog input signal ranges of 0-21 mA and 3.2-21 mA.

The 1769-IF16C does not require calibration. By configuring an input filter, noises may be eliminated and insignificant changes are neglected by the module.

If used with CompactLogix version 20.

The 1769-IF16C has a BUS draw current of 190mA at 5 Volts DC and 70mA at 24 Volts DC and dissipates 4.0W of heat. It has an input overall accuracy of 0.5% at 25 degrees Celsius (77 degrees Fahrenheit) for 16 Hertz, 50 Hertz, and 60 Hertz selectable filters, and an input drift accuracy of ±0.0045% per degrees Celsius. It has ±0.03% non-linearity, ±0.03% at 16 Hertz filter repeatability, and 1.25% at 16 Hertz filter module error margin.

The 1769-IF16C has a maximum overload of ±28 mA at 7.0 Volts DC at the input terminal and is built with an IEC reinforced insulation with an isolation voltage of 30 Volts DC tested at 710 Volts DC/500 Volts AC for 1 minute between input group and BUS isolation. It has an operational shock rating of 30G for 11 milliseconds in a panel-mounted installation style at 20G for 11 milliseconds on a DIN rail. The 1769-IF16C has a functional temperature ranging between 0 and 60 degrees Celsius (32-140 degrees Fahrenheit) and it is shipped in a temperature range around -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit). It weighs approximately 281 g (0.62 pounds) and has shipping dimensions of 118 x 87 x 35 millimeters (4.65 x 3.43 x 1.38 inches).



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The Allen-Bradley 1769-IF16C is a Compact I/O high-density analog input module with Sixteen (16) single-ended input channels. This module is designed to accept 0-20 mA and 4-20 mA input signals with resolution of 16 bits (unipolar) and 15 bits plus sign (bipolar). This module is compatible for use with a 1769 CompactLogix chassis or MicroLogix 1500 controller.



Technical Specifications



Condition New / Never Used Surplus
Brand Allen-Bradley
Series A and B
Part Number 1769-IF16C
Product Type Analog Input Module
Current signal full range 0-21 mA; 3.2 - 21 mA
Current signal normal ranges 0-20mA; 4-20 mA
Input current range 0-21 mA
Power Supply Distance rating 8
Compatible Controllers MicroLogix 1500; CompactLogix
Resolution 16 bits (unipolar) 15 bits plus sign (bipolar)
Channel Diagnostics Over- or under-range by bit reporting, process alarms
Slot width 1
No. of Inputs 16 Single Ended Inputs
Manufacturer Rockwell Automation
Dimension 118 mm (height) x 87 mm (depth) x 35 mm (width) [52.5 mm (width) for 1769-IF8] Height including mounting tabs is 138 mm 4.65 in (height) x 3.43 in (depth) x 1.38 in (width) [2.07 in (width) for 1769-IF8] Height including mounting tabs is 5.43 in
Product Line CompactLogix
Module Type 16 Point Analog Current Input Module
Input Type Analog Input
Communication Cable 16 Point
Shipping Dimensions 8 x 8 x 5 inches
Enclosure Type Open
Backplane Current 1.4 Amps at 24 Volts
Power Consumption 33.6 Watts
Power Dissipation 7.5 Watts
Isolation Voltage 30 Volts DC





Information About 1769-IF16C

The Allen-Bradley 1769-IF16C is a Compact I/O module that is compatible for use with MicroLogix 1500 Programmable Logic Controller (PLC) and CompactLogix Programmable Automation Controllers (PAC). The 1769-IF16C features Sixteen (16) single-ended input channels that are designed to interface field instruments that provides 0-20 mA or 4-20 mA analog Current signal towards the module’s input channels.

The 1769-IF16C can be used for interfacing of field instruments such as Transmitters, controllers; Accept feedback signals of Variable Frequency Drives (VFD), modulating valves, panel meters, data loggers and similar devices. It may also be used to received conditioned output signals of signal isolators or splitters.

The 1769-IF16C has an internal Signa-Delta Analog-to-Digital (ADC) converter. This converter translates the received analog signal into digital data with resolution of 16 bits when configured as unipolar and 15 bits when configured as bipolar. This module accepts full-scale analog input signal ranges of 0-21 mA and 3.2-21 mA.

The 1769-IF16C does not require calibration. By configuring an input filter, noises may be eliminated and insignificant changes are neglected by the module.

If used with CompactLogix version 20.

The 1769-IF16C has a BUS draw current of 190mA at 5 Volts DC and 70mA at 24 Volts DC and dissipates 4.0W of heat. It has an input overall accuracy of 0.5% at 25 degrees Celsius (77 degrees Fahrenheit) for 16 Hertz, 50 Hertz, and 60 Hertz selectable filters, and an input drift accuracy of ±0.0045% per degrees Celsius. It has ±0.03% non-linearity, ±0.03% at 16 Hertz filter repeatability, and 1.25% at 16 Hertz filter module error margin.

The 1769-IF16C has a maximum overload of ±28 mA at 7.0 Volts DC at the input terminal and is built with an IEC reinforced insulation with an isolation voltage of 30 Volts DC tested at 710 Volts DC/500 Volts AC for 1 minute between input group and BUS isolation. It has an operational shock rating of 30G for 11 milliseconds in a panel-mounted installation style at 20G for 11 milliseconds on a DIN rail. The 1769-IF16C has a functional temperature ranging between 0 and 60 degrees Celsius (32-140 degrees Fahrenheit) and it is shipped in a temperature range around -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit). It weighs approximately 281 g (0.62 pounds) and has shipping dimensions of 118 x 87 x 35 millimeters (4.65 x 3.43 x 1.38 inches).



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
