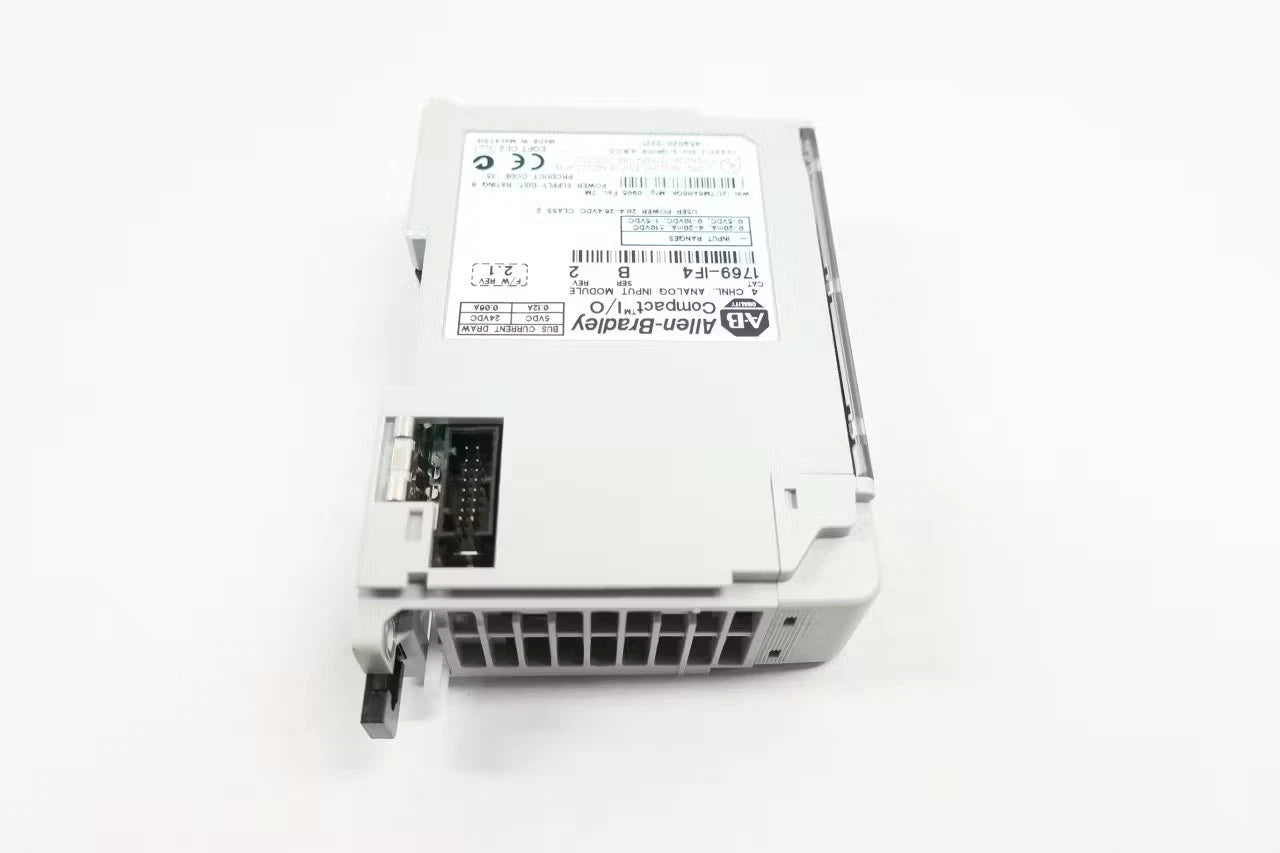

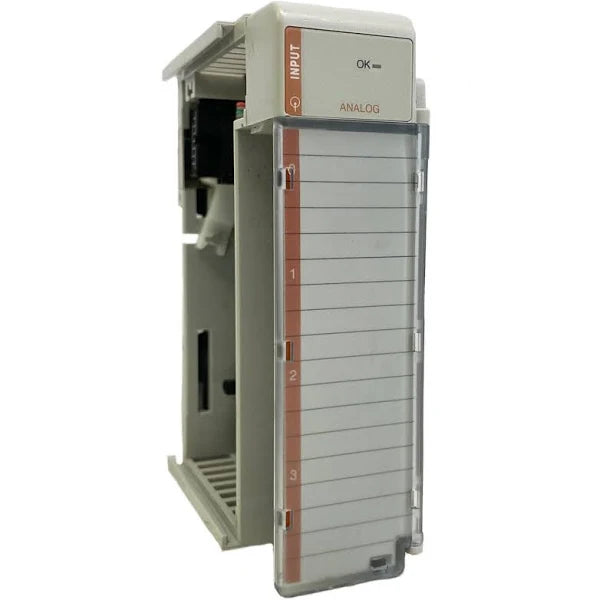

Part #: 1769-IF4 Manufactured by: Allen-Bradley
Regular price
$205.00
Sale price
$205.00
Regular price
12 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Allen-Bradley 1769-IF4 provides versatile analog input capabilities for CompactLogix and MicroLogix systems, offering ...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 1769-IF4
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 1769-IF4

Description / Specifications

Description

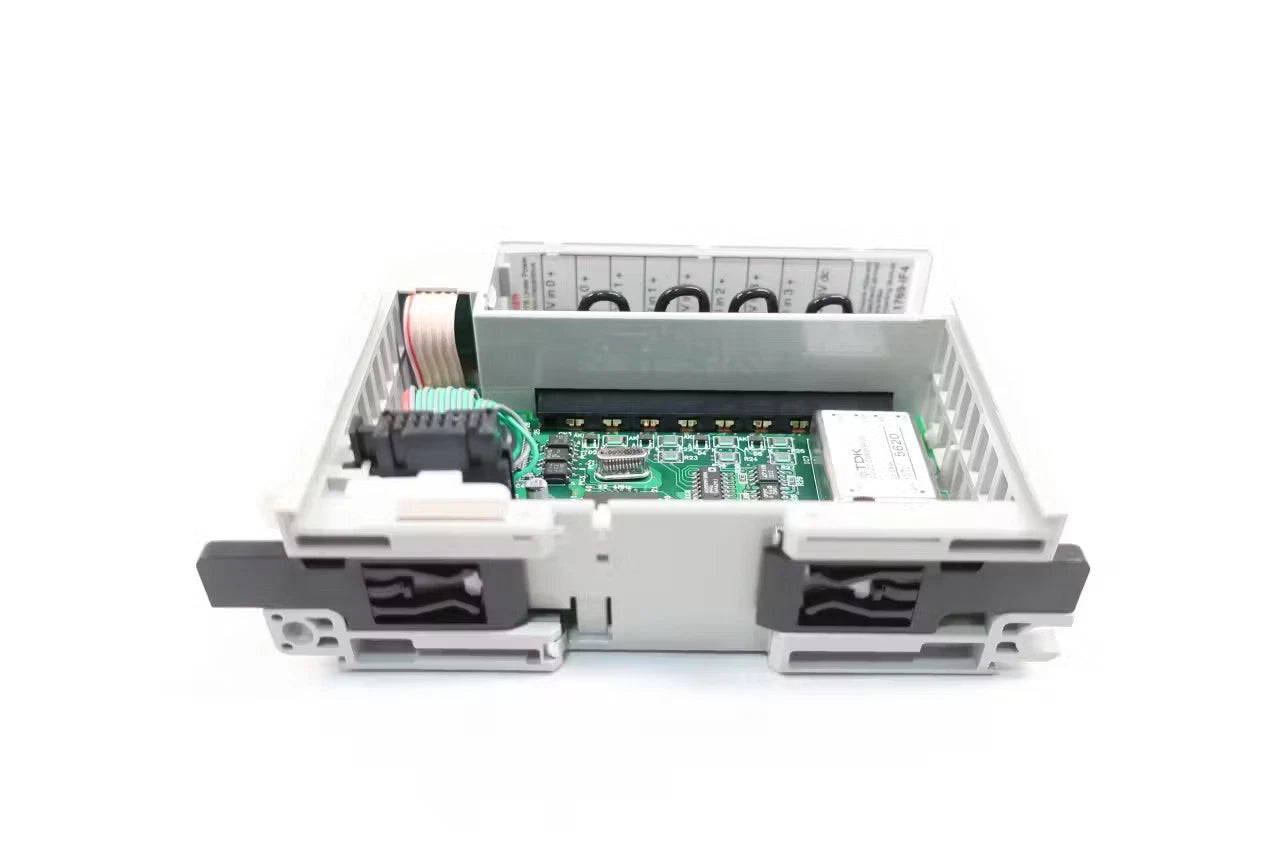

The Allen-Bradley 1769-IF4 is a CompactLogix analog input module designed to interface sensors and transmitters with automation controllers. It provides four configurable input channels for current and voltage signals, supporting both differential and single-ended wiring.





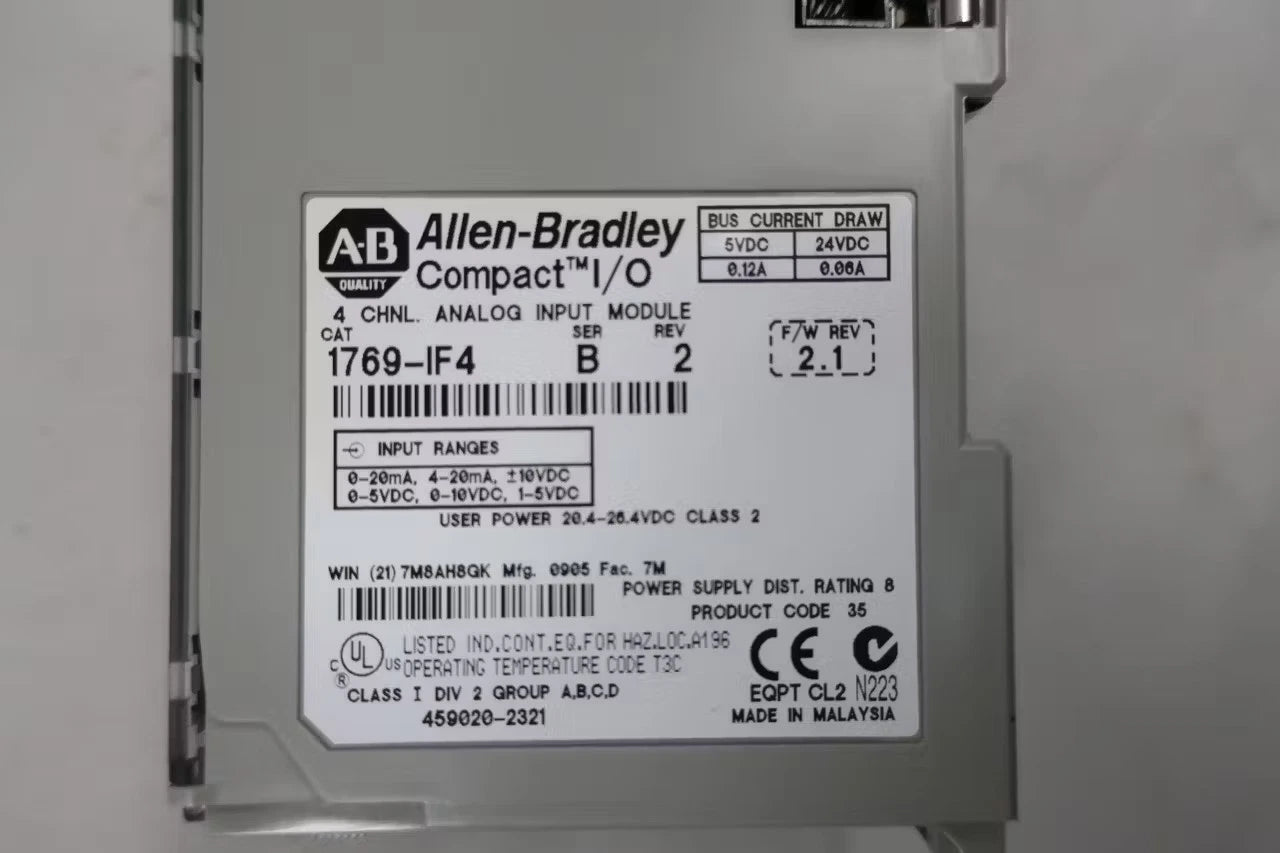

Technical Specifications

Brand Allen-Bradley
Series A and B
Part Number 1769-IF4
Manufacturer Rockwell Automation
Product Line CompactLogix
Module Type 4 Channel Analog Input Module
Product Type Analog Input Module
Input Type Analog Input
Compatible Controllers MicroLogix 1500; 1769 CompactLogix
No. of Inputs 4 Differential and Single Ended Inputs
Communication Cable 4 Point
Power Supply Distance rating 8
Shipping Dimensions 8X8X5 in.
Input current range 0-21 mA
Current signal normal ranges 0-20mA; 4-20 mA
Converter Type Delta Sigma
Current signal full range 0-21 mA; 3.2 - 21 mA.
Backplane Current 1.4 Amps at 24 Volts
Input voltage range 0-10.5VDC
Power Consumption 33.6 Watts
Voltage signal normal ranges ±10V DC, 0 …10V DC, 0…5V DC, 1…5V DC
External Power Switch 24 VDC
Voltage signal full range ±10.5V DC, -0.5…10.5V DC, -0.5…5.25V DC, 0.5…5.25V DC
Power Dissipation 7.5 Watts
Resolution 14 bits (unipolar) 14 bits plus sign (bipolar)
Rated working voltage 30VAC; 30VDC





Information About 1769-IF4

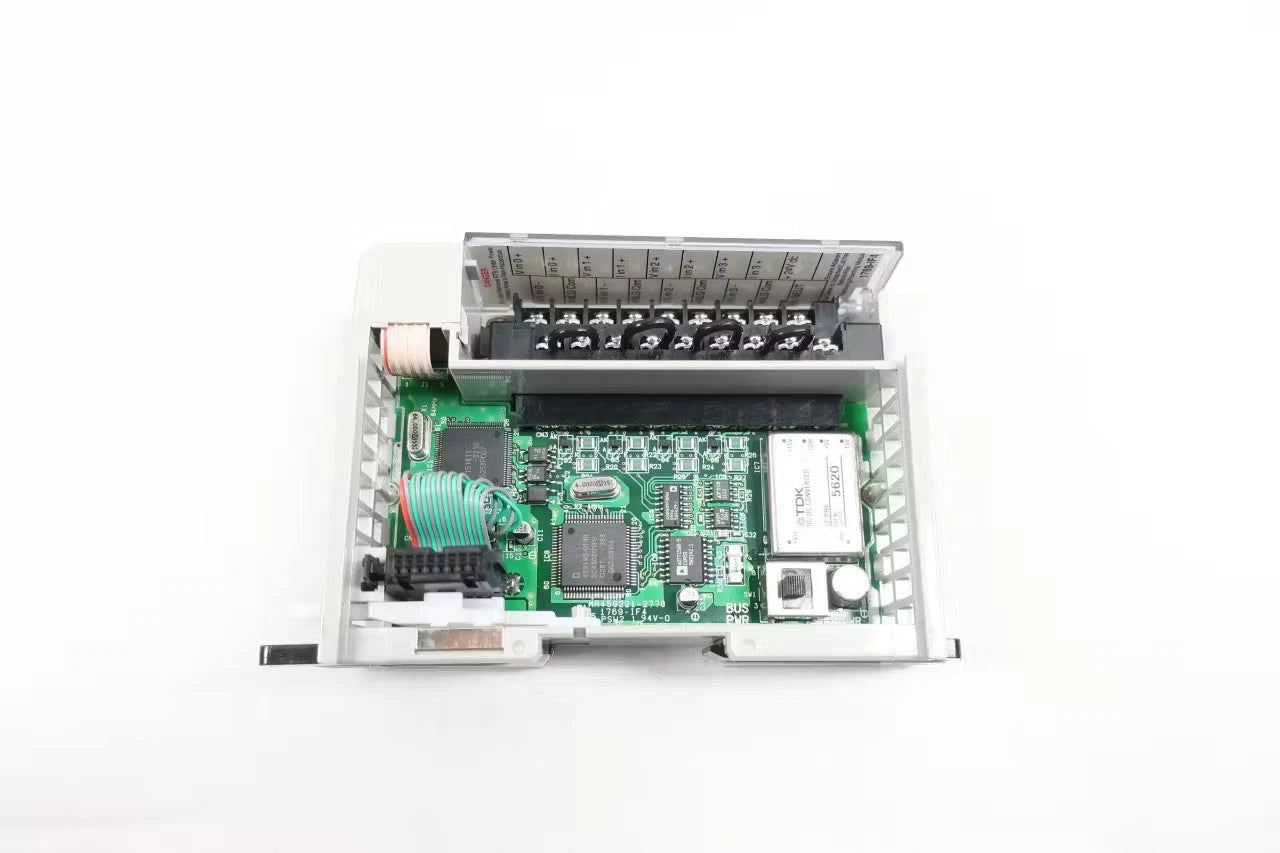

The 1769-IF4 is part of the CompactLogix and MicroLogix 1500 I/O module family, engineered for reliable analog signal acquisition in control applications. It features four input channels that can be individually configured for current ranges of 0–20 mA, 4–20 mA, or 0–21 mA, and voltage ranges of ±10 V, 0–10 V, 0–5 V, and 1–5 V. The module uses a Delta-Sigma converter, offering 14-bit resolution in unipolar mode and 14-bit plus sign resolution in bipolar mode, ensuring high accuracy for process monitoring. It operates with an external 24 VDC supply within 20.4–26.4 VDC, with a backplane current draw of 1.4 A at 24 VDC. The processed data can be scaled into engineering units, percent ranges, raw values, or PID-compatible values, making it adaptable to different application requirements. Compatible with Belden or equivalent cables, the module supports flexible wiring options and integrates seamlessly with CompactLogix chassis systems.

Key Features:

  • Input Channels: Four configurable analog input channels supporting current and voltage signals.
  • Signal Ranges: Accepts 0–20 mA, 4–20 mA, 0–21 mA for current, and ±10 V, 0–10 V, 0–5 V, 1–5 V for voltage inputs.
  • Conversion: Delta-Sigma analog-to-digital converter with 14-bit resolution (unipolar) and 14-bit + sign (bipolar).
  • Data Formats: Supports engineering units, scaled PID values, percent ranges, and raw data.
  • Power Supply: External 24 VDC power (20.4–26.4 VDC), with minimum current of 60 mA and backplane draw of 1.4 A at 24 VDC.
  • Dissipation: Maximum power dissipation of 7.5 W and consumption of 33.6 W.
  • Wiring: Compatible with Belden or equivalent cabling; supports differential, single-ended, and mixed transmitter connections.
  • Compatibility: Designed for use with Allen-Bradley CompactLogix and MicroLogix 1500 controllers.

The 1769-IF4 delivers the reliability and precision required for analog data acquisition in industrial automation systems.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

Frequently Asked Questions about 1769-IF4
Question: What is the purpose of the 1769-IF4 module?
Date Update:30/05/2025
Answer:

The 1769-IF4 is an analog input module designed for use with CompactLogix and MicroLogix 1500 controllers. It captures analog voltage or current signals from field instruments and converts them to digital values for processing in the control system. This allows integration of analog sensors into discrete logic applications.

Question: Does the 1769-IF4 provide loop power for analog inputs?
Date Update:30/05/2025
Answer:

No, the 1769-IF4 does not supply loop power for analog devices. External power sources must be used to power transmitters connected to the module. This design allows compatibility with a wide range of field instruments.

Question: What is the input voltage and current range supported?
Date Update:30/05/2025
Answer:

The voltage range includes ±10.5V, -0.5 to 10.5V, and similar ranges for 5V and 1–5V. The current range spans from 0 to 21 mA, including standard ranges like 0–20 mA and 4–20 mA. This supports a wide variety of industrial analog sensors.

Question: What are the dimensions of the 1769-IF4 module?
Date Update:30/05/2025
Answer:

The module measures approximately 87 mm in height, 35 mm in width, and 118 mm in depth. Its compact size makes it ideal for space-constrained control cabinets. It supports both DIN rail and panel mounting.

Question: Is the 1769-IF4 module still in production?
Date Update:30/05/2025
Answer:

Yes, the 1769-IF4 is an active product supported by Rockwell Automation. It is commonly used in CompactLogix-based control systems and is available for new installations. Its ongoing support ensures firmware compatibility and spare parts availability.
