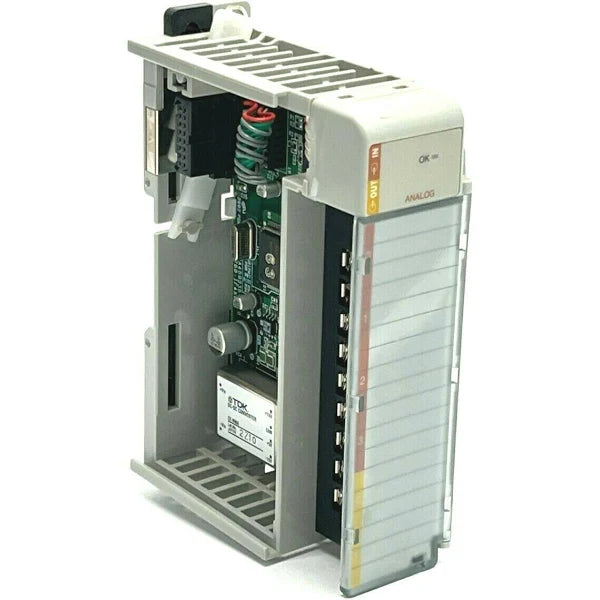

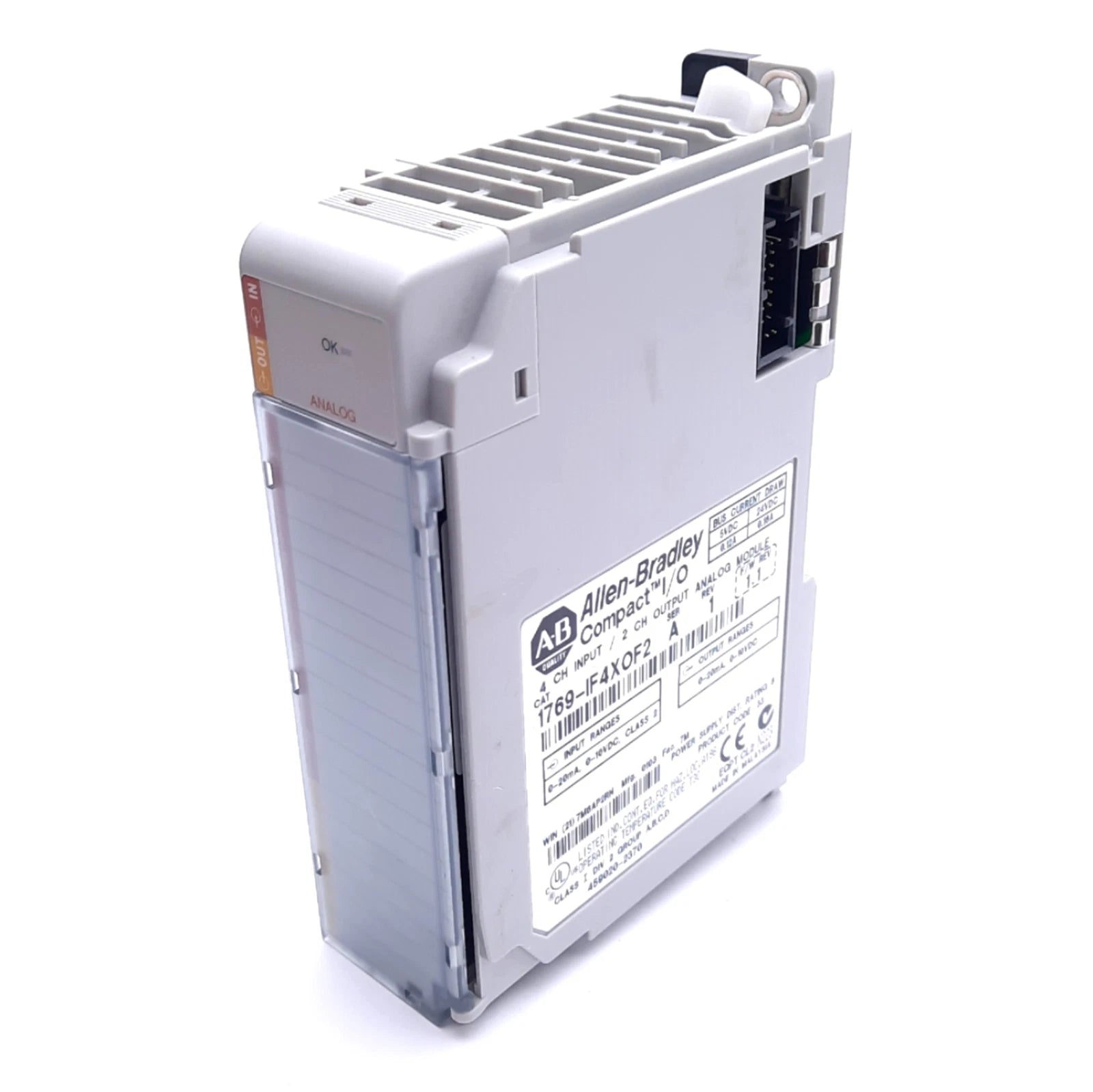

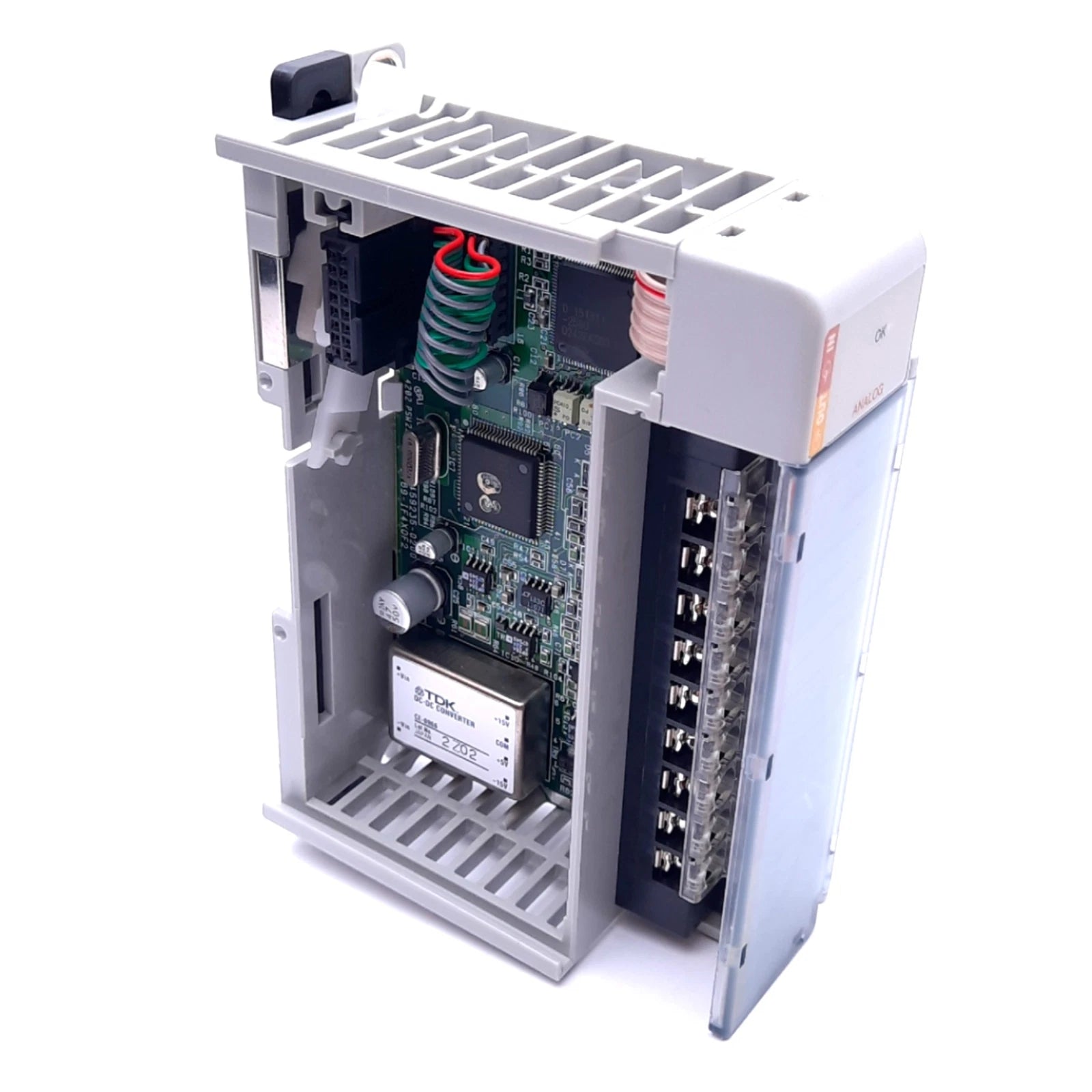

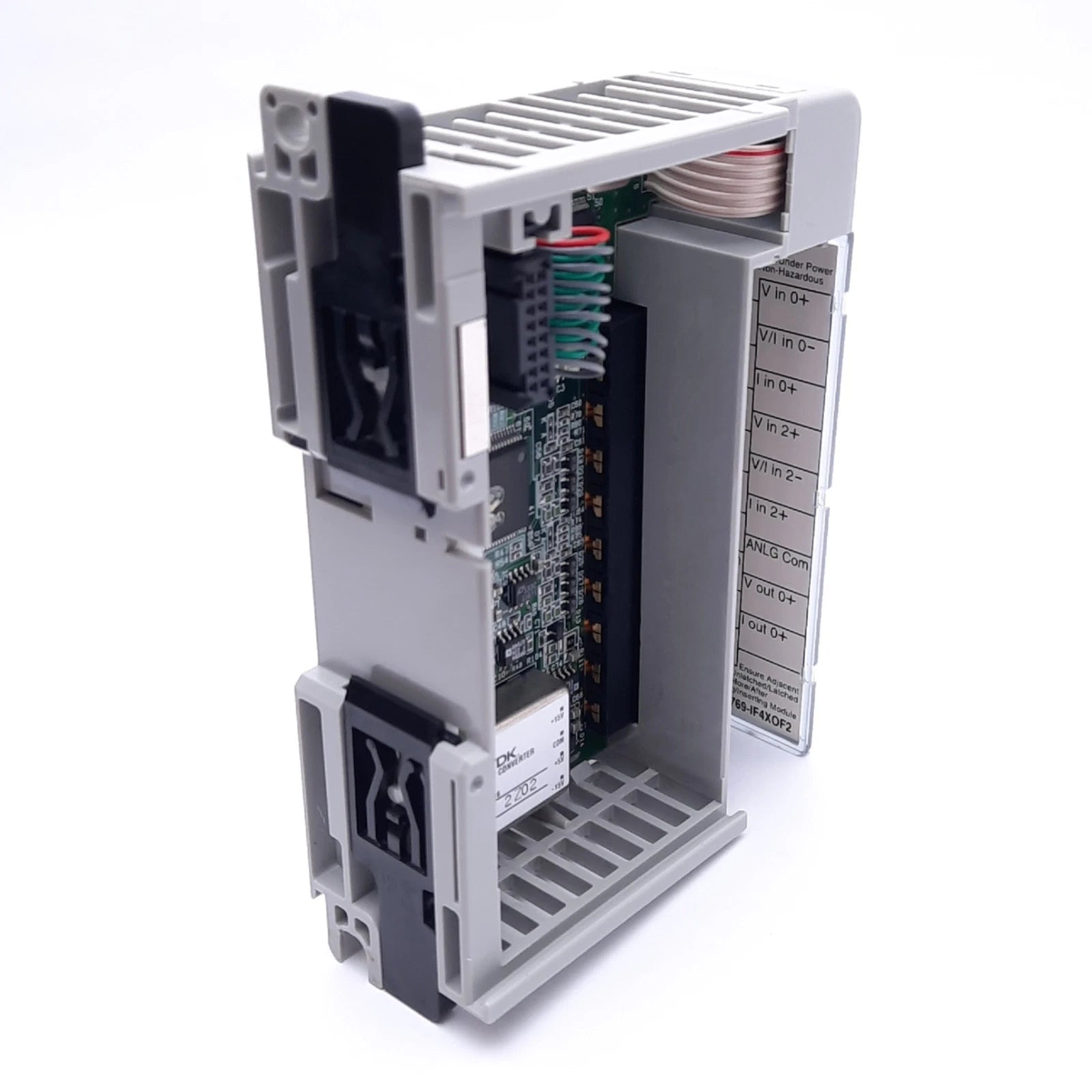

Part #: 1769-IF4XOF2 Manufactured by: Allen-Bradley
Regular price
$379.00
Sale price
$379.00
Regular price
156 in Stock

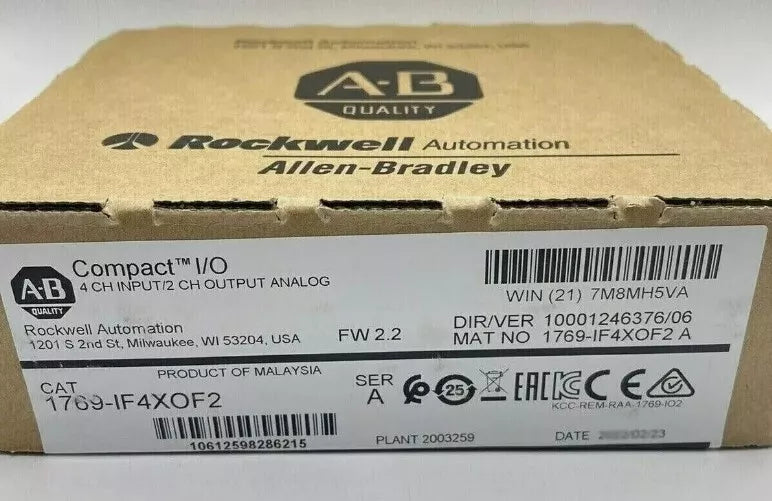

Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
Allen Bradley CompactLogix 8 Bit Resolution, High Speed 4 In-2 Out Analog Combo I-O Module
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 1769-IF4XOF2
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 1769-IF4XOF2

Description / Specifications

Description

The Allen-Bradley 1769-IF4XOF2 is a Compact I/O analog combination module with Four (4) analog input channels input and Two (2) analog output channels. The input and output channels have 8-Bit resolution, designed for 0 - 10.5V and 0 - 21 mA analog signals. This module is compatible for use with a 1769 CompactLogix chassis or MicroLogix 1500.



Technical Specifications



Brand Allen-Bradley
Series A and B
Part Number 1769-IF4XOF2
Manufacturer Rockwell Automation
Product Type Analog Input Module
Product Line CompactLogix
No. of Inputs 4 inputs; Differential or Single Ended
Module Type Analog Input/Output Combo Module
Input Type Analog Input
Number of outputs 2 Single ended
Power Supply Distance rating 8
Communication Cable 4 Point
Input / Output current range 0-21 mA
Current signal normal ranges 0-20mA; 4-20 mA
Shipping Dimensions 8 x 8 x 5 inches
Current signal full range 0-21 mA; 3.2 - 21 mA.
Input / Output voltage range 0-10.5VDC
Voltage signal normal ranges ±10V DC, 0 …10V DC, 0…5V DC, 1…5V DC
Inputs 4 Isolated Differential
Voltage signal full range ±10.5V DC, -0.5…10.5V DC, -0.5…5.25V DC, 0.5…5.25V DC
Converter Type Delta Sigma
Compatible Controllers CompactLogix / MicroLogix 1500

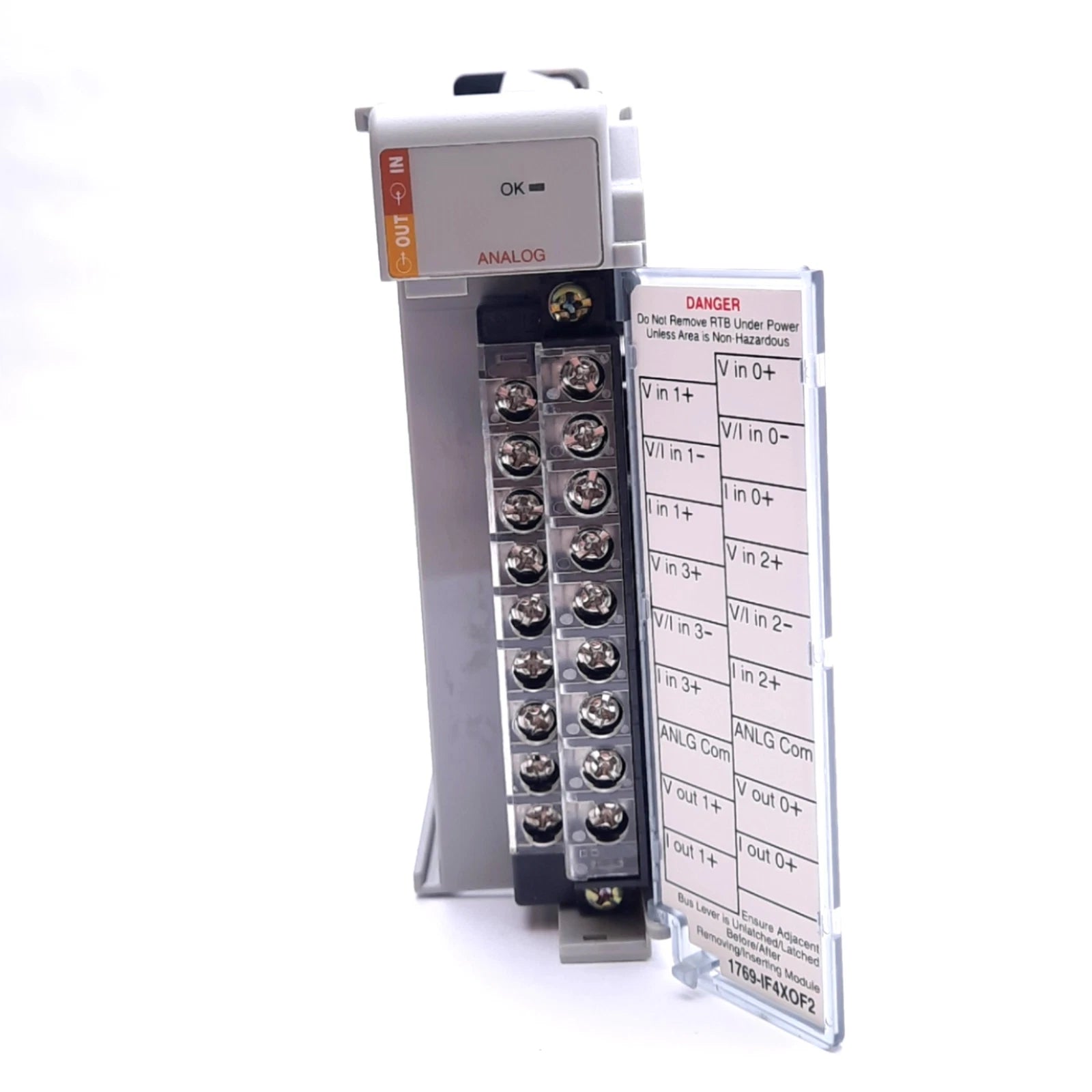

Replacement Terminal Block 1769-RTBN18
Resolution 8 bits plus sign (Sign is always positive)
Wire Type Copper-90 degrees Celsius
Wire Size (Solid) 22-14 AWG
Slot width 1





Information About 1769-IF4XOF2

The Allen-Bradley 1769-IF4XOF2 is a Compact I/O module that feature embedded channels with combination analog input and output interfaces. This module is compatible for use as analog input modules with Allen Bradley’s MicroLogix 1500 and 1769 CompactLogix family of controllers.

The 1769-IF4XOF2 is a cost effective with low resolution conversion. It is ideal for interfacing process variables that does not require high-level of criticality or high-accuracy measurements. This module features an embedded Four (4) analog input channels, configurable for single ended or differential input wiring. The input channel accepts +10V dc or 0 to 20 mA signal types while the output provides analog signals in the form of Voltage with range of 0 to 10V dc and Current with 0 to 20 mA range. Input and output full ranges are 0 to 10.5V dc and 0 to 21 mA.

The input circuitry has an integral Analog to Digital (ADC) via Successive Approximation method. It has a resolution of 8-Bit. This circuit converts the reference input to binary signals which is saved ot an 8-Bit register or Byte. This data is termed as raw data and requires signal processing and conditioning such as Scaling to convert to engineering value to represent the actual process variable. This data is made available to the CPU for retrieval cyclically or through a program trigger.

The number of instances of 1769-IF4XOF2 depends on the 1769 CompactLogix and MicroLogix 1500 controller used. The supported number of modules may be maximized with the use of the same module or any combination however, the power supply distance rating must be observed. For CompactLogix, any instance of the module should be not be more than 8 modules away from the power supply.

The 1769-IF4XOF2 compact 8-bit low-resolution analog I/O module by Allen-Bradley is an I/O module with Four (4) analog input points and Two (2) analog output points. It has 4 single-ended analog inputs with a maximum operational Voltage range of 0 to 10.5 Volts DC and Current range of 0 to 21 mA. It uses a successive approximation converter type with 8-bit plus sign maxim resolution and 5 milliseconds of response speed per channel. It has 30 Volts AC/30 Volts DC operational voltage with a common mode voltage (CMD) of 10 Volts DC per channel and common mode rejection of 60db at 60 Hertz and 1 Volt between inputs. The 1769-IF4XOF2 has a nominal input impedance of 150 kiloohms at the voltage terminal and 150 Ohms at the current terminal.

The 1769-IF4XOF2 has an input accuracy of +/-0.7% at the voltage terminal and +/-0.6% at the current terminal and an operational accuracy drift of +/-0.006% per degrees Celsius at both the current and the voltage terminals. It has +/-0.4% input non-Linearity and +/-0.4% repeatability. The 1769-IF4XOF2 also has 2 single-ended 0 to 10.5 Volts DC and 0 to 21 mA outputs with a maximum current load of 10 mA. The output point uses a resistor string converter with a resolution of 8-bit always plus sign, and a channel response speed of 0.3 milliseconds through rated resistance and 3.0 milliseconds through rated capacitance. It has a maximum resistive load per current output of 300 ohms and a maximum resistive load per voltage output of >1 k? at 10 Volts DC. The outputs have an overall accuracy of +/-0.5% full scale with an accuracy drift of +/-0.01% full scale per degree Celsius on both terminals. It has an LED indicator to display the module’s and carries c-UL and CE certifications for safe operation. The 1769-IF4XOF2 weighs approximately 290 grams (0.64 pounds) and measures 118x 87x 35 millimeters.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
