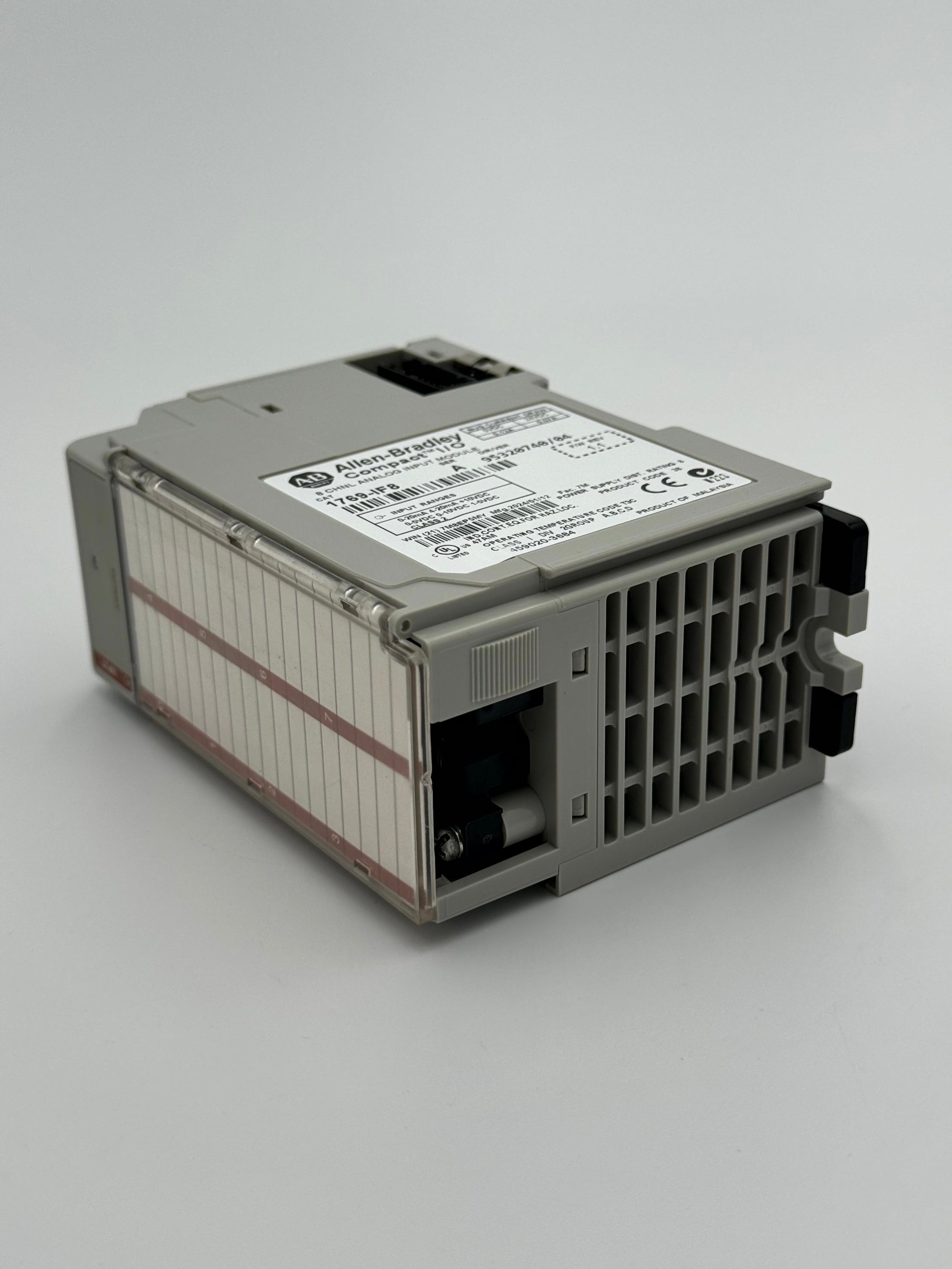

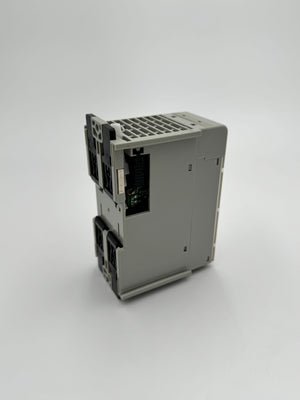

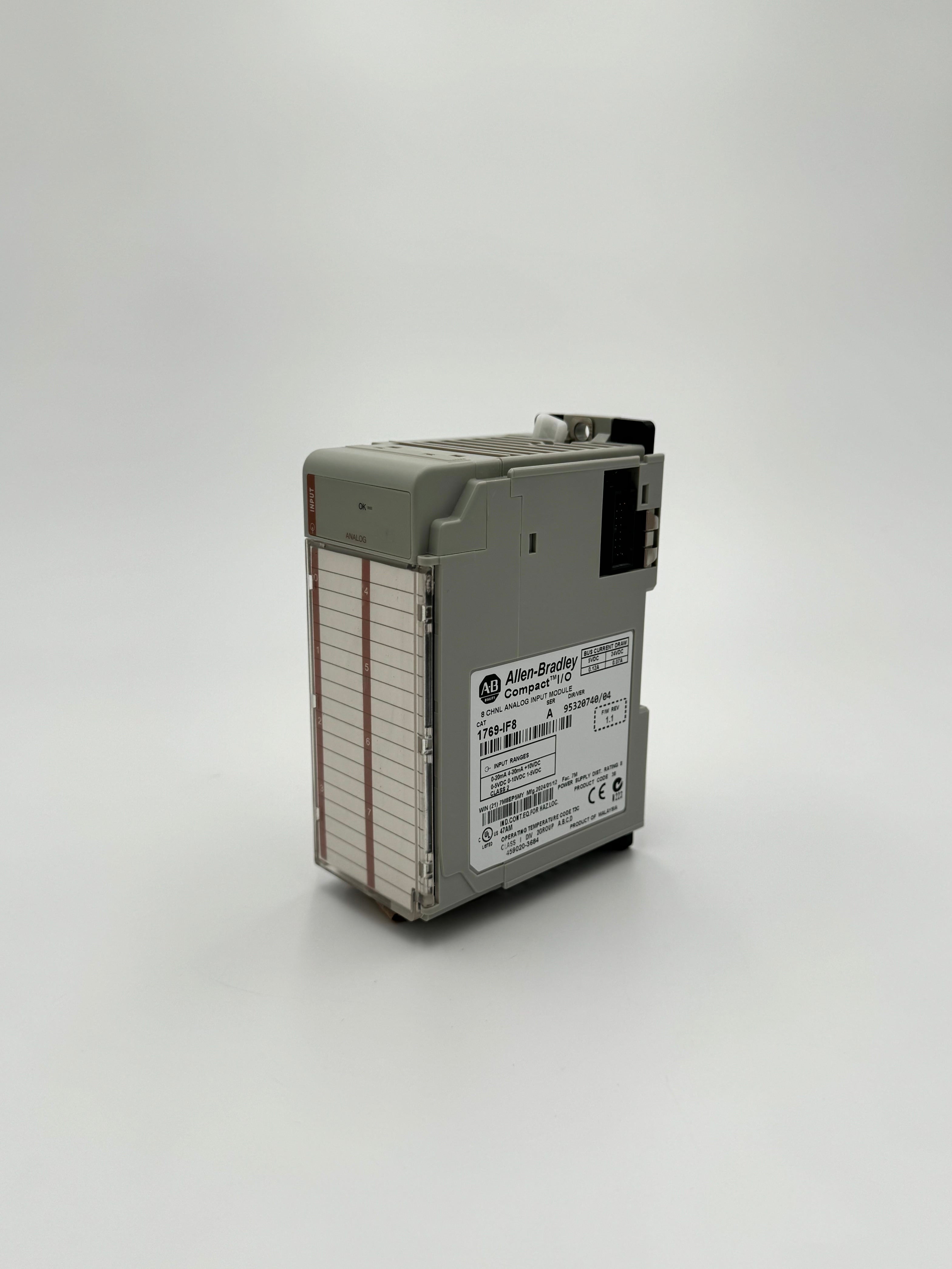

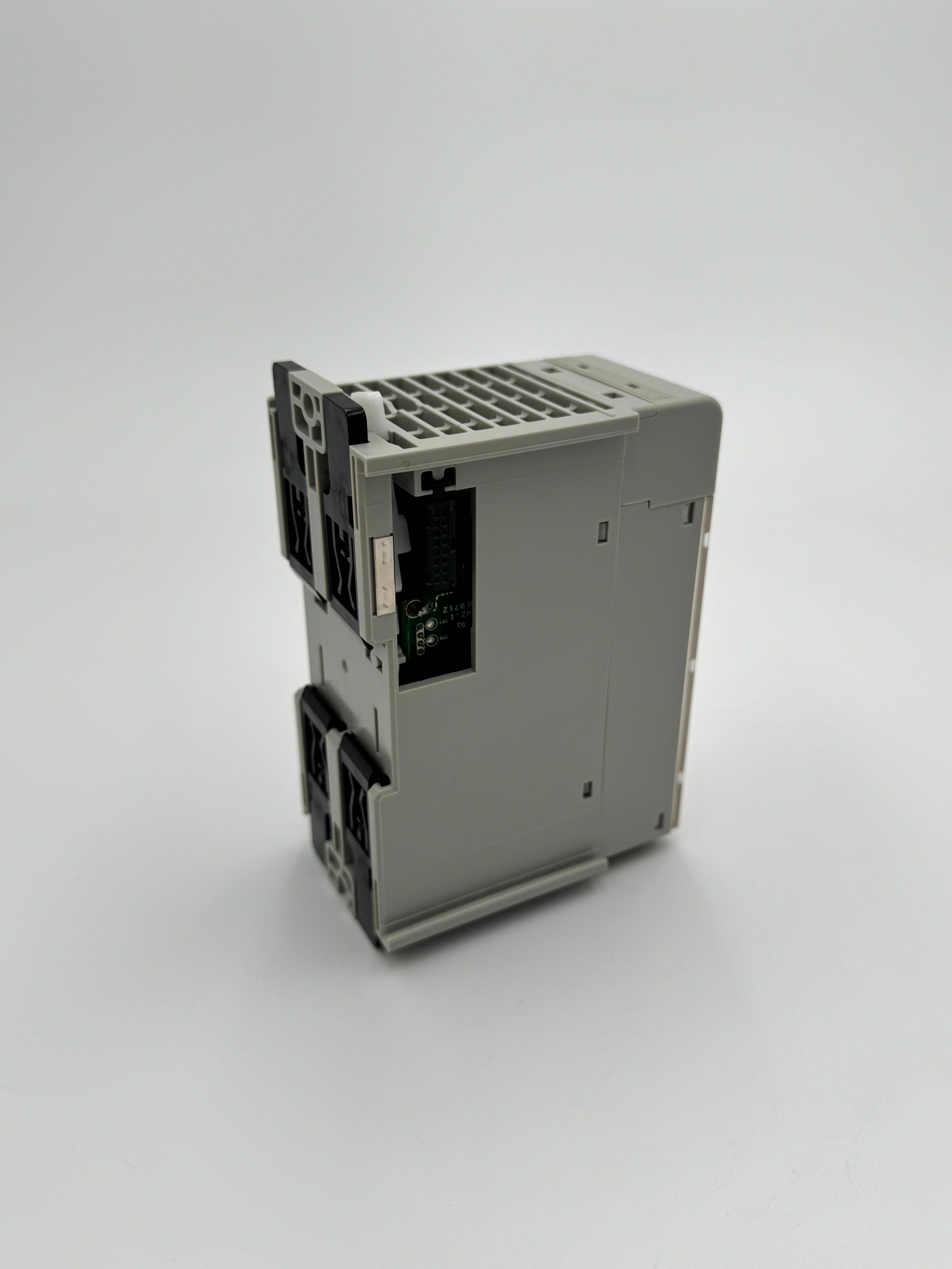

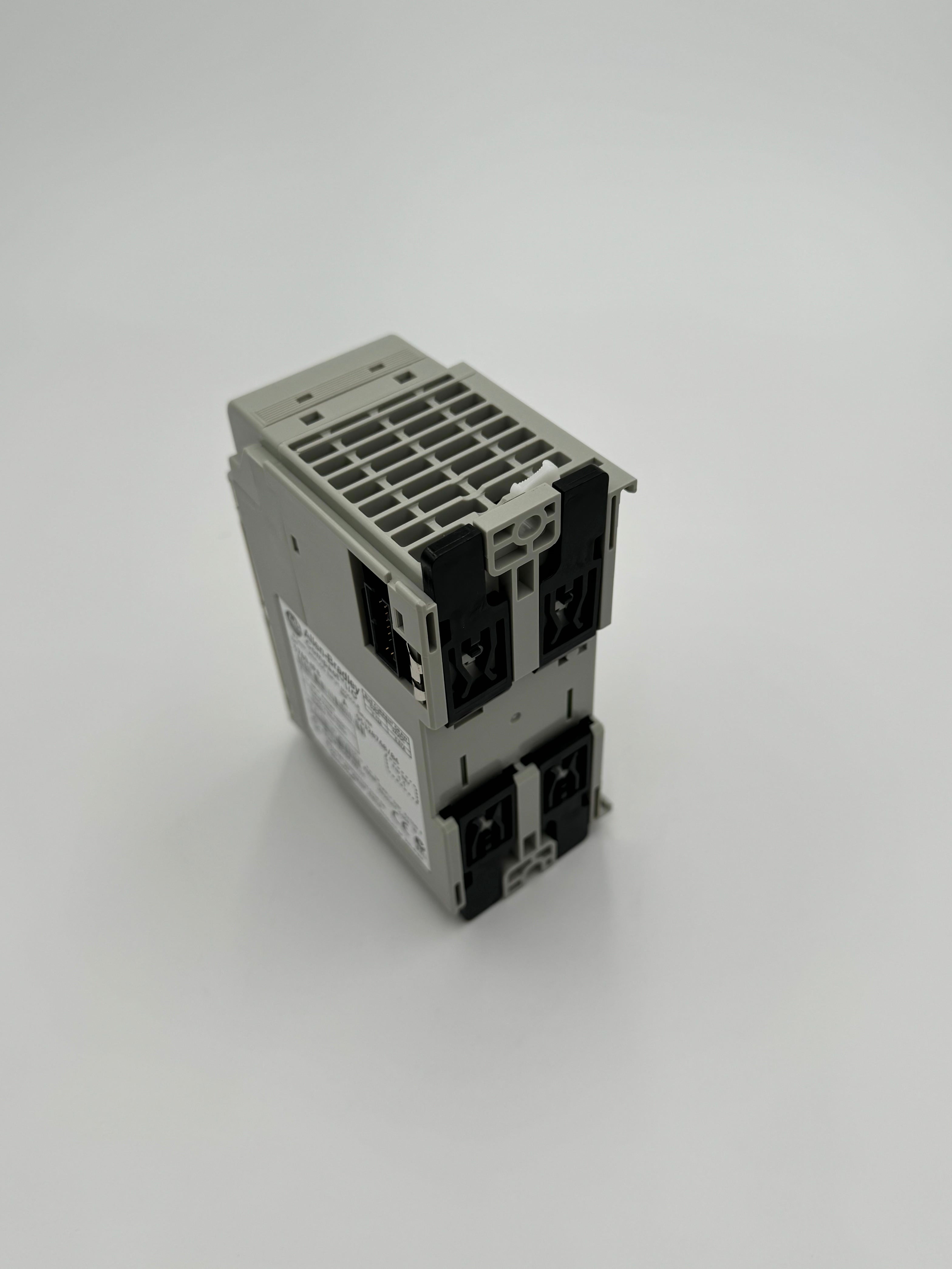

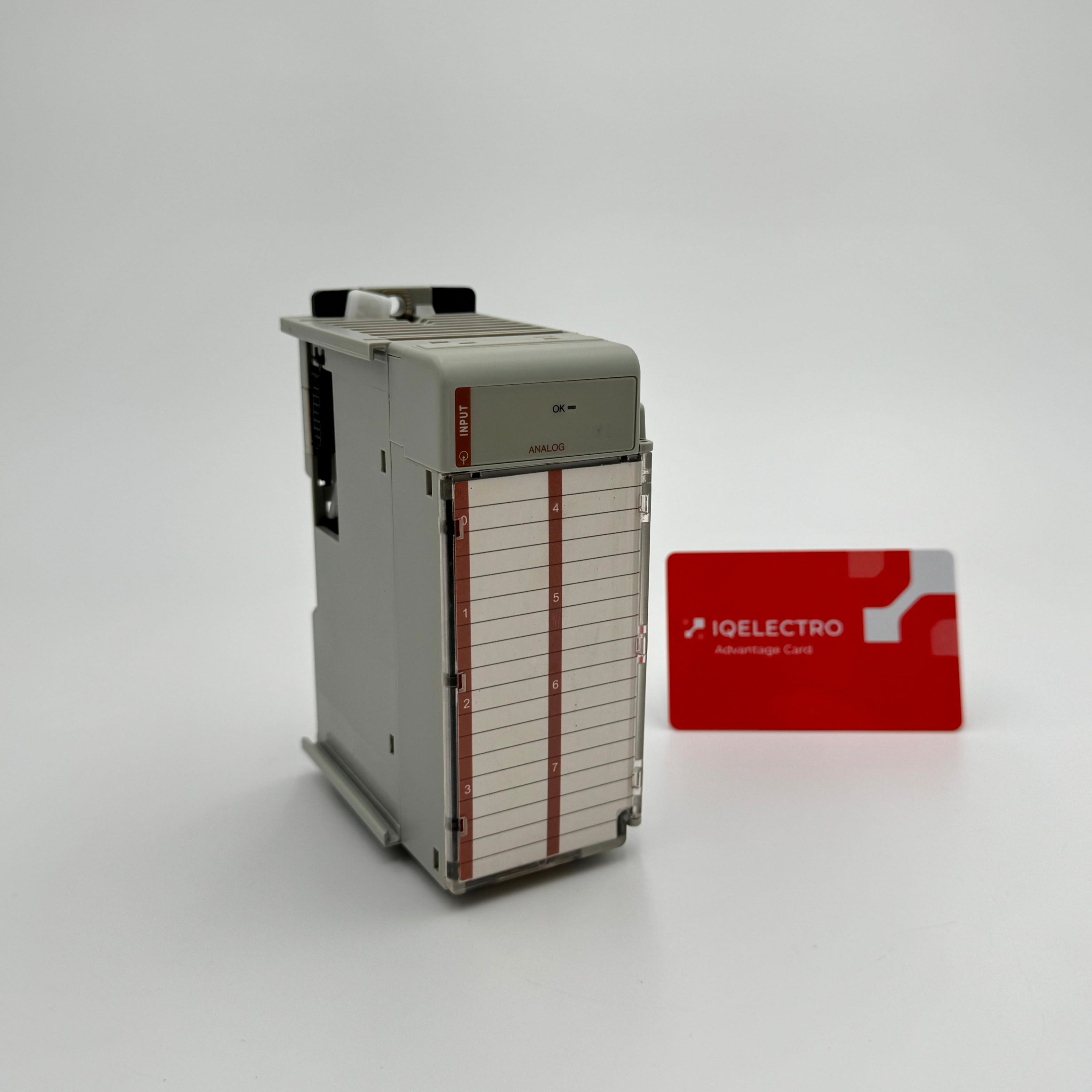

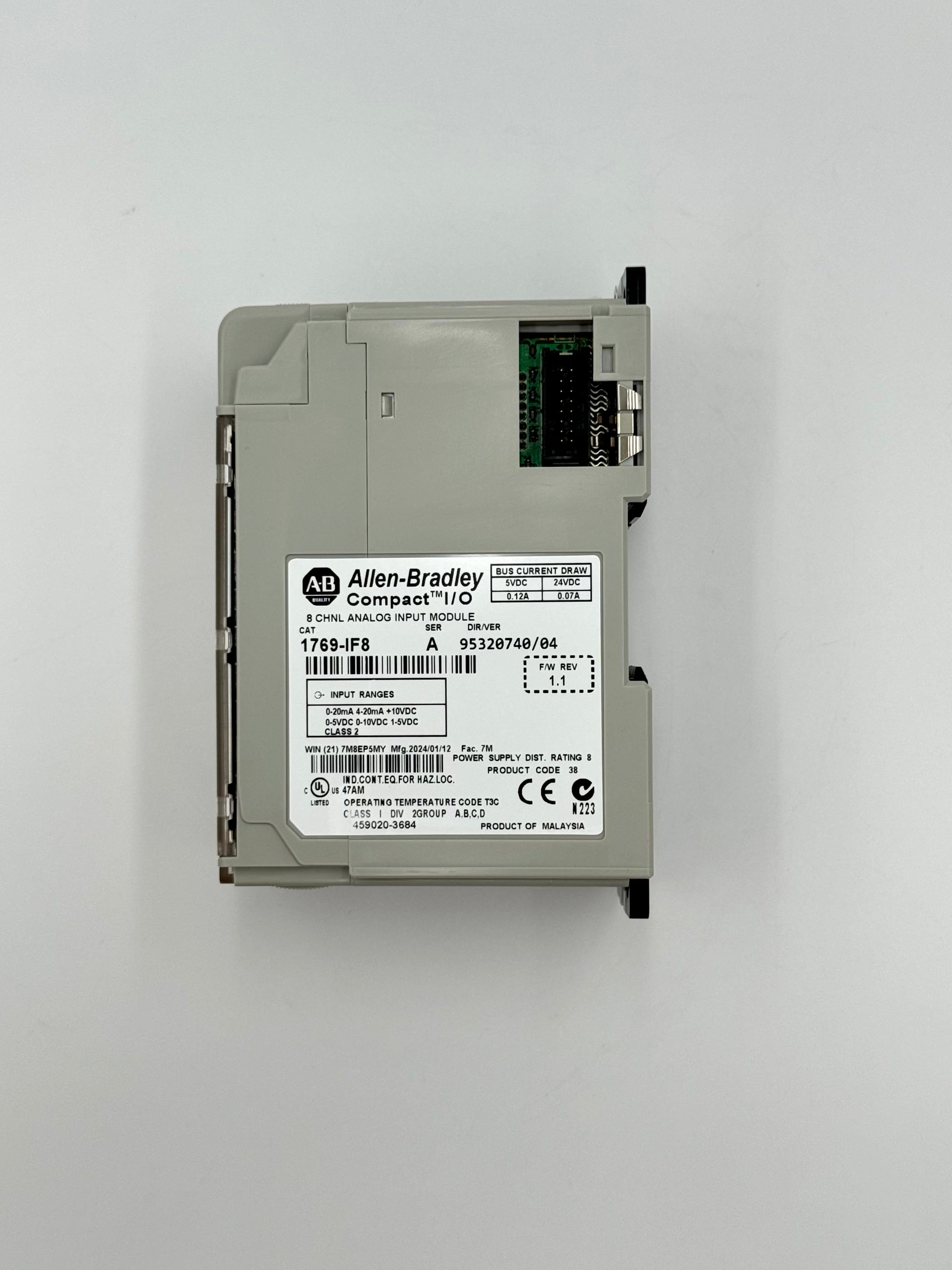

Part #: 1769-IF8 Manufactured by: Allen-Bradley
Regular price
$487.00
Sale price
$487.00
Regular price
2 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
This CompactLogix Module is an 8 channel analog input module. It has 8 differential voltage/current inputs and a distance...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 1769-IF8
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 1769-IF8

Description / Specifications

Description

The Allen-Bradley 1769-IF8 is a Compact I/O analog input module with Eight (8) input channels. This module is designed to interface field devices that sends 0-21 mA and +/- 10VDC analog signals. This module is compatible for use with a 1769 CompactLogix chassis or MicroLogix 1500 controller.



Technical Specifications



Condition New / Never Used Surplus
Brand Allen-Bradley
Series A and B
Part Number 1769-IF8
Manufacturer Rockwell Automation
Product Line CompactLogix
Module Type Analog Input Module
Input Type Analog Input
No. of Inputs 8 Inputs; Differential or Single Ended Inputs
Power Supply Distance rating 8
Communication Cable 8 Point
Input current range 0-21 mA
Current signal normal ranges 0-20mA; 4-20 mA
Shipping Dimensions 8 x 8 x 5 inches
Current signal full range 0-21 mA; 3.2 - 21 mA.
Input voltage range 0-10.5VDC
Distance Rating 8 Modules
Voltage signal normal ranges ±10V DC, 0 …10V DC, 0…5V DC, 1…5V DC
Working Voltage Rating 30 Volts AC or 30 Volts DC
Voltage signal full range ±10.5V DC, -0.5…10.5V DC, -0.5…5.25V DC, 0.5…5.25V DC
Replacement Terminal Block 1769-RTBN18
Compatible Controllers MicroLogix 1500; CompactLogix
Wire Type Copper-90 degrees Celsius
Resolution 16 bits (unipolar) 15 bits plus sign (bipolar)
Wire Size (Solid) 22-14 AWG
Channel Diagnostics Over- or under-range by bit reporting, process alarms
Recommended cable Belden™ 8761 (shielded)
Dimension 118 mm (height) x 87 mm (depth) x 35 mm (width) [52.5 mm (width) for 1769-IF8] Height including mounting tabs is 138 mm 4.65 in (height) x 3.43 in (depth) x 1.38 in (width) [2.07 in (width) for 1769-IF8] Height including mounting tabs is 5.43 in





Information About 1769-IF8

The 1769-IF8 compact I/O analog input module by Allen-Bradley is an analog input module with Eight (8) differential inputs and a voltage range of +/-10 Volts DC, 0 to 10 Volts DC, 0 to 5 Volts DC, and 1 to 5 Volts DC, and current range of 0 to 20 mA, and 4 to 0 mA.

The 1769-IF8 has a backplane draw current of 120 mA at 5 Volts DC, and 70 mA at 24 Volts DC, and it dissipates 3.64 Watts of heat when it is operational. It uses the Delta -Sigma analog to digital converter, which resolution of 16-bit unipolar or 15-bit plus sign. It has filter/configuration-dependent channel response speed. It has a maximum Bus draw current of 120 mA at 5 Volts DC and 70 mA at 24 Volts DC, with an input impedance of 220 kilograms at the voltage terminal and 250 ohms at the current terminal.

The 1769-IF8 has a common offset voltage range of +/-10 Volts DC per channel, and a common mode rejection ratio greater than 60 dB at 50 to 60 Hertz. This analog input module has an overall accuracy of +/-0.2% for voltage signals and 0.35% for current signal while the overall drift accuracy of +/-0.003% for voltage and +/-0.0045% per degree Celsius for current signal. It also has +/-0.03% input non-linearity and +/-0.03% repeatability. The 1769-IF8 has an indicator light which displays the module’s FAULT status. The 1769-IF8 performs automatic self-diagnostics of over- or under-range by bit reporting and it can also process alarms. It has a maximum input terminal overload of +/-30 Volts DC continuous at the voltage terminal at 0.1 mA, and an overload of +/-32 mA at +/-7.6 Volts DC. Its operational temperature range is between 0 and 60 degrees Celsius (32 and 140 degrees Fahrenheit) at a 95% limit of relative humidity with condensation. It weighs approximately 450 grams (0.99 pounds) and it has approximate dimensions of 118 x 87 x 52.5 millimeters.

The 1769-IF8 is a Compact I/O module that is manufactured by Allen-Bradley in compatibility with 1769 CompactLogix Controller and MicroLogix 1500 controllers. This controller features an embedded Eight (8) Input channels that support differential and single-ended wiring.

Configurable signals are 0-20 mA and 4-20mA and +/10VDC, 1-5VDC, 0-5VDC, 0-10VDC.

The Analog signal that is received by the input channels are individually converted using Delta-Sigma conversion method. The converted signal is stored within the processor’s memory occupying 16 bits for unipolar and 15 bits for bipolar. Within the register are array of binary bits that represent the value of the input signal. To properly display the equivalent measurement or engineering values, the data is used conditioned using a Scale instruction. The data processed can be configured as engineering units, scaled for PID, percent range and raw data.

The power supply distance rating of 1769-IF8 is 8 modules. This refers to the physical module location which means it must not be installed 8 modules away from the 1769 CompactLogix power supply. This power supply distance rating ensures that the module will receive the appropriate backplane power.


Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
