Part #: 1769-IQ16 Manufactured by: Allen-Bradley
Regular price
$175.00
Sale price
$175.00
Regular price
2 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview

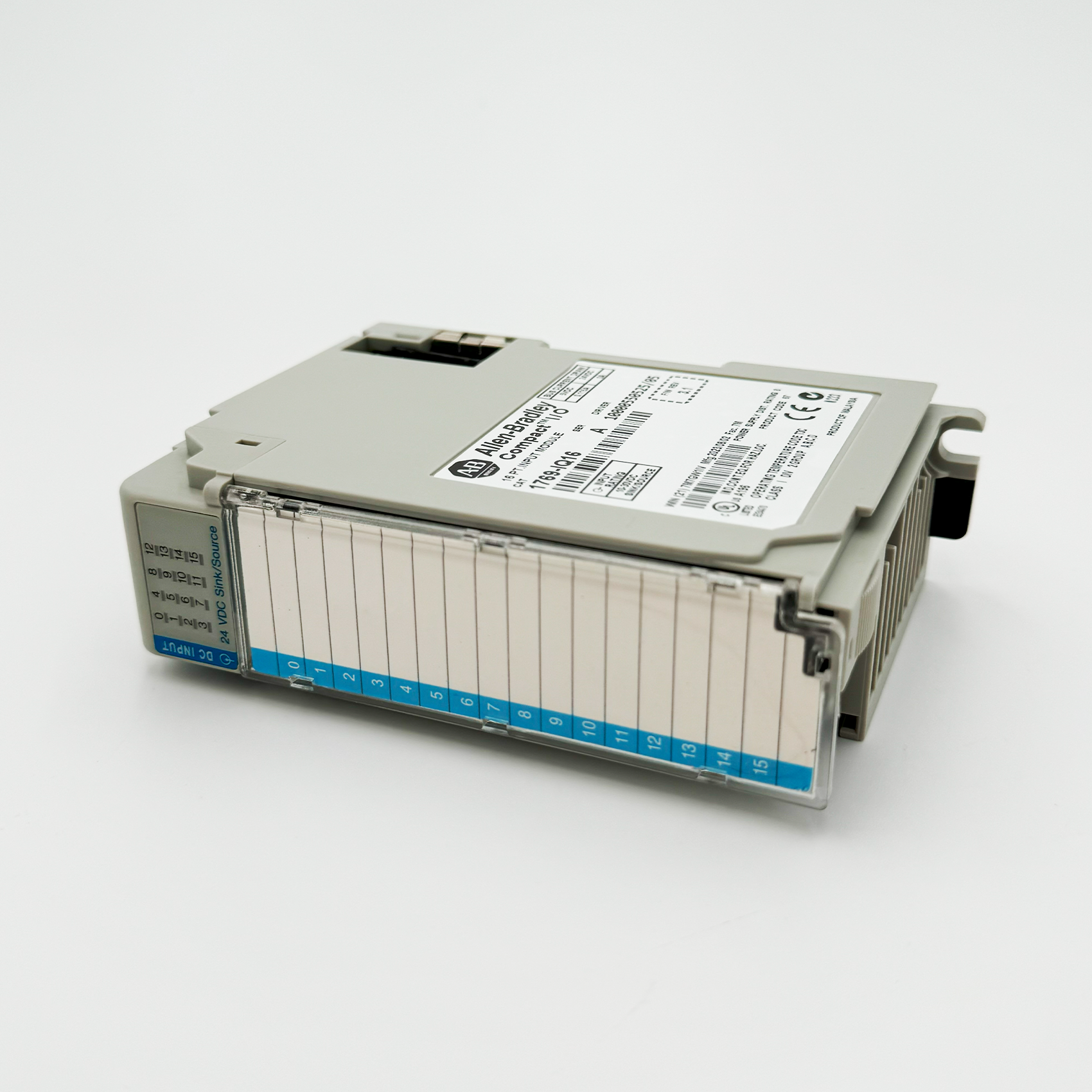

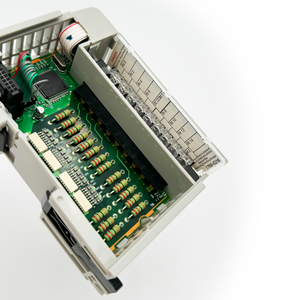

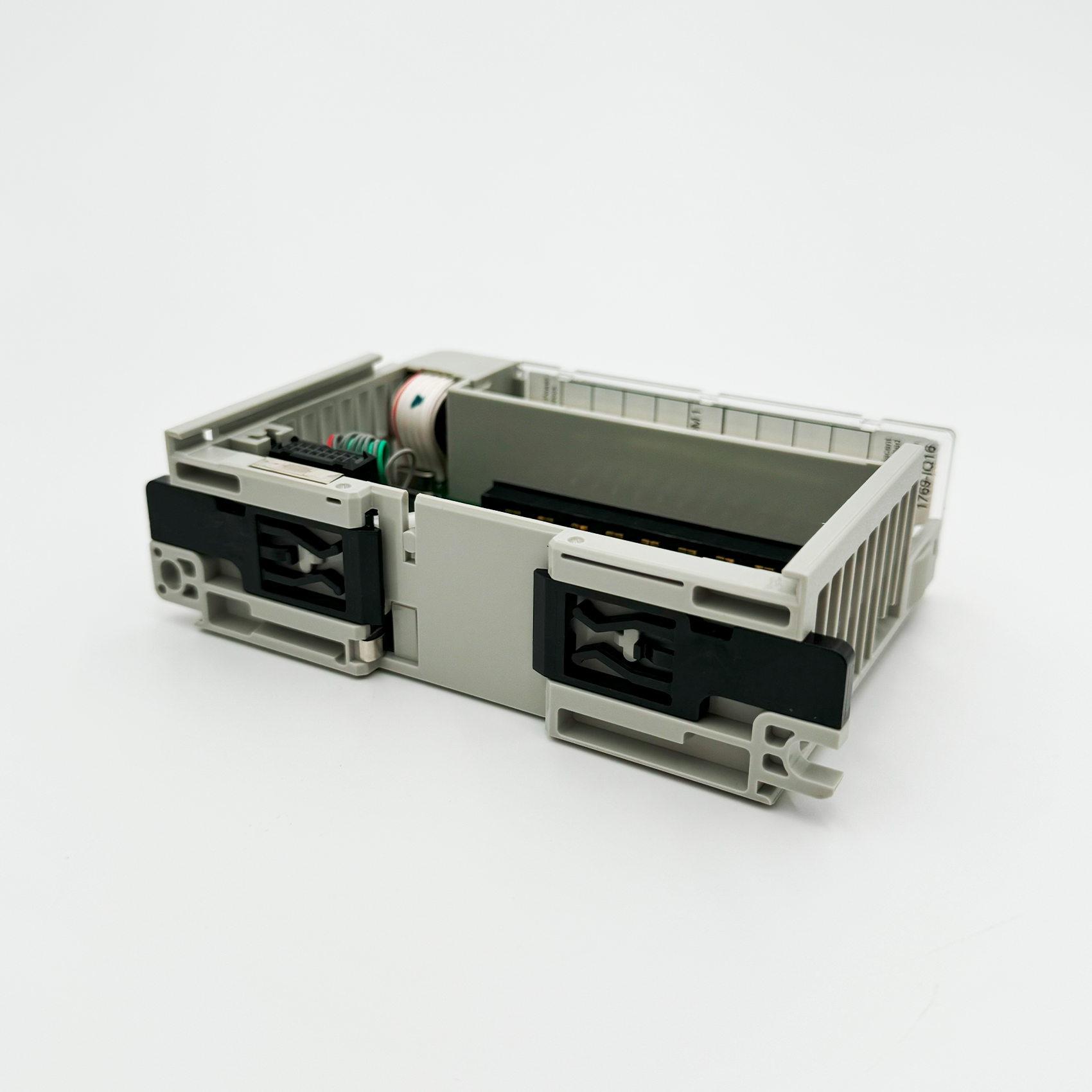

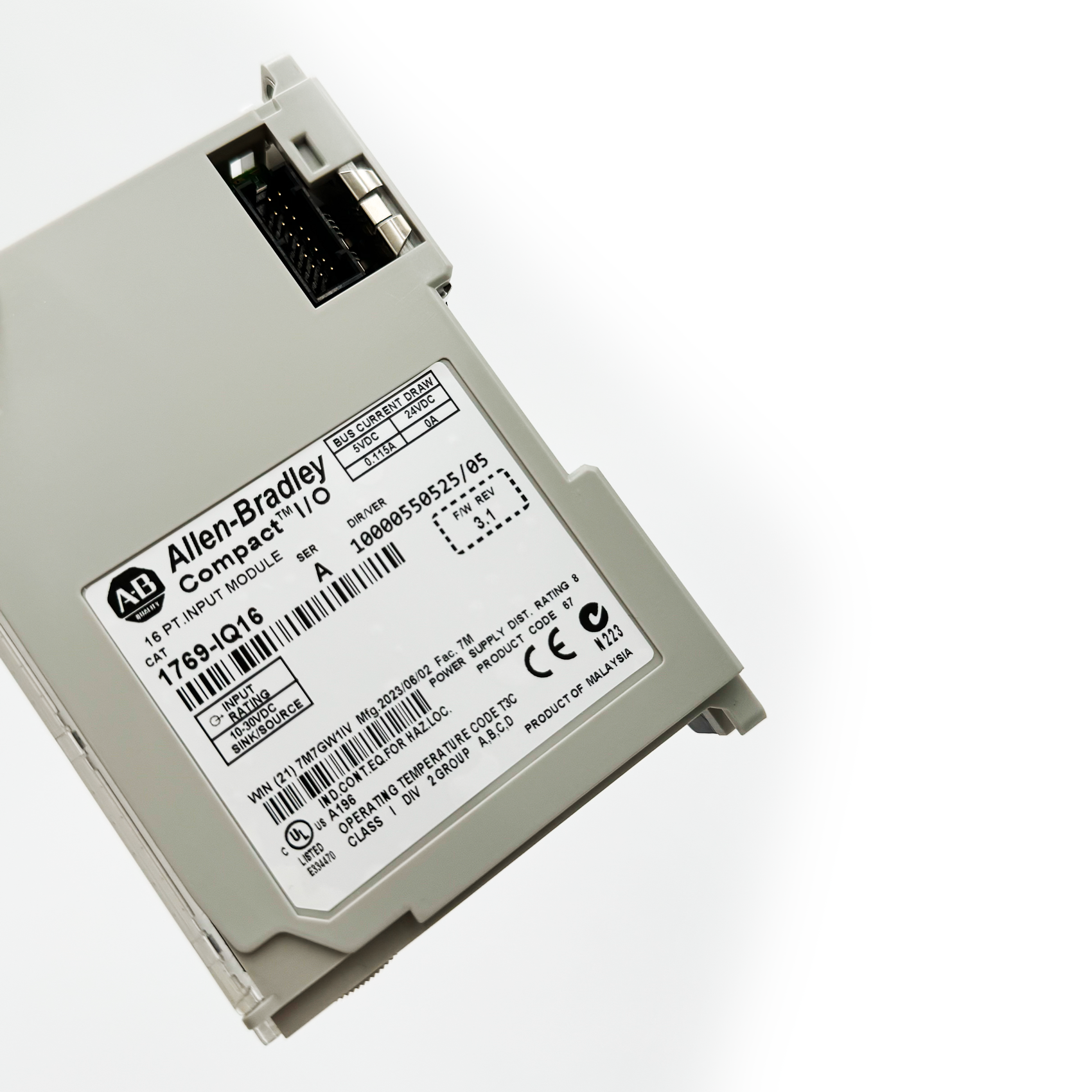

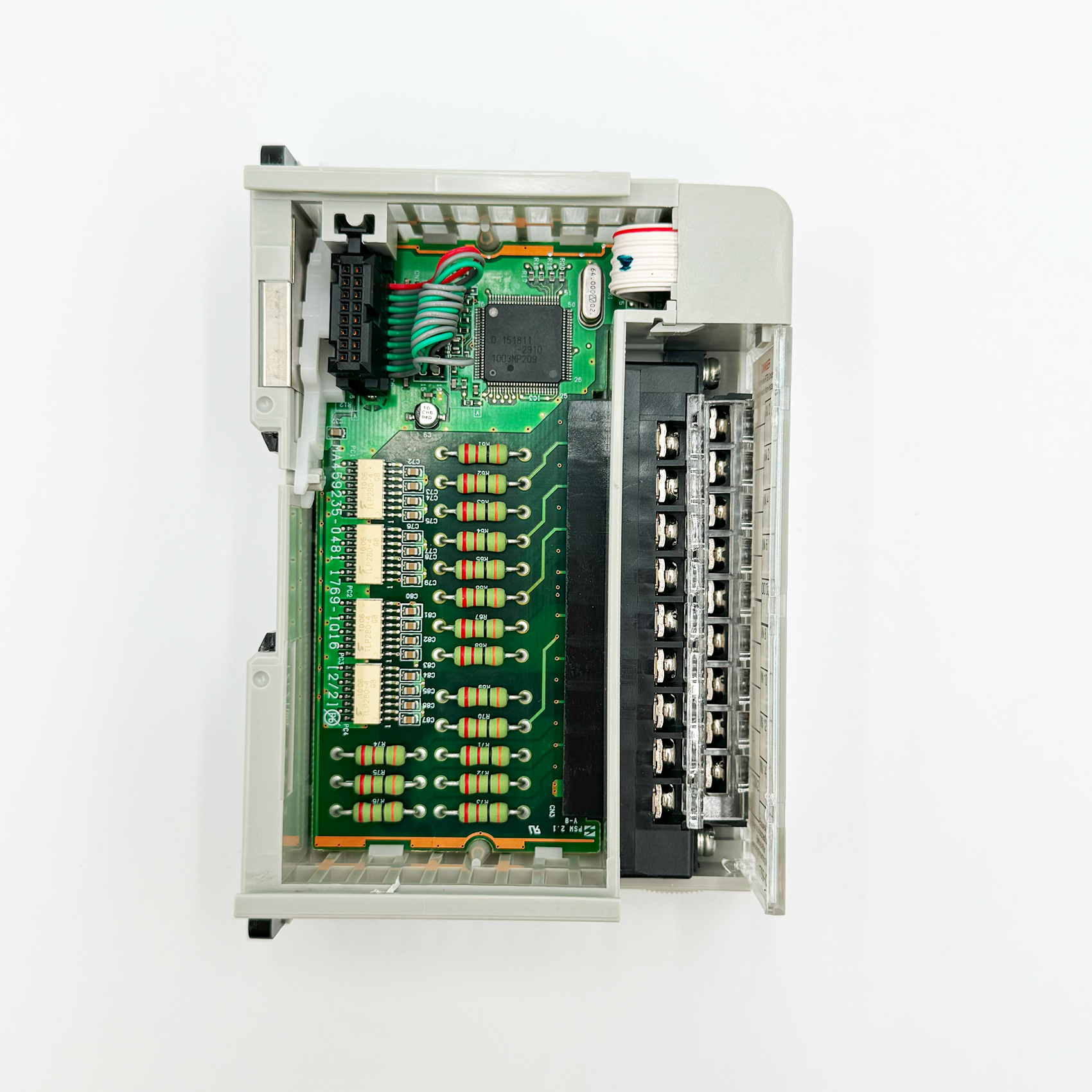

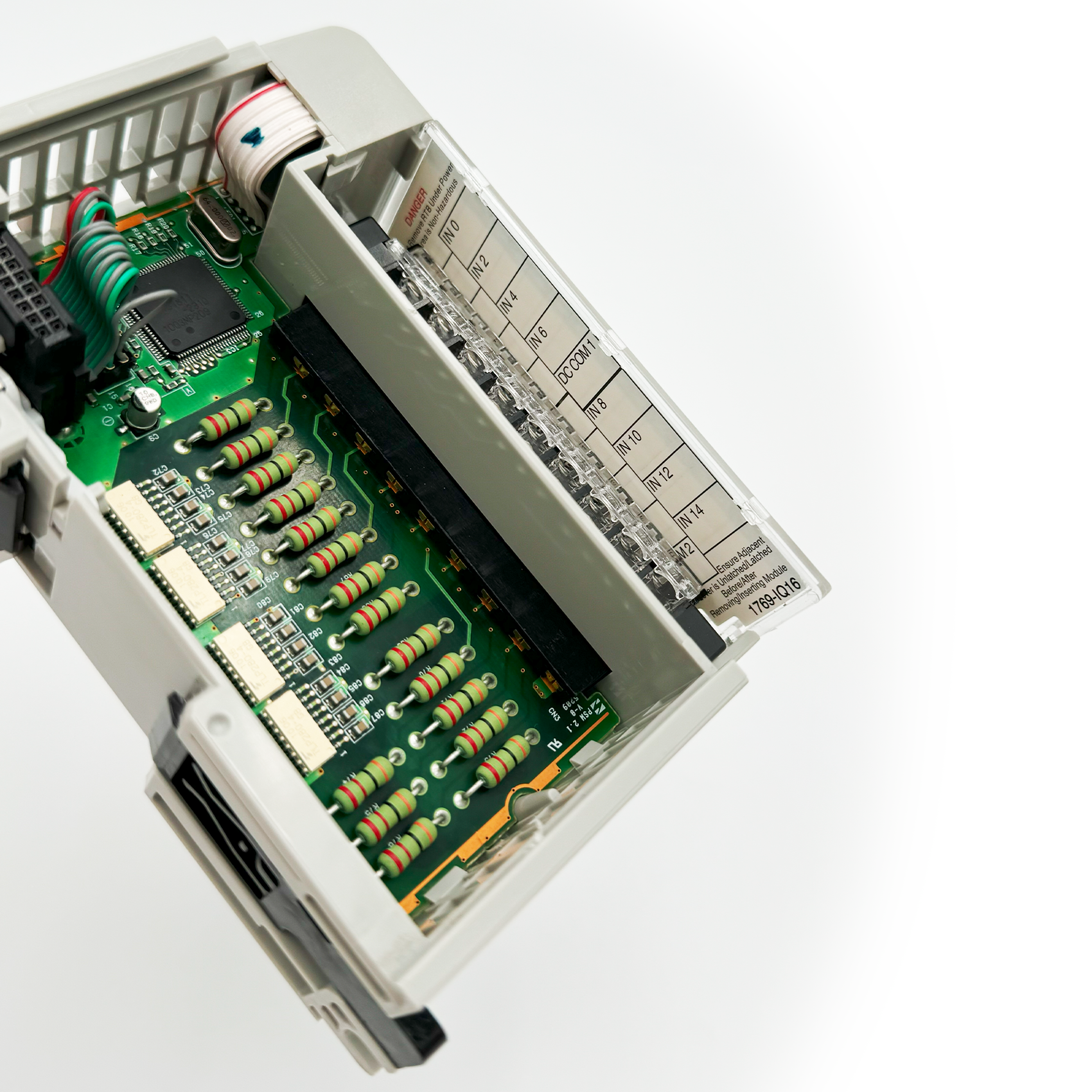

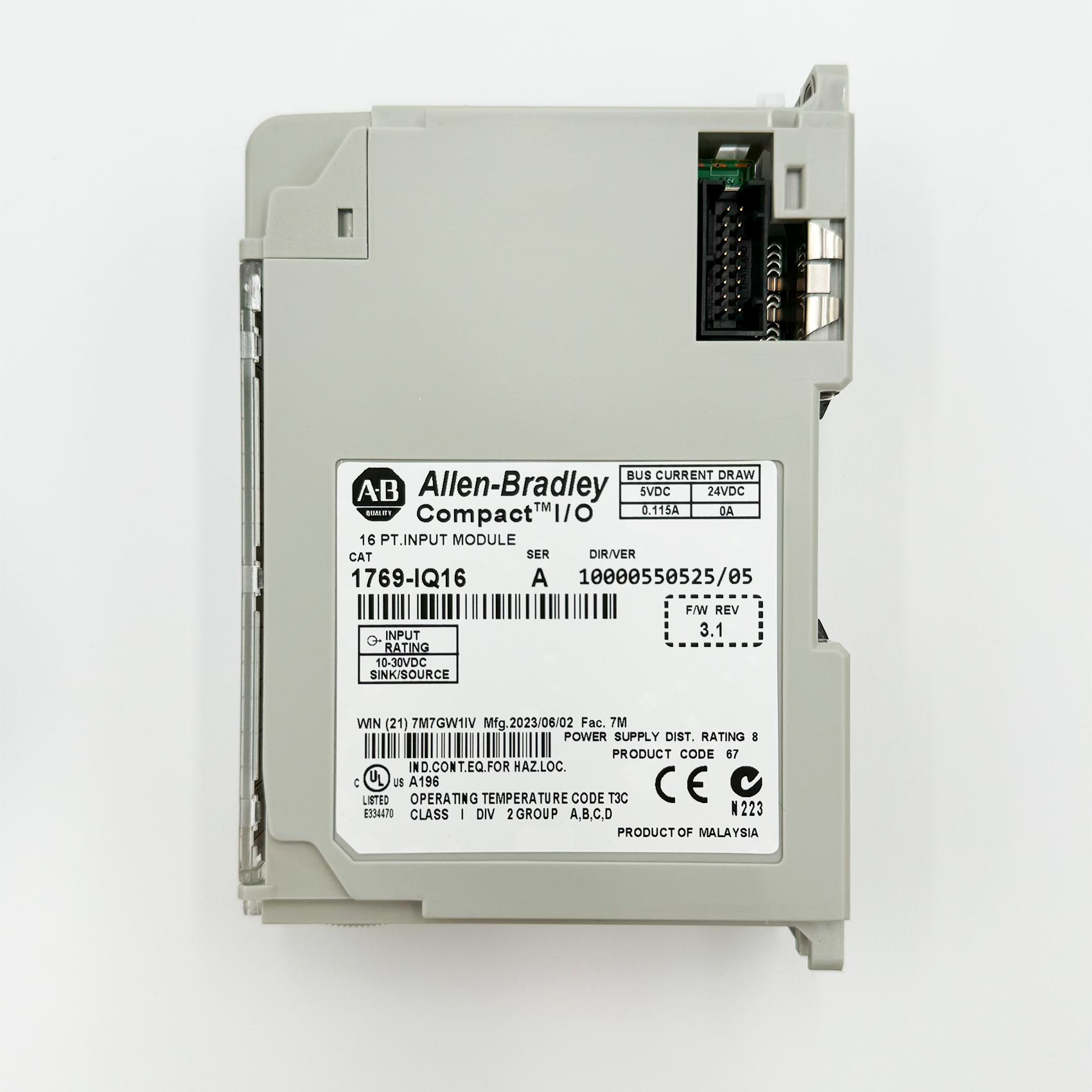

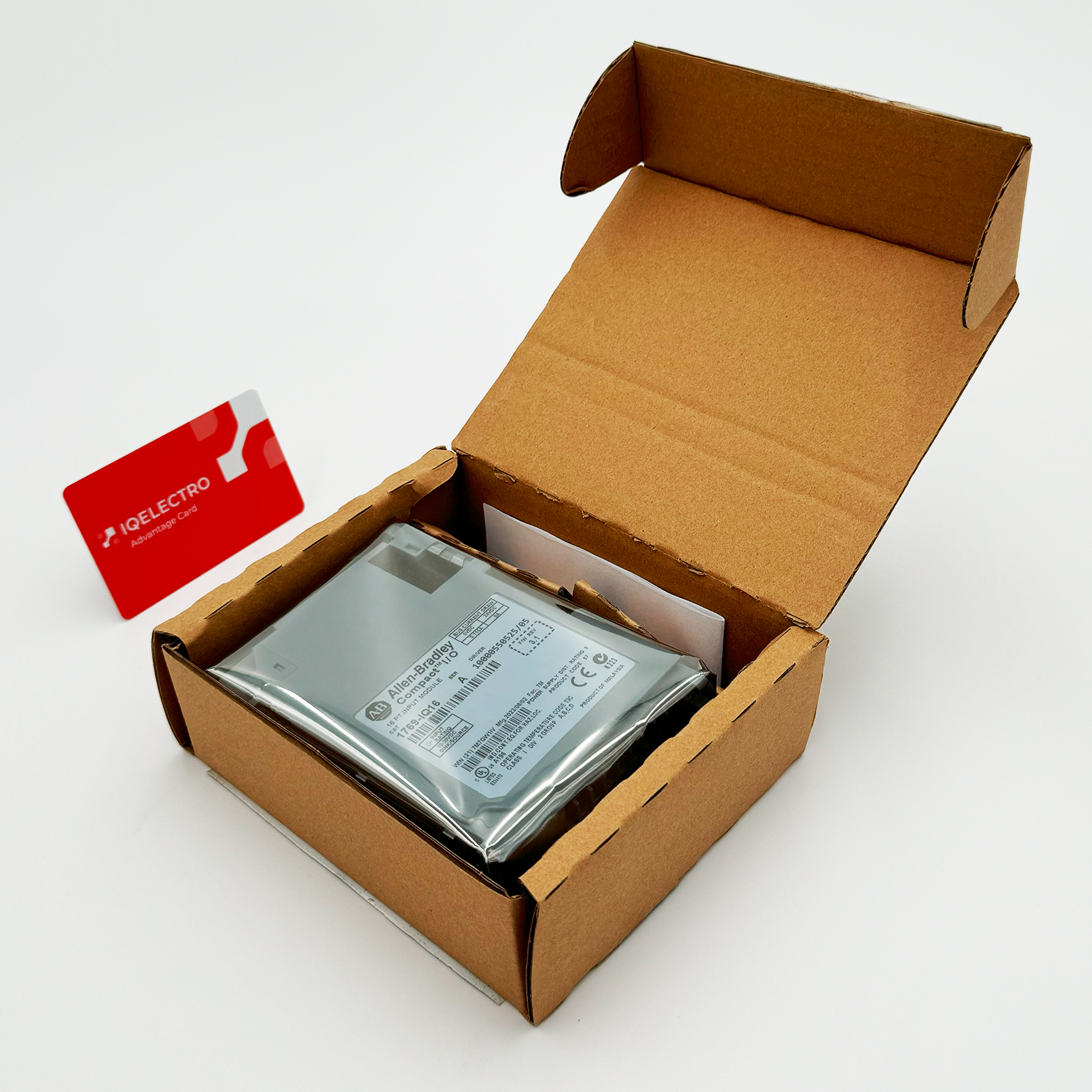

Allen-Bradley 1769-IQ16 CompactLogix 16 PT. 24 VDC Sinking-Sourcing Input I-O Module. It Weighs 2lbs and is 8x8x5 inches.
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 1769-IQ16
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 1769-IQ16

Description / Specifications

Description

The Allen-Bradley 1769-IQ16 is a Compact I/O module with Sixteen (16) DC input channels operating at voltage range of 24VDC sink / source. This module is compatible for use with a 1769 CompactLogix chassis or MicroLogix 1500.



Technical Specifications



Condition New / Never Used Surplus
Brand Allen-Bradley
Manufacturer Rockwell Automation
Part Number 1769-IQ16
Product Family Compact I/O
Product Type Discrete Input Module
Product Line CompactLogix
Module Type DC Input Module
No. of Inputs 16
Input Type Digital Input
No. of Groups 2 groups (8 inputs each)
Power Supply Distance rating 8
Communication Cable 16 Point
Compatible Controllers MicroLogix 1500; CompactLogix
Voltage Category 24V DC sink/source
Shipping Dimensions 8 x 8 x 5 in.
Series A and B
Operating Voltage range 10…30V DC @ 30 °C (86 °F) 10…26.4V DC @ 60 °C (140 °F)
Off-state Voltage 5V DC
Distance Rating 8 Modules
On-state Voltage 10V DC
Working Voltage Rating 30 Volts AC/ 30 Volts DC
Input delay, On 8 ms
Wire Type Copper-90 degrees Celsius
Power Supply 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
Replacement Terminal Block 1769-RTBN18
Wire Size (Solid) 22-14 AWG





Information About 1769-IQ16

The 1769-IQ16 DC digital input module by Allen-Bradley is a DC digital input module with Sixteen (16) 24 Volts DC sinking and sourcing inputs. This module has Two (2) input groups with Eight (8) channels per group. It has an optimum voltage range of 10 to 30 Volts DC at 30 degrees Celsius (86 degrees Fahrenheit) and 10 to 26.4 Volts DC at 60 degrees Celsius (140 degrees Fahrenheit). It has 8 milliseconds input OFF/ON signal delay time and draws a 115mA current at 5.1 Volts DC. It has a maximum OFF state voltage and current rating of 5 Volts DC and 1.5mA respectively. It also has an ON rating of 10 Volts DC and 2mA. The 1769-IQ16 has a maximum surge current of 250mA and a nominal input impedance of 3 kW. It has an IEC Class 2 reinforced insulation type with an isolation voltage of 75 Volts DC tested at 1697 Volts DC for 1 second between inputs-to-BUS and group-to-group.

Its maximum heat dissipation is 3.55W (12.11 BTU per hour) in an open-style enclosure. It weighs approximately 270g (0.60 pounds), and dimensions of 118 x 35 x 87 millimeters (4.65 x 1.38 x 3.43 inches). The 1769-IQ16 supports panel mounting a DIN rail installation using a six pounds on an inch terminal screw. The 1769-IQ16 uses either the 1769-PA2, 1769-PB2, 1769-PA4, or the 1769-PB4, with an 8-module supply distance rating. It uses copper (Cu at 90 degrees Celsius (194 degrees Fahrenheit)) wire with a 22/14 AWG solid and a 22/16 AWG stranded wire size. It has an operational temperature range between 0 and 60 degrees Celsius (32 and140 degrees Fahrenheit) at 5 to 95% relative humidity range without condensation.

The 1769-IQ16 is a Compact I/O module that is compatible with Allen Bradley’s MicroLogix 1500 and 1769 CompactLogix family of controllers. This modules features Sixteen (16) 24VDC sink / source input channels. This module is used for interfacing relay and magnetic contactors auxiliary contacts, Thermal overload mechanism, switches, sensors and other devices that operate in ON/OFF mode and rated for 24VDC voltage. This module has input channel grouping which consists of Two (2) groups of Eight (8) inputs. This input grouping allows independent operation of the channel groups.

The module’s input groups consists of input channels 0, 1, ,2 ,3 ,4 ,5 ,6 ,7 for group 1 while input channels 8, 9, 10, 11, 12, 13, 14, 15 forms group 2. The power supply distance rating of this module is 8 modules. This module can be inserted to any location of 1769 CompactLogix assembly, whether local I/O or an I/O bank. It may be attached to any adjacent module including the CPU as long as the power supply distance rating is observed. If used with a MicroLogix 1500, this module is inserted after the base unit or to any adjacent module after the base unit.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The Allen-Bradley 1769-IQ16 is a Compact I/O module with Sixteen (16) DC input channels operating at voltage range of 24VDC sink / source. This module is compatible for use with a 1769 CompactLogix chassis or MicroLogix 1500.



Technical Specifications



Condition New / Never Used Surplus
Brand Allen-Bradley
Manufacturer Rockwell Automation
Part Number 1769-IQ16
Product Family Compact I/O
Product Type Discrete Input Module
Product Line CompactLogix
Module Type DC Input Module
No. of Inputs 16
Input Type Digital Input
No. of Groups 2 groups (8 inputs each)
Power Supply Distance rating 8
Communication Cable 16 Point
Compatible Controllers MicroLogix 1500; CompactLogix
Voltage Category 24V DC sink/source
Shipping Dimensions 8 x 8 x 5 in.
Series A and B
Operating Voltage range 10…30V DC @ 30 °C (86 °F) 10…26.4V DC @ 60 °C (140 °F)
Off-state Voltage 5V DC
Distance Rating 8 Modules
On-state Voltage 10V DC
Working Voltage Rating 30 Volts AC/ 30 Volts DC
Input delay, On 8 ms
Wire Type Copper-90 degrees Celsius
Power Supply 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
Replacement Terminal Block 1769-RTBN18
Wire Size (Solid) 22-14 AWG





Information About 1769-IQ16

The 1769-IQ16 DC digital input module by Allen-Bradley is a DC digital input module with Sixteen (16) 24 Volts DC sinking and sourcing inputs. This module has Two (2) input groups with Eight (8) channels per group. It has an optimum voltage range of 10 to 30 Volts DC at 30 degrees Celsius (86 degrees Fahrenheit) and 10 to 26.4 Volts DC at 60 degrees Celsius (140 degrees Fahrenheit). It has 8 milliseconds input OFF/ON signal delay time and draws a 115mA current at 5.1 Volts DC. It has a maximum OFF state voltage and current rating of 5 Volts DC and 1.5mA respectively. It also has an ON rating of 10 Volts DC and 2mA. The 1769-IQ16 has a maximum surge current of 250mA and a nominal input impedance of 3 kW. It has an IEC Class 2 reinforced insulation type with an isolation voltage of 75 Volts DC tested at 1697 Volts DC for 1 second between inputs-to-BUS and group-to-group.

Its maximum heat dissipation is 3.55W (12.11 BTU per hour) in an open-style enclosure. It weighs approximately 270g (0.60 pounds), and dimensions of 118 x 35 x 87 millimeters (4.65 x 1.38 x 3.43 inches). The 1769-IQ16 supports panel mounting a DIN rail installation using a six pounds on an inch terminal screw. The 1769-IQ16 uses either the 1769-PA2, 1769-PB2, 1769-PA4, or the 1769-PB4, with an 8-module supply distance rating. It uses copper (Cu at 90 degrees Celsius (194 degrees Fahrenheit)) wire with a 22/14 AWG solid and a 22/16 AWG stranded wire size. It has an operational temperature range between 0 and 60 degrees Celsius (32 and140 degrees Fahrenheit) at 5 to 95% relative humidity range without condensation.

The 1769-IQ16 is a Compact I/O module that is compatible with Allen Bradley’s MicroLogix 1500 and 1769 CompactLogix family of controllers. This modules features Sixteen (16) 24VDC sink / source input channels. This module is used for interfacing relay and magnetic contactors auxiliary contacts, Thermal overload mechanism, switches, sensors and other devices that operate in ON/OFF mode and rated for 24VDC voltage. This module has input channel grouping which consists of Two (2) groups of Eight (8) inputs. This input grouping allows independent operation of the channel groups.

The module’s input groups consists of input channels 0, 1, ,2 ,3 ,4 ,5 ,6 ,7 for group 1 while input channels 8, 9, 10, 11, 12, 13, 14, 15 forms group 2. The power supply distance rating of this module is 8 modules. This module can be inserted to any location of 1769 CompactLogix assembly, whether local I/O or an I/O bank. It may be attached to any adjacent module including the CPU as long as the power supply distance rating is observed. If used with a MicroLogix 1500, this module is inserted after the base unit or to any adjacent module after the base unit.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
