Part #: 1769-IQ32 Manufactured by: Allen-Bradley
Regular price
$267.00
Sale price
$267.00
Regular price
5 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
Allen Bradley 1769-IQ32 CompactLogix 32 PT. 24 DC Power Input I-O Module. It has an open-style enclosure rating, is shippe...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 1769-IQ32
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 1769-IQ32

Description / Specifications

Description

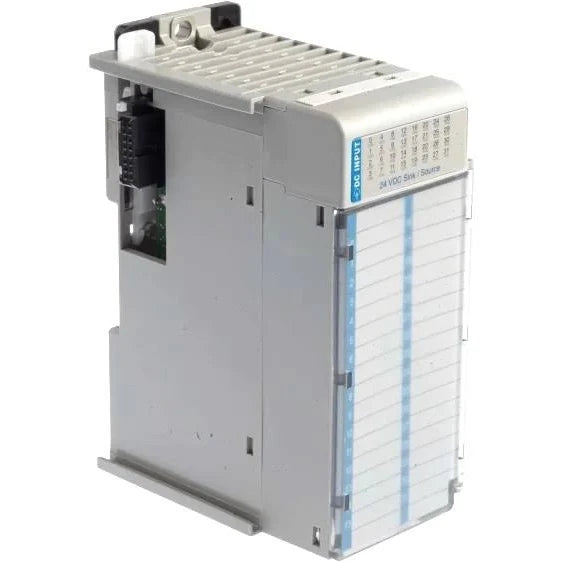

The Allen-Bradley 1769-IQ32 is a compact I/O module. This is a Discrete input module that features high-density input channels which consists of Thirty-Two (32) 24VDC input channels. It is compatible for use with the MicroLogix and CompactLogix controller. It has Four (4) groups of Eight (8) inputs and supports sink / source wiring configuration.



Technical Specifications



Brand Allen-Bradley
Series A and B
Part Number 1769-IQ32
Product Family Compact I/O
Off-state Voltage 5V DC
Operating Voltage range 10…30V DC @ 30 °C (86 °F) 10…26.4V DC @ 60 °C (140 °F)
Voltage Category 24V DC sink/source
Supported Adapter 1769-ADN DeviceNet adapter; 1769-AENTR Ethernet adapter
Compatible Controllers MicroLogix 1500; CompactLogix
Power Supply Distance rating 8
No. of Groups 4 groups (8 inputs each)
No. of Inputs 32
On-state Voltage 10V DC
Input delay, On 8 ms
Operating Temperature 0°C to +60°C (32°F to +140°F)
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Product Type Discrete Input Module
Manufacturer Rockwell Automation
Operating Humidity 5% to 95% non-condensing
Product Line CompactLogix
Module Type DC Input Module
Input Type Digital Input
Communication Cable 32 Point
Shipping Dimensions 8 x 8 x 5 in
Voltage Rating 24 Volts DC Sink/Source
Replacement Terminal Block 1769-RTBN18
Wire Type Copper-90 degrees Celsius
Wire Size (Solid) 22-14 AWG





Information About 1769-IQ32

The Allen-Bradley Discrete Input module with catalog number 1769-IQ32 is part of the Compact I/O module family that is compatible for use with MicroLogix 1500 and CompactLogix controllers. This module especially features high density input channels as it has Thirty-Two (32) 24VDC input channels supporting both sinking and sourcing wiring configuration.

This module has a power supply distance rating of Eight (8) modules. This means that the module must not be installed more than Eight (8) modules away from the power supply. As some CompactLogix controllers support installation of more than Eight (8) Compact I/O modules, applicable power supply unit must be installed to meet the power supply requirement of the 1769-HSC and other Compact I/O modules. The 1769-HSC follows the installation method of the existing CompactLogix rack. When installed in a CompactLogix I/O expansion bank, the same power supply distance rating must be observe.

This module has an operating temperature range of 0°C to +60°C (32°F to +140°F) and storage temperature of -40°C to +85°C (-40°F to +185°F) with operating humidity of 0°C to +60°C (32°F to +140°F) and operating altitude of 2000 meters (6561 feet). It has an operating vibration rating of 10 to 500 Hz, 5G, 0.030 inches maximum peak-to-peak and operating shock of 30G when panel mounted and 20G for DIN Rail mounted module.

The 1769-IQ32 has a reinforced insulation circuit with an isolation voltage of 75 Volts DC tested at 1697 Volts DC for 1 seconds between the input point and BUS, and between group-to-group (4 groups in total). It has a slot width of 1.5 inches and is installed on either a panel mount or a DIN rail using the specialized 6 lb x inches terminal screws. It has an open-style enclosure rating, is shipped with a replacement door, and has a Type 1+ IEC input compatibility. The 1769-IQ32 is c-UL and CE certified for safe operation in the US, Canada, and Europe. It has a functional temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) at 5 to 95% relative humidity and it will function without de-rating at a maximum altitude of 2000 meters (6561 feet). The 1769-IQ32 weighs 440g (0.97 pounds), and has shipping dimensions of 118x 52.5x 87 millimeters (4.65x 2.07x 3.43 inches).




Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
