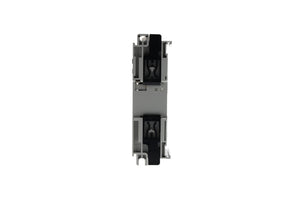

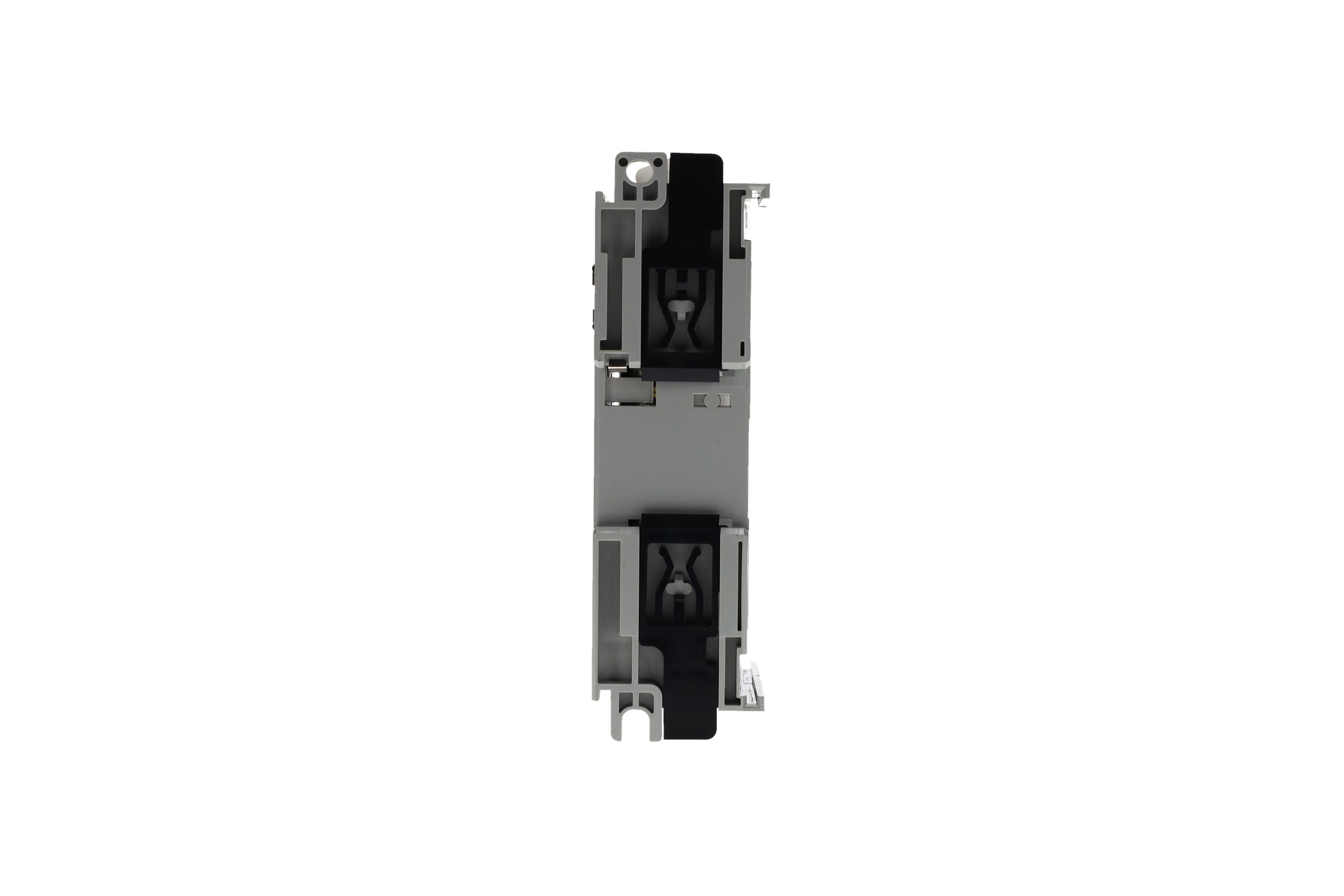

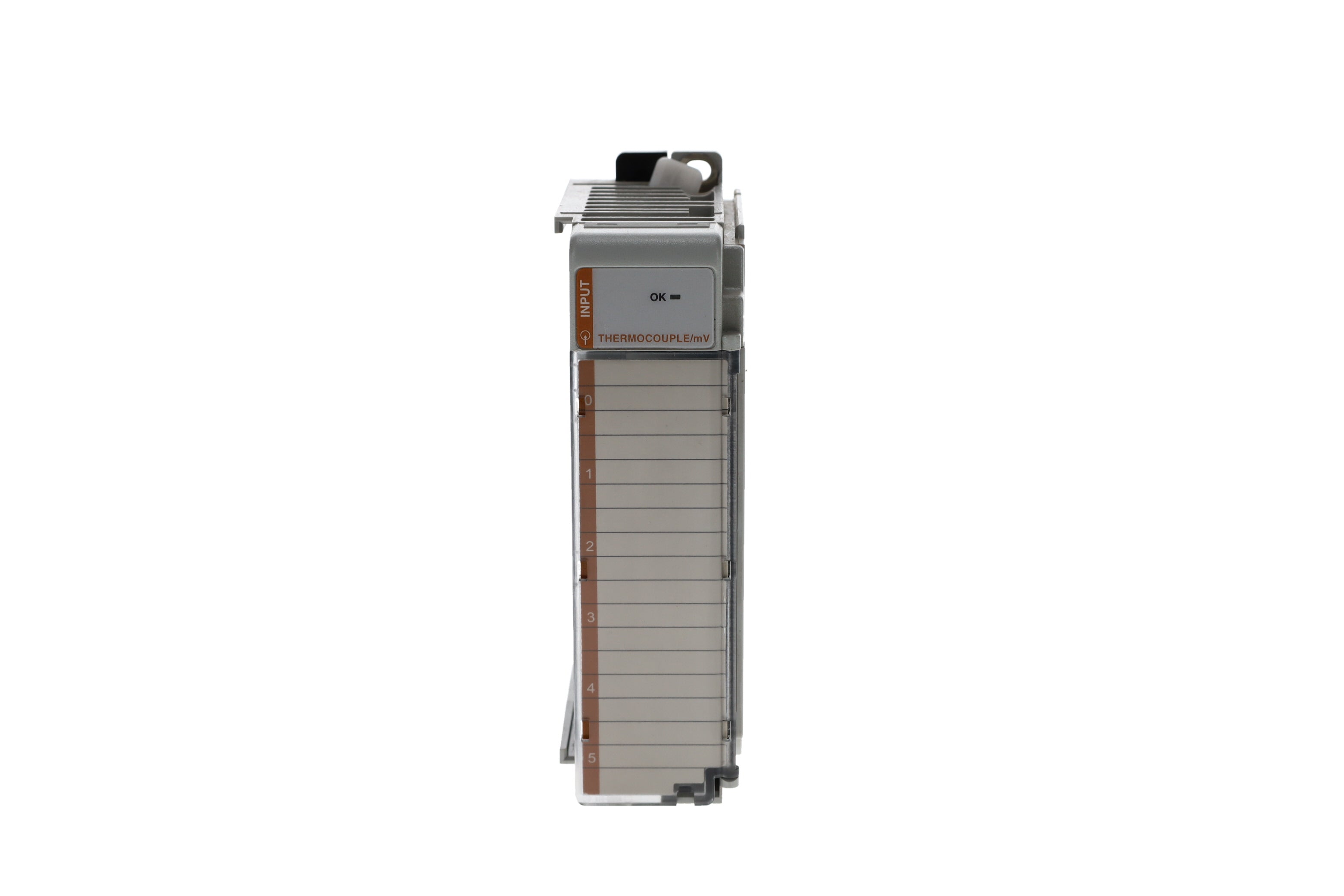

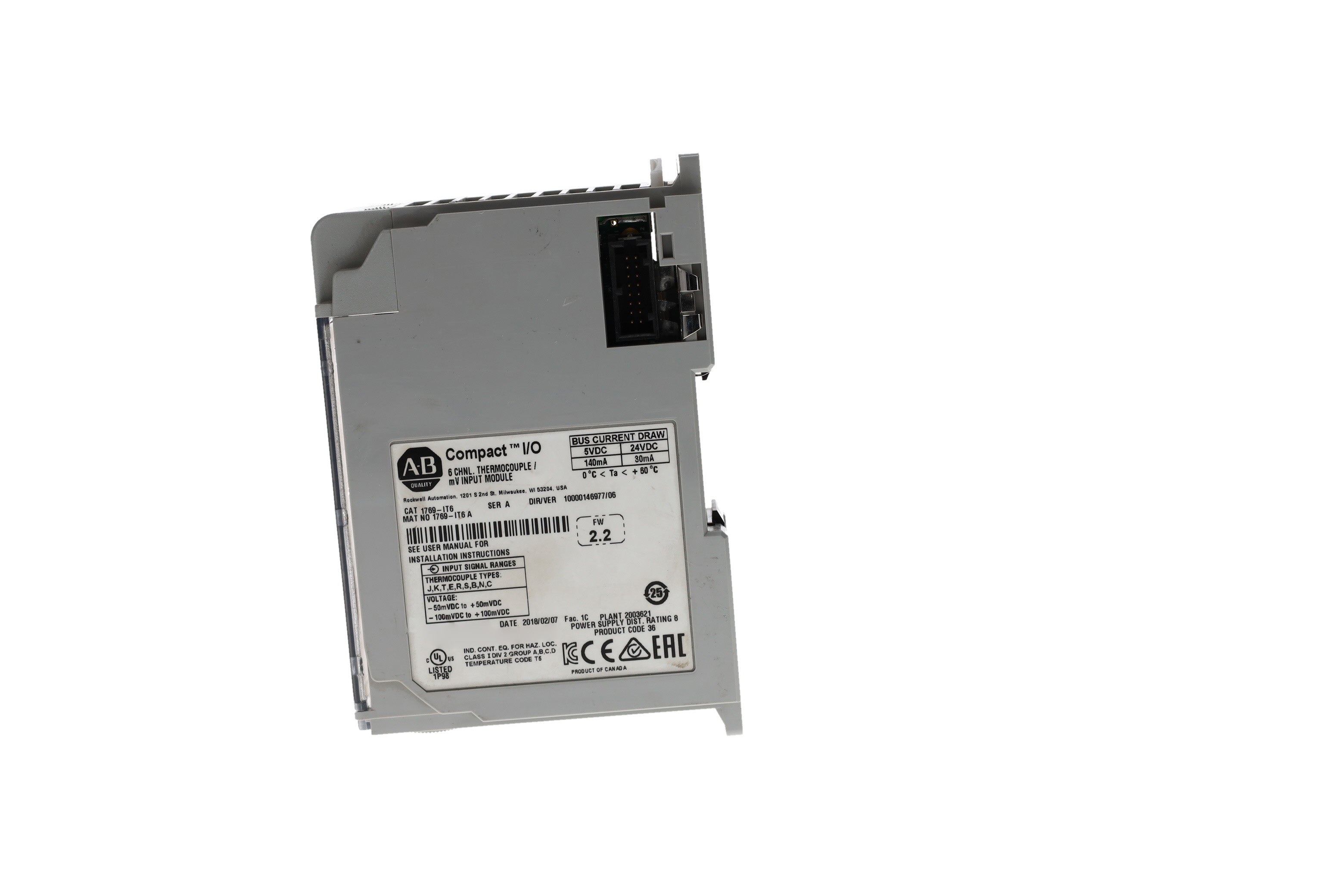

Product Description P/N: 1769-IT6

Description / Specifications

Description

The Allen-Bradley 1769-IT6 is Programmable Controller module that is part of the compact I/O series. This module is Thermocouple and millivolt input module that features Six (6) channels that is compatible with Thermocouple sensors J, K, T, E, R, N, S, B, N, C and CJC sensor and accepts +/- 50mV and +/-10mv with operating range of -50 to +50mV and -10 to +10mV signals. It is compatible for use with CompactLogix and MicroLogix controllers.



Technical Specifications



Brand Allen-Bradley
Series A and B
Part Number 1769-IT6
Product Family Compact I/O Modules
Power Supply Distance Rating 8 modules
CJC accuracy ±1.0 °C (±1.8 °F)
CJC sensor accuracy ±0.3 °C (±0.54 °F)
Calibration Performed during power-up; programmable
Nonlinearity ±0.03%
Heat dissipation, max 1.5W
Current draw @ 24V 40 mA
Current draw @ 5.1V 100 mA
millivolt signal +/- 50mV and +/-10mV
Sensors supported J, K, T, E, R, N, S, B, N, C, CJC
Compatible Adapters 1769-ADN (DeviceNet); 1769-AENTR (Ethernet)
No. of Inputs 6
Product Type Thermocouple / milivolt Input Module
Manufacturer Rockwell Automation
Product Line CompactLogix
Module Type Thermocouple Module
Input Type Thermocouple
Communication Cable 6 Point
Shipping Dimensions 8 x 8 x 5 in.
Converter Type Delta Sigma
Replacement Door Label Part Number 1769-RL2 series B
Replacement Terminal Block Part Number 1769-RTBN18
Wire Type Copper-90 degrees Celsius
Wire Size (Solid) 22-14 AWG





Information About 1769-IT6

The Allen-Bradley 1769-IT6 Thermocouple/mV Input Module is a compact device that measures thermocouple and millivolt signals. These measurements are digitally converted and stored as analog data in any combination of up to six thermocouple or millivolt analog sensors. Over-range, under-range, open-circuit detection, and indication are provided.

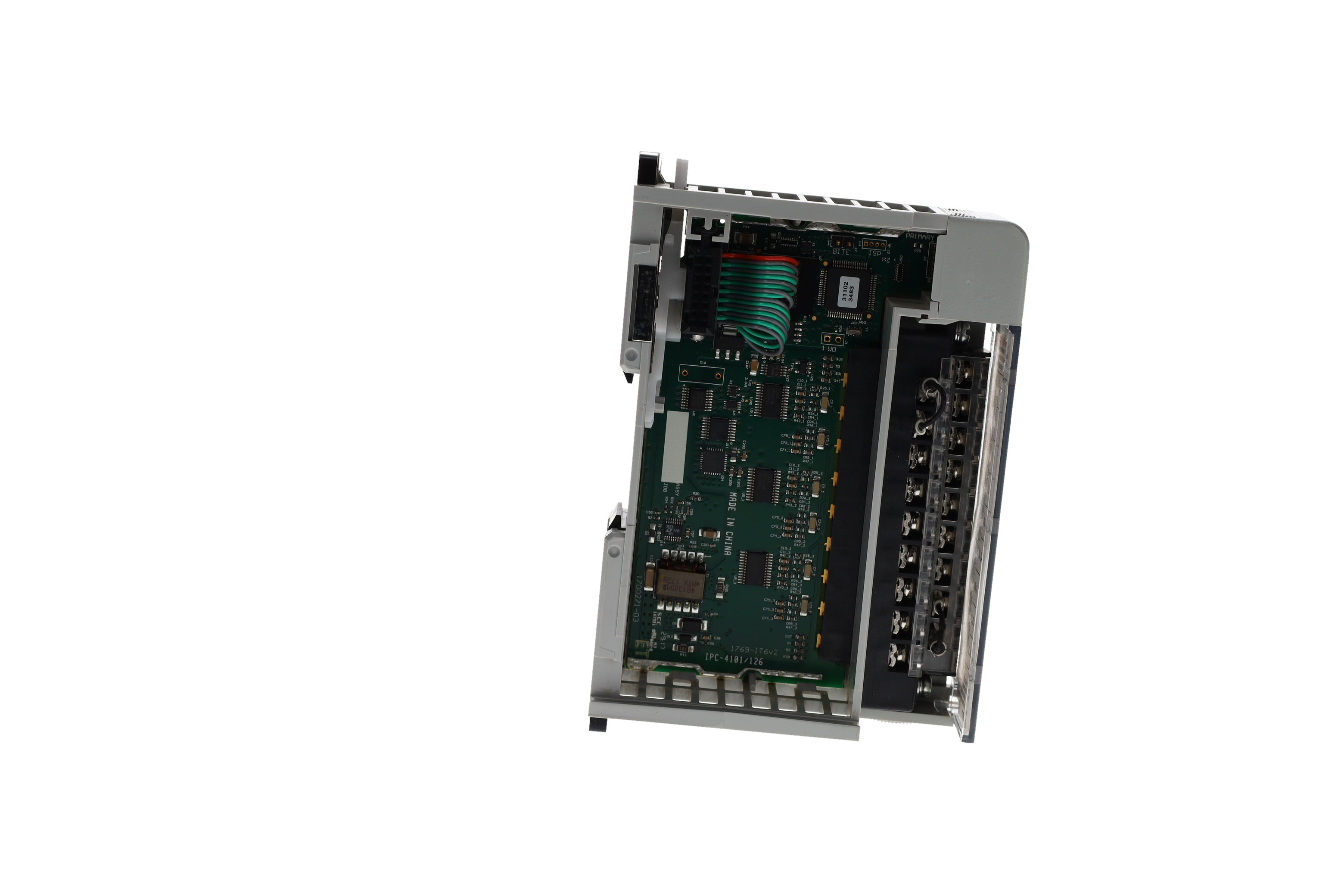

The 1769-IT6 Compact Input Module has 6 input channels plus 2 CJC sensors. It has a Delta Sigma converter type and its response speed per channel is input filter and configuration dependent. It communicates with the controller via the bus interface where it also receives power from the 5-24V DC system power supply. The 1769-IT6 module draws a maximum current of 100 mA at 5 Volts DC, and 40 mA at 24 Volts DC. Upon powerup and when a channel is enabled, this input module performs auto-calibration. Auto-calibration can also be programmed to run every five minutes.

The 1769-IT6 is UL 508 listed, C-UL certified (under CSA C22.2 No. 142), and CE compliant for applicable directives. It can be attached to an adjacent I/O module or to the controller before or after (single module replacement) mounting. To reduce electrical noise, install this measurement device at least two slots away from an AC power supply. When mounting, maintain a minimum spacing clearance of two inches on all sides for adequate ventilation.

This module is ideally useful in temperature applications as Thermocouple instruments are used specifically for temperature measurement. Additionally, millivolt signals are typically used for interfacing transducers.

This module is specifically compatible for measurement of temperature such as -210...+1200 °C for Temperature Type J, -270...+1370 °C for Type K, -270...+400 °C for Type T, -270...+1000 °C for type E, 0...+1768 °C for Type R, 0...+1768 °C for Type S, +300...+1820 °C for Type B, 210...+1300 °C for Type N and 0...+2315 °C for Type C Thermocouples. Each of the analog input can be configured for Engineering units, Scaled for PID, and Raw / Proportional Data.

This module is designed with the capability of sensing open circuit, short-circuit, over-range, and under-range detection for each of the Six (6) channels. Selectable input filters are also available to stabilize measurement. Selectable input filters include 10 Hz, 50 Hz, 60 Hz, 250 Hz, 500 Hz and 1 kHz.

The module does not require an external power supply. It occupies a single slot in the chassis and receives 5VDC and 24VDC power from the communication bus.
