1769-L23E-QB1B | Allen-Bradley CompactLogix Packaged EtherNet Controller, 512KB
1769-L23E-QB1B | Allen-Bradley CompactLogix Packaged EtherNet Controller, 512KB
Part #: 1769-L23E-QB1B Manufactured by: Allen-Bradley

1769-L23E-QB1B | Allen-Bradley CompactLogix Packaged EtherNet Controller, 512KB

Regular price
$1,679.00
Sale price
$1,679.00
Regular price
Never Used Surplus
32 in Stock
Shipping calculated at checkout.
Product Overview
This Allen Bradley CompactLogix Processor has an RS-232 Serial Port, Ethernet/IP Port,and has input power of 24 VDC. This...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: 1769-L23E-QB1B
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
1769-L23E-QB1B | Allen-Bradley CompactLogix Packaged EtherNet Controller, 512KB
    1769-L23E-QB1B | Allen-Bradley CompactLogix Packaged EtherNet Controller, 512KB
1769-L23E-QB1B | Allen-Bradley CompactLogix Packaged EtherNet Controller, 512KB
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: 1769-L23E-QB1B

Description / Specifications

Description

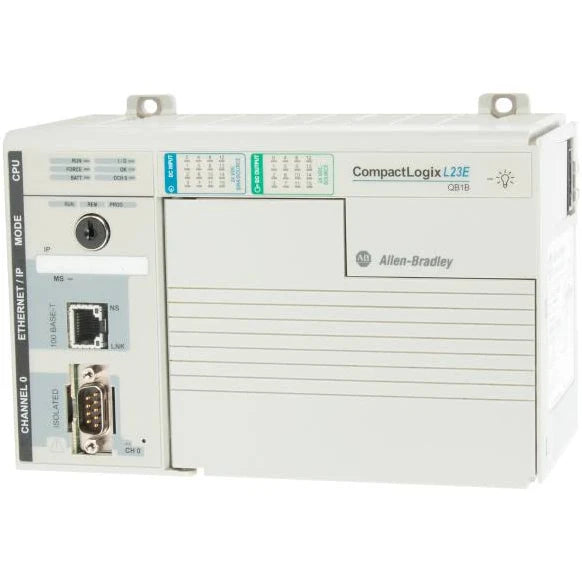

The Allen-Bradley 1769-L23E-QB1B is a CompactLogix 5370 L2 Packaged controller. It is part of the CompactLogix Programmable Automation Controller (PAC) product family which features built-in One (1) Ethernet and One (1) RS232 communication ports. It has 512KB embedded user memory and supports installation of up to Three (3) 1769 I/O modules.



Technical Specifications



Brand Allen-Bradley
Series A and B
Part Number 1769-L23E-QB1B
Manufacturer Rockwell Automation
No. of Embedded Inputs (16) 24 VDC
No. of Program per Task 100
No. of Task 32
Maximum number of I/O modules supported 3 1769 Modules
Supported Protocols Ethernet I/P; DF1; DH485; ASCII
Communication ports 1 Ethernet I/P; 1 RS232
Product Type CompactLogix Controller
Programming Language Relay ladder (Safety Task only); Structured Text; Function block; SFC
Mounting DIN Rail
Current draw @ 5V DC 1000 mA
Current draw @ 24V DC 700 mA
Product Line CompactLogix
Module Type Processor Module
Communication Serial and Ethernet
Memory 512 KB
Shipping Dimensions 11 x 8 x 6 inches
Replacement Terminal Block Part Number 1769-RTBN18
Wire Type Copper-90 degrees Celsius
Wire Size (Solid) 22 to 14 AWG
Wire Size (Stranded) 22 to 16 AWG
Battery 1769-BA
End Cap 1769-ECR





Information About 1769-L23E-QB1B

The 1769-L23E-QB1B is an Allen-Bradley packaged controller. This controller is part of the CompactLogix 5370 L2 product category that comes with embedded features, enabling this controller to function out of the box. It has an integrated power supply that is operated by nominal supply voltage of 24VDC which supplies the necessary backplane power to the integrated modules of the controller.

In addition, the 1769-L23E-QB1B has built-in 16 channels of 24VDC Discrete inputs and 16 channels of Discrete outputs as well. I/O expansion is allowed by installation of additional Three (3) 1769 Compact I/O modules to custom fit this controller to the application requirement. It is also provided with 512KB user memory which can accommodate up to any combination of 32 periodic or continuous with 100 programs per task.

For controller communication, the 1769-L23E-QB1B feature a single Ethernet port and a USB interface. Both ports support high speed communication, with ethernet supporting 10/100 Mbps transmission rate and an RS232 communication interface that supports DF1, DH485 and ASCII interface. These ports specifically support communication with Supervisory Control and Data Acquisition (SCADA), Human Machine Interface (HMI), and controllers within the same Ethernet and RS232 connections.

For Version 17.01.02, revision 17.012; 19.01.00 revision 19.015; For 20.01.00, revision 20.013.

It has an embedded 24 Volts DC power supply and a 1000 milliamps BUS current at 5 Volts DC. The 1769-L23E-QB1B controller has a request packet interval (RPI) speed of approximately 1.0 millisecond of scan time across 1 to 4 modules. It comes with an Allen-Bradley 1769-BA replaceable battery. At 24 Volts DC, the Allen-Bradley 1769-L23E-QB1B compact controller has a drawn current of 700 milliamps and it dissipates 7 Watts of power. Devices can be connected to the 1769-L23E-QB1B through the Allen-Bradley 1756-CP3 or 1747-CP3 serial cables. It operates at 10 to 30 Volts DC at 30 degrees Celsius (86 degrees Fahrenheit). Additional embedded features include an input impedance of 3 kiloohms, a maximum inrush current of 250 milliamps, an off-state voltage of 5 Volts DC maximum, and an off-state current of 1.5 milliamps. The 1769-L23E-QB1B compact controller also has embedded output features which are a 16-unit output, an output delay time of 0.1 milliseconds, and a maximum leakage current of 1.0 milliamps at 26.4 Volts DC. The current across each module of the 1769-L23E-QB1B controller is rated at 4.0 Amps at 60 degrees Celsius (140 degrees Fahrenheit). The 1769-L23E-QB1B controller has an approximate weight of 0.91 kilograms (2 pounds) and it can be mounted on a DIN rail or on a panel mounting base.


Manufacturer information

Allen‑Bradley components, integrated control and information solutions are built for demanding industrial applications. We integrate control and information across the enterprise to make you as productive as possible.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description

The Allen-Bradley 1769-L23E-QB1B is a CompactLogix 5370 L2 Packaged controller. It is part of the CompactLogix Programmable Automation Controller (PAC) product family which features built-in One (1) Ethernet and One (1) RS232 communication ports. It has 512KB embedded user memory and supports installation of up to Three (3) 1769 I/O modules.



Technical Specifications



Brand Allen-Bradley
Series A and B
Part Number 1769-L23E-QB1B
Manufacturer Rockwell Automation
No. of Embedded Inputs (16) 24 VDC
No. of Program per Task 100
No. of Task 32
Maximum number of I/O modules supported 3 1769 Modules
Supported Protocols Ethernet I/P; DF1; DH485; ASCII
Communication ports 1 Ethernet I/P; 1 RS232
Product Type CompactLogix Controller
Programming Language Relay ladder (Safety Task only); Structured Text; Function block; SFC
Mounting DIN Rail
Current draw @ 5V DC 1000 mA
Current draw @ 24V DC 700 mA
Product Line CompactLogix
Module Type Processor Module
Communication Serial and Ethernet
Memory 512 KB
Shipping Dimensions 11 x 8 x 6 inches
Replacement Terminal Block Part Number 1769-RTBN18
Wire Type Copper-90 degrees Celsius
Wire Size (Solid) 22 to 14 AWG
Wire Size (Stranded) 22 to 16 AWG
Battery 1769-BA
End Cap 1769-ECR





Information About 1769-L23E-QB1B

The 1769-L23E-QB1B is an Allen-Bradley packaged controller. This controller is part of the CompactLogix 5370 L2 product category that comes with embedded features, enabling this controller to function out of the box. It has an integrated power supply that is operated by nominal supply voltage of 24VDC which supplies the necessary backplane power to the integrated modules of the controller.

In addition, the 1769-L23E-QB1B has built-in 16 channels of 24VDC Discrete inputs and 16 channels of Discrete outputs as well. I/O expansion is allowed by installation of additional Three (3) 1769 Compact I/O modules to custom fit this controller to the application requirement. It is also provided with 512KB user memory which can accommodate up to any combination of 32 periodic or continuous with 100 programs per task.

For controller communication, the 1769-L23E-QB1B feature a single Ethernet port and a USB interface. Both ports support high speed communication, with ethernet supporting 10/100 Mbps transmission rate and an RS232 communication interface that supports DF1, DH485 and ASCII interface. These ports specifically support communication with Supervisory Control and Data Acquisition (SCADA), Human Machine Interface (HMI), and controllers within the same Ethernet and RS232 connections.

For Version 17.01.02, revision 17.012; 19.01.00 revision 19.015; For 20.01.00, revision 20.013.

It has an embedded 24 Volts DC power supply and a 1000 milliamps BUS current at 5 Volts DC. The 1769-L23E-QB1B controller has a request packet interval (RPI) speed of approximately 1.0 millisecond of scan time across 1 to 4 modules. It comes with an Allen-Bradley 1769-BA replaceable battery. At 24 Volts DC, the Allen-Bradley 1769-L23E-QB1B compact controller has a drawn current of 700 milliamps and it dissipates 7 Watts of power. Devices can be connected to the 1769-L23E-QB1B through the Allen-Bradley 1756-CP3 or 1747-CP3 serial cables. It operates at 10 to 30 Volts DC at 30 degrees Celsius (86 degrees Fahrenheit). Additional embedded features include an input impedance of 3 kiloohms, a maximum inrush current of 250 milliamps, an off-state voltage of 5 Volts DC maximum, and an off-state current of 1.5 milliamps. The 1769-L23E-QB1B compact controller also has embedded output features which are a 16-unit output, an output delay time of 0.1 milliseconds, and a maximum leakage current of 1.0 milliamps at 26.4 Volts DC. The current across each module of the 1769-L23E-QB1B controller is rated at 4.0 Amps at 60 degrees Celsius (140 degrees Fahrenheit). The 1769-L23E-QB1B controller has an approximate weight of 0.91 kilograms (2 pounds) and it can be mounted on a DIN rail or on a panel mounting base.


Manufacturer information

Allen‑Bradley components, integrated control and information solutions are built for demanding industrial applications. We integrate control and information across the enterprise to make you as productive as possible.
