Part #: 1769-L24ER-QBFC1B Manufactured by: Allen-Bradley
Regular price
$1,899.00
Sale price
$1,899.00
Regular price
8 in Stock

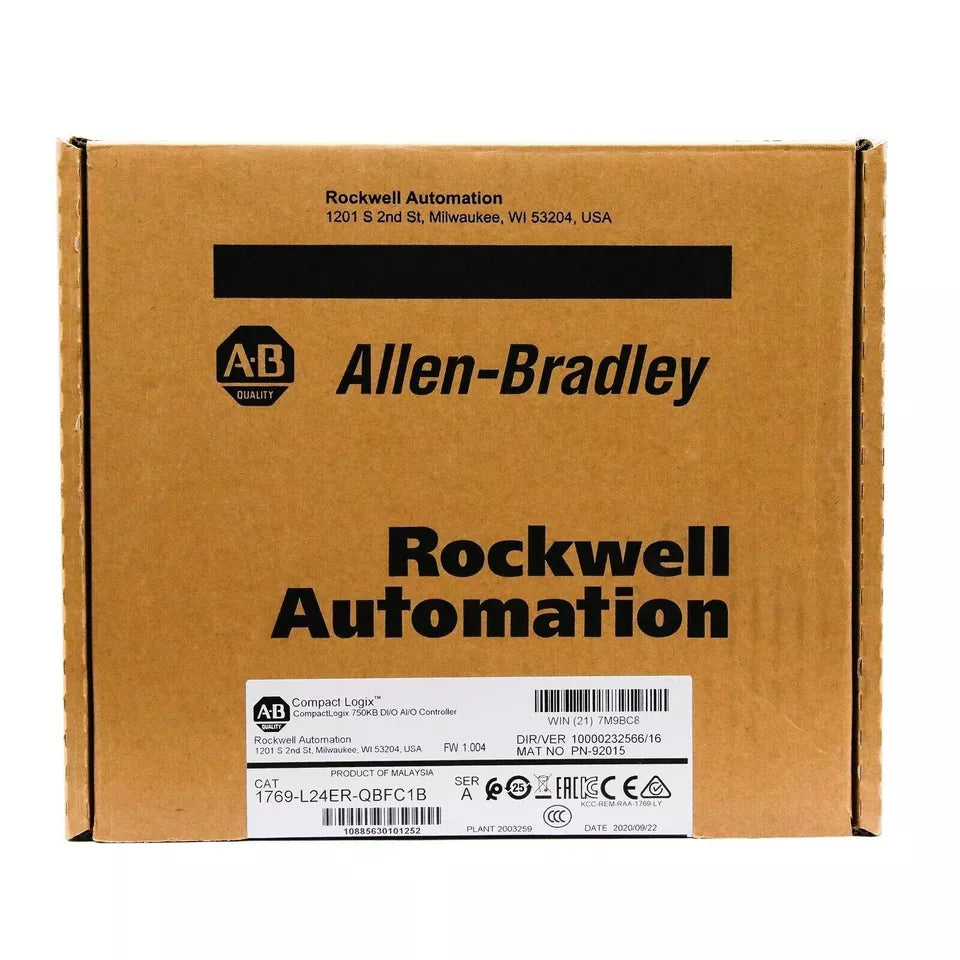

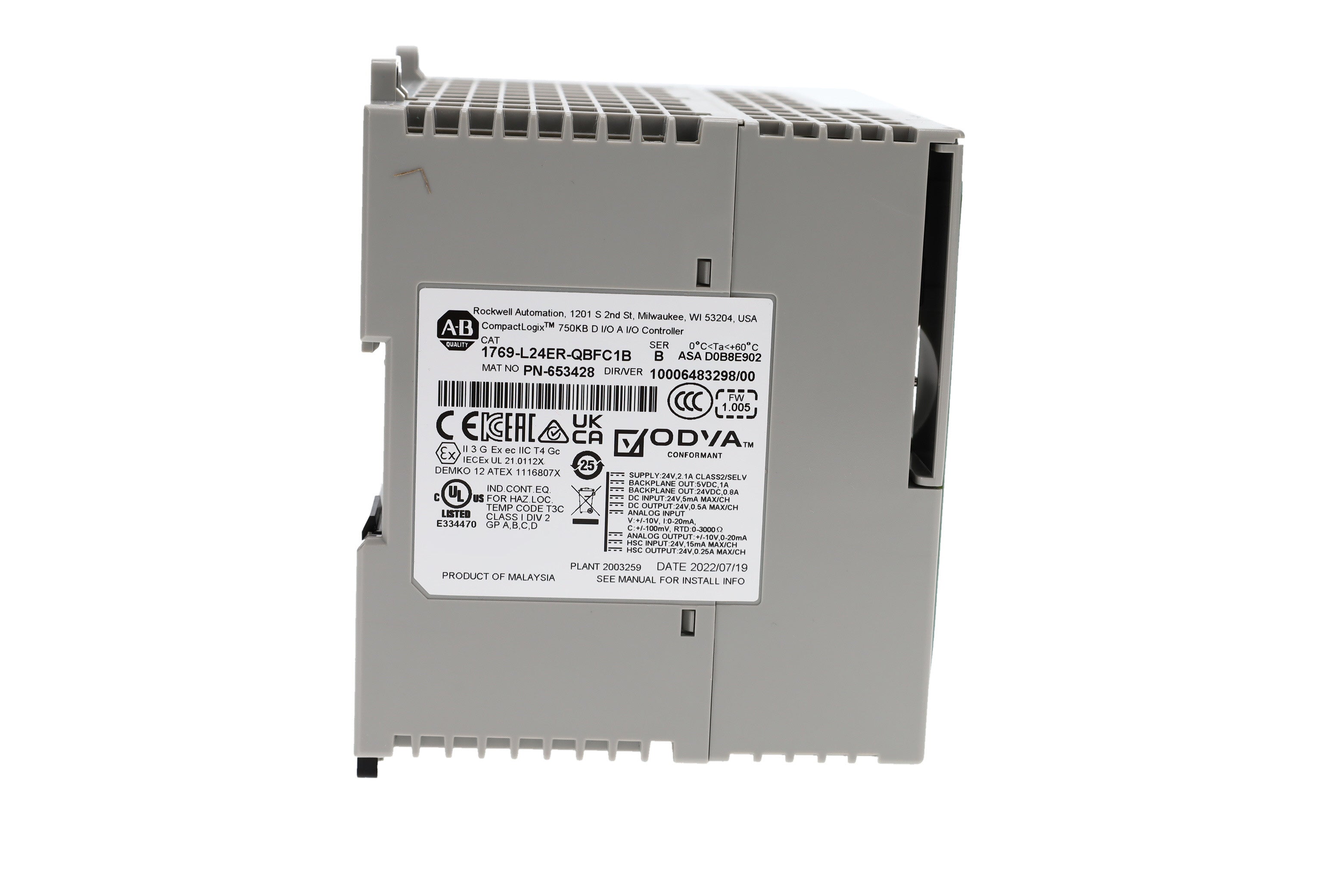

Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
Allen-Bradley 1769-L24ER-QBFC1B CompactLogix 5370 L2 Ethernet Processor Module, 2 EtherNet/IP Ports With Device Level Ring...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 1769-L24ER-QBFC1B
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 1769-L24ER-QBFC1B

Description / Specifications

Description

The Allen-Bradley 1769-L24ER-QBFC1B is a CompactLogix packaged controller from the 5370 CompactLogix family. This controlled has embedded 1MB memory, Two (2) Ethernet communication ports, 1 RS2322 and 1 USB port. It has Sixteen (16) Sinking / Sourcing 24V DC Digital Inputs, Sixteen (16) Sinking 24V DC Digital Output, Four (4) High-speed counter inputs, Four (4) High-speed outputs, Four (4) Universal analog inputs and Two (2) analog outputs. It supports up to Four (4) Compact I/O modules.



Technical Specifications



Condition New / Never Used Surplus
Brand Allen-Bradley
Series A and B
Part Number 1769-L24ER-QBFC1B
Manufacturer Rockwell Automation
Product Type Programmable Automation Controller
Product Line CompactLogix
Module Type Processor Module
Communication ports (1) USB; (2) Ethernet I/P; 1 RS232
Communication Ethernet
Supported Protocols ASCII; DH485; DF1; Ethernet
No. Of Axes over Ethernet 2 axes
No. of Task 32
Shipping Dimensions 11X8X6 inches
No. of Program per Task 100
No. of Embedded Inputs (16) 24 VDC
Replacement Terminal Block Part Number 1769-RTBN18
No. of Analog Inputs 4 (Differential or Single Ended)
Wire Type Copper-90 degrees Celsius
No. of Analog Outputs 2 (Single Ended)
Wire Size (Solid) 22 to 14 AWG
No. of HSC outputs 4
Wire Size (Stranded) 22 to 16 AWG
Programming Language Relay ladder (Safety Task only) , Structured Text, Function block, SFC
Power Supply 24 Volts DC
Memory 1MB

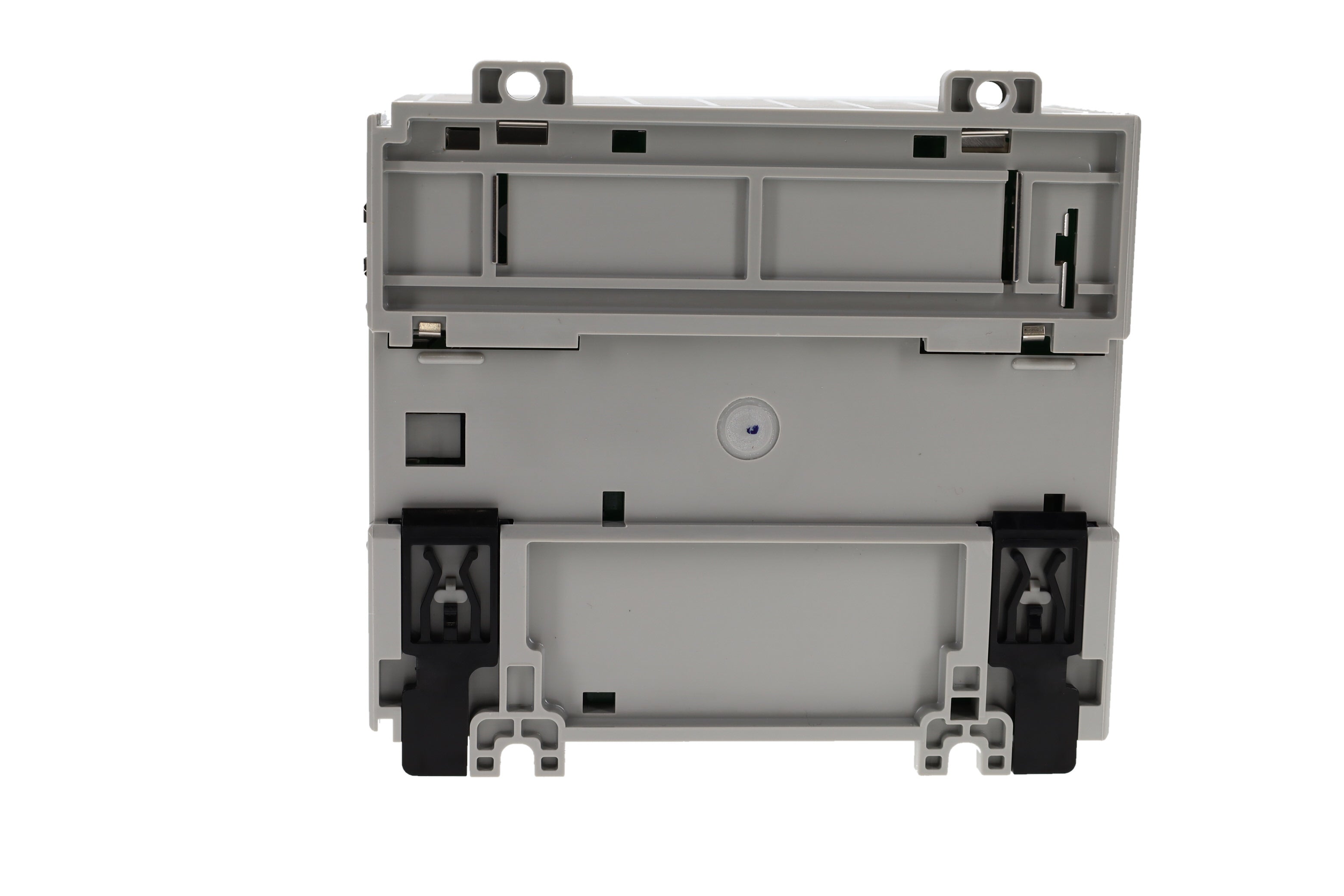

Mounting DIN Rail





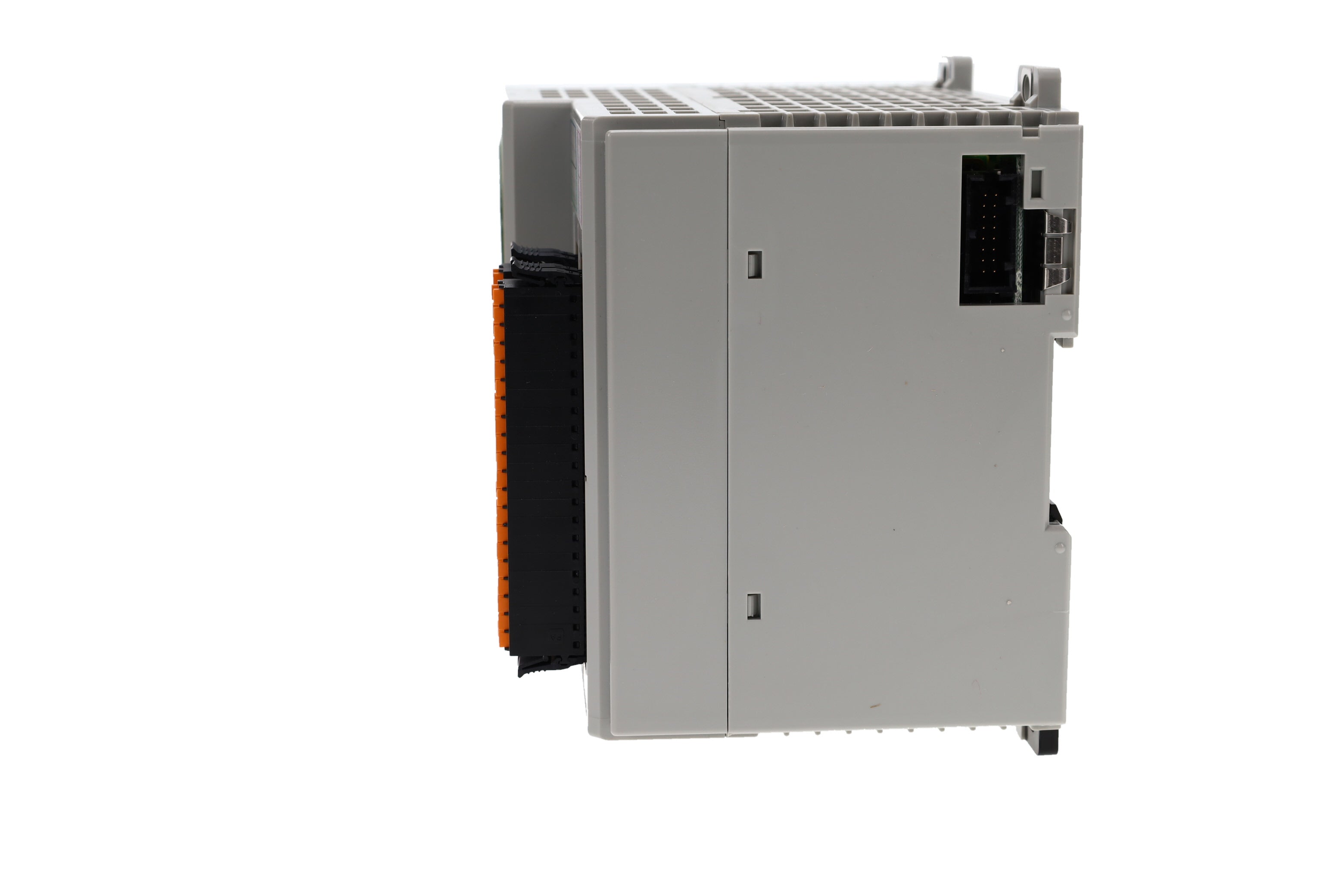

Information About 1769-L24ER-QBFC1B

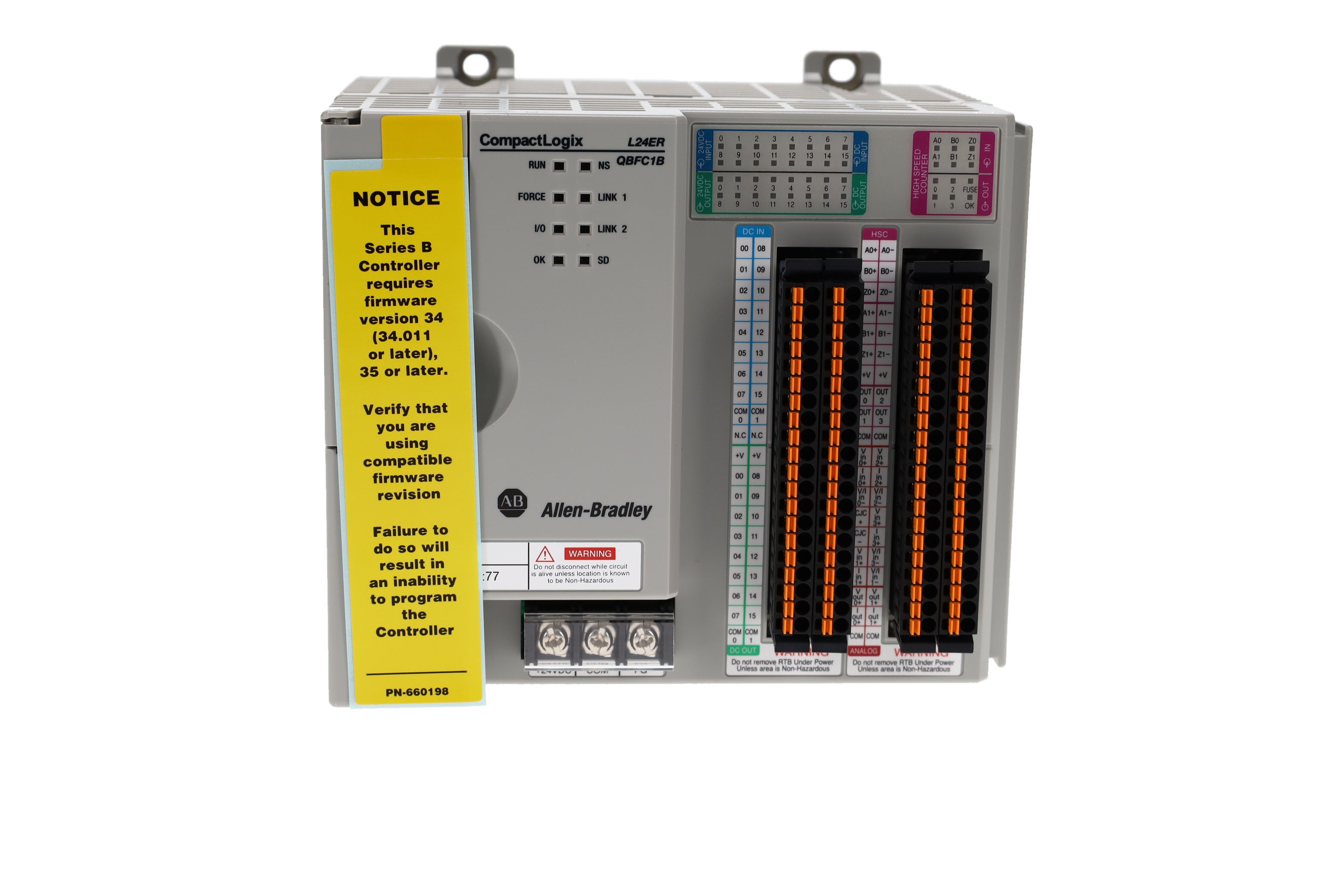

The Allen-Bradley 1769-L24ER-QBFC1B is a CompactLogix 5370 L2 programmable automation controller. It is a processor module with the same CPU performance capabilities as the L3 controller but it has a smaller form factor and is more cost-effective. The 1769-L24ER-QBFC1B is a packaged sink/source controller and it is best for small applications such as hoisting and cranes, indexing tables, and packaging. Up to 32 controller tasks and 100 programs per task can be handled by the 1769-L24ER-QBFC1B.

This controller comes with a 1MB user memory that can be expanded by the 1 GB SD memory card shipped with the controller or by an optional 2 GB memory. It has One (1) USB port and Two (2) EtherNet/IP ports supporting DLR and for 256 EtherNet/IP and 120 TCP connections are also available. The 1769-L24ER-QBFC1B also comes with Sixteen (16) sourcing 24 Volts DC digital output points, an equal number of sinking/sourcing 24 Volts DC digital input points, Four (4) high-speed counters, Four (4) universal analog inputs, and Two (2) analog outputs. This controller can accommodate expansions of up to Four (4) 1769 modules. It has status LEDs and an open-type enclosure.

The 1769-L24ER-QBFC1B has an embedded power supply of 24 Volts DC, a current draw of 1 Amp at 5 Volts DC, and a current draw of 0.8 Amps at 24 Volts DC. It also has an operating voltage range of 10 to 28.8 Volts DC at 40 degrees Celsius, 10 to 27 Volts DC at 55 degrees Celsius, and 10 to 26.4 Volts DC at 60 degrees Celsius. Its maximum off-state voltage is 5 Volts DC and its maximum off-state current is 1.5 mA. It also has an on-state current that ranges from a minimum of 2 mA and a maximum of 5 Amps at 24 Volts DC per channel. The nominal output voltage of the 1769-L24ER-QBFC1B is 24 Volts DC and its operating voltage range is 20.4 to 26.4 Volts DC. Its maximum off-state leakage current is 0.1 mA at 24 Volts DC, its on-state current is 0.5 mA at 24 Volts DC per channel, and its maximum on-state voltage drop is 1 Volts DC at 1 Amp. It also has a current per point of 0.83 Amps at 40 degrees Celsius, 0.58 Amps at 55 degrees Celsius, and 0.5 Amps at 60 degrees Celsius. It also has a current per module of 6.64 Amps at 40 degrees Celsius, 4.64 Amps at 55 degrees Celsius, and 4 Amps at 60 degrees Celsius. The controller also has a continuous isolation voltage of 30 Volts DC.

The 1769-L24ER-QBFC1B is an Allen-Bradley Programmable Automation Controller (PAC) is a CompactLogix 5370 controller. This controller features a comprehensive integrated feature. This controller is capable of automating general purpose control application, simple motion and position control.

This controller is capable of controlling machines and processes ranging from small to medium control requirements. Particularly, the onboard features of this controller enables it to be out-ot-the-box compatible for application that require high-speed counting, motion and position control over ethernet or via encoders, totalizing and other applications. It features 1MB of memory with integrated non-volatile memory of 1GB provided with the controller. It also has embedded Input and Output channels such as It has Sixteen (16) Sinking / Sourcing 24V DC Digital Inputs, Sixteen (16) Sinking 24V DC Digital Output, Four (4) High-speed counter inputs, Four (4) High-speed outputs, Four (4) Universal analog inputs and Two (2) analog outputs.

The controller supports IEC 61131-3 programming language which includes Relay Ladder, Structured Text, Function Block and Sequential Function Chart (SFC).



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
