1769-L27ERM-QBFC1B | Allen-Bradley CompactLogix 5370 Ethernet Controller, 1MB
- Regular price
- $1,782.00
- Sale price
- $1,782.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1769-L27ERM-QBFC1B
Description

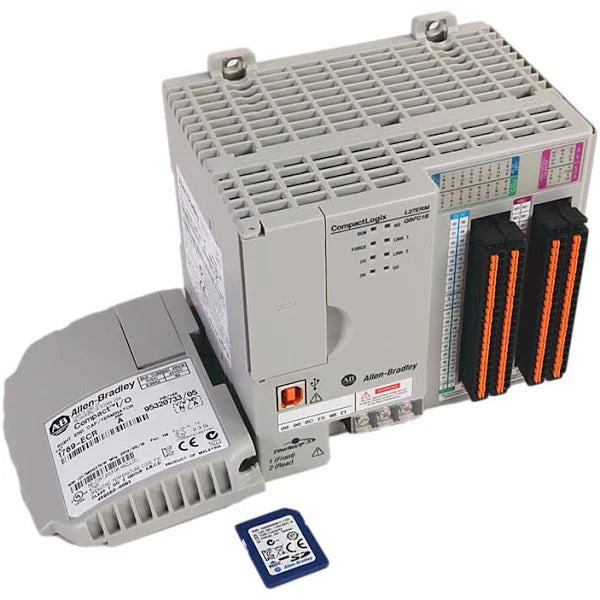

The Allen-Bradley 1769-L27ERM-QBFC1B is a CompactLogix 5370 L2 programmable automation controller (PAC) with 1 MB of user memory. It integrates embedded digital and analog I/O channels and provides dual EtherNet/IP ports along with a USB interface for communication and configuration.
Technical Specifications
| Brand | Allen-Bradley |
| Series | A and B |
| Part Number | 1769-L27ERM-QBFC1B |
| Programming Language | Relay ladder (Safety Task only) , Structured Text, Function block, SFC |
| No. of Analog Outputs | 2 (Single Ended) |
| No. of Analog Inputs | 4 (Differential or Single Ended) |
| No. of Embedded Outputs | (16) 24 VDC Sourcing |
| No. of Embedded Inputs | (16) 24 VDC Sinking / Sourcing |
| No. of Program per Task | 100 |
| No. of Task | 32 |
| No. Of Axes over Ethernet | 16 axes |
| Supported Protocols | Ethernet I/P |
| Communication ports | (1) USB; (2) Ethernet I/P; |
| No. of HSC outputs | 4 |
| Analog Input Type | • Thermocouple: J, K, T, E, R, S, B, N, and C • Voltage • Current • RTD: Platinum 385, Platinum 3916, Copper 426, Nickel 672, Nickel 618, Nickel-Iron 518 • Resistance |
| Analog Output Type | Voltage: • 0…5V • 1…5V • 0…10V • -10V…+10V Current: • 0…20 mA • 4…20 mA |
| Product Type | CompactLogix Controller |
| Product Family | 5370 L2 Controller |
| Manufacturer | Rockwell Automation |
| Memory | 1MB |
| Mounting | DIN Rail |
| Product Line | CompactLogix |
| Module Type | Processor Module |
| Communication | Ethernet |
| Shipping Dimensions | 11 x 8 x 6 inches |
| Replacement Terminal Block | 1769-RTBN18 |
| Wire Type | Copper-90 degrees Celsius |
| Wire Size (Solid) | 22 to 14 AWG |
| Wire Size (Stranded) | 22 to 16 AWG |
| Programming | Relay Ladder, Structured Text, Function Block, SFC |
Information About 1769-L27ERM-QBFC1B
The 1769-L27ERM-QBFC1B belongs to the 5370 CompactLogix L2 family from Allen-Bradley, designed for scalable control solutions in compact form factors. It includes 16 embedded 24 VDC digital inputs, 16 embedded 24 VDC digital outputs, 4 analog inputs, 2 analog outputs, and 4 high-speed counter (HSC) outputs. With 1 MB user memory and support for up to 32 tasks and 100 programs per task, it can manage complex automation routines. The controller features two EtherNet/IP ports that allow for linear and ring topologies, supporting up to 16 motion axes over Ethernet. It also comes with a USB port for programming and data exchange, and supports one local expansion bank with up to four 1769 Compact I/O modules.
Key Features:
- Memory & Processing: 1 MB user memory with support for up to 32 tasks and 100 programs per task for advanced control.
- Embedded I/O: Includes 16 digital inputs (24 VDC sinking/sourcing), 16 digital outputs (24 VDC sourcing), 4 analog inputs, 2 analog outputs, and 4 HSC outputs.
- EtherNet/IP Communication: Dual ports supporting linear and ring topologies, with integrated motion control for up to 16 axes.
- Additional Interfaces: One USB port for programming and configuration, plus removable 1 GB SD card for data integrity and storage.
- Expansion Capability: Supports up to four 1769 Compact I/O modules and one local expansion bank for scalable system design.
- Energy Storage: Built-in capacitor-based storage eliminates the need for lithium batteries, reducing maintenance.
- Motion Support: Provides integrated motion on EtherNet/IP, enabling advanced drive and servo integration.
- Design Efficiency: Compact chassis footprint saves up to 40% panel space while delivering high performance.
The 1769-L27ERM-QBFC1B delivers the reliability and precision required for compact automation systems, integrating control, communication, and motion in one module.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
