Part #: 1769-L30ER Manufactured by: Allen-Bradley
Regular price
$1,499.00
Sale price
$1,499.00
Regular price
8 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
Allen-Bradley CompactLogix Dual Ethernet Controller device with DLR enabled, with a 1 MB capacity of memory, 8 I/O extensi...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 1769-L30ER
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 1769-L30ER

Description / Specifications

Description

The Allen-Bradley 1769-L30ER is a CompactLogix packaged controller from the 5370 CompactLogix family. This controlled has embedded 1MB memory, Two (2) Ethernet communication ports, and One (1) USB port. It supports up to Eight (8) Compact I/O modules and supports Three (3) expansion banks.



Technical Specifications



Brand Allen-Bradley
Series A and B
Part Number 1769-L30ER
Manufacturer Rockwell Automation
Product Line CompactLogix
Product Type Programmable Automation Controller
Module Type Processor Module
Communication ports Two (2) Ethernet I/P; 1 USB
Communication Ethernet
No. of Ethernet Nodes 16
Memory 1 MB
Maximum number of I/O modules supported 8 Modules
Maximum number of I/O banks supported 3 banks
Shipping Dimensions 11 x 8 x 6 inches
Power supply distance rating 4
Programming cable RJ45 connector according to IEC 60603-7
Replacement Terminal Block Part Number 1769-RTBN18
Battery 1747-BA
Wire Type Copper-90 degrees Celsius
Vibration Operating: 10 to 500 Hz, 5G, 0.030 in. peak-to-peak
Operating Temperature 0° to +60°C (+32° to +140°F)
Wire Size (Solid) 22 to 14 AWG
Wire Size (Stranded) 22 to 16 AWG
Mounting DIN Rail; Panel Mounting
Programming Language Relay ladder, Structured Text, Function block, SFC





Information About 1769-L30ER

The 1769-L30ER is a 5370 L3 CompactLogix controller that features 1MB user memory, Dual Ethernet Communication port and single USB port.

The integral communication ports support multi-node and point-to-point interface. Ethernet is the primary communication port used by this device for performing data exchange to a variety of devices. This port supports linear, ring, star topologies. Up to 16 nodes may be connected to this controller. These nodes may compose of Human Machine Interface (HMI), Supervisory Control and Data Acquisition (SCADA), databases, converters, gateways, controllers and other devices. These embedded ports also function as an embedded switch which means the same network traffic is experienced on the dual ports of the controller.

There are Two (2) ways to assign IP address to the controller. First, using a BOOTP-DHCP utility of Allen-Bradley. This tools searches for the unique IP address of the device and assigns it with the specified IP address.

The 1769-L30ER controller supports installation of up to Eight (8) 1769 Compact I/O modules. Additionally, up to Three (3) expansion banks may be installed to further expand and maximize the capability of the controller.

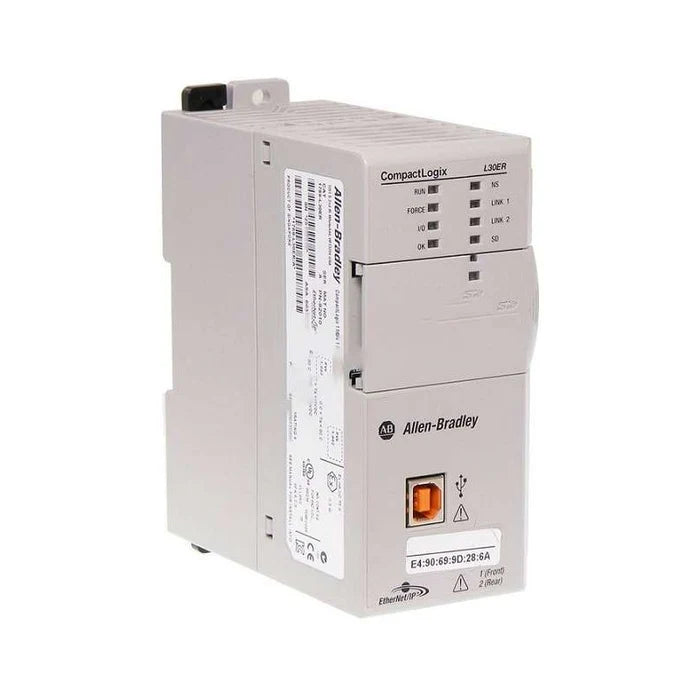

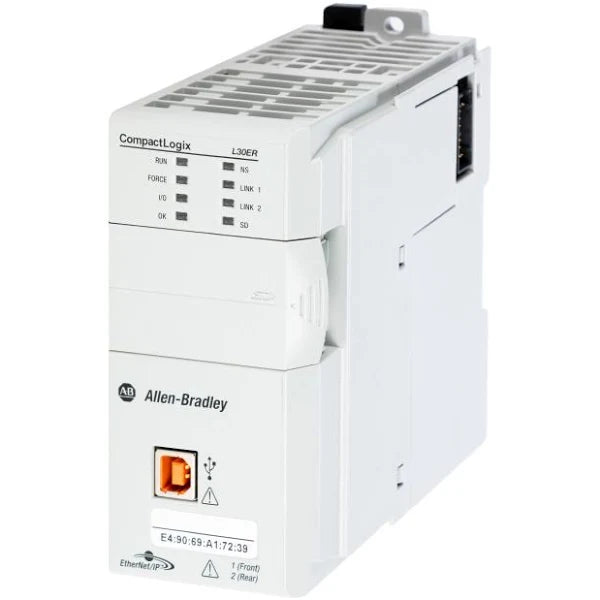

The controller is provided with status indicators such as RUN, FORCE, BAT, OK, I/O. These LED indicators are visible to the user and provides feedback to the controller’s operation.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The Allen-Bradley 1769-L30ER is a CompactLogix packaged controller from the 5370 CompactLogix family. This controlled has embedded 1MB memory, Two (2) Ethernet communication ports, and One (1) USB port. It supports up to Eight (8) Compact I/O modules and supports Three (3) expansion banks.



Technical Specifications



Brand Allen-Bradley
Series A and B
Part Number 1769-L30ER
Manufacturer Rockwell Automation
Product Line CompactLogix
Product Type Programmable Automation Controller
Module Type Processor Module
Communication ports Two (2) Ethernet I/P; 1 USB
Communication Ethernet
No. of Ethernet Nodes 16
Memory 1 MB
Maximum number of I/O modules supported 8 Modules
Maximum number of I/O banks supported 3 banks
Shipping Dimensions 11 x 8 x 6 inches
Power supply distance rating 4
Programming cable RJ45 connector according to IEC 60603-7
Replacement Terminal Block Part Number 1769-RTBN18
Battery 1747-BA
Wire Type Copper-90 degrees Celsius
Vibration Operating: 10 to 500 Hz, 5G, 0.030 in. peak-to-peak
Operating Temperature 0° to +60°C (+32° to +140°F)
Wire Size (Solid) 22 to 14 AWG
Wire Size (Stranded) 22 to 16 AWG
Mounting DIN Rail; Panel Mounting
Programming Language Relay ladder, Structured Text, Function block, SFC





Information About 1769-L30ER

The 1769-L30ER is a 5370 L3 CompactLogix controller that features 1MB user memory, Dual Ethernet Communication port and single USB port.

The integral communication ports support multi-node and point-to-point interface. Ethernet is the primary communication port used by this device for performing data exchange to a variety of devices. This port supports linear, ring, star topologies. Up to 16 nodes may be connected to this controller. These nodes may compose of Human Machine Interface (HMI), Supervisory Control and Data Acquisition (SCADA), databases, converters, gateways, controllers and other devices. These embedded ports also function as an embedded switch which means the same network traffic is experienced on the dual ports of the controller.

There are Two (2) ways to assign IP address to the controller. First, using a BOOTP-DHCP utility of Allen-Bradley. This tools searches for the unique IP address of the device and assigns it with the specified IP address.

The 1769-L30ER controller supports installation of up to Eight (8) 1769 Compact I/O modules. Additionally, up to Three (3) expansion banks may be installed to further expand and maximize the capability of the controller.

The controller is provided with status indicators such as RUN, FORCE, BAT, OK, I/O. These LED indicators are visible to the user and provides feedback to the controller’s operation.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
