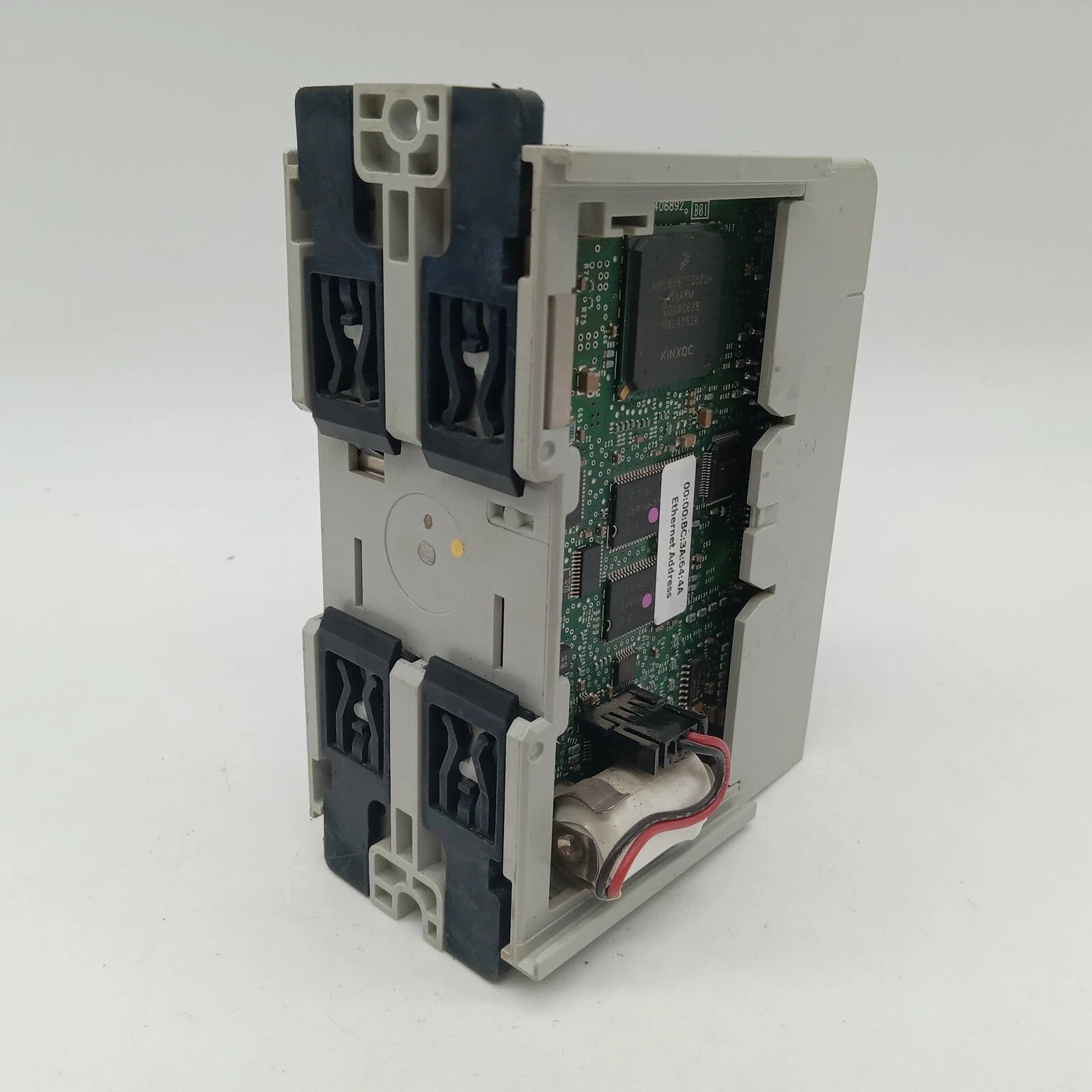

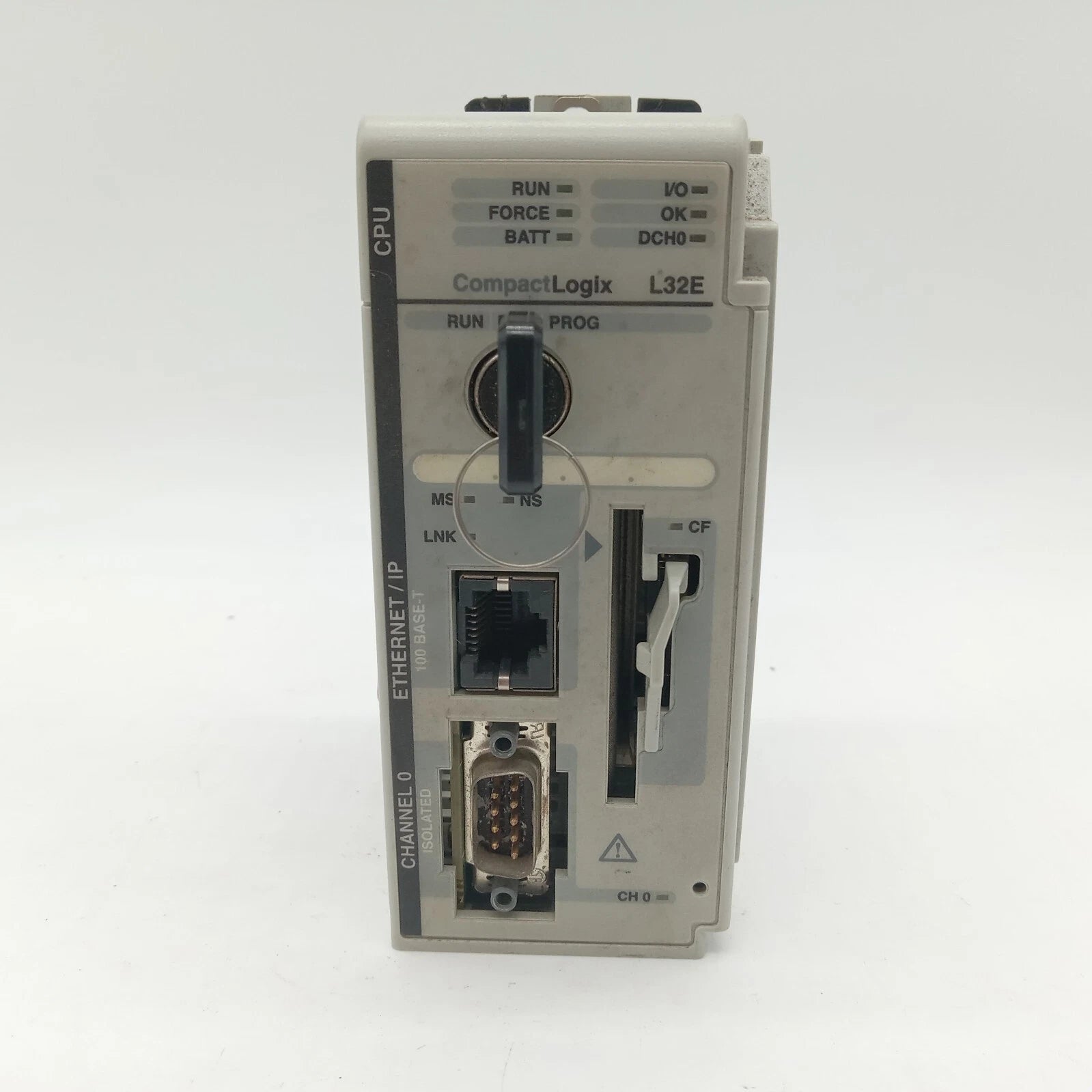

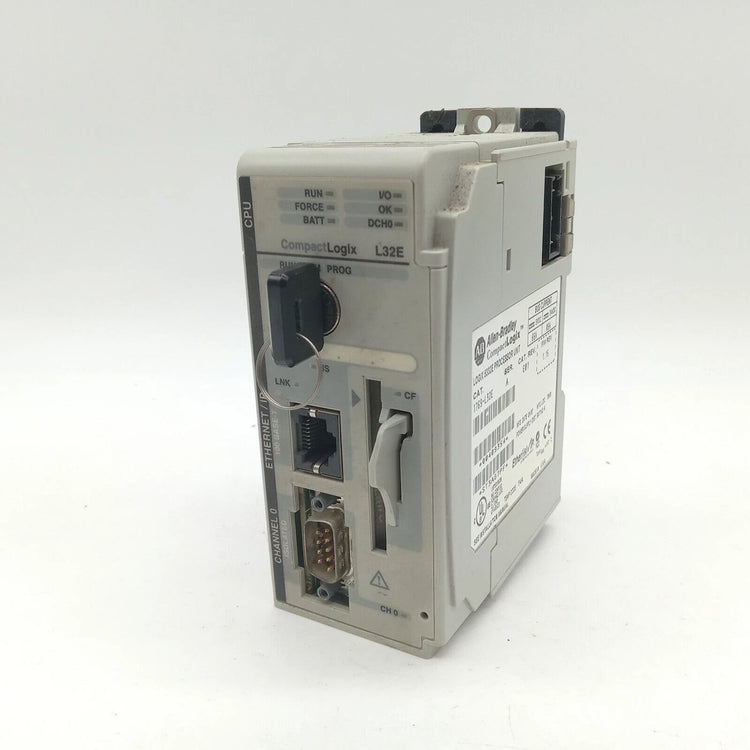

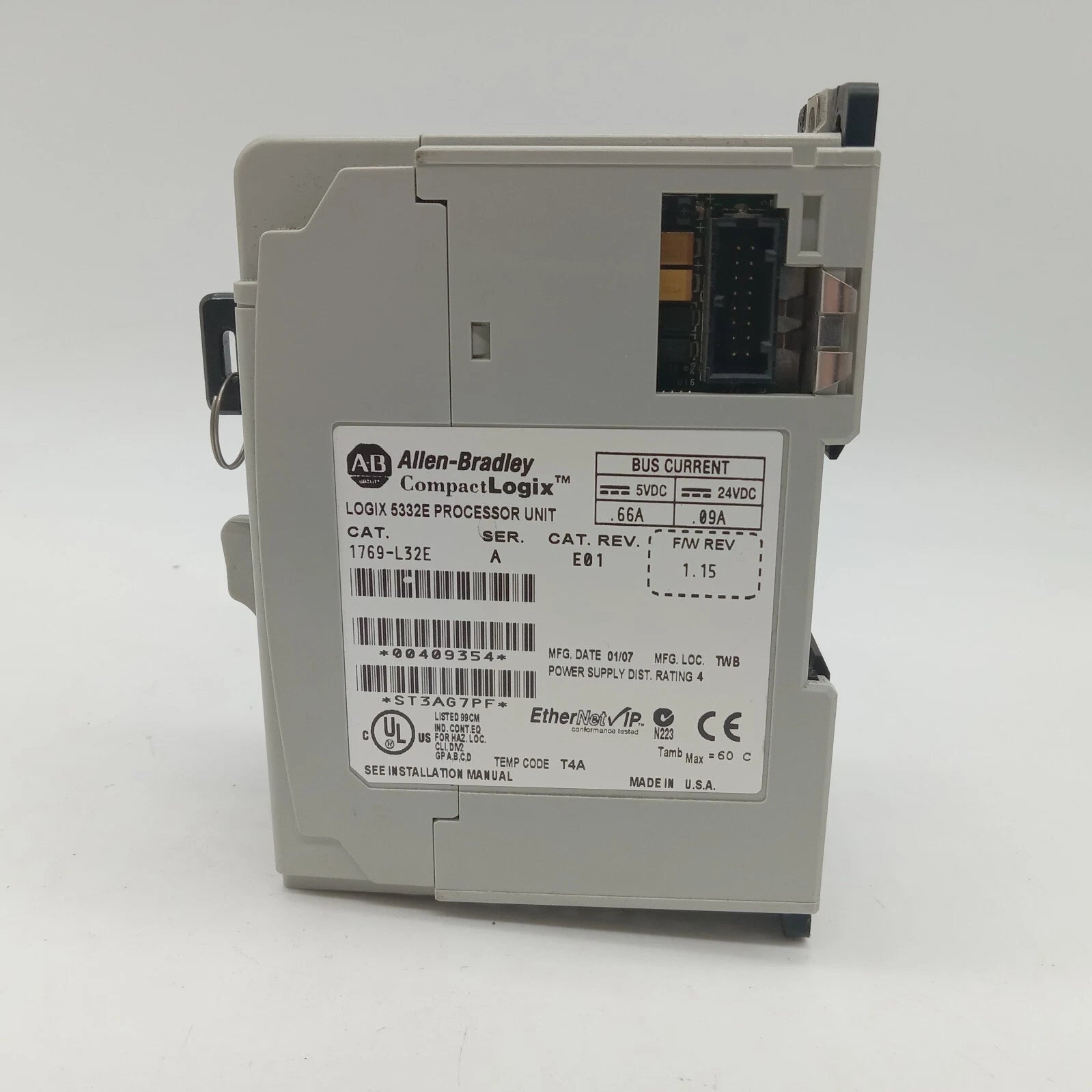

Part #: 1769-L32E Manufactured by: Allen-Bradley
Regular price
$889.00
Sale price
$889.00
Regular price
12 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Allen Bradley 1769-L32E is a CompactLogix Ethernet Processor, with a 750 Kilobyte memory capacity. This Compactlogix p...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 1769-L32E
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 1769-L32E

Description / Specifications

Description

The Allen-Bradley 1769-L32E is a 1769 CompactLogix controller from the 5370 CompactLogix family. This controller has embedded 750Kbytes memory, One (1) Ethernet and One (1) RS232 communication port. It supports up to Sixteen (16) Compact I/O modules and supports up to Three (3) expansion banks.



Technical Specifications



Condition New / Never Used Surplus
Brand Allen-Bradley
Series A and B
Part Number 1769-L32E
Manufacturer Rockwell Automation
Product Type Programmable Automation Controller
Module Type Processor Module
Communication ports 1 RS232; 1 Ethernet
Communication Ethernet/IP
Supported Protocols DH485; DF1; ASCII; EtherNet
Memory 750 KB
Maximum number of I/O modules supported 16 Modules
Maximum number of I/O banks supported 3 banks
Shipping Dimensions 8 x 8 x 5 inches
Power supply distance rating 4
Battery 1747-BA
Programming cable 1747-CP3 / 1756-CP3
Wire Type Copper-90 degrees Celsius
Wire Size (Solid) 22 to 14 AWG
Vibration: Operating 10 to 500 Hz, 5G, 0.030 in. peak-to-peak
Modules Supported 16 I/O Modules
Operating Temperature 0° to +60°C (+32° to +140°F)
Wire Size (Stranded) 22 to 16 AWG
Programming Language Relay ladder, Structured Text, Function block, SFC
Mounting DIN Rail; Panel Mounting
Certifications c-UL-us; CE; C-Tick; CI





Information About 1769-L32E

The CompactLogix modular controller with part number 1769-L32E is a Programmable Automation Controller (PAC) that is manufactured by Allen-Bradley. This controller is typically used in machine control and medium sized process applications. The controller has an integrated One (1) RS232 and One (1) Ethernet communications port.

The default configuration of the RS232 interface are DF1 full-duplex, 19.2 Kbps, no parity, Station Address 0, No Handshaking, BCC error detection, Auto Detect embedded responses, 8 Data bits and 1 Stop bits. This default configuration may be manually configured to establish initial communication to the device. If used with RSLinx, auto-configure maybe used to automatically detect the communication settings. This same RS232 port may also be configured as ASCII protocol interface to connect to barcode instruments, typically used in manufacturing process.

The ethernet communication requires initial configuration which may be done by using BOOTP-DHCP or by downloading through the RS232 interface. By using BOOTP-DHCP, an ethernet cable is needed to connect the controller to the BOOTP host.

The Allen-Bradley 1769-L32E compact Logix controller comes in a unique, compact, and cost-effective package. It features an integrated One (1) EtherNet and One (1) serial communication port. It can connect to devices through the 1747-CP3 or the 1756-CP3 cable or an Ethernet cable. It has an integral user memory of 750 KB with an expansion option using a CompactFlash card with part number 1784-CF128.

The 1769-L32E has a replaceable battery with appropriate part number of 1769-BA. This controller supports installation of up to Sixteen (16) Compact I/O modules, with a maximum of 3 I/O banks connectable through 2 expansion cables. The 1769-L32E has a (5 Volts) DC draw current of 850 mA and heat dissipation of up to 6.5 Watts. The 1769-L32E can be mounted with ease using either a DIN mount or panel mount method. The DIN mount has an operational shock rating of 30 G and a 50 G non-operational shock rating, while the panel has a 30 G shock rating in the operating mode, and a 50 G shock rate in the non-operating mode.

The 1769-L32E controller has a vibration rating of 5 G in the operating mode. It can resist a mounting torque force of 1.1 to 1.8 N-m. The 1769-L32E has a 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) operating temperature range and a -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit) storage temperature range, and a non-condensing relative humidity range of 0 to 95%. This Logix controller has Group 1 certified emission (CISPA11) levels and it has a distinct open-style enclosure. The recommended wire size for a stranded wire is between 22 and 16 AWG, while a solid wire should be rated between 22 and 14 AWG. This module weighs around 2 pounds when it is shipped and measures 8 x 8 x 5 inches.

The CompactLogix 1769 series may serve as migration platform for legacy Allen Bradley PLC series, PLC5 and SLC500. The wide range of CompactLogix 1769 products including 1769-L32E, ensures that previous processor capabilities are maintained and enhanced.

Up to Sixteen (16) Compact I/O modules may be installed with the 1769-L32E processor. It also supports expansion by adding up to Three (3) I/O expansion bank. The integral memory of this controller amounts to 750 Kbytes which may be coupled with a non-volatile memory by installing a 1784-CF64 or 1784-CF128 CompactFlash cards. This controller uses a 1769-BA to retain user memory. Avoid complete discharging of the battery as this may result to wiping out the user memory including the user program. Prevent such incident with the use of a non-volatile memory.


Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
