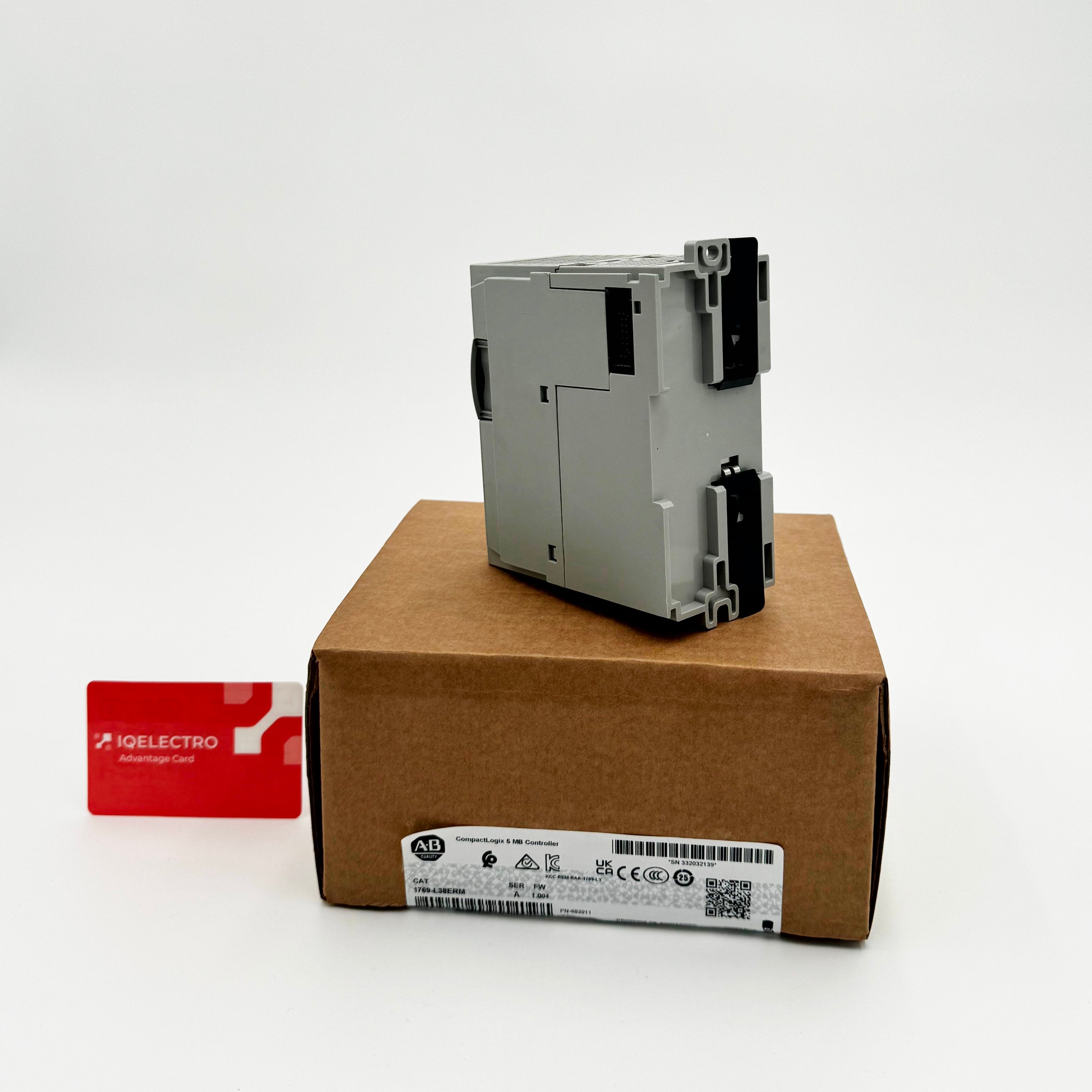

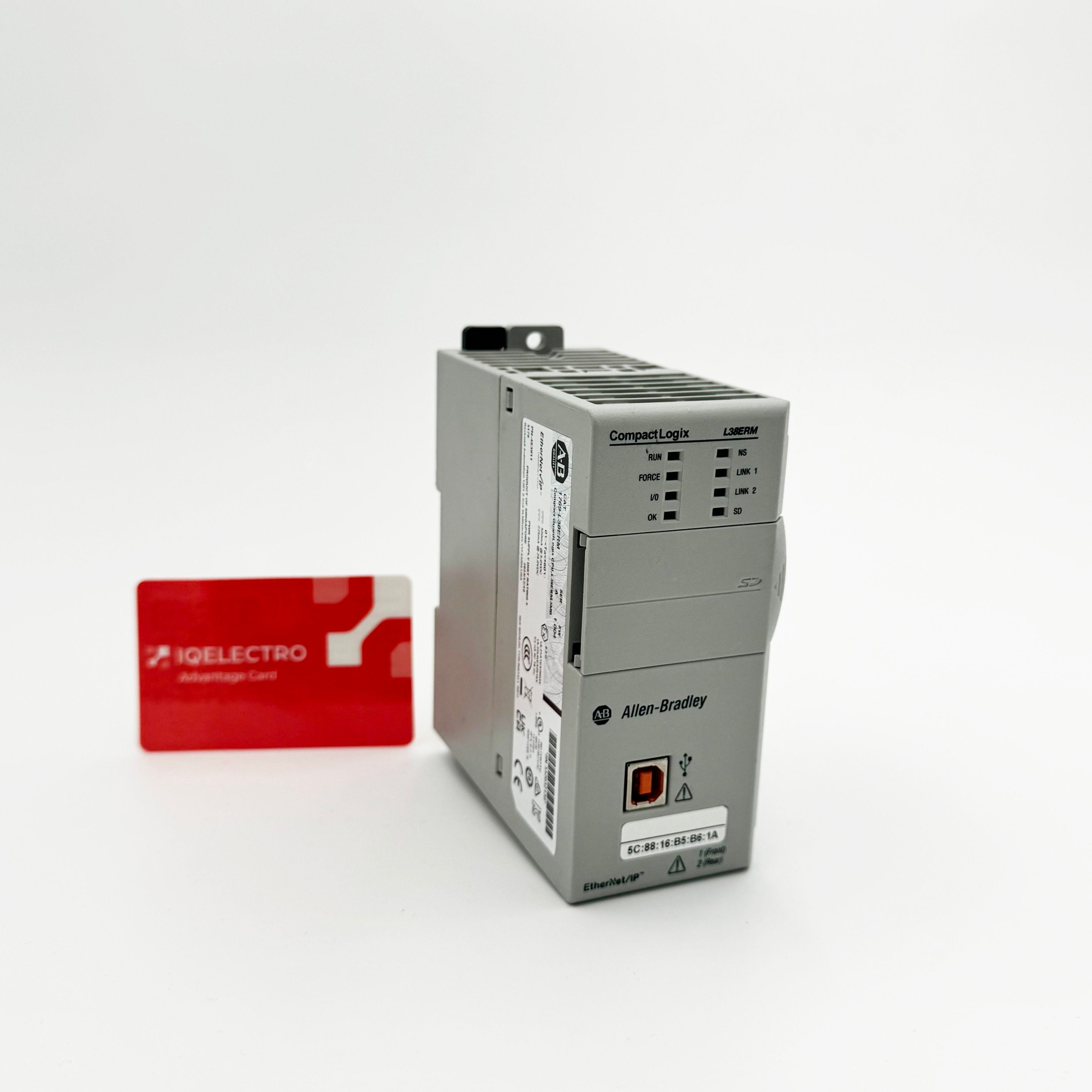

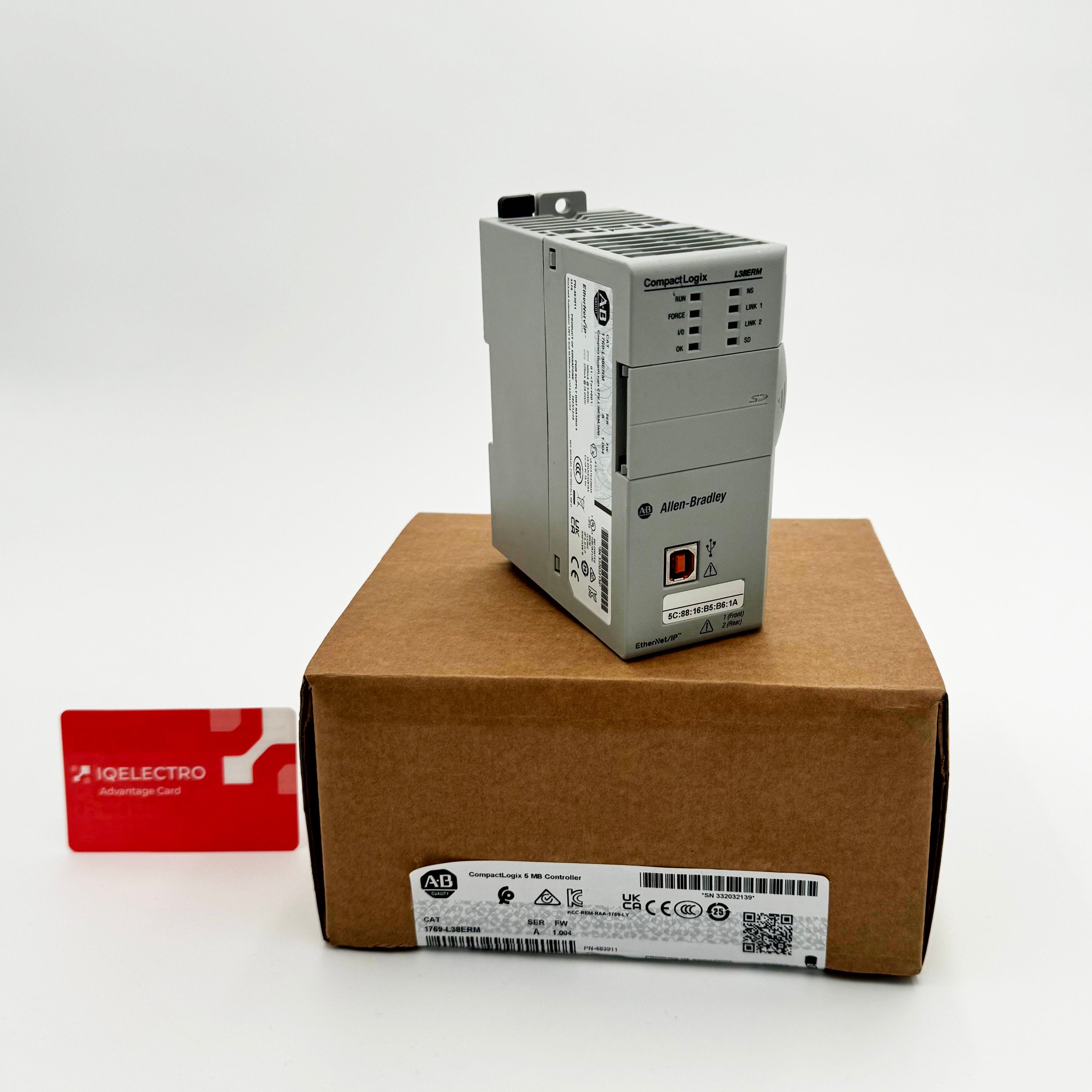

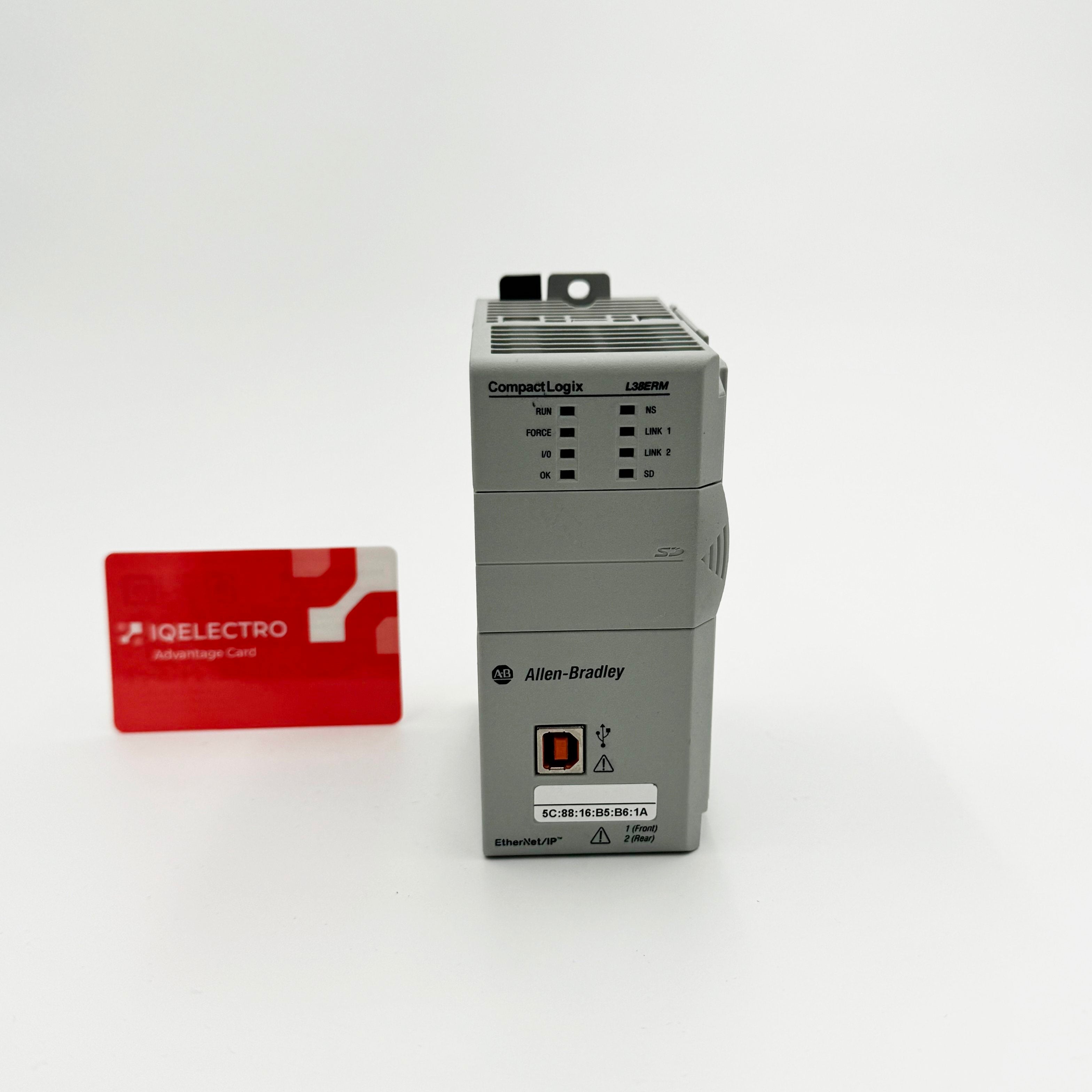

1769-L38ERM | Allen-Bradley | Controller
1769-L38ERM | Allen-Bradley | Controller
Part #: 1769-L38ERM Manufactured by: Allen-Bradley

1769-L38ERM | Allen-Bradley | Controller

Regular price
$5,999.00
Sale price
$5,999.00
Regular price
Never Used Surplus
156 in Stock
Shipping calculated at checkout.
Product Overview
The Allen-Bradley 1769-L38ERM CompactLogix 5370 Ethernet Controller is a highly capable processing unit designed for indus...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: 1769-L38ERM
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
1769-L38ERM | Allen-Bradley | Controller
    1769-L38ERM | Allen-Bradley | Controller
1769-L38ERM | Allen-Bradley | Controller
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: 1769-L38ERM

Description / Specifications

Description

The Allen-Bradley 1769-L38ERM CompactLogix 5370 Ethernet Controller is a high-performance processor module designed for industrial automation applications. It features dual Ethernet connectivity with DLR capability, facilitating reliable network communication. With 5MB of memory capacity, this controller provides ample storage for program execution and data handling tasks.

Equipped with 1 USB programming/downloading port and 2 EtherNet/IP ports, the 1769-L38ERM offers versatile connectivity options for seamless integration into control systems. Its support for 30 I/O expansion modules enables scalable expansion of I/O capabilities, accommodating diverse automation requirements.

With the capability to handle up to 80 Ethernet IP nodes, this controller ensures efficient network management and data exchange within industrial environments. Additionally, it supports 16-axis CIP motion with kinematics function, allowing for precise control and synchronization of motion applications.



Technical Specifications



Specifications





Part #

1769-L38ERM

Manufacturer

ALLEN BRADLEY

Category

PLCs/Machine Control

Subcategory

PLC Module/Rack

Depth

155 mm

Front installation possible

yes

Height

239 mm

Memory size

5000 kByte

Model

Compact

Number of HW-interfaces industrial Ethernet

2

Number of HW-interfaces RS-232

0

Number of HW-interfaces USB

1

Number of relay outputs

0

Performance level acc. to EN ISO 13849-1

Level e

Rail mounting possible

yes

SIL according to IEC 61508

3

Supporting protocol for Data-Highway

no

Supporting protocol for EtherNet/IP

yes

Supporting protocol for MODBUS

no

Supporting protocol for SERCOS

no

Supporting protocol for TCP/IP

yes

Wall mounting/direct mounting

no

Width

234 mm

With display

yes

Memory

5 MB

I/O

30

Ethernet

80

Axis

16

Ethernet Configuration

Dual with DLR capability

Motion Control

CIP motion and kinematics function

SD Card

Standard 1 GB, expandable up to 2 GB







Information About 1769-L38ERM



The Allen-Bradley 1769-L38ERM CompactLogix 5370 Ethernet Controller is an advanced processing unit designed for industrial automation applications. Featuring robust specifications, it offers high-performance capabilities suitable for various control and motion tasks.

As part of the CompactLogix 5370 series, the 1769-L38ERM module operates at the L3 Ethernet Processor level, providing reliable processing power for demanding industrial environments. It incorporates a dual Ethernet configuration with DLR (Device Level Ring) capability, ensuring network redundancy and enhanced reliability in communication systems.

With a memory capacity of 5MB, the 1769-L38ERM can efficiently handle complex control algorithms, data processing, and program execution. This ample memory space enables seamless operation and flexibility in managing diverse automation tasks.

The module is equipped with essential connectivity features, including a USB port dedicated to programming and downloading tasks. Additionally, it boasts two EtherNet/IP ports, facilitating seamless integration into Ethernet-based industrial networks.

For expansion capabilities, the 1769-L38ERM supports up to 30 I/O expansions, allowing users to scale their control systems according to specific application requirements. Moreover, it accommodates up to 80 Ethernet IP nodes, enabling extensive network connectivity and data exchange across distributed systems.

One of the standout features of the 1769-L38ERM is its support for 16 Axis CIP motion with Kinematics function. This functionality enables precise motion control and synchronization of multiple axes, enhancing the efficiency and accuracy of motion-based applications.





Manufacturer information
