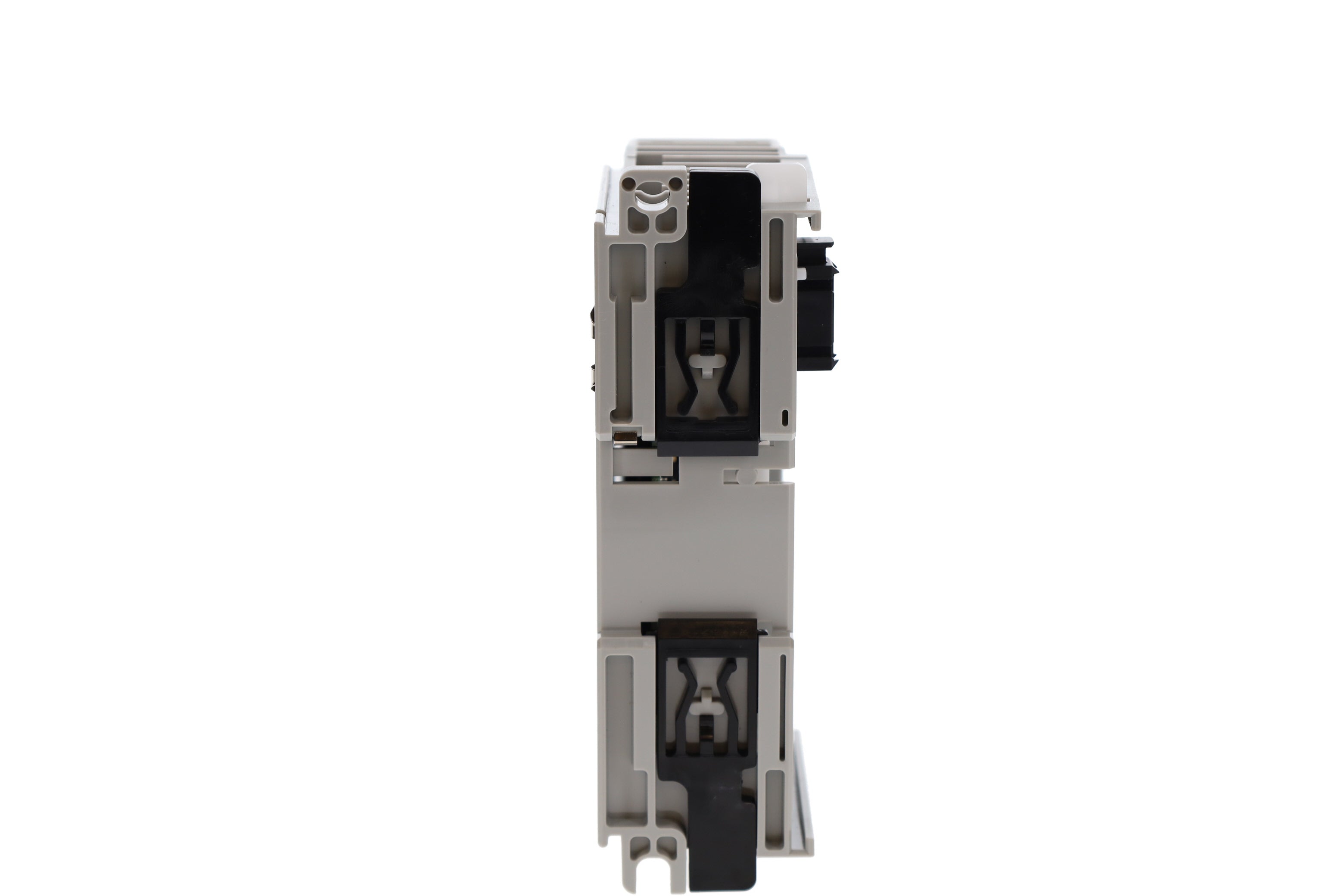

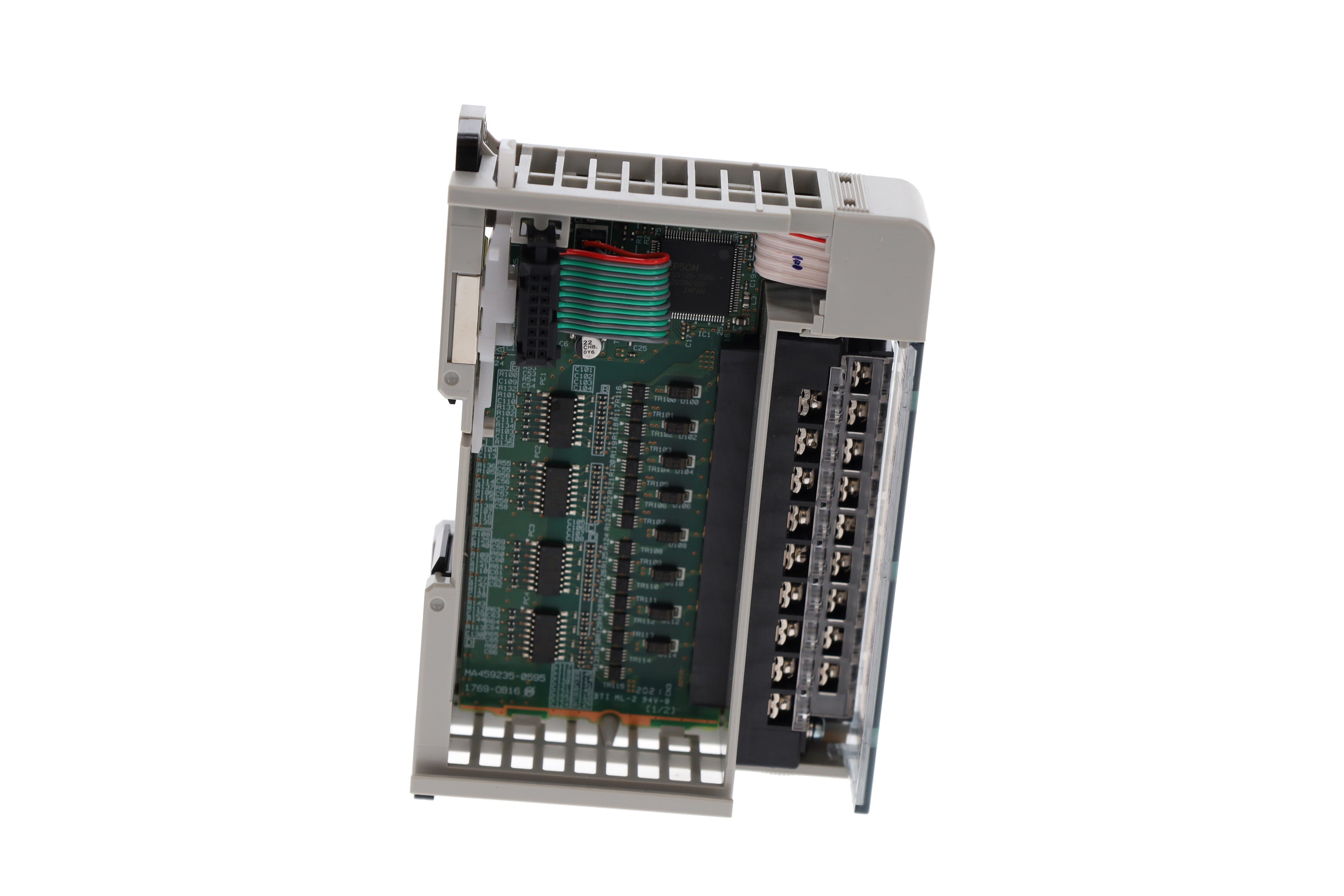

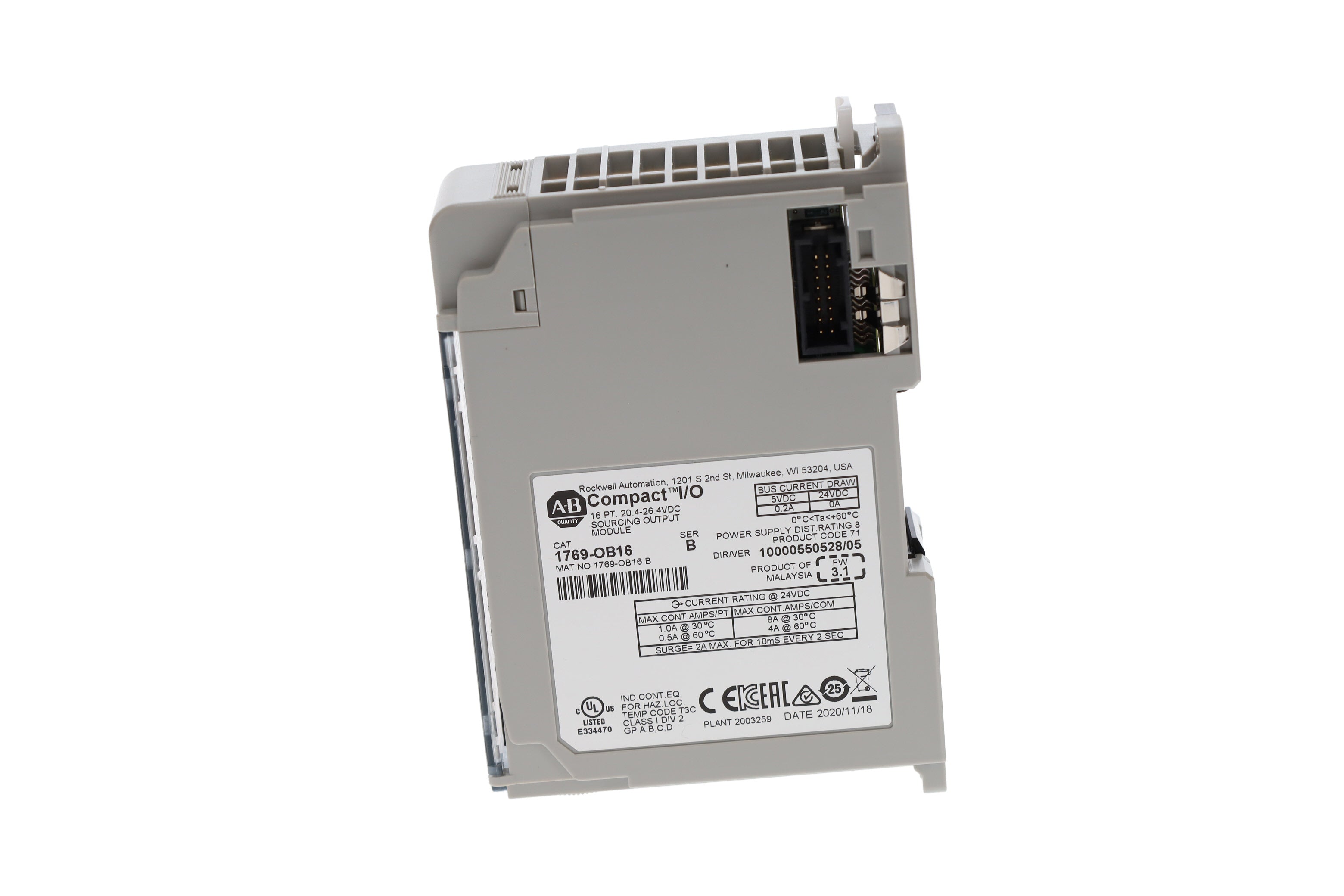

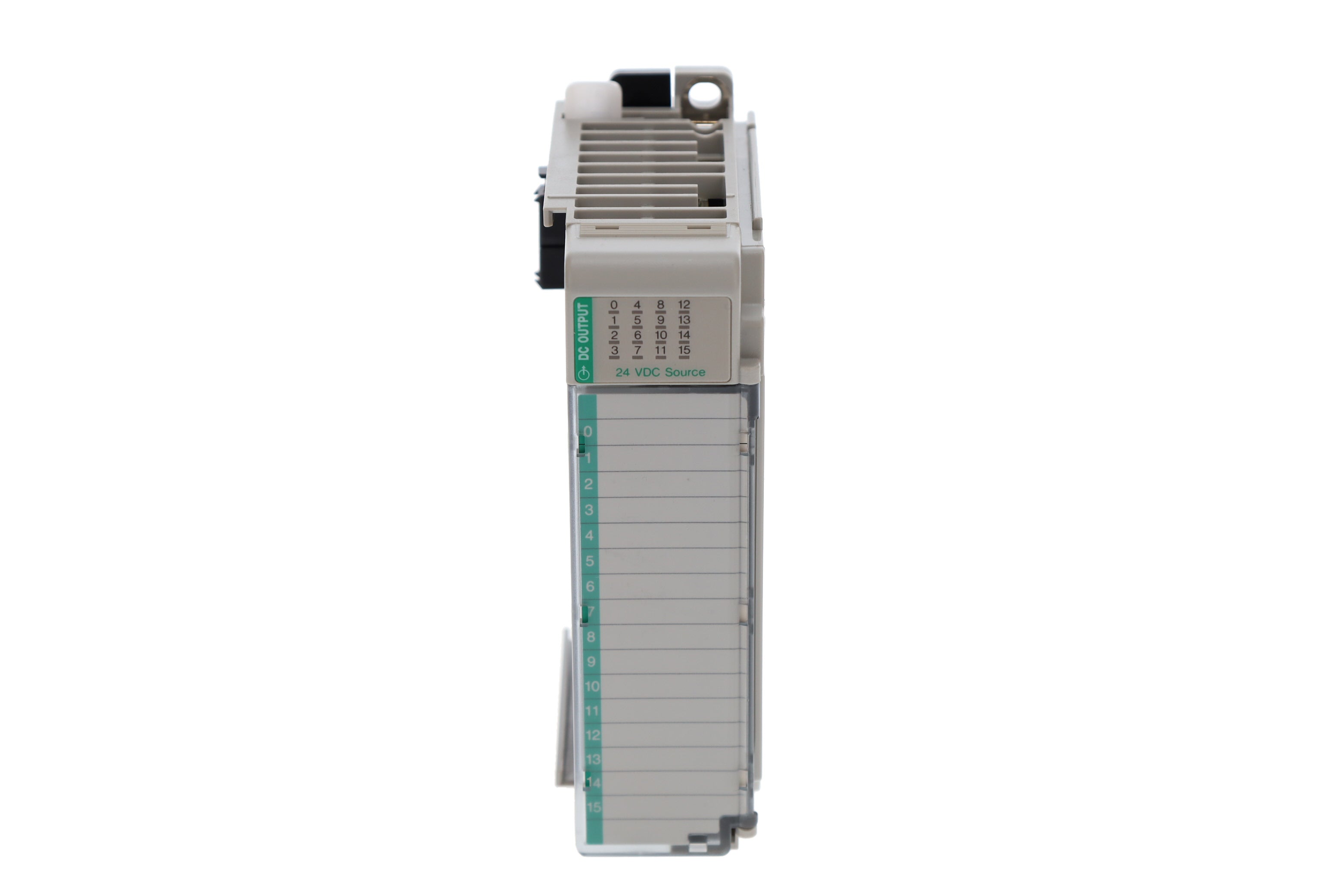

1769-OB16 | Allen-Bradley CompactLogix 16 Point 24 VDC Sourcing Output Module
- Regular price
- $225.00
- Sale price
- $225.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1769-OB16
Description
The 1769-OB16 is a CompactLogix Discrete output module which operate at a voltage category of 24VDC at a frequency of 47 to 63 Hz. This module has Sixteen (16) outputs in a single group. This module is compatible for use with a 1769 CompactLogix chassis or MicroLogix 1500.
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | Allen-Bradley |
| Series | A and B |
| Part Number | 1769-OB16 |
| Manufacturer | Rockwell Automation |
| Product Family | Compact I/O |
| Product Type | Discrete Output Module |
| Product Line | CompactLogix |
| Module Type | DC Output Module |
| No. of Outputs | 16 |
| Input Type | Digital Output |
| No. of Groups | 1 |
| Power Supply Distance Rating | 8 |
| Communication Cable | 16-Point |
| Voltage Category | 24V DC source |
| Shipping Dimensions | 8 x 8 x 5 in |
| Operating Voltage range | 20.4…26.4V DC |
| Current per point | 0.5 A @ 60 °C (140 °F) 1.0 A @ 30 °C (86 °F) |
| Power | 24 Volts DC |
| Output delay, On | 0.1 ms |
| Output delay, Off | 1.0 ms |
| Bus Current draw, max | 200 mA |
| Heat Dissipation | 2.11 W |
| Wire Size (Solid) | 22-14 AWG |
| Mounting | DIN rail or panel mount |
| Terminal Block | 1769-RTBN18 (1 per kit) |
| Power Supply | 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4 |
Information About 1769-OB16
The 1769-OB16 compact solid output module is a device by Allen Bradley with 16 outputs alongside a 24-volt DC voltage source. The 1769-OB16 module has a functioning voltage range between 20.4 to 26.4 volts DC, and it has a delay output voltage of 0.1ms and an off-mode delay output of 1.0ms. The 1769-OB16 has a 200mA draw current at 5.1V, and heat dissipation at 2.11Watt. The 1769-OB16 is a module with a 1.0mA leakage current around a 26.4V DC, and an on-state minimum current of 1.0mA.
The 1769-OB16 has a 1.0V (max) drop voltage (on-state) at a 1.0mA, and with a 1.0 Ampere at 30 deg. Celsius (86 deg. Fahrenheit) and a 0.5 Ampere at 60 deg. Celsius (140 deg. Fahrenheit) current per point (max). The 1769-OB16 also has an 8.0 A at 30 deg. Celsius (86 deg. Fahrenheit) and a 4.0 A at 60 deg. Celsius (140 deg. Fahrenheit) current per module (max), and a current of 2.0 A for 10ms repeatable every 2 s (surge). It is fitted with IEC Class 2 reinforced insulation, which guards against voltage as high as 75 volts DC. It has 8 modules, a single slot width, and can be mounted on a DIN rail or a panel mount. The 1769-OB16 module has dimensions of 4.65 x 1.38 x 3.43 in. (118 x 35 x 87 mm), and a weight of 0.61 lb (280 g).
The 1769-OB16 is a MicroLogix 1500 and 1769 CompactLogix controller compatible module. This electronic module is a Sixteen (16) channel 24VDC discrete output module. This module has a single group of outputs typically used to energize electrical loads operating with 24VDC voltage.
This module may also be used to energize AC loads via interposing function. With interposing function, relays are used wherein the output module energizes the relay coil. AC voltage, such as 120 / 240VAC is terminated across the relay’s contacts to allow passage of AC voltage to the connected electrical load.
This module is a single slot module which may be directly installed to the 1769 CompactLogix assembly or MicroLogix 1500 controller. If installed to a CompactLogix controller, the power supply distance rating of 8 modules must be observed. This means any installation of this module must be not greater that 8 modules away from the power supply. If installed with a MicroLogix 1500 controller, the module is installed beside the MocroLogix base module and connects to the backplane via a provided ribbon cable.
This module is compatible for use with any 1769 CompactLogix controller and 1769 CompactLogix Power supplies such as 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4. This module uses a terminal block with part number 1769-RTBN18. This terminal block is shipped along with the module. When wiring the module, use recommended wire sizes of 22-14 AWG for solid wire and 22-16 AWG for stranded wire.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
