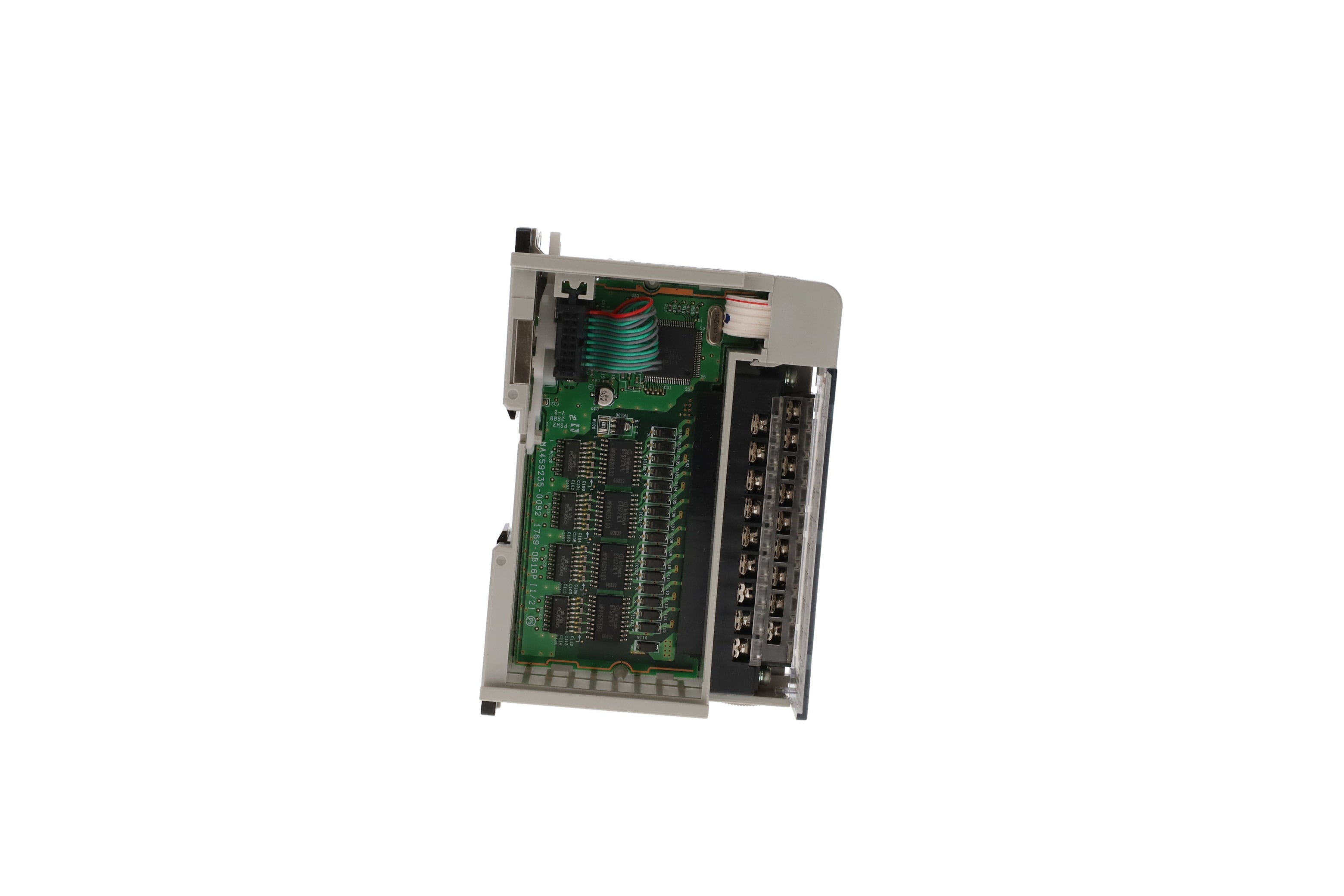

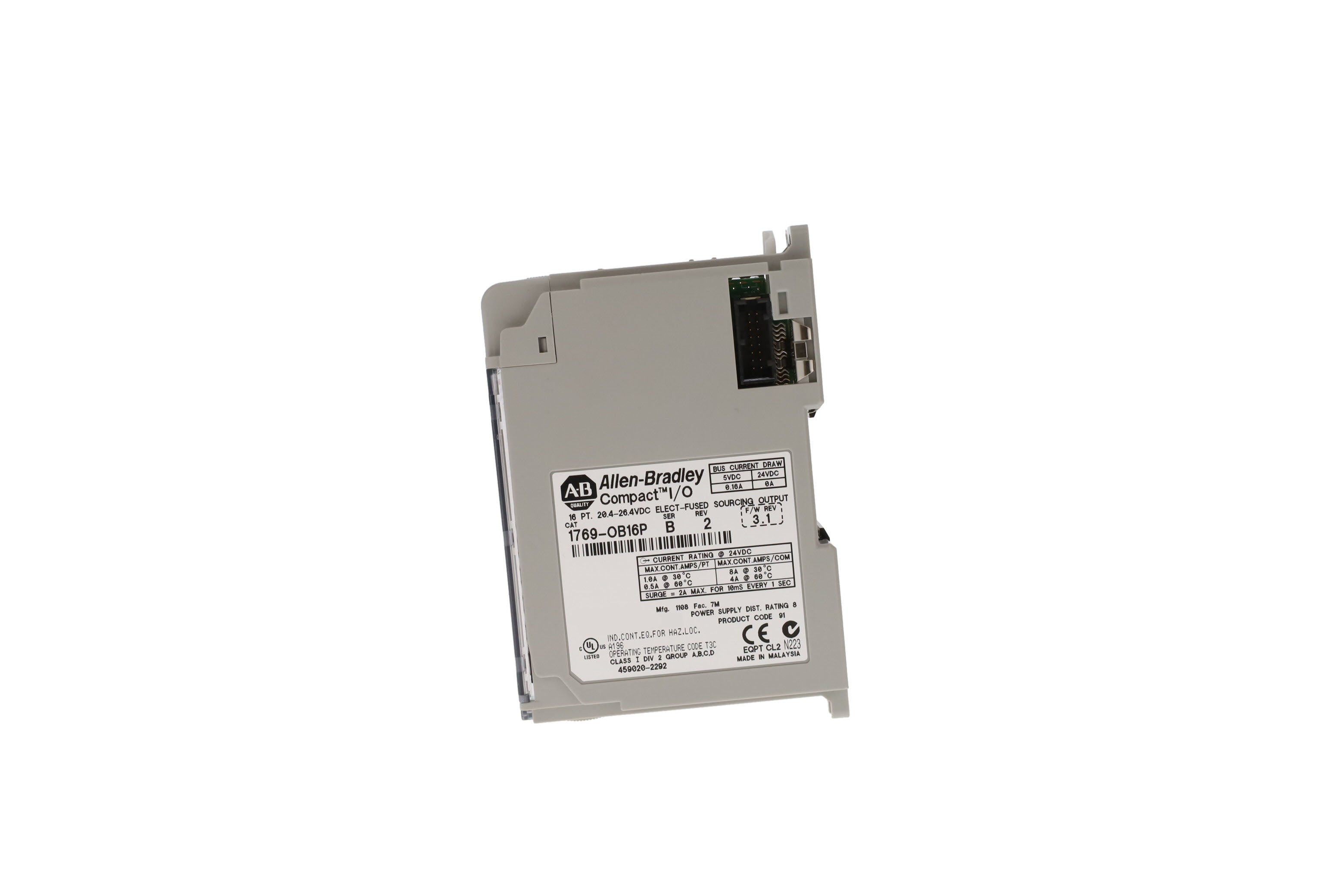

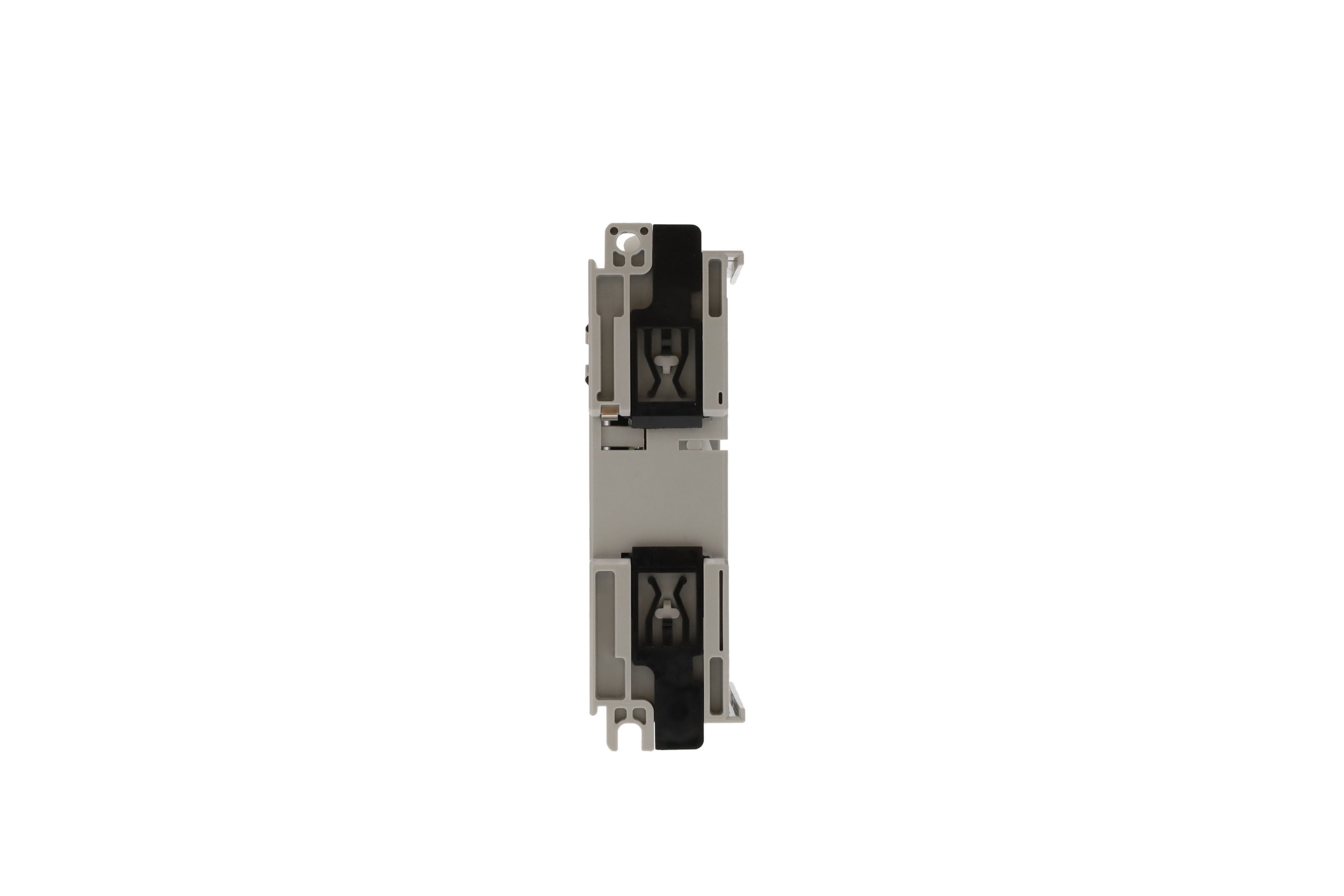

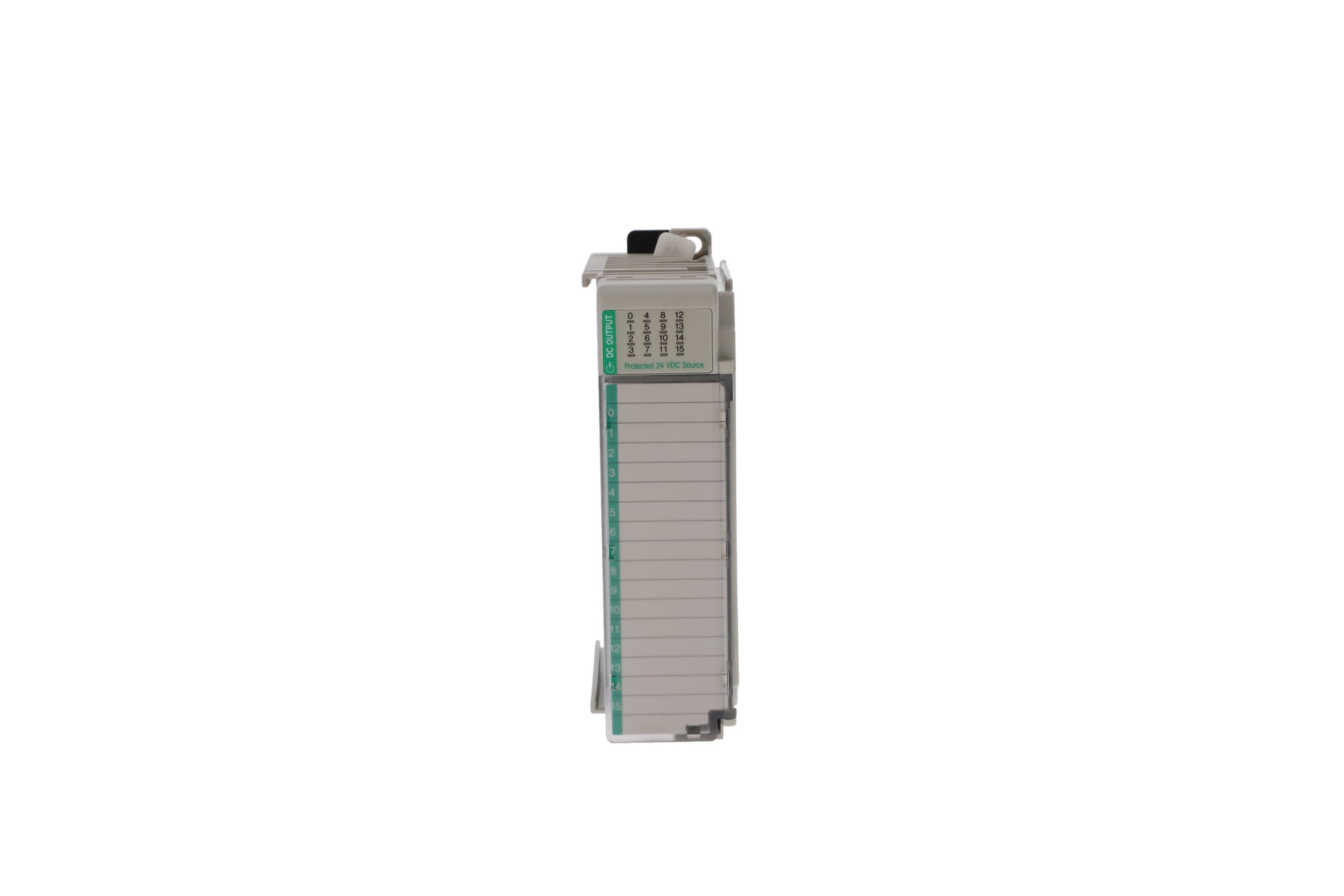

1769-OB16P | Allen-Bradley CompactLogix 16-P 24VDC Fused Sourcing Output Module
- Regular price
- $315.00
- Sale price
- $315.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1769-OB16P
Description
The Allen-Bradley 1769-OB16P is a 1769 Compact I/O Solid-state 24VDC output module. This module features Sixteen (16) protected output channels in a single group. It delivers 20.4-26.4VDC output voltage range. This module is compatible for use with the CompactLogix and MicroLogix 1500 controllers.
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | Allen-Bradley |
| Series | 1769 Compact I/O |
| Part Number | 1769-OB16P |
| Manufacturer | Rockwell Automation |
| Continuous current per module, max | 4.0 A @ 30 °C (30 °C) 8.0 A @ 55 °C (60 °C) |
| Continuous current per point | 0.50 A @ 30 °C (30 °C) 1.0 A @ 55 °C (60 °C) |
| Backplane Current at 5.1 Volts | 160 mA |
| OFF state leakage current | 1.0 mA @ 26.4V DC |
| Output Delay Time, ON to OFF | 2 ms |
| Output Delay Time, OFF to ON | 1 ms |
| Operating Voltage Range | 20.4-26.4VDC |
| Output Voltage | 24VDC |
| No. of groups | One (1) output groups |
| Electronic Protection | Integrated |
| No. of Outputs | 16 |
| Module Type | Solid-state DC Output Module |
| Product Line | CompactLogix |
| Input Type | Digital Output |
| Communication Cable | 16-Point |
| Shipping Dimensions | 8 x 8 x 5 inches |
| Power | 24 Volts DC |
| Power Supply Distance Rating | 8 Modules |
| Voltage Category | 100 to 240 Volts AC |
| Wire Size (Solid) | 22 to 14 AWG |
Information About 1769-OB16P
The 1769-OB16P is a solid-state output module that is part of the 1769 Compact I/O product family. This module is compatible for use with Allen-Bradley’s CompactLogix and MicroLogix controllers. With CompactLogix, it may be installed as a local I/O module as well as an expansion I/O module. With MicroLogix, it may serve as a local I/O expansion module.
The 1769-OB16P delivers an output voltage range of 20.4-26.4VDC in sourcing configuration. Each output channel exhibits signal transition of delay of 1.0 ms for ON transition and 2.0 ms for OFF transition. It has a current draw of 160 mA and provides output current of 0.5 A @ 60 °C (140 °F) or 1.0 A @ 30 °C (86 °F) per channel and 4.0 A @ 60 °C (140 °F) or 8.0 A @ 30 °C (86 °F) per module. It has a Surge current rating of 2.0 A for 10 ms that is repeatable every 1 s.
The 1769-OB16P protection is provided with a 1769-RTB18 Removable Terminal Block (RTB), 1769-RL1 Door label and a 1769-RD Door. This can be separately ordered via individual kits. The power supply distance rating of the 1769-OB16P is Eight (8) module which refers to the location of the module with reference to the power supply. It must not be installed more than the power supply distance rating to maintain a valid CompactLogix configuration. Additional power supply modules such as the 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4 may be used and installed along the CompactLogix assembly to power modules beyond the capability of the primary power supply.
The 1769-OB16P output module has a voltage output delay of 1.0 milliseconds and an output delay (off-mode) of 2.0 milliseconds. It has a 160 mA draw current at 5.1 Volts DC and 2.69 W of heat dissipation. The 1769-OB16P output module also has a leakage current of 1.0 mA at 26.4 Volts DC and a minimum on-state current rating of 1.0 mA. The 1769-OB16P Allen-Bradley output module has a maximum on-state drop voltage rating of 0.5 Volts and it comes with 0.5 Amps of maximum current rating at 60 degrees Celsius (140 degrees Fahrenheit) and 1.0 Amps of maximum current rating at 30 degrees Celsius (86 degrees Fahrenheit) per point. It also has a 4.0 Amps maximum current rating at 60 degrees Celsius (140 degrees Fahrenheit) and an 8.0 Amps maximum current rating at 30 degrees Celsius (86 degrees Fahrenheit) per module, alongside a surge current rating of 2.0 Amps at 10 milliseconds, which is repeated every 1 second. The 1769-OB16P output module is equipped with IEC Class 2 reinforced insulation, which can offer protection from a voltage of up to 75 Volts DC. The 1769-OB16P output module has 8 modules, and approximate dimensions of 4.65 x 1.38 x 3.43 inches. It weighs 0.56 pounds.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
