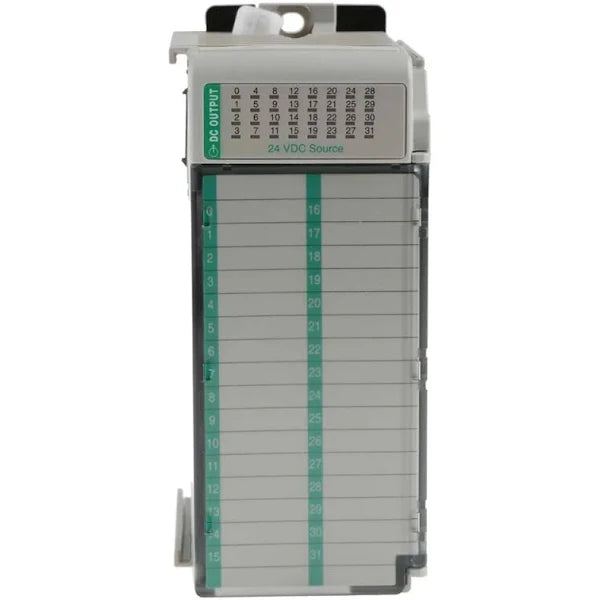

1769-OB32 | Allen-Bradley CompactLogix 32-Point 24V DC Source Output Module
1769-OB32 | Allen-Bradley CompactLogix 32-Point 24V DC Source Output Module
Part #: 1769-OB32 Manufactured by: Allen-Bradley

1769-OB32 | Allen-Bradley CompactLogix 32-Point 24V DC Source Output Module

Regular price
$339.00
Sale price
$339.00
Regular price
Never Used Surplus
156 in Stock
Shipping calculated at checkout.
Product Overview
Allen Bradley CompactLogix 32 PT. 24 DC Power Output I-O Module
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: 1769-OB32
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
1769-OB32 | Allen-Bradley CompactLogix 32-Point 24V DC Source Output Module
    1769-OB32 | Allen-Bradley CompactLogix 32-Point 24V DC Source Output Module
1769-OB32 | Allen-Bradley CompactLogix 32-Point 24V DC Source Output Module
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: 1769-OB32

Description / Specifications

Description

The Allen-Bradley 1769-OB32 is a CompactLogix Discrete output module which operate at a voltage category of 24VDC. This module has Thirty-Two (32) outputs in Two (2) group of Sixteen (16) channel each group. This module is compatible for use with a 1769 CompactLogix chassis or MicroLogix 1500.



Technical Specifications



Brand Allen-Bradley
Series A and B
Part Number 1769-OB32
Manufacturer Rockwell Automation
Product Family Compact I/O
Product Type Discrete Output Module
Product Line CompactLogix
Module Type DC Output Module
Input Type Digital Output
Compatible controllers MicroLogix 1500; CompactLogix controllers
No. of Outputs 32
Outputs 32 Point
No. of Groups 2
Power Supply Distance rating 8
Shipping Dimensions 8 x 8 x 5 inches
Operating Voltage range 20.4…26.4V DC
Enclosure Open
Current per point 0.5 A @ 60 °C (140 °F) 1.0 A @ 30 °C (86 °F)
Wire size (22…14 AWG) solid (22…16 AWG) stranded
Wire Size (Solid) 22 to 14 AWG
Wire type Cu-90 °C (194 °F)
Wire Size (Stranded) 22 to 16 AWG
Replacement Terminal Block 1769-RTBN18
Power Supply 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
Replacement Door 1769-RD
Replacement door label 1769-RL1
Mounting Panel Mount or DIN Rail
Dimensions 118 x 52.5 x 87 mm (4.65 x 2.07 x 3.43 in.) Height with mounting tabs 138 mm (5.43 in.)





Information About 1769-OB32

The 1769-OB32 belongs to the 1769 Compact I/O. This solid-state device is a discrete output sourcing module that is manufactured by Allen-Bradley for use with CompactLogix Controllers as well as MicroLogix 1500 controllers.

The 1769-OB32 is a high-density module that is equipped with Thirty-Two (32) output channels, isolated in Two (2) groups of Sixteen (16) channels. This module is practical for use in applications where a large number of I/Os are existing, with limited panel space. This module occupies 1.5 slots of the CompactLogix or MicroLogix 1500 chassis to allow maximizing supported modules of a specific controller.

The output channel of this module operates at a sourcing input configuration. Individual ON Output delay of each channel measures 0.1 ms and an OFF output delay of 1.0 ms. Each channel may carry a Current of 0.5 A @ 60 °C (140 °F) and 1.0 A @ 30 °C (86 °F).

The 1769-OB32 occupies a 32-Bit register. By accessing the module register, monitoring or I/O forcing may be enabled to support commissioning of the component.

When wiring this module, use wire sizes of 22 - 14 AWG for solid wire and 22 - 16 AWG for stranded wire. Install this module beside any adjacent Compact I/O module. Ensure that connection to the backplane by ensuring that the mounting tabs are properly aligned.

The Allen-Bradley 1769-OB32 is a Compact I/O module which is a solid-state 24VDC output module. This output module has Thirty-Two (32) channels with Two (2) groups of Sixteen (16) channels each. This module is wired in sourcing configuration to provide. The 1769-OB32 has a 20.4 to 26.4 Volts DC operational voltage range, and an output delay time of 0.5 milliseconds (on-mode) or 4 milliseconds (off-mode). It has a 3000 mA current draw at 5.1 Volts and a maximum heat dissipation of 4.5 Watts. The 1769-OB32 module has a maximum off-state leakage current of 1.0 mA at 26.4 Volts and a minimum on-state current of 1.0 mA.

The Allen-Bradley 1769-OB32 output module also has a maximum on-state voltage drop of 1.0 VDC at 1 Amp and a maximum current per point of 0.5 Amps at 60 degrees Celsius (140 degrees Fahrenheit), and 1.0 Amps current at 30 degrees Celsius (86 degrees Fahrenheit). The 1769-OB32 has a 2.0 Amps surge current for 10 milliseconds, which repeats every 2 seconds. It is a single slot width module that is normally mounted on a mounting plate or a DIN rail. The module has an approximate weight of 450 grams (0.992 pounds) and measures 118 x 52.5 x 87 millimeters (4.65 x 2.07 x 3.43 inches). It has unique IEC Class 2 reinforced insulation and a 6-module power supply distance. The 1769-OB32 module has a terminal torque screw of 0.68 N-m, a copper wire with 22 by 14 AWG solid wire size, or a 22 by 16 AWG stranded wire size.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
