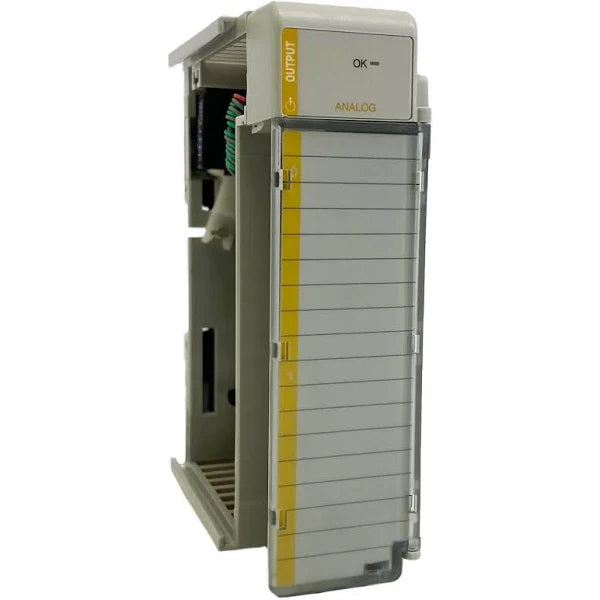

1769-OF2 | Allen-Bradley CompactLogix 2-Ch Analog Current/Voltage Output Module
- Regular price
- $314.00
- Sale price
- $314.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 1769-OF2
Description
The Allen-Bradley 1769-OF2 is a Compact I/O analog output module with Two (2) single-ended output channels. This module is designed to deliver analog voltage signals such as ± 10VDC, 0 to 10VDC, 0 to 5VDC, 1 to 5VDC and analog Current signals such as 0-20 mA and 4-20 mA. This module is compatible for use with MicroLogix 1500 and CompactLogix controllers.
Technical Specifications
| Brand | Allen-Bradley |
| Series | A and B |
| Part Number | 1769-OF2 |
| No. of Outputs | Two (2) Single Ended |
| Analog Ranges | Voltage: ±10V dc, 0 to 10V dc, 0 to 5V dc, 1 to 5V dc Current: 0 to 20 mA, 4 to 20 mA |
| Power Supply Distance rating | 8 |
| Full scale analog ranges | Voltage: ±10.5V dc, -0.5 to 10.5V dc, -0.5 to 5.25V dc, 0.5 to 5.25V dc Current: 0 - 21 mA, 3.2 - 21 mA |
| Resolution | 14 bits (unipolar); 14 bits plus sign (bipolar) |
| Step response | 2.9 ms |
| Conversion Rate | 2.5 ms |
| Current draw @ 5.1V | 120 mA |
| Heat Dissipation | 2. 36 W |
| Calibration | None required (guaranteed by hardware design) |
| Compatible Controllers | MicroLogix 1500; CompactLogix |
| Manufacturer | Rockwell Automation |
| Slot width | 1 |
| Product Line | CompactLogix |
| Module Type | Analog Output Module |
| Input Type | Analog |
| Communication Cable | 2 Point |
| Wire Size (Solid) | 22 to 14 AWG |
| Replacement Terminal Block | 1769-RTBN18 |
| Replacement Door | 1769-RD |
| Mounting | Panel Mount or DIN Rail |
Information About 1769-OF2
The Allen-Bradley 1769-OF2 is a Two (2) channel analog output module. This module is a single-slot width module with each channel capable of providing analog voltage and current signals such as ± 10VDC, 0 to 10VDC, 0 to 5VDC, 1 to 5VDC and 0-20 mA and 4-20 mA. This output module may be used to drive modulating devices, re-transmit analog data to another receiving element such as panel meters and data logger and as input of signal isolators and splitters.
The 1769-OF2 features Two (2) single ended output channels with sigma-delta Digital-to-Analog (DAC) converter. Depending on the configured output signal, the module’s resolution are ±10V dc: Sign + 14 bits, 0.64 mV 0 to +5V dc: Sign + 13 bits, 0.64 mV 0 to +10V dc: Sign + 14 bits, 0.64 mV +4 to +20 mA: Sign + 14 bits, 1.28 µA +1 to +5V dc: Sign + 13 bits, 0.64 mV 0 to +20 mA: Sign + 14 bits, 1.28 µA. Overall, the digital resolution across full range is 14 bits (unipolar); 14 bits plus sign (bipolar) with conversion rate 2.5 ms and step response of 2.9 ms.
The 1769-OF2 output may be linked to Proprotional + Integral + Derivative (PID) controller, used for implementing manual and automatic control of analog control loops. If used with CompactLogix version 20.
The 1769-OF2 has a current load of 10 mA and a restive load on-current output of 0 to 500 ? (inclusive of wire resistance). It has a load-on voltage output range greater 1 k ? at 10 Volts DC and an inductive load per current output of 0.1 mH. The 1769-OF2 has a capacitive load per output voltage of 1 µF. It requires no field calibration and an accuracy margin of ±0.5% (Voltage full range at 25 degrees Celsius or 77 degrees Fahrenheit), and a ±0.35% (Current full range at 25 degrees Celsius (77 degrees Fahrenheit)). The 1769-OF2 compact voltage/current output module has a module error boundary around 0.8%, and an accuracy drift of ±0.0086% per degree Celsius. The output module also has a repeatability and nonlinearity margin of ±0.05%, and an output impedance of 15 ? .
The 1769-OF2 has a ±0.05% offset error margin and a 10ms time to detect an open wire condition. It equipped with short-circuit (21 mA maximum) and over-voltage protection. It has a copper wire with a 22 by 14 AWG solid size and single slot width. The 1769-OF2 has a weight of 0.65 pounds and dimensions of 4.65 by 1.38 by 3.43 inches.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
