Part #: 1769-OF8C Manufactured by: Allen-Bradley
Regular price
$979.00
Sale price
$979.00
Regular price
3 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Allen-Bradley 1769-OF8C is a CompactLogix module designed to provide precise analog current output. It features 8 chan...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 1769-OF8C
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 1769-OF8C

Description / Specifications

Description

The 1769-OF8C output module is an Allen-Bradley/Rockwell Automation output module from the CompactLogix series of I/O modules. It has 8 output channels that are all current outputs. The 1769-OF8C output module's output channels can operate at 0 to 20 milliamps or at 4 to 20 milliamps. It does not have an enclosure and so it should not be used outdoors and it may need to be installed in an enclosure in harsh indoor environments. The 1769-OF8C output module can operate safely at 32 to 140 degrees Fahrenheit or 0 to 60 degrees Celsius.



Technical Specifications



Condition New / Never Used Surplus
Brand Allen-Bradley
Conversion Rate (all channels) max. 5 ms
Resolution 16 bit
Output Current Range 0-21 mA; 3.2 mA - 21 mA
Output Current 0-20 mA / 4-20 mA
No. of Outputs Eight (8) Current outputs
Overall Accuracy ±0.35% full scale at 25°C
Open and Short-Circuit Protection Yes
Maximum Short-Circuit Current 21 mA
Current draw 145 mA at 5VDC; 185 mA at 24V dc
Channel Diagnostics Over- or under-range by bit reporting output wire broken or load resistance high by bit reporting
Manufacturer Rockwell Automation
Part Number/Catalog No. 1769-OF8C
Module Type Analog Output Module
Series 1769 Compact I/O
Enclosure None
Product Line CompactLogix
Replacement Door Part Number 1769-RD
Communication Cable 8 Point
Input Type Output Current
Shipping Dimensions 8 x 8 x 5 inches
Converter Type Delta Sigma
Outputs 8 single-ended
Wire Type Copper-90 degrees
Solid Wire Size 22 to 14 AWG
Stranded Wire Size 22 to 16 AWG
Heat dissipation 2.69 Watts





Information About 1769-OF8C

The Allen-Bradley 1769-OF8C is Compact I/O module. This module is compatible for use with the 1769 and some 1768 CompactLogix controllers as well as with the MicroLogix 1500 controllers. This module is an analog output module, typically used for driving Final Control Elements (FCE) of a control loop as well as deliver signals to receiving and measuring elements.

The 1769-OF8C mainly features Eight (8) Single-ended current output channels, configurable for 0-20 mA and 4-20 mA. It features 16-bit Digital to Analog Converter (DAC), with specific resolution of 15.59 bits, 0.323 µA/bit for 4-20 mA and 15.91 bits, 0.323 µA/bit for 0-20 mA. It has a conversion rate of 5ms on all channels and step response to 63% output of less than 2.9 ms. The analog output range is 0-21 mA and 3.2-21 mA.

Typical Final Control Elements (FCE) that can be driven by the 1769-OF8C are Modulating Control Valves, Variable Frequency Drives (VFD), Positioners and other devices. To be used in automatic control loop, this module may be integrated to a Proportional + Integral + Derivative (PID) controller that is embedded within the processor. Compatible receiving and measuring elements that can receive signal from this device are panel meters, data loggers, signal splitters and other similar type of devices.

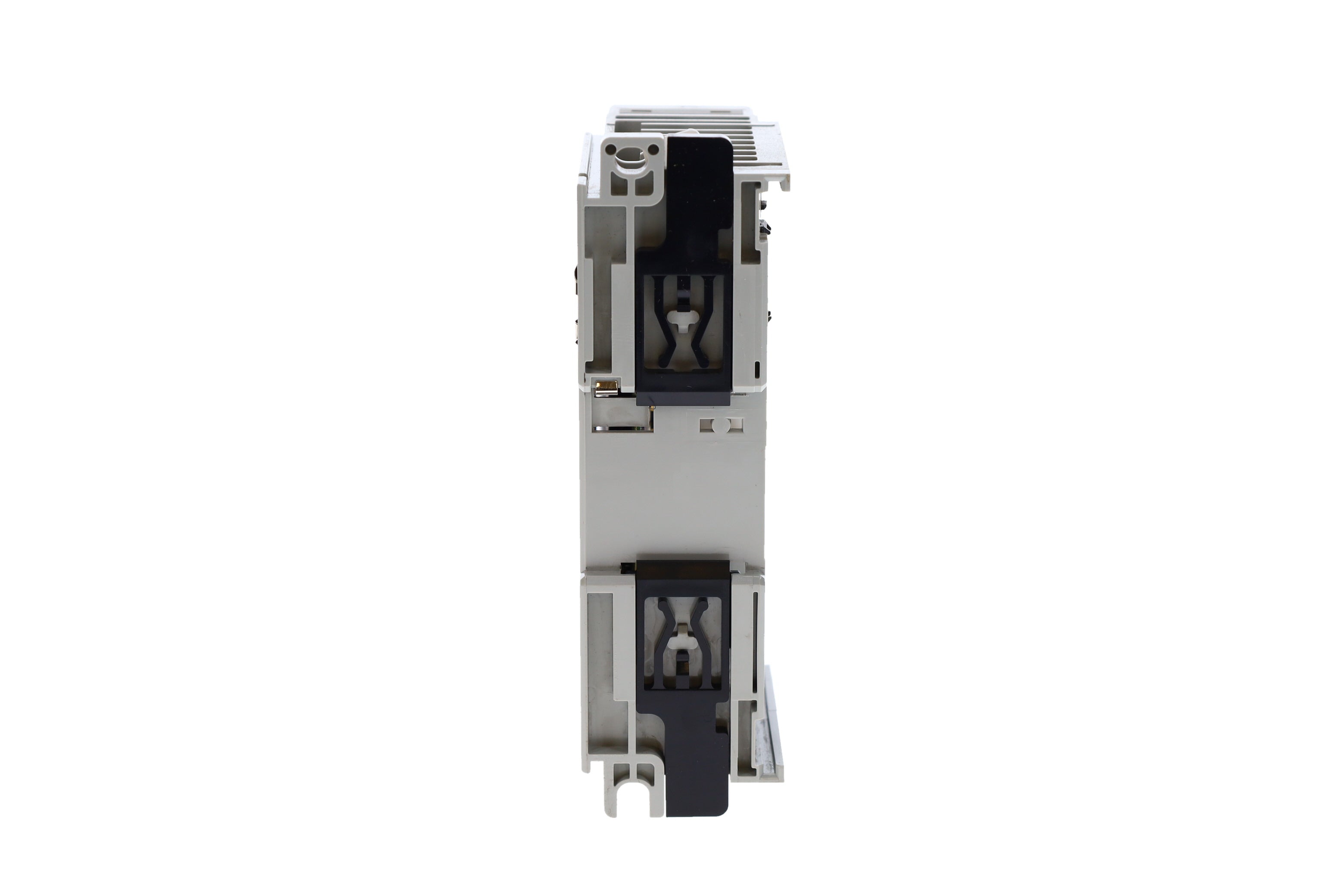

The 1769-OF8C is a single width module, that can be installed along the 1769 and 1768 CompactLogix assembly as local I/O and part of the expansion I/O rack. It may also be used with MicroLogix 1500 controller.

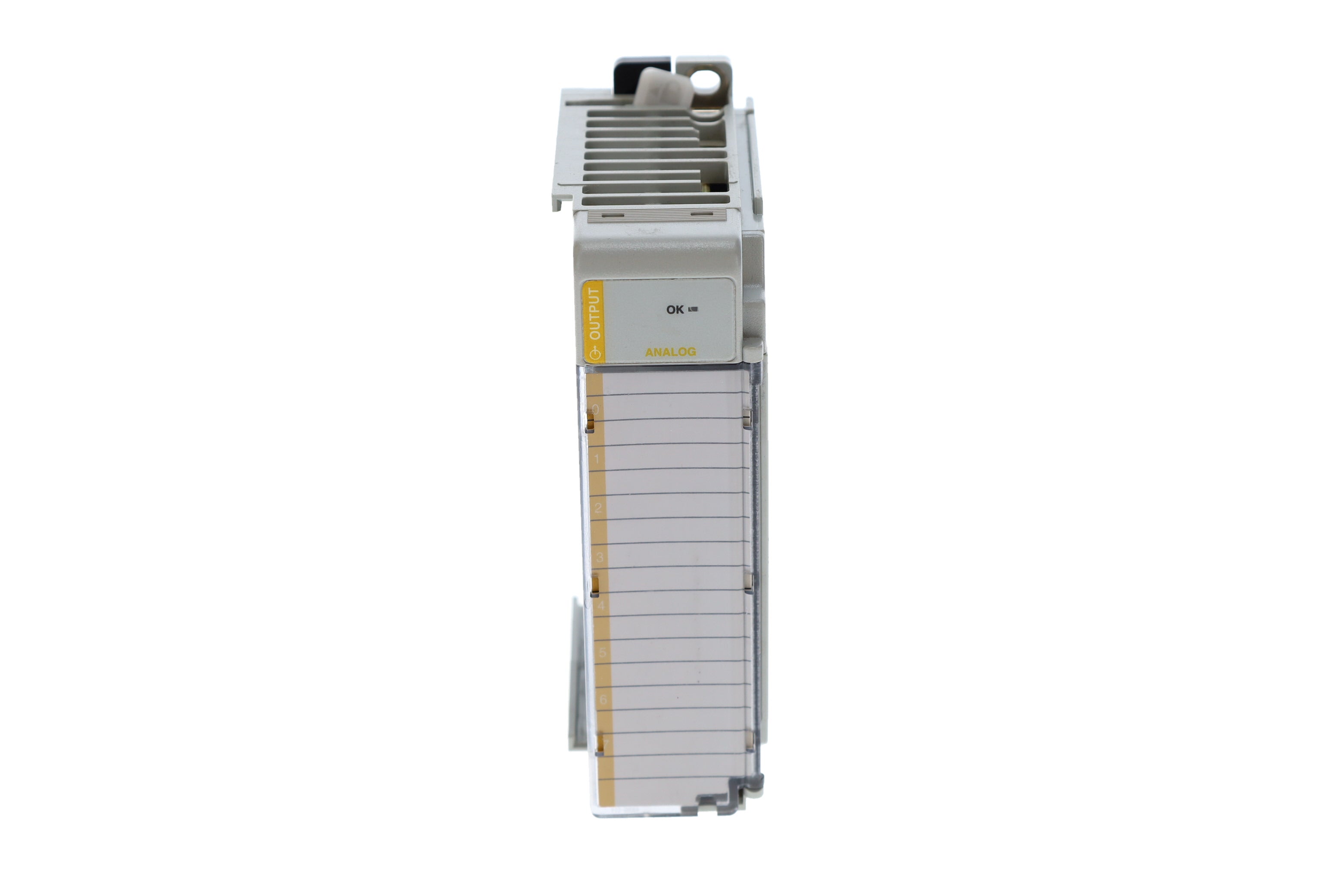

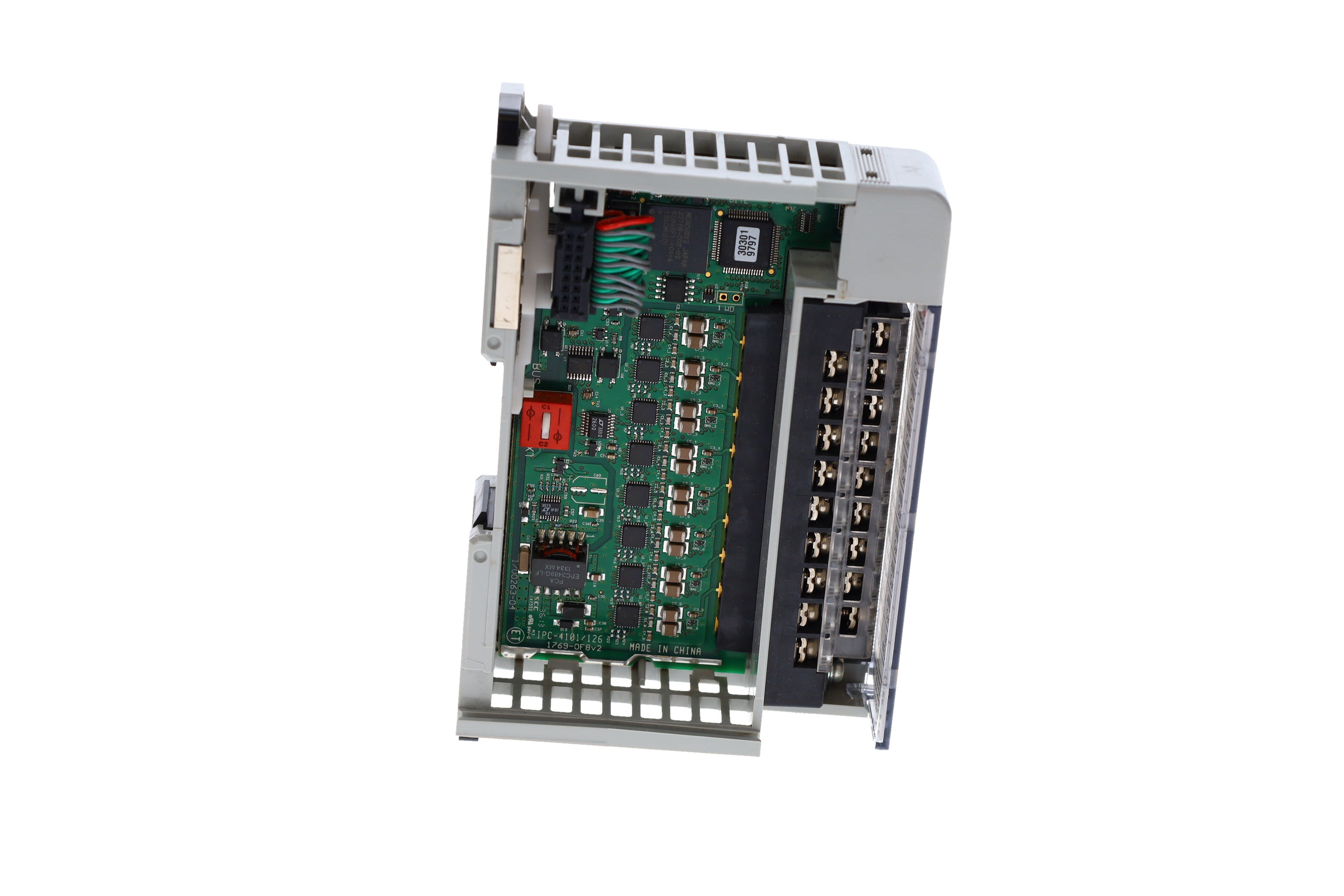

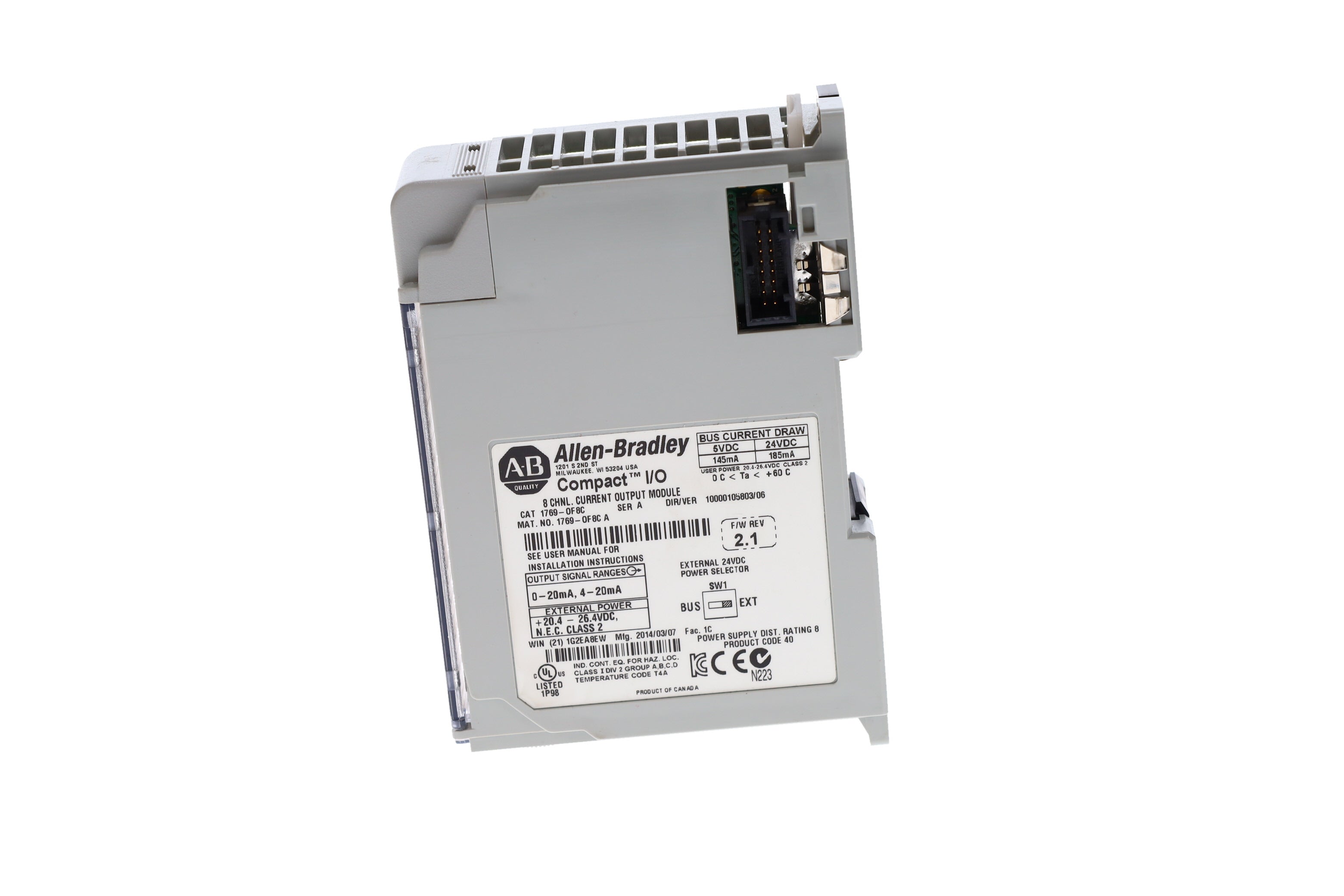

The Allen-Bradley 1769-OF8C can support up to 8 channels of simultaneous analog current output. On the front side of the module, there is one LED indicator that energizes Green when the module is not experiencing problems. This status LED light can warn the users if it detects an open-loop condition. The module also has overcurrent and overvoltage protection features. The 1769-OF8C Compact Logix series current output module requires a 24 Volts DC rated external power supply and it includes channel-to-earth ground isolation. All of the outputs have a 16-bit resolution. The 1769-OF8C output module includes an integral removable terminal block with finger-safe protection for the wiring to the actuators. This terminal block can be found behind a door at the front of the output module. The most common way of wiring this module is by routing it from beneath the module to the output terminals. The 1769-OF8C also has a replacement door kit and it uses a solid copper wire with a 22 by 14 AWG size. The output impedance for the 1769-OF8C is more than 1 Ohm and it is protected from short-circuiting. The module is built to operate at a temperature range of 0 to 60 degrees Celsius. Its accuracy at 25 degrees Celsius is ±0.35% of the full scale. The 1769-OF8C is shipped with an approximate weight of 0.28 kilograms, and it measures 4.65 inches x 1.38 inches x 3.43 inches.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The 1769-OF8C output module is an Allen-Bradley/Rockwell Automation output module from the CompactLogix series of I/O modules. It has 8 output channels that are all current outputs. The 1769-OF8C output module's output channels can operate at 0 to 20 milliamps or at 4 to 20 milliamps. It does not have an enclosure and so it should not be used outdoors and it may need to be installed in an enclosure in harsh indoor environments. The 1769-OF8C output module can operate safely at 32 to 140 degrees Fahrenheit or 0 to 60 degrees Celsius.



Technical Specifications



Condition New / Never Used Surplus
Brand Allen-Bradley
Conversion Rate (all channels) max. 5 ms
Resolution 16 bit
Output Current Range 0-21 mA; 3.2 mA - 21 mA
Output Current 0-20 mA / 4-20 mA
No. of Outputs Eight (8) Current outputs
Overall Accuracy ±0.35% full scale at 25°C
Open and Short-Circuit Protection Yes
Maximum Short-Circuit Current 21 mA
Current draw 145 mA at 5VDC; 185 mA at 24V dc
Channel Diagnostics Over- or under-range by bit reporting output wire broken or load resistance high by bit reporting
Manufacturer Rockwell Automation
Part Number/Catalog No. 1769-OF8C
Module Type Analog Output Module
Series 1769 Compact I/O
Enclosure None
Product Line CompactLogix
Replacement Door Part Number 1769-RD
Communication Cable 8 Point
Input Type Output Current
Shipping Dimensions 8 x 8 x 5 inches
Converter Type Delta Sigma
Outputs 8 single-ended
Wire Type Copper-90 degrees
Solid Wire Size 22 to 14 AWG
Stranded Wire Size 22 to 16 AWG
Heat dissipation 2.69 Watts





Information About 1769-OF8C

The Allen-Bradley 1769-OF8C is Compact I/O module. This module is compatible for use with the 1769 and some 1768 CompactLogix controllers as well as with the MicroLogix 1500 controllers. This module is an analog output module, typically used for driving Final Control Elements (FCE) of a control loop as well as deliver signals to receiving and measuring elements.

The 1769-OF8C mainly features Eight (8) Single-ended current output channels, configurable for 0-20 mA and 4-20 mA. It features 16-bit Digital to Analog Converter (DAC), with specific resolution of 15.59 bits, 0.323 µA/bit for 4-20 mA and 15.91 bits, 0.323 µA/bit for 0-20 mA. It has a conversion rate of 5ms on all channels and step response to 63% output of less than 2.9 ms. The analog output range is 0-21 mA and 3.2-21 mA.

Typical Final Control Elements (FCE) that can be driven by the 1769-OF8C are Modulating Control Valves, Variable Frequency Drives (VFD), Positioners and other devices. To be used in automatic control loop, this module may be integrated to a Proportional + Integral + Derivative (PID) controller that is embedded within the processor. Compatible receiving and measuring elements that can receive signal from this device are panel meters, data loggers, signal splitters and other similar type of devices.

The 1769-OF8C is a single width module, that can be installed along the 1769 and 1768 CompactLogix assembly as local I/O and part of the expansion I/O rack. It may also be used with MicroLogix 1500 controller.

The Allen-Bradley 1769-OF8C can support up to 8 channels of simultaneous analog current output. On the front side of the module, there is one LED indicator that energizes Green when the module is not experiencing problems. This status LED light can warn the users if it detects an open-loop condition. The module also has overcurrent and overvoltage protection features. The 1769-OF8C Compact Logix series current output module requires a 24 Volts DC rated external power supply and it includes channel-to-earth ground isolation. All of the outputs have a 16-bit resolution. The 1769-OF8C output module includes an integral removable terminal block with finger-safe protection for the wiring to the actuators. This terminal block can be found behind a door at the front of the output module. The most common way of wiring this module is by routing it from beneath the module to the output terminals. The 1769-OF8C also has a replacement door kit and it uses a solid copper wire with a 22 by 14 AWG size. The output impedance for the 1769-OF8C is more than 1 Ohm and it is protected from short-circuiting. The module is built to operate at a temperature range of 0 to 60 degrees Celsius. Its accuracy at 25 degrees Celsius is ±0.35% of the full scale. The 1769-OF8C is shipped with an approximate weight of 0.28 kilograms, and it measures 4.65 inches x 1.38 inches x 3.43 inches.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
